Product Overview
Description

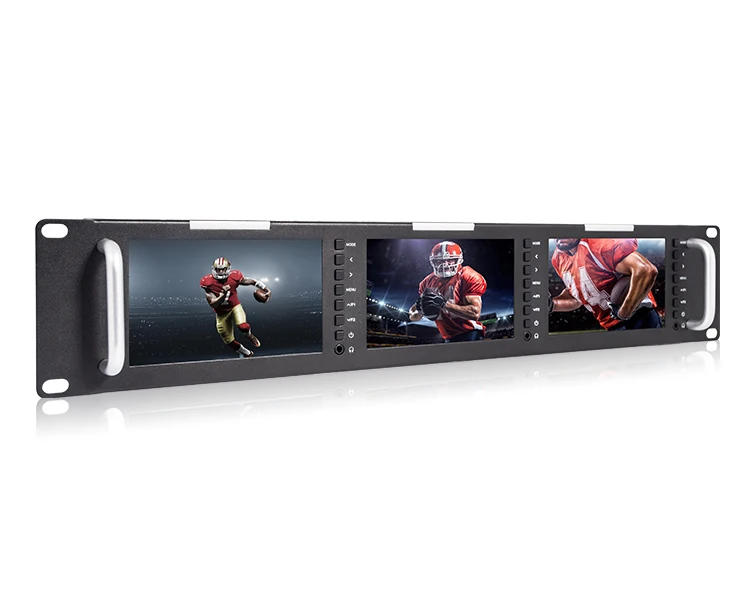

Triple 5" 2RU Rack Monitors
T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU
rack monitor.FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme
broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with
other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very
important conditions to make sure the whole system work smoothly.
5-inch 800×480 LCD
TFT Panel with LED backlight
The D51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The
viewing angle is Horizontal: 140° / Vertical: 120°.
T51 are extremely thin and lightweight.5" 2RU Rack Monitors with triple 5” 800×480 screens, viewing SD, HD and 3G-SDI video on 2RU
rack monitor.FEELWORLD Rack mount LCD monitor has been widely used in all levels of TV news production, post production, programme
broadcasting and TV broadcasting trucks, special vehicles video surveillance and other fields. Since this series is working with
other adjacent professional equipments, therefore, the high stability, high reliability and electromagnetic compatibility are very
important conditions to make sure the whole system work smoothly.
5-inch 800×480 LCD
TFT Panel with LED backlight
The D51 is made of 3× 5-inch TFT LCD panel, with 800×480 resolution and LED backlight, 500cd/m² brightness and 500:1 contrast. The
viewing angle is Horizontal: 140° / Vertical: 120°.

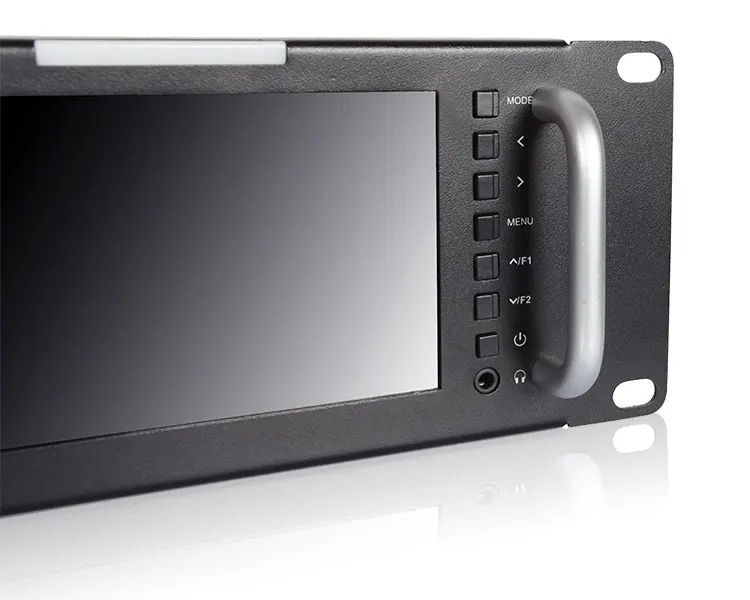

Easy to operate, time-saving
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to
know one product operation mode, you can operate the full range products, time-saving and convenient.
Consistent design style, the same function and operation mode setting is one of the features of the products. Users only need to
know one product operation mode, you can operate the full range products, time-saving and convenient.

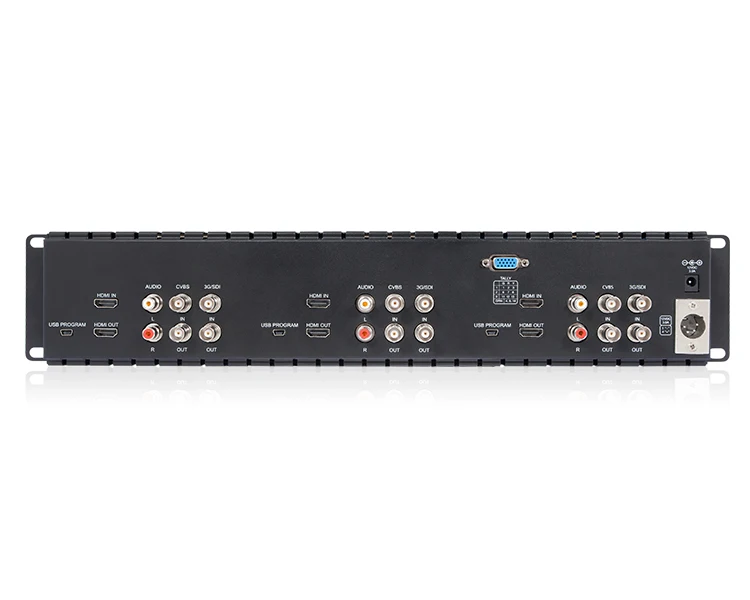

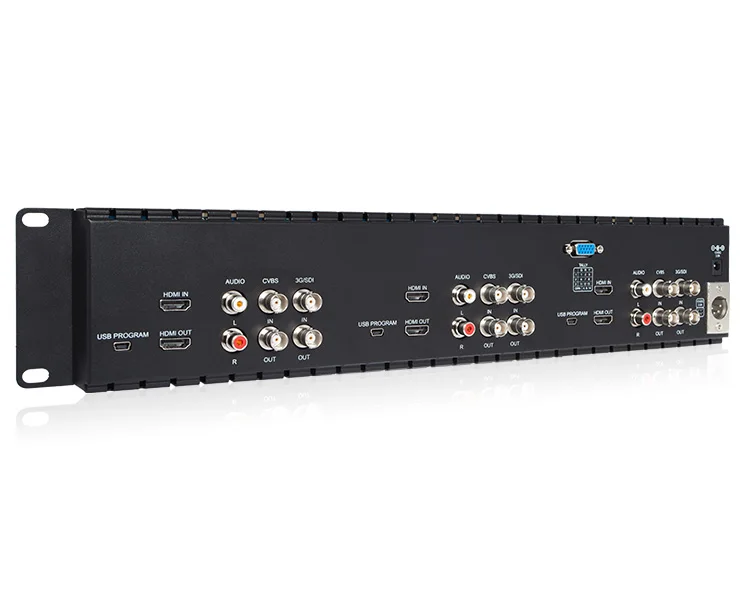

* Multiple Inputs and Outputs
SDI / HDMI / CVBS / Audio
Each LCD of T51 monitor supports:
Input:
3G-SDI X 1
HDMI X 1
CVBS X 1
Auido (L/R) X 2
Output:
3G-SDI X 1
HDMI X 1
CVBS X 1
Audio:
Stereo Headphone
SDI / HDMI / CVBS / Audio
Each LCD of T51 monitor supports:
Input:
3G-SDI X 1
HDMI X 1
CVBS X 1
Auido (L/R) X 2
Output:
3G-SDI X 1
HDMI X 1
CVBS X 1
Audio:
Stereo Headphone

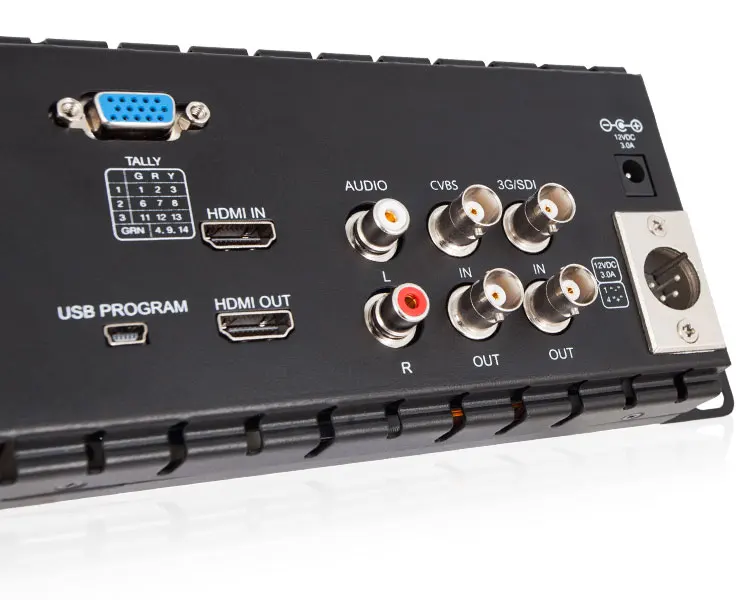

* 3-color Tally Light
DB-15 input signal
There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the
rear panel.
DB-15 input signal
There are front TALLY lights for each screen, with 3 colors display (Red,Green,Yellow), and controlled via DB-15 ports on the
rear panel.
