Fish Shrimp Farming Online Digital Dissolved Oxygen DO Meter Water Aquaculture Analyzer
- Category: >>>
- Supplier: Yantai Chemins Instrument Co. Ltd.
Share on (1600735376361):
Product Overview
Description

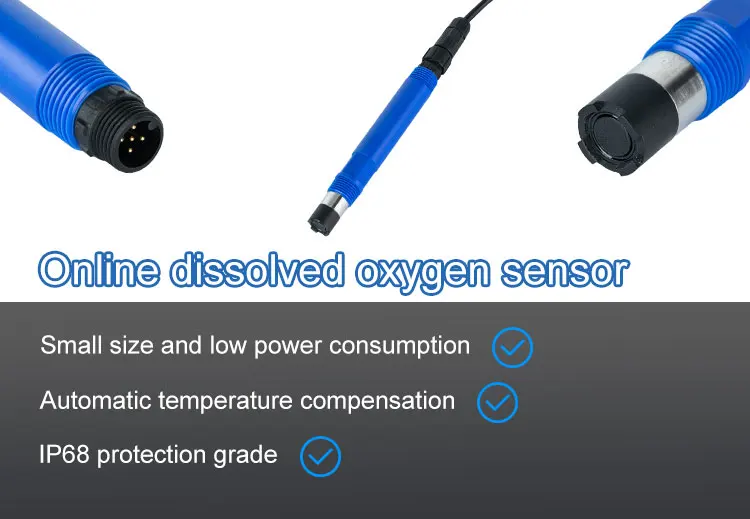

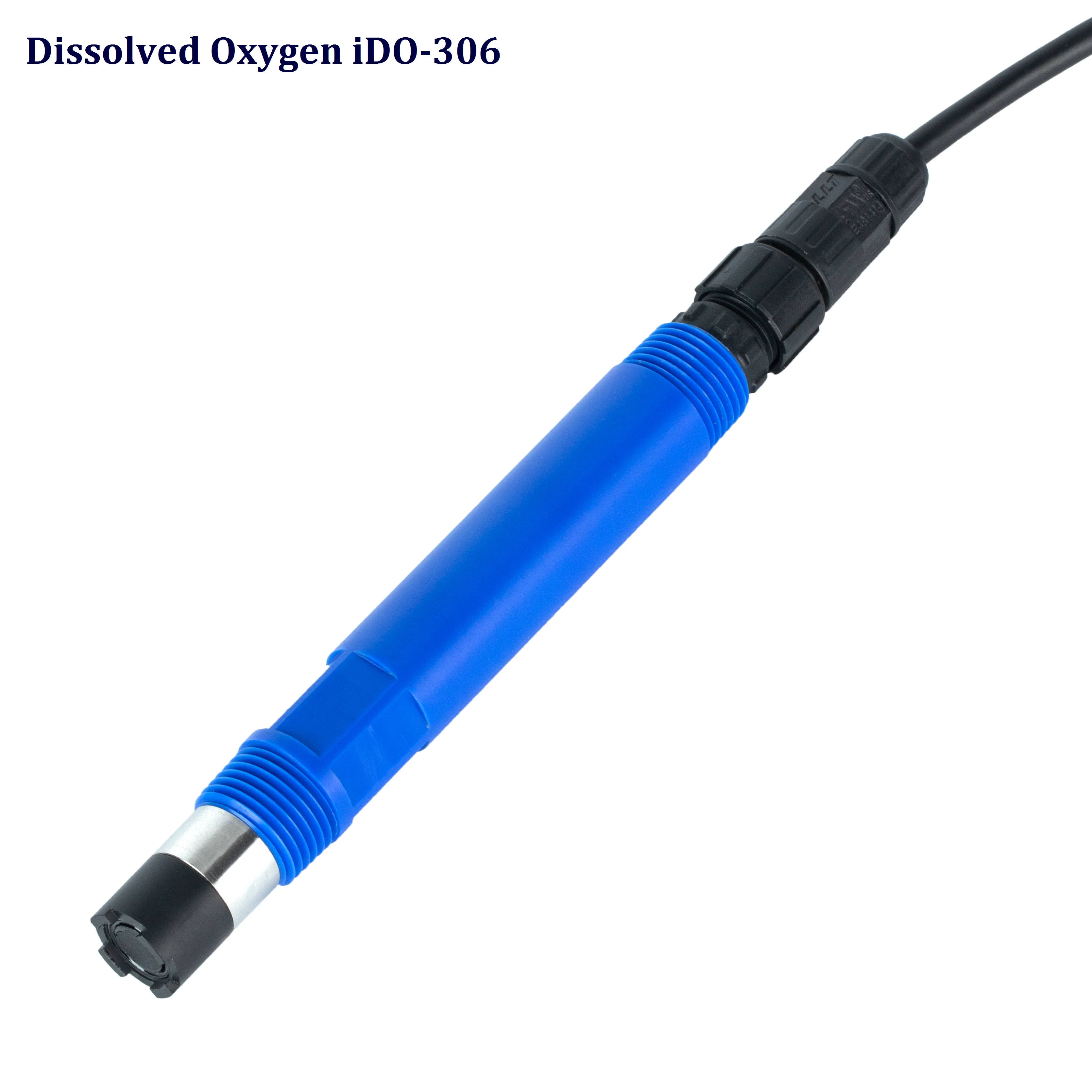

iDO-306 Online Fluorescence Dissolved Oxygen Sensor
iDO-306 Online integrated sensor is a luminescent dissolved oxygen physics of substances on the principle of excitation fluorescence quenching made based on the design. Blue light emitting diode (LED) in the emitted fluorescent substance on the fluorescent surface of the cap, the inner surface of the fluorescent substance is excited, emitting red light, by detecting the phase difference between the red and blue, and comparison with the internal calibration value to calculate the concentration of oxygen molecules, the temperature-compensated output automatically final value.
1、Without electrolyte, the polarization will not polarization
2、Without consuming oxygen, without affecting the flow rate
3、Built-in temperature sensor, automatic temperature compensation
4、nterference is not sulfide and other chemicals
5、Drift is small, fast response, more accurate measurement
6、Maintenance-free, long life cycle, the use of lower cost

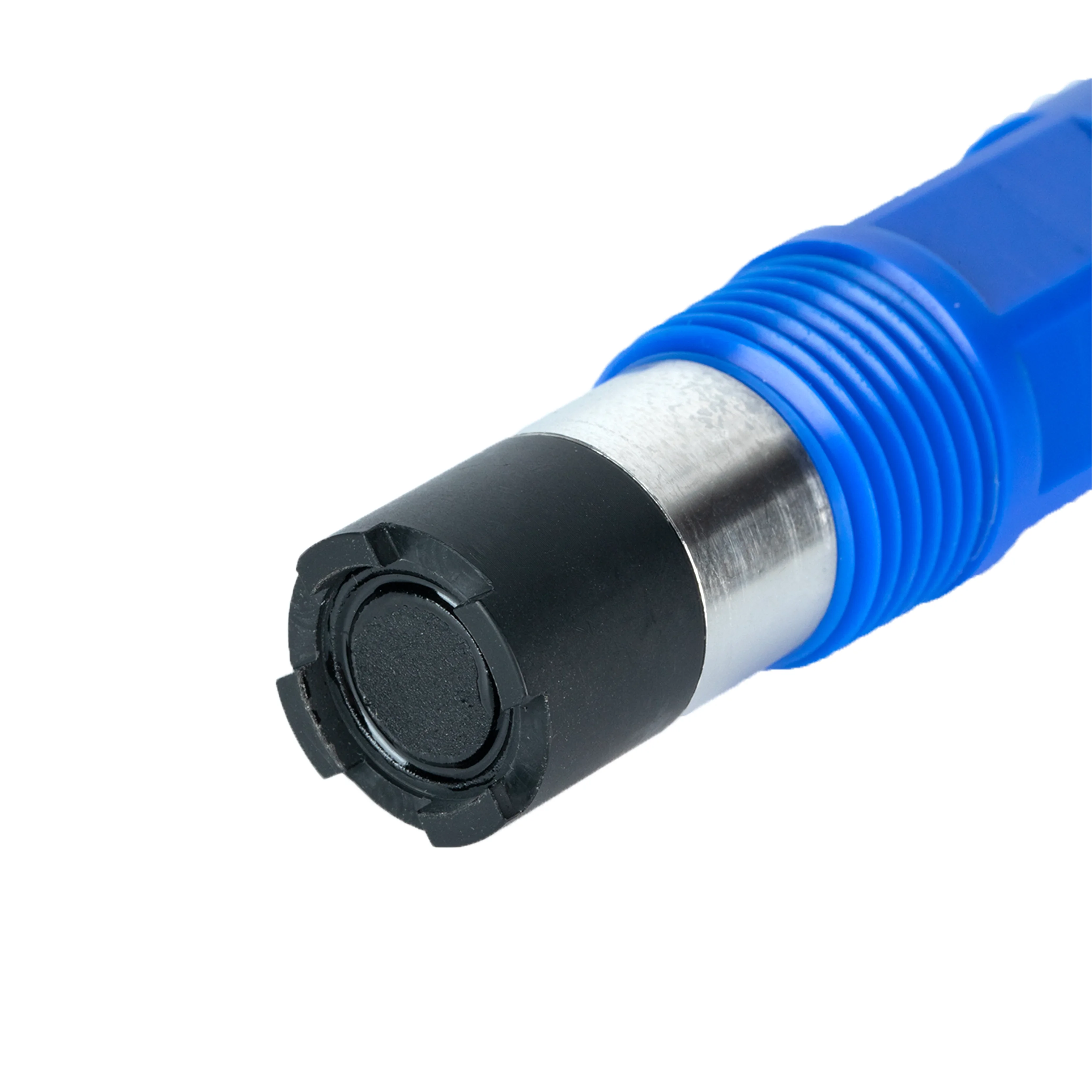

7、Fluorescent cap replacement is simple
8、RS-485 interface, Modbus-RTUprotocol
1、Without electrolyte, the polarization will not polarization
2、Without consuming oxygen, without affecting the flow rate
3、Built-in temperature sensor, automatic temperature compensation
4、nterference is not sulfide and other chemicals
5、Drift is small, fast response, more accurate measurement
6、Maintenance-free, long life cycle, the use of lower cost
7、Fluorescent cap replacement is simple
8、RS-485 interface, Modbus-RTUprotocol
Products Description
Specification
Model | iDO-306 |
Measuring principle | Fluorescence |
Measuring range | 0-20mg/L （0-200%Saturation 25℃） |
Resolution | 0.01mg / L, 0.1 ℃ |
Accuracy | ± 2% FS, ± 0.5 ℃ |
Temperature compensation | Automatic temperature compensation ( Pt1000) |
Output method | RS-485 bus, Modbus-RTU protocol |
Working conditions | 0 ~ 45 ℃, <0.2MPa |
Storage temperature | -5 ~ 65 ℃ |
Installation | Immersion installation |
Cable length | 5 meters, Other lengths can be customized |
Power | 0.1W@12V |
Power supply | 12～24VDC |
Protection class | IP68 |
Calibration | Two-point calibration |
Fluorescence lifetime cap | Guarantee for one year (normal use) |
Sensor housing material | POM And 316L stainless steel |
