Construction Hydraulic Vibratingt Andem Road Roller 2 Ton 3 Ton 5 Ton Compactor Machine Road Roller
- Category: >>>
- Supplier: Jining Hengwang Construction Machinery Co. Ltd.
Share on (1600735377140):
Product Overview
Description
Product Overview

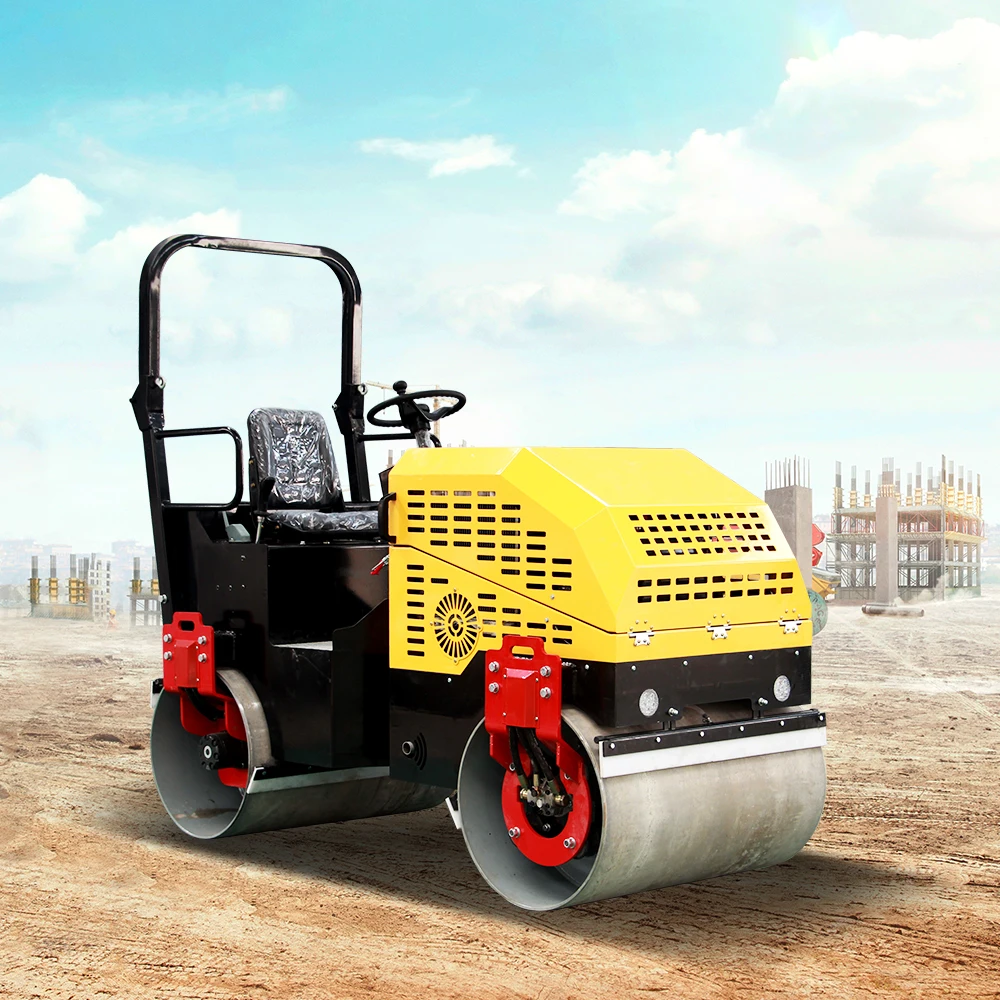

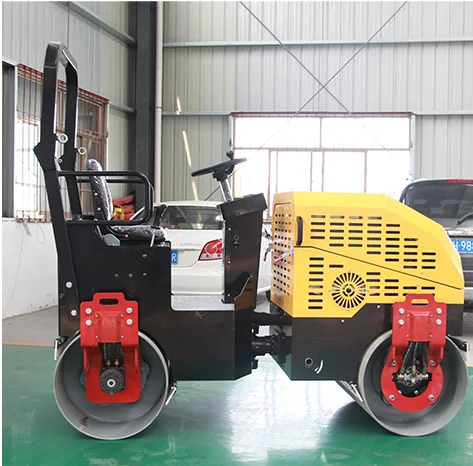

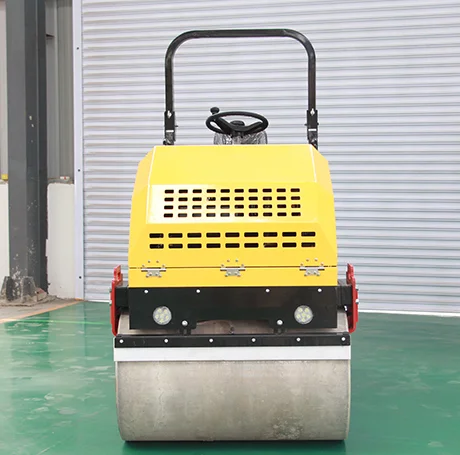

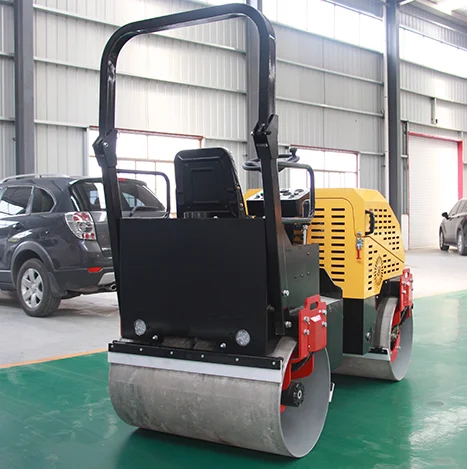

2T Road Roller
The 2 Tons full hydraulic roller is a double steel wheel vibratory roller;
Integration of domestic and foreign advanced technology, strong power and superior performance; The 2 Tons vibratory roller is composed of frame, front wheel, rear wheel, power system, control system, hydraulic system,electrical system, sprinkler system, mud scraping system, paint and marking, anti-rolling frame and other parts. The machine is two-wheel drive, while the front wheels are steering wheels, and the rear wheels are vibrating wheels. It is easy to operate, safe and reliable. The frame adopts an articulated frames structure, which makes the width of the steel wheels larger than the width of the fuselage, and can be as close as possible to the curb for compaction operations without pressure leakage or crushing. The hydraulic system adopts international famous brand hydraulic components, which has high transmission efficiency and reliable quality. The machine has a three-stage braking system to ensure safe and reliable driving.
Integration of domestic and foreign advanced technology, strong power and superior performance; The 2 Tons vibratory roller is composed of frame, front wheel, rear wheel, power system, control system, hydraulic system,electrical system, sprinkler system, mud scraping system, paint and marking, anti-rolling frame and other parts. The machine is two-wheel drive, while the front wheels are steering wheels, and the rear wheels are vibrating wheels. It is easy to operate, safe and reliable. The frame adopts an articulated frames structure, which makes the width of the steel wheels larger than the width of the fuselage, and can be as close as possible to the curb for compaction operations without pressure leakage or crushing. The hydraulic system adopts international famous brand hydraulic components, which has high transmission efficiency and reliable quality. The machine has a three-stage braking system to ensure safe and reliable driving.
PRODUCT SPECIFICATIONS
Specification of 2T Road Roller | ||
Model | HW-2.0T | |
Working weight (kg) | 2000 | |
Exciting force (kN) | 35 | |
Amplitude (mm) | 0.6 | |
Walking speed (km/h) | 0-8 | |
Grade ability(%) | 30 | |
Vibration frequency (Hz) | 70 | |
Dimensions (mm) | 2200×1200×1580 | |
Steel wheel size (mm) | Φ560*1000*2 | |
engine model | Changchai / Changfa 192/Hummer L15 | |
Engine power (HP) | 25 | |
Static line load (N/cm) | 57 | |
Drive method | Double drive hydraulic rotation | |
Vibration mode | Full hydraulic | |
Walking style | Bidirectional hydraulic single vibration | |
Start method | Hand pull/electric start | |
Water tank volume (L) | 90 | |
Hydraulic oil tank volume (L) | 20 | |
OUR ADVANTAGES
Product Paramenters
SALES AND SERVICE NETWORK
Successful Project
Company Profile
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
