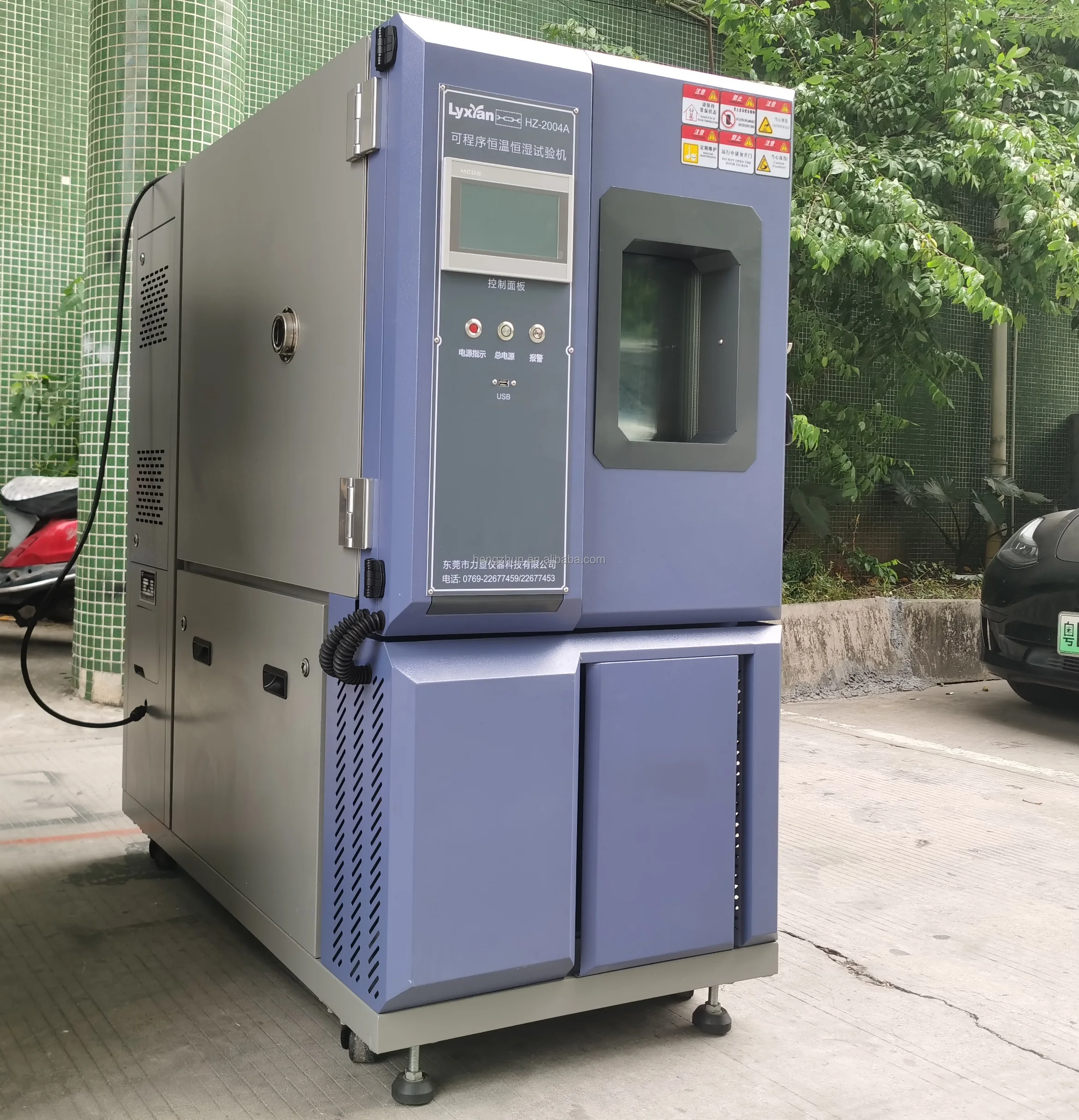

Frequency Conversion Programmable Environmental Lab JESD22 A119 Method Manufacturing Climatic Temperature Humidity Test Chamber
- Category: >>>
- Supplier: Dongguan Lixian Instrument Scientific Co. Ltd.
Share on (1600735406301):
Product Overview
Description
Product Description

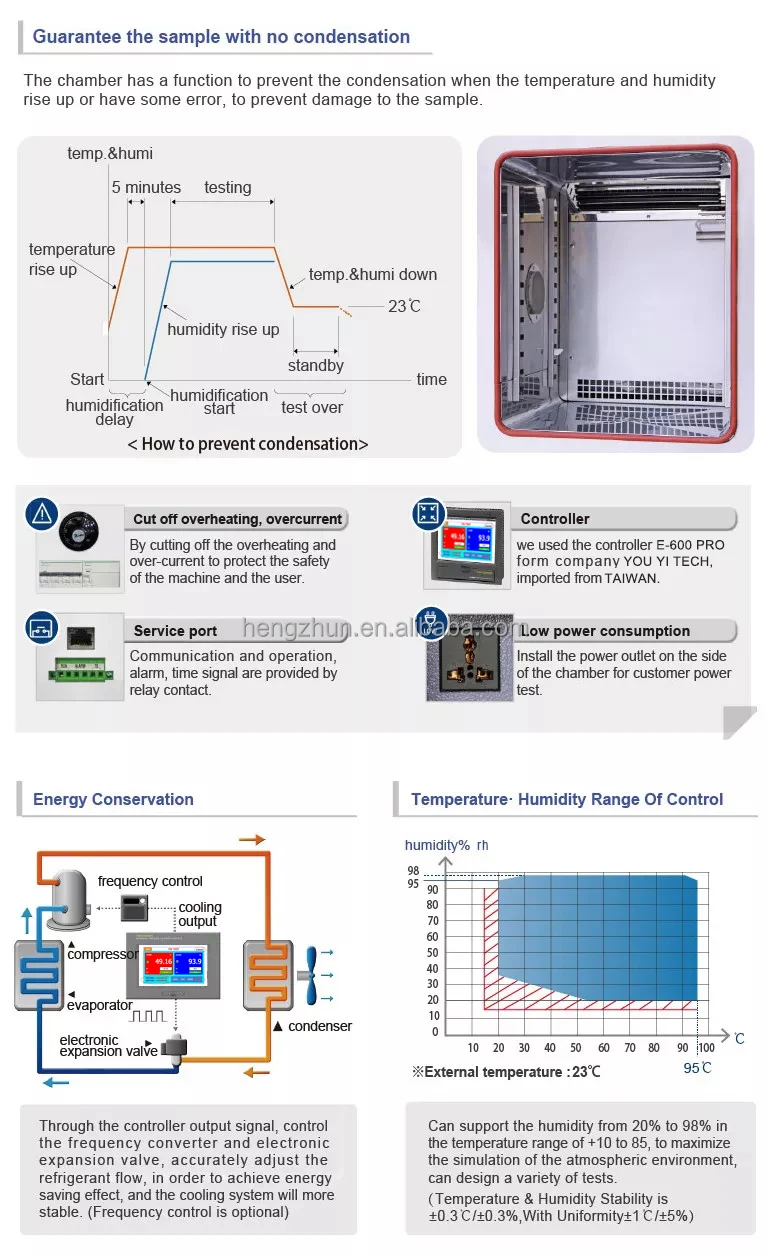

Frequency conversion
Frequency conversion constant temperature and humidity compressor, use the frequency converter to change the pressure to output
power, set according to the needs of use Fixed temperature, cooling capacity can be adjusted, heating capacity can also be adjusted Adjustment, no need to cool and heat at the same time, greatly reducing energy consumption, so as to achieve the purpose
of saving electricity.
power, set according to the needs of use Fixed temperature, cooling capacity can be adjusted, heating capacity can also be adjusted Adjustment, no need to cool and heat at the same time, greatly reducing energy consumption, so as to achieve the purpose
of saving electricity.
Save Energy
1.DC frequency conversion technology 2.Controller independent innovation Energy 3.saving and power saving: power saving between 30% and 50%.

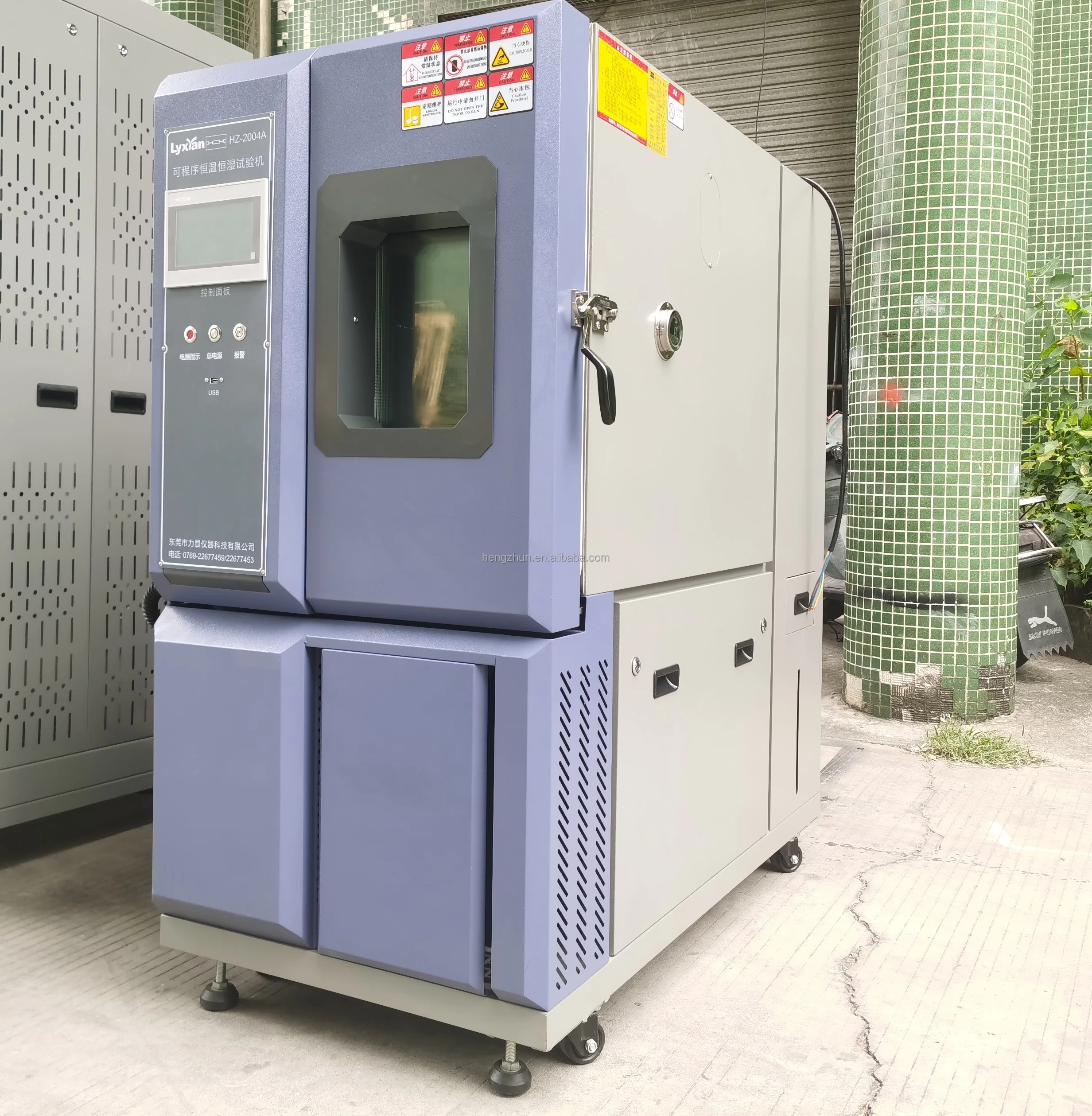

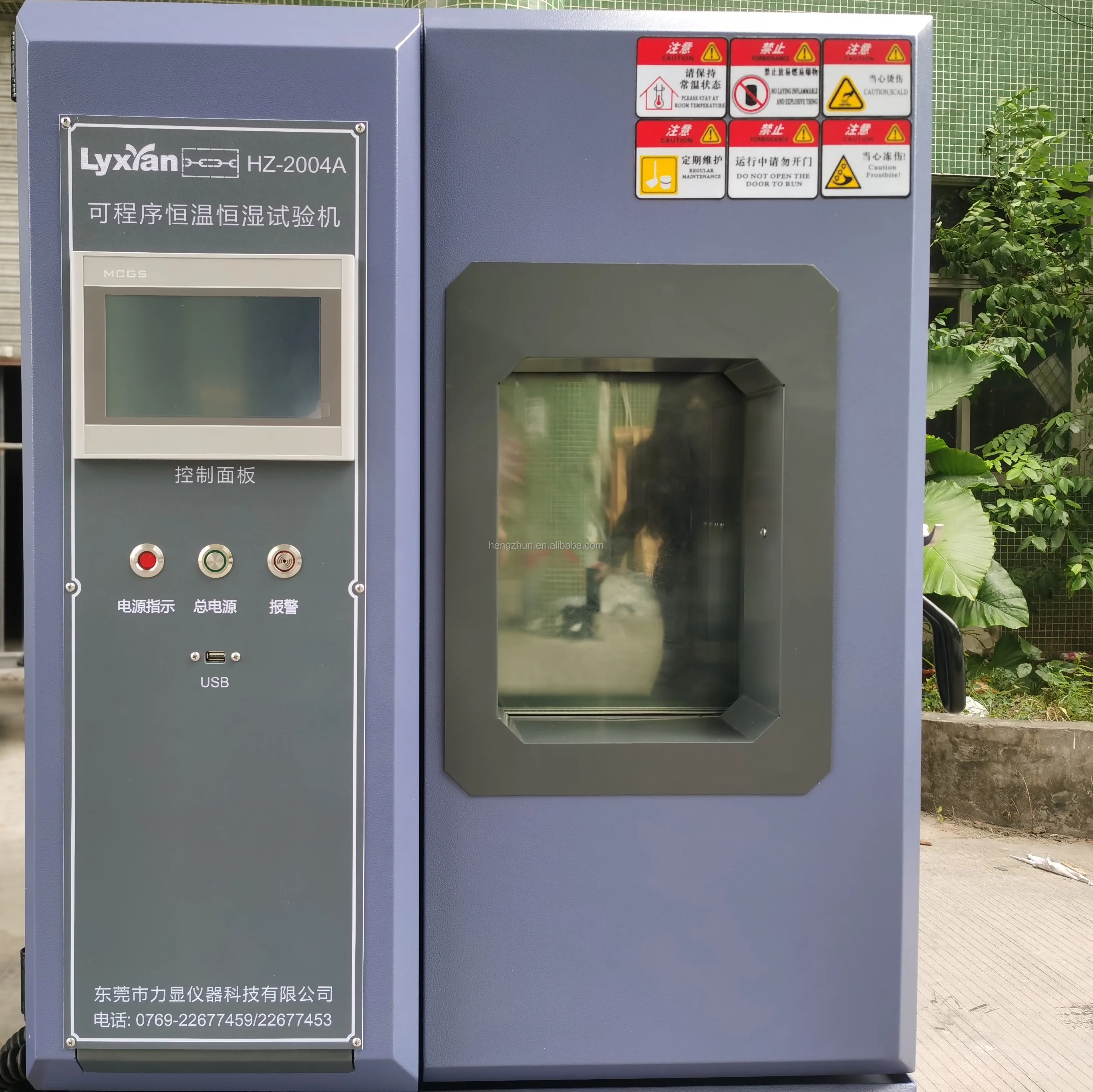

Programmable constant temperature and humidity testing machine
Constant Humidity Temperature Chamber is applied to test the materials in heat-resistance, cold-resistance, dry-resistance, moisture-resistance. It is simple to operate and program easy to edit. It can show the set values and operative time.
Specification
Model Number | HZ-2004 |
Power | Electronic |
Temperature and humidity | Custom |
Outer case material | SUS#304 stainless steel |
Temperature range | -70°C ~ 150°C |
Testing room size | customized type |
Power | AC 220V 50/60HZ |

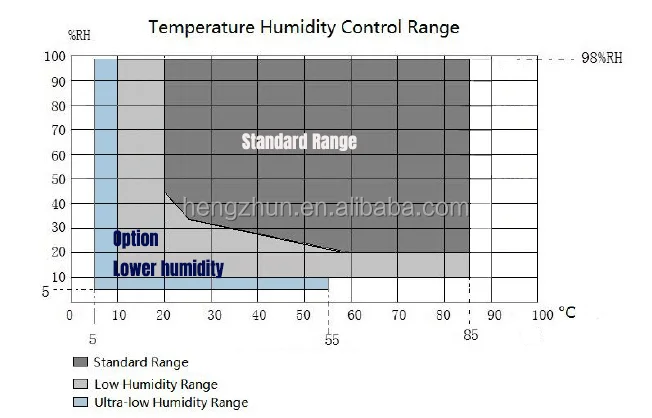

Humidity range | 20%~98%RH |
Controller | PLC touch screen |
Certification | Rohs/CE/ISO |

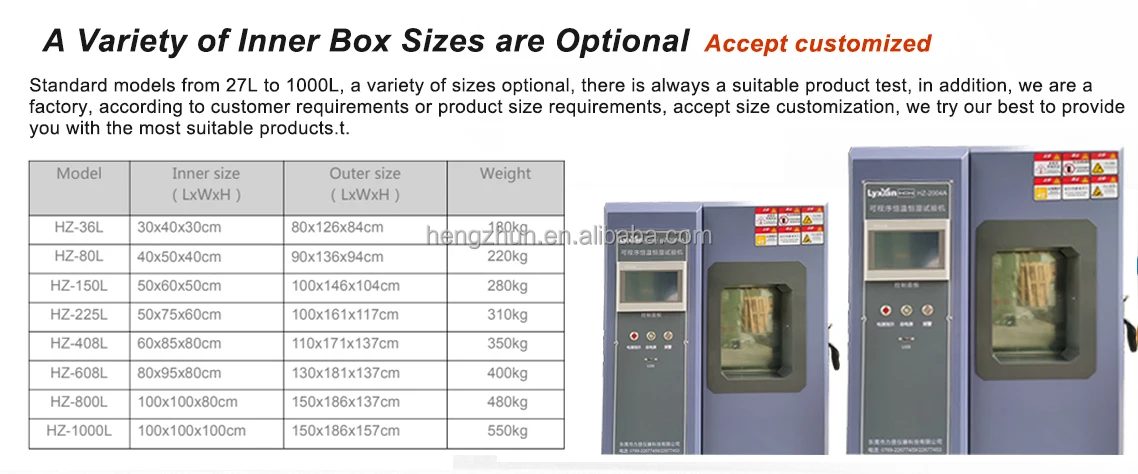

Inside size WxHxD (cm) | 40*40*50~100*100*100( Based On Customer Requirements ) |
Heating / cooling time | About 4.0/min(heat),about 1.0/min(cool) |
Corresponding standard：
1.International Electrotechnical Commission Standard:
IEC68-2-03_test method Ca_Steady damp-heat
IEC68-2-01_test method A_cold
IEC68-2-02_test method B_dry heat
2. Military Standards:
MIL-STD-810F-507.4 humidity
MIL-STD-810F-501.4 high temperature
MIL-STD-810F-502.4 low temperature
MIL-STD883C test method 1004.2 temperature and humidity cycling test
MIL-STD810D test method 502.2
MIL-STD810 test method 507.2 procedure 3
3. Japanese Industrial Standard:
JIS C60068-2-3-1987 test method Ca: Steady damp-heat
JIS C60068-2-2-1995 test method B:dry heat
JIS C60068-2-1-1995 test method A:low temperature
4. USA Semiconductor Industry Standard:
JESD22-A101-B-2004 Constant temperature and humidity test
JESD22-A103-C-2004 High Temperature Storage Test
JESD22-A119-2004 Low Temperature Storage Test
Configuration and function of software

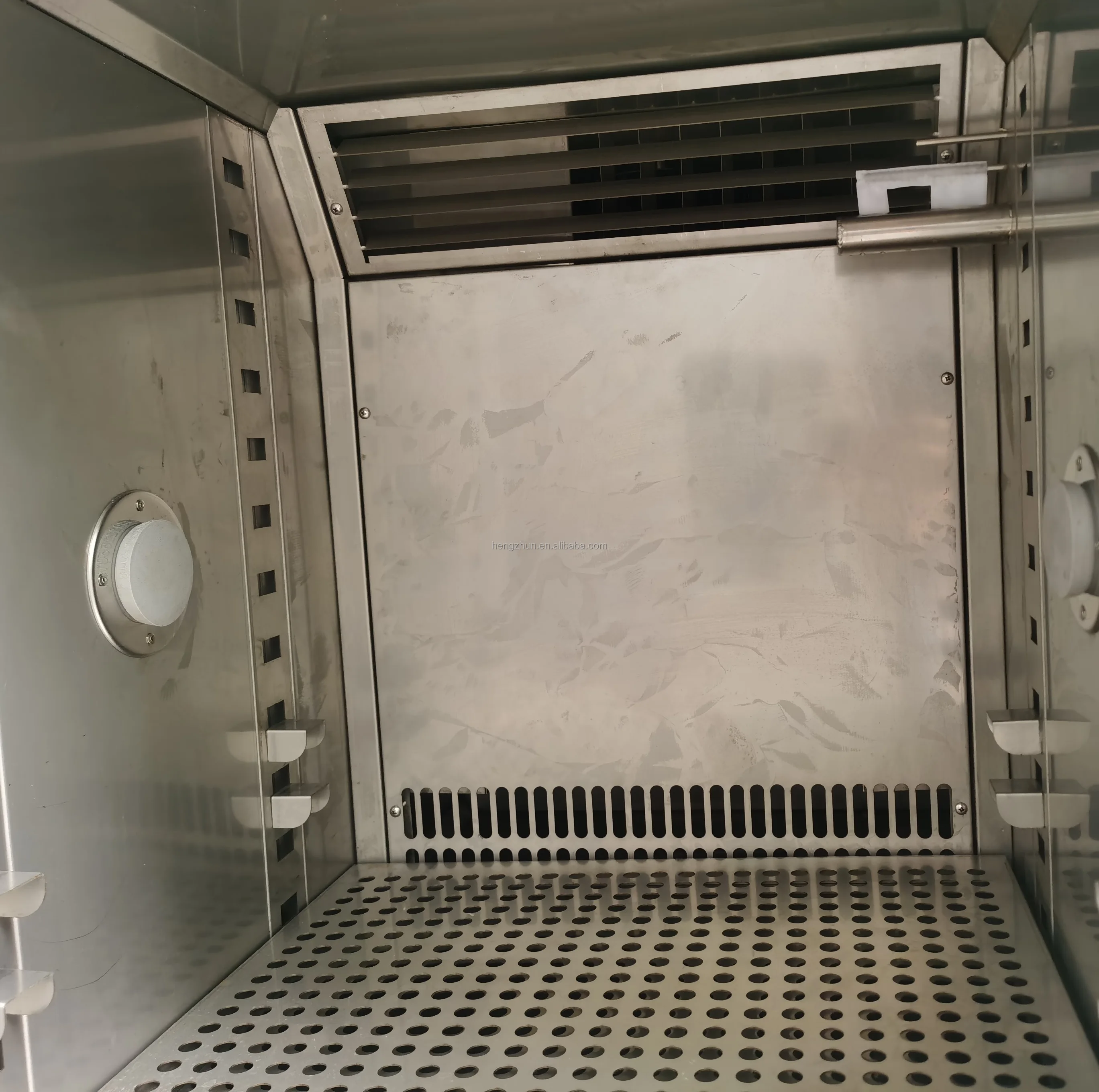

Wind circulative system
1. Using multi-wing centrifugal Rewind fans, strengthen the axis is made of aluminum alloy in order to attain loop forced convection. 2. Stainless steel added long axis. 3. Stainless Steel Multi-blade centrifugal wind whee.

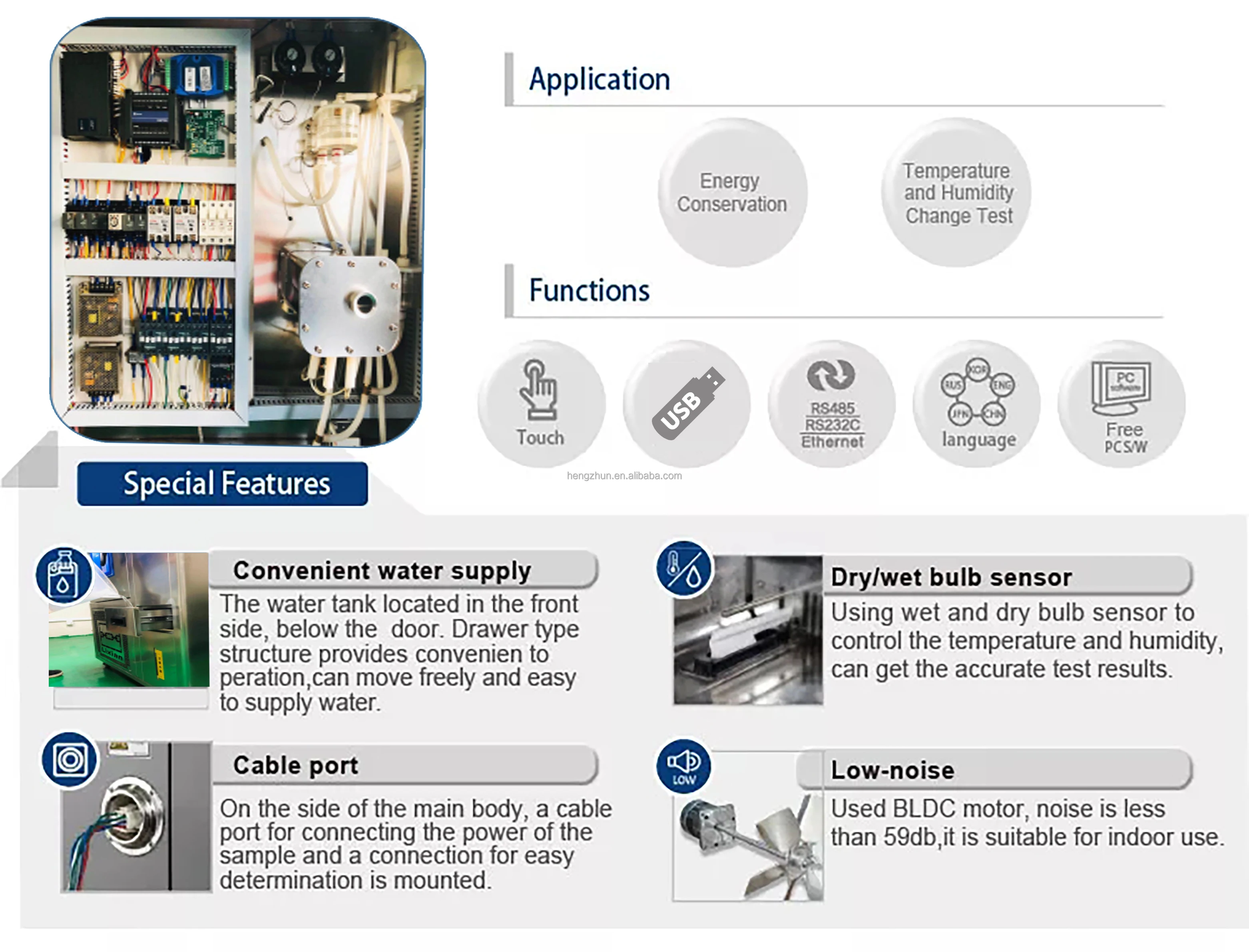

Water Supply system
1. with water tank at the back 2. automatically supply water 3. warning for the shortage of water

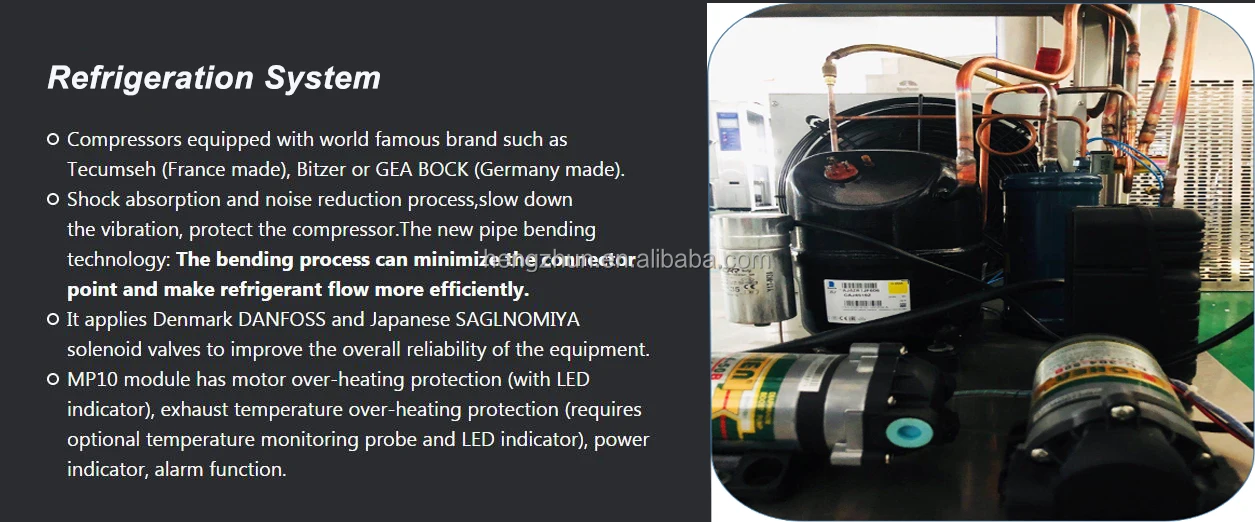

Cooling system (diego-style, single machine, refrigerator)
1. Compressor: France “Taikang” Hermetic Refrigeration Compressor TFHK2522K two unit
2. Refrigerator:Air-cool condenser coil
3. Evaporator: pomfret Chip Multi-Segment
4. Other Accessories: Imported desiccant cooling, Freon-borne window, the U.S. oil-water separator
5. Expansion System: Italian expansion valve

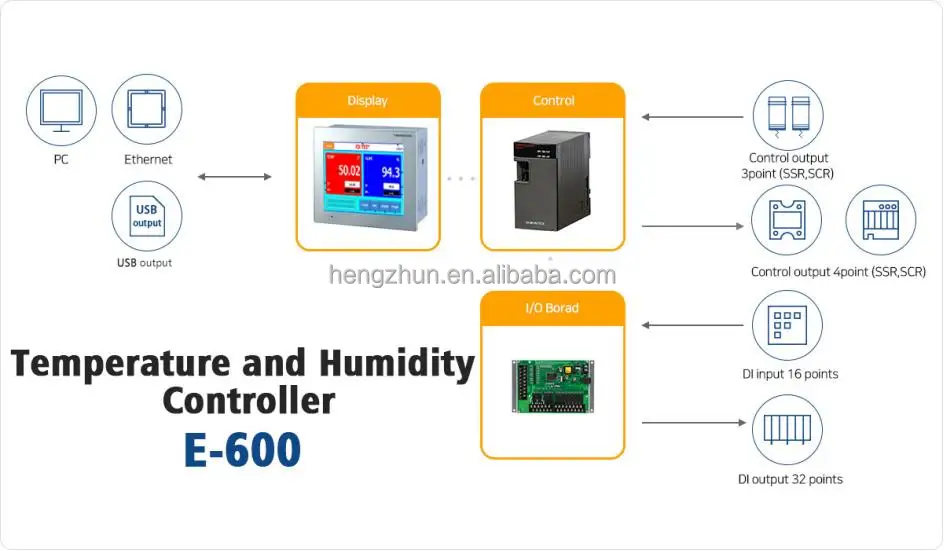

Temperature and humidity control system
1.Control Specifications: Original South Korea TEMI880 color LCD touch screen in English and Chinese Accuracy: ±0.5 ℃±1% R.H, Resolution: 0.1 ℃ 1% R.H
2. Functions can accommodate memory 999 program, optional single-stage control or multi-segment program control, operating as a functional form model, can be directly programmed and solid curve of function and the RS-232 communication interface.

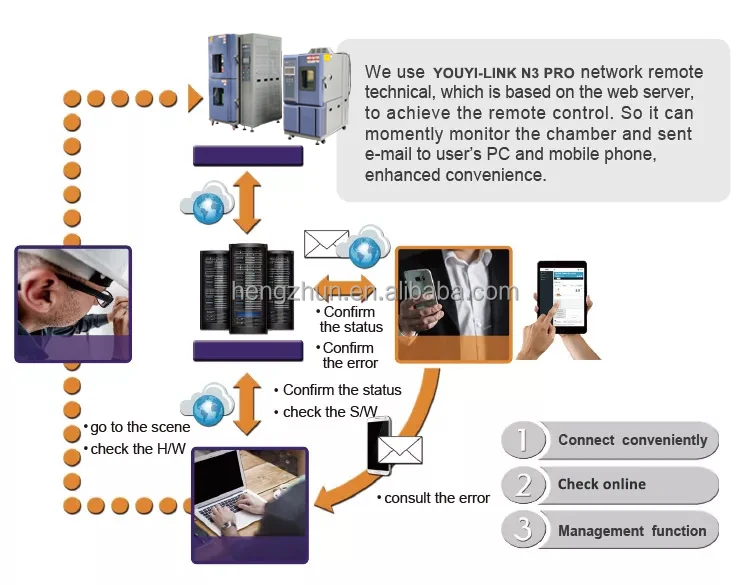

3.connect with computer, directly monitored by the computer to operate program, it also records temperature data and print! (Need anther purchase)

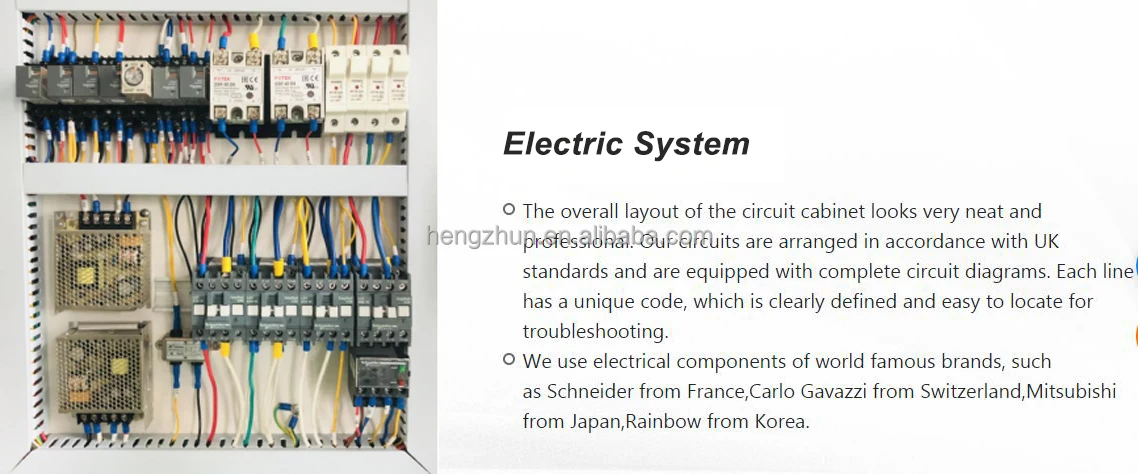

4.The main components of the system is equipped with a safe inspection and interface devices, when an fault occurs, immediately through the LCD to display fault status and cut off the power
5.With the cumulative operating time, display the run time

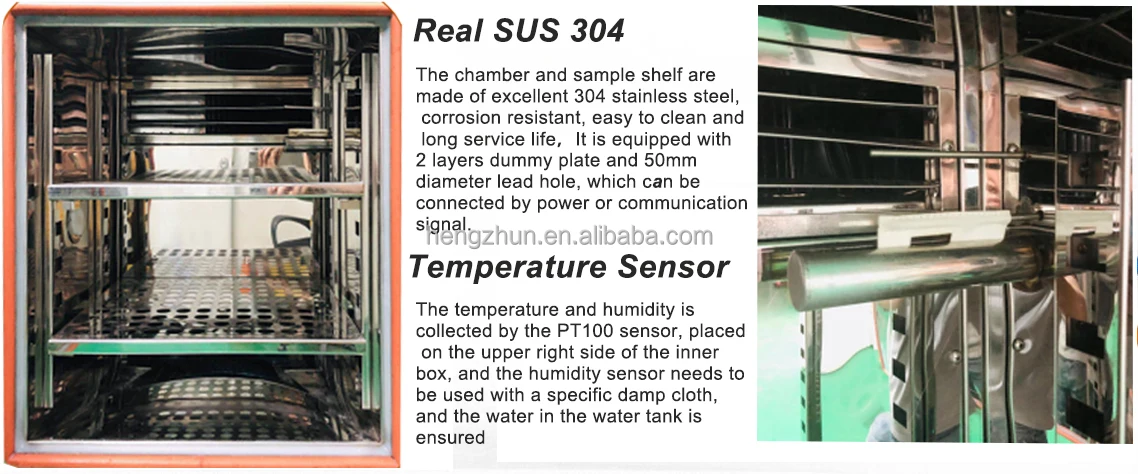

6.Sensor: PT100 Sensor
7.Temperature and humidity control diagram attached
