High Performance Competitive Price Tungsten Carbide Granules
- Category: >>>
- Supplier: Zhuzhou Hezhi Metal Materials Co. Ltd.
Share on (1600735434838):
Product Overview
Description
Product Overview
Product Description

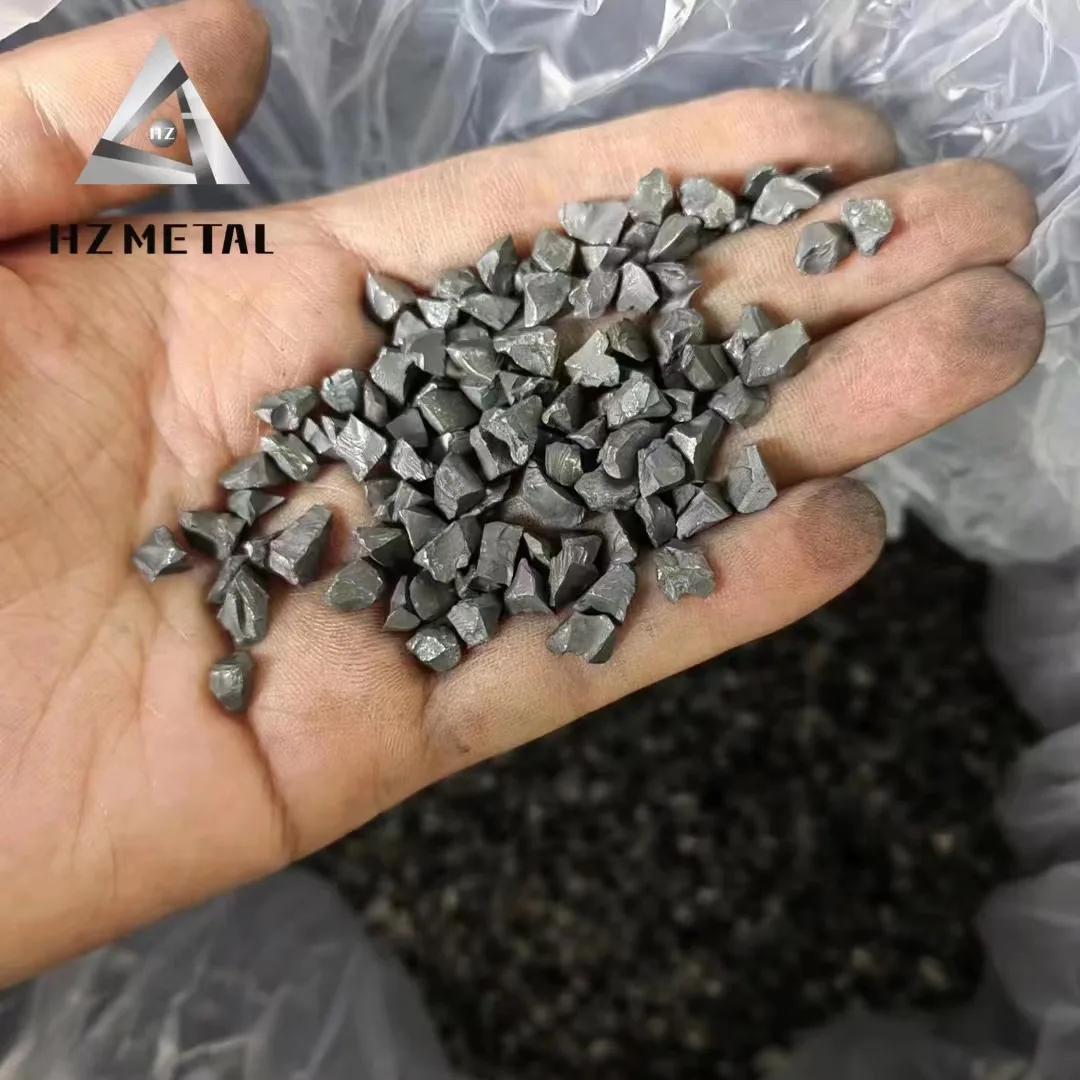

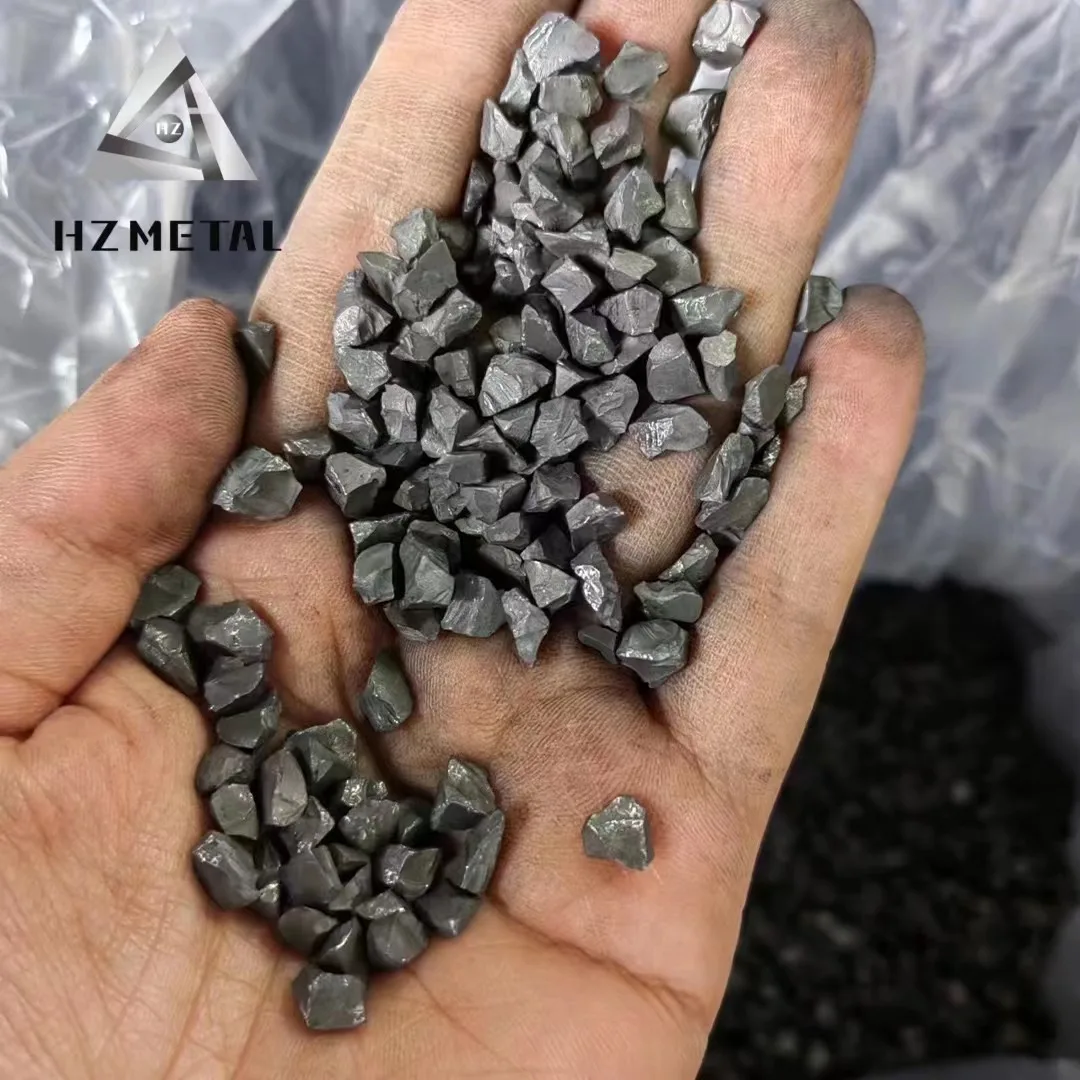

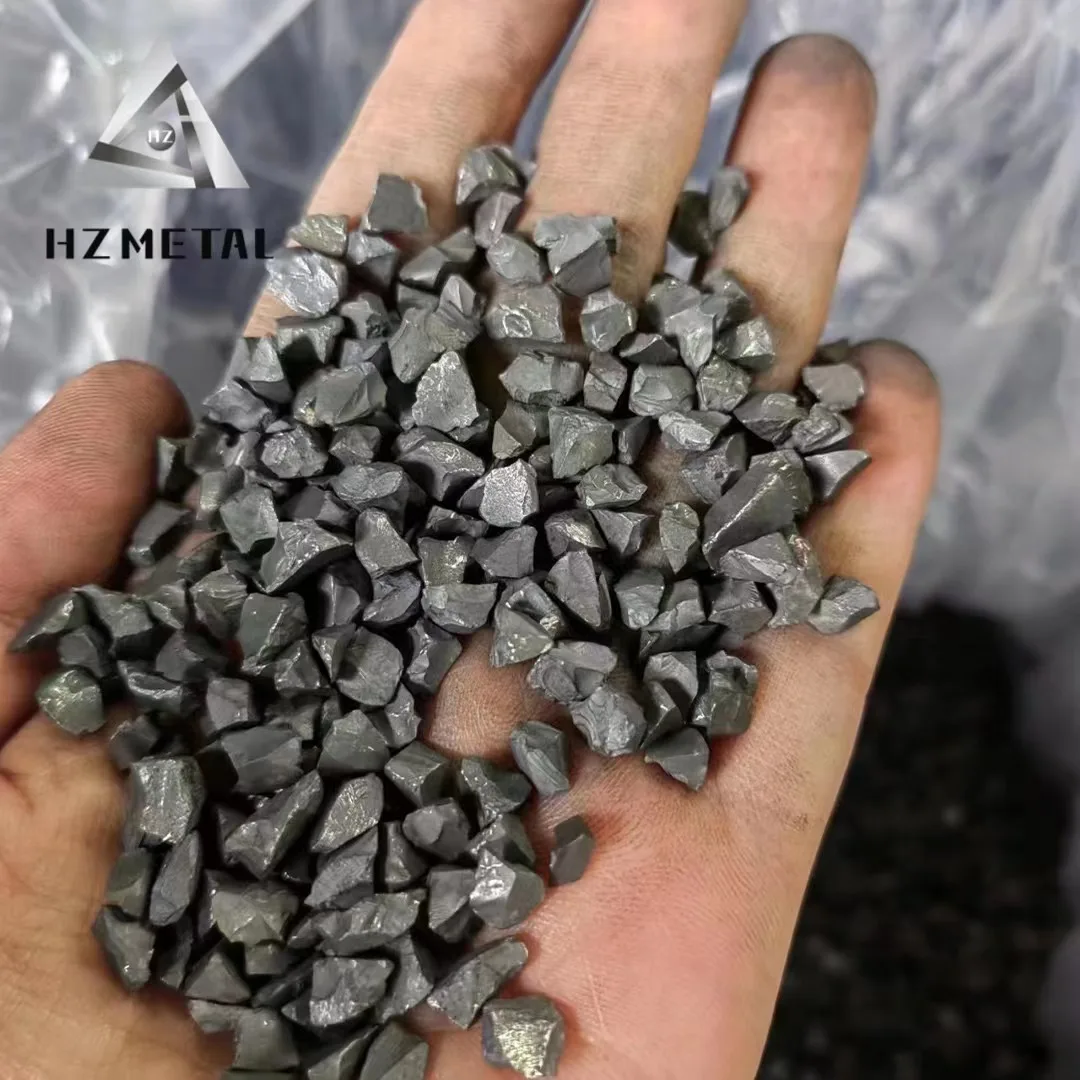

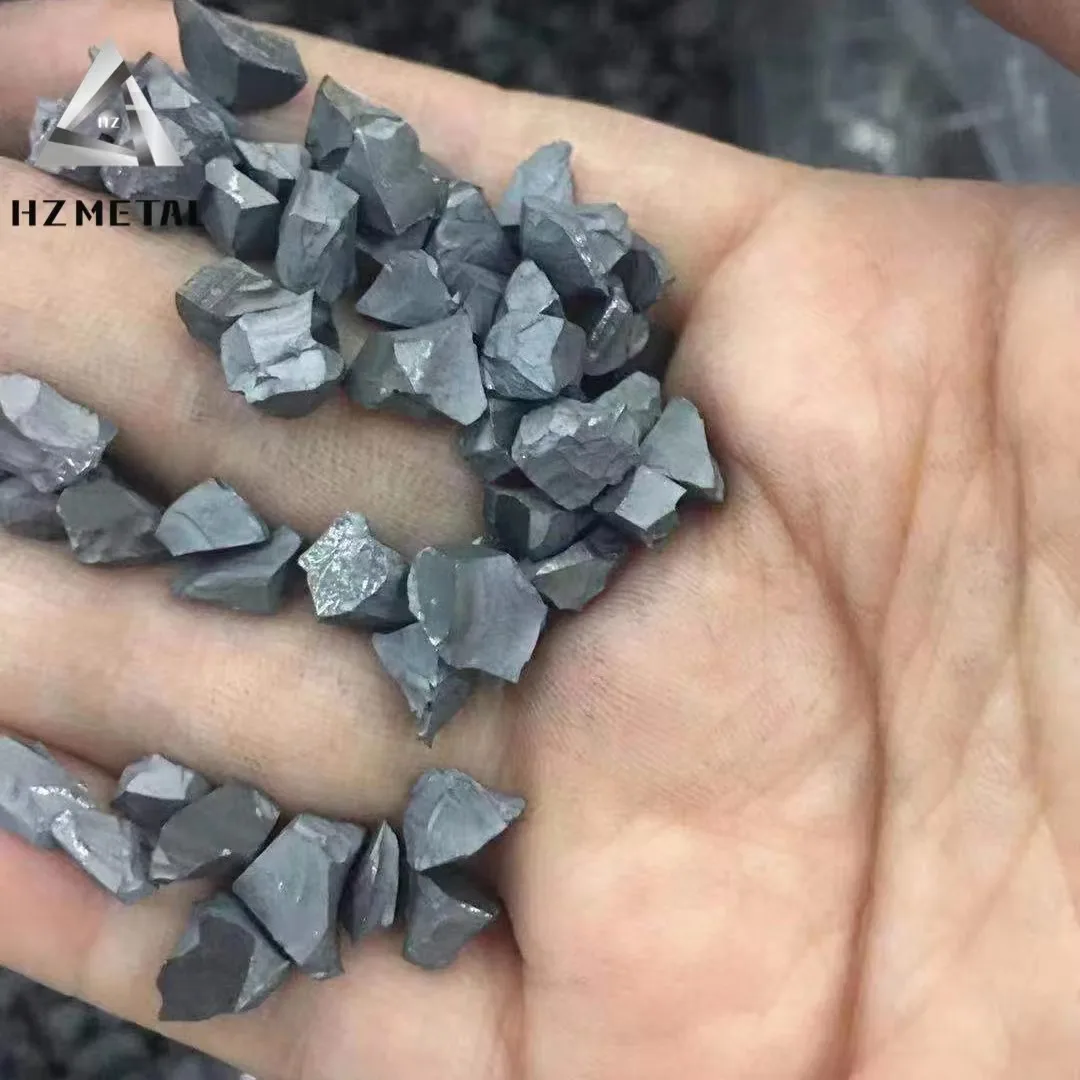

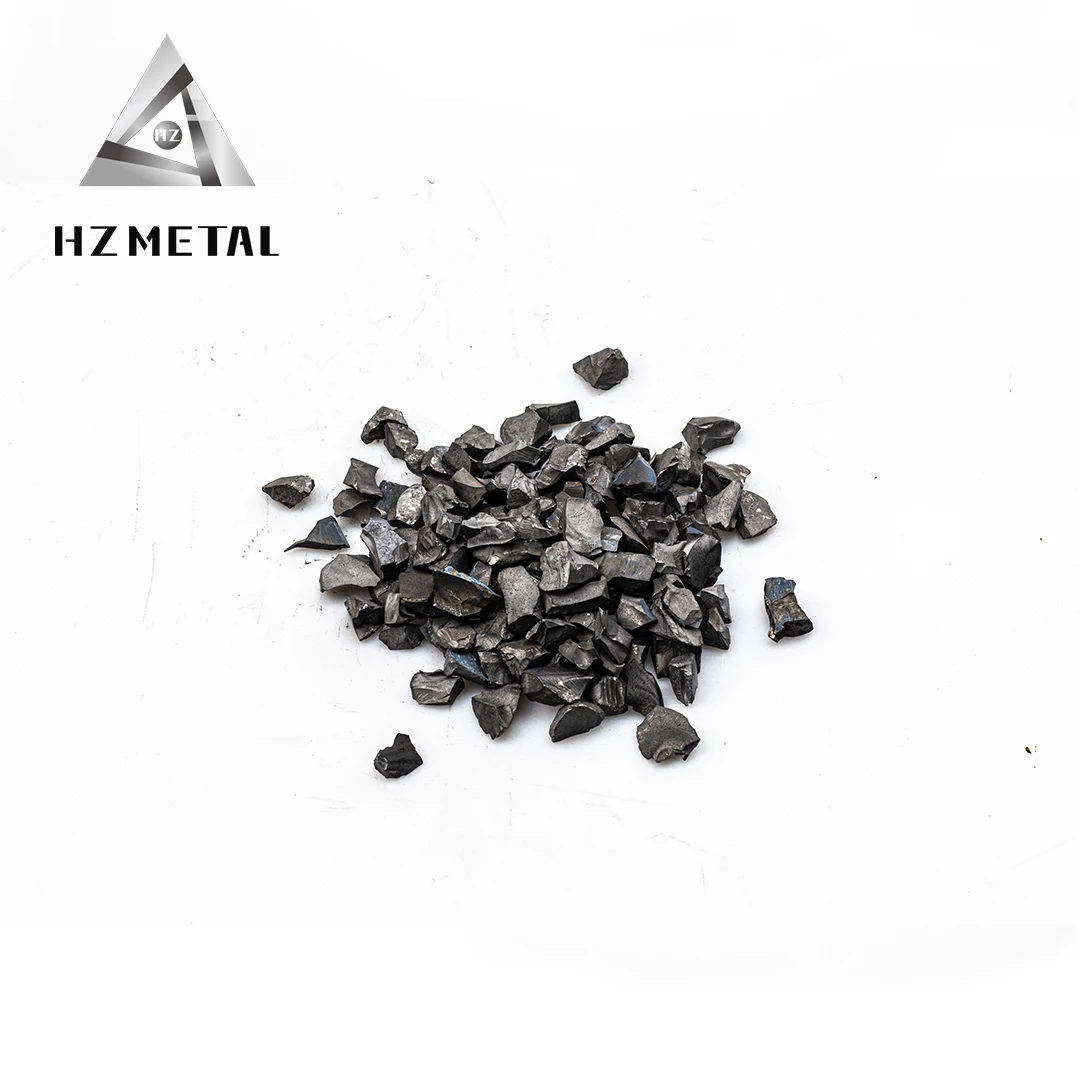

Tungsten carbide grit provides long lasting wear protectiom in area of high abrasive wear. It’s used to protect costly parts such as bulldozer blades, bucket teeth, wood grinding hammers, trencher teeth, and a wide variety of other consumable components.
Tungsten carbide grit is an efficient means of protecting machinery and machinery parts by providing a significant increase in the longevity of those parts. This decreases downtime and reduces the cost involved with unprotected parts.
Tungsten carbide grit, also called crushed carbide grit, first, It is crushed by of 100%YG8 hard alloy diamond hammer ,second, the different size particles screened by through different mesh specifications,third, the unqualified shapes are picked out by human hand.
It is used for welding or welding to the steel body, in order to improve the wear resistance..For example, if a steel cutter the service life only have 48 hours without welding tungsten carbide particles, But, If you welding this tungsten carbide particle to the steel cutter It will increase service life to 480 hours.
Detail drawing
Clear picture
Flux is charged extra
Good raw material. Crushing only scrapped carbide anvil grade YG8.
PRODUCT SPECIFICATIONS
100% Pure YG8 Material of tungsten carbide particle | ||||||||||
Grade | ISO | Density (g/cm³) | TRS (N/mm²) | Hardness (HRA) | Application | |||||
YG8 | K20 | 14.7 | 1900 | 89-92 | Small size used for wear-resistant application and Big size used for cutting application. | |||||
Hot size | ||||||
Item | inches | Millimeters | Application | |||
1 | 1.6~3.2mm | 1/16"~1/8" | wear application | |||
2 | 3.2~4.8mm | 1/8"~3/16" | wear application | |||
3 | 4.8~6.4mm | 3/16"~1/4" | cutting application | |||
4 | 6.4~8.0mm | 1/4"~5/16" | cutting application | |||
5 | 8.0~9.5mm | 5/16"~3/8" | cutting application | |||
Small size | ||||||
Item | inches | Application | ||||
1 | 12-20 mesh | wear application | ||||
2 | 20-30 mesh | wear application | ||||
3 | 30-40 mesh | wear application | ||||
4 | 40-60 mesh | wear application | ||||
5 | 60-80 mesh | wear application | ||||
Product application
The tungsten carbide grits is suitable for hard facing material.
1 mesh to 12 mesh: used for wear-resistance electrode and mace electrode;
10 mesh to 60 mesh: used for saw blade or play a role of wear-resisting welding in the metal surface.
1)Ceramic, metal lapping, and polishing applications
2) Slicing of silicon carbide wafers
3) Rock and stone polishing and engraving
4) Slicing, lapping,and polishing glass and germanium wafers
5) Lapping of piston rings and gears
6) Grinding of nonferrous materials
7) Finishing tough and hard materials
8) Bonded abrasive tool applications
9) Glass etching and glass carving industries
1 mesh to 12 mesh: used for wear-resistance electrode and mace electrode;
10 mesh to 60 mesh: used for saw blade or play a role of wear-resisting welding in the metal surface.
1)Ceramic, metal lapping, and polishing applications
2) Slicing of silicon carbide wafers
3) Rock and stone polishing and engraving
4) Slicing, lapping,and polishing glass and germanium wafers
5) Lapping of piston rings and gears
6) Grinding of nonferrous materials
7) Finishing tough and hard materials
8) Bonded abrasive tool applications
9) Glass etching and glass carving industries
Product application
Product application
Product application
Our advantages
1) High thermal conductivity rating of 100 W/m-k
2) Extremely hard : Mohs 9.1 or 2550 Knoop. Harder than aluminum oxide
3) Blocky grain, will splinter as it breaks down, fast cutting speeds,great for recycling
4) High strength at elevated temperatures
5) Great for glass frosting & engraving,stone carving & etching, rock tumbling
6) Grades 16 through 1500 available
2) Extremely hard : Mohs 9.1 or 2550 Knoop. Harder than aluminum oxide
3) Blocky grain, will splinter as it breaks down, fast cutting speeds,great for recycling
4) High strength at elevated temperatures
5) Great for glass frosting & engraving,stone carving & etching, rock tumbling
6) Grades 16 through 1500 available
Company Information
Zhuzhou Hezhi Metal Material Co., Ltd. is a professional enterprise dedicated to the research, development , production and sales of high-quality alloy products, hard-facing materials,and other metal products , the company is located in Zhuzhou,a famous alloy industrial city of Hunan Province, China. We have a high inventory level to assure first-time delivery. In other words, customers can get 100% quality assurance and fast delivery . Welcome to inquire and we are ready to receive your orders. Our team members are well-trained and experienced , We believe that we be your strong business partner and achieve a win-win situation. Welcome to contact us.
Main product
Packaging & Shipping
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring
qualified products before shipping.
For the normal size which we have in stock.
Order less than 1000kg,it takes 5~7 days after receiving advance payment
order1000~2000kg it takes 15~20days
order 2000~3000kg it takes 25days
order more than 3000kg it takes 30days.
Customer requirements Special specifications need talk the extra delivery time.
qualified products before shipping.
For the normal size which we have in stock.
Order less than 1000kg,it takes 5~7 days after receiving advance payment
order1000~2000kg it takes 15~20days
order 2000~3000kg it takes 25days
order more than 3000kg it takes 30days.
Customer requirements Special specifications need talk the extra delivery time.
FAQ
Q1 : Are you Factory or trading company ?
We are Factory with 12 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality?
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy?
We are Factory with 12 years of production experience.
Q2: What is the producing process?
Production process including raw material cutting, machine processing, grinding, accessories cleaning, assemble, cleaning, stoving, oil coating, cover pressing, testing, package.
Q3: How to control the products quality?
All products will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.
Q4: What is the transportation?
If small quantity , we Suggest to send by express, such as DHL,UPS, TNT FEDEX. If large quantity, by sea.
Q5: Can you provide OEM service?
Yes, we work on OEM orders. Which means size, quantity, design, packing solution, etc will depend on your requests; and your logo will be customized on our products
Q6: How to place an order for Good performance nonstandard products by stellite alloy?
1. Fill your Order List in our online Inquiry System (Also you can directly contact our salesperson by E-mail / Skype / Whats App)
2. We will make a feedback to you ASAP after receive your order list.
Q7: What’s your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
Q7: What’s your delivery time ?
For the normal type which we have mold it takes 7-15 days after receiving the advance payment. For the non standard which we do not have mold it takes 15-35 days after receiving the advance payment.
Q8:How to contact us?
You can Contact me by E-mail, Trademanager, Skype, Mobile, whatsapp and so on
