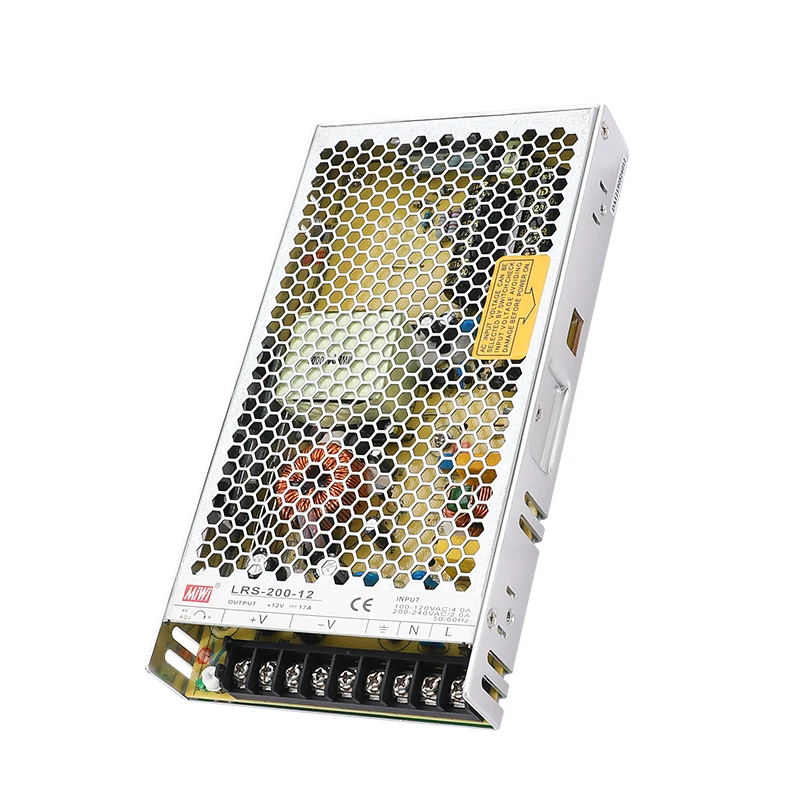

MIWI LRS-200-12 ac dc single output switch mode switching power supply
- Category: Power Supplies >>>
- Supplier: Yueqing,Mingwei,Electric,Co.,ltd.
Share on:
Product Overview
Description
You are here:Home>>Single Output Series>>
Product Description
| Model | LRS-200-5 | LRS-200-12 | LRS-200-24 | LRS-200-36 | LRS-200-48 | |
| Output | DC voltage | 5V | 12V | 24V | 36V | 48V |
Voltage tolerance | ±3% | ±1.5% | ±1% | ±1% | ±1% | |
| Rated current | 40A | 17A | 8.8A | 5.9A | 4.4A | |
| Rated power | 200W | 204W | 211.2W | 212.4W | 211.2W | |
| Ripple&noise | 150mvp-p | 150mvp-p | 150mvp-p | 200mvp-p | 200mvp-p | |
DCvoltage ADJ.range | ±10% | |||||
Line Regulation | ±0.5% | |||||
Load Regulation | ±2% | ±1% | ±0.5% | ±0.5% | ±0.5% | |
Setup,rise time Note.5 | 1500ms,50ms/230VAC 1500ms,50ms/115VAC at full load | |||||
| Hold up time(Typ.) | 16ms/230VAC,12mms/115VAC at full load | |||||
| Input | Voltage range&Frequency range | 90~132VAC/180~264VDC selected switch ,240~370VDC 47-63Hz | ||||
| AC current | 4A/115VAC, 2.2A/230VAC | |||||
| Efficiency | 87% | 87.5% | 89.5% | 89.5% | 90% | |
| Inrush current | cold start current 60A/115VAC 60A/230VAC | |||||
| Leakage current | < 2mA/240VAC | |||||
| Protection | Overload | ≥110~130% rated output power,Protection type:Hiccup mode,recovers automatically after fault condition is removed | ||||
| Over voltage | ≥115~145% rated output power,Protection type:Shut dow O/P Voltage,recovers automatically after restart | |||||
| Environment | Working temp,humidity | -25°C~+70°C, 20%~90%RH | ||||
Storagetemp, humidity | -40°C~+85°C, 10%~95%RH | |||||
| Safety | Withstand voltage | I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC,1min | ||||
Isolated resistance | I/P-O/P,I/P-FG,O/P-FG: 100M ohms/500VDC at25℃ 70% | |||||
| Fitstandard | Safety standard | CE | ||||
| Others | Dimension | 215*115*30mm (L*W*H) | ||||
| Net Weight/Gross Weight | 660g/727g | |||||
>>>Click to get the latest price & catalogue<<<
Application
Main Product
Trade Assurance
About Us
Company Profile
- YUEQING MINGWEI LELECTRIC CO., LTD is specialized in design, development, production and sales as one of the company. Established in 2002, the existing workshop area 4000 YuPing meters, with professional and technical personnel, senior engineer.
- The company has regular products. Series: botton siwtch,Sudden stop lamp,switch power supply, water supply, rainproof, three-phasepower supply slideway,medical equipment for power supply, etc.
- The company has passed ISO9001 certification system. Series of products designed
to meet us UL1012, Germany TUVEN60950, EMCLVD ec UL1950,IEC950,international
standards. Part of the product certification, and obtain ec ROMS authentication. Products with high quality imported components, advanced production technology, perfect testing equipment, casts out mingwell quality products. - Company product best-selling domestic cities, and exported to southeast Asia, Europe and other countries.
Packaging & Shipping
Packaging Details: Standard corrugated carton or customized as you requested.
Delivery Detail: 1~25 days depend on your quantity.
