DC 12V LED Panel Digital Voltage Meter Display Voltmeter For Car Motorcycle Boat
- Category: >>>
- Supplier: Wuxi Imhoo Technology Co. Ltd.
Share on (1600735449061):
Product Overview
Description
Product Description
Case: Non-combustile ABS plastic material is used for making Square Type series'external case,and PPO plastic material is used for base; Also, Non-combustible PC plastic material can be used for this series'external case and base. Both of which will not suffer deformity under long-term use at 70°C and 120°C respectively.
IMHOO ALSO CAN DO OEM. SUCH AS: Range, Changeable scale, waterproof...can be customized.

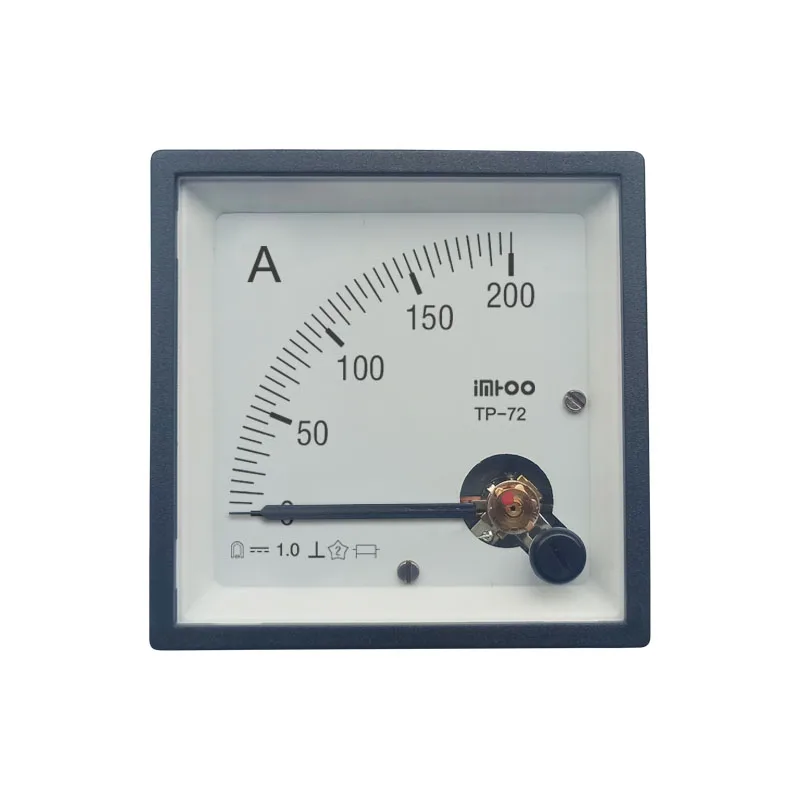

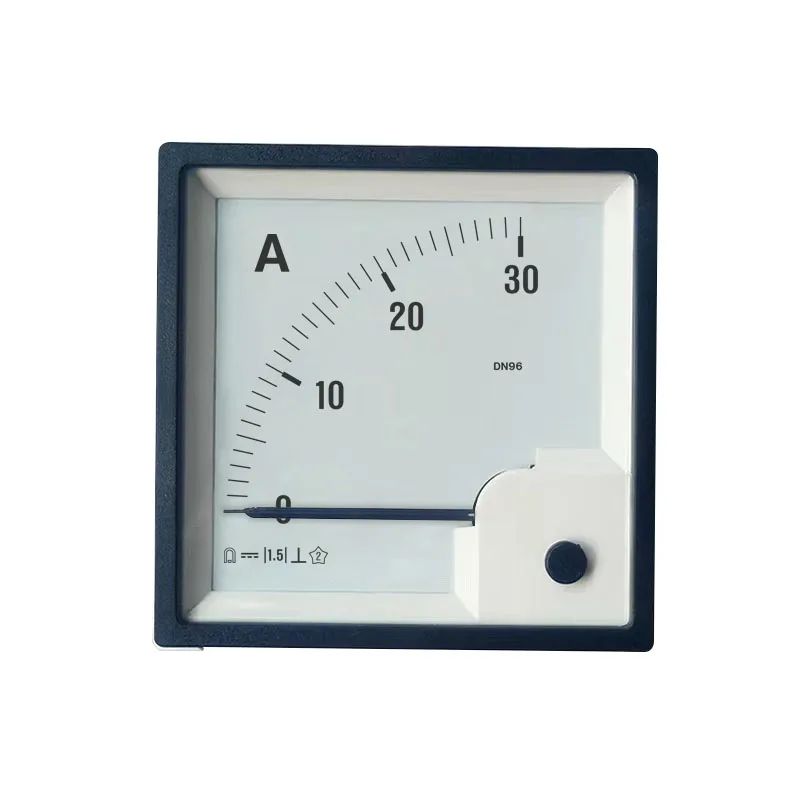

TP-96/72/48 Ammeter Specifications
| ||||
| AC A | DC A | |||
| mA | 100mA 150mA 200mA 400mA 500mA | 100mA 150mA 200mA 400mA 500mA | ||
| A | 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A | 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 75A 100A | ||
| with external CT(ACA) with external Shunt(DCA) | X1A | 10/1A 15/1A 20/1A 30/1A 40/1A 50/1A 60/1A 75/1A 100/1A 150/1A 200/1A 300/1A 400/1A 500/1A 600/1A 1000/1A More Ranges can be customized | 50mV 60mV 75mV | 10A 15A 20A 30A 40A 50A 60A 100A 150A 200A 250A 300A 400A 500A 600A 800A 1000A 1500A 2000A 2500A 3000A |
| X5A | 10/5A 15/5A 20/5A 30/5A 40/5A 50/5A 60/5A 75/5A 100/5A 150/5A 200/5A 300/5A 400/5A 500/5A 600/5A 1000/5A More Ranges can be customized | |||

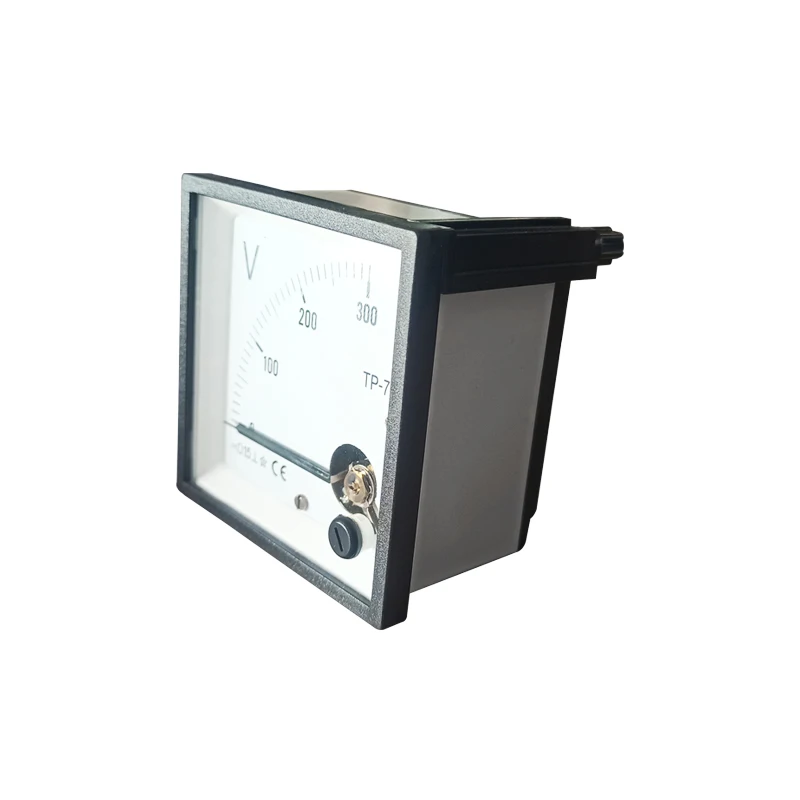

TP-96/72/48 Voltmeter Specifications
| ||||
| AC V | DC V | |||
| V | 10V 30V 50V 75V 100V 120V 150V 200V 250V 400V 450V 500V 600V | 10V 30V 50V 75V 100V 120V 150V 200V 250V 400V 450V 500V 600V | ||
| Dimensions(millimeters) | ||||||
| Model | Case Dimension | Panel Cutout Dimension | ||||
| A | B | C | D | E | F | |
| TP-96 | 96.5 | 96.5 | 69.4 | 64 | 91 | 91 |
| TP-72 | 71.8 | 71.8 | 69.4 | 64 | 67.5 | 67.5 |
| TP-48 | 48.3 | 48.3 | 69.4 | 64 | 44.2 | 44.2 |
Packaging & Shipping
Our Services
- High Quality, Better Prce.
- Intergrity. Promised to customer when to delivery, we must delivery on time.
- If any issue about quality after the customer received the goods, we will replenish the quanlity which the customer count the total number of it.
- We can do also OEM.
- We can research and develp new product according to our customers requirement.
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Wuxi City, Jiangsu Province, China, about 1 hour train from Shanghai . All our clients, from home or abroad, are warmly welcome to visit us!
3. Q:How can I get some samples?
A: We are honored to offer you samples.
4. Q:How does your factory do regarding quality control?
A:Quality is priority. IMHOO people always attach great importance to quality controlling
from the very beginning to the very end.
