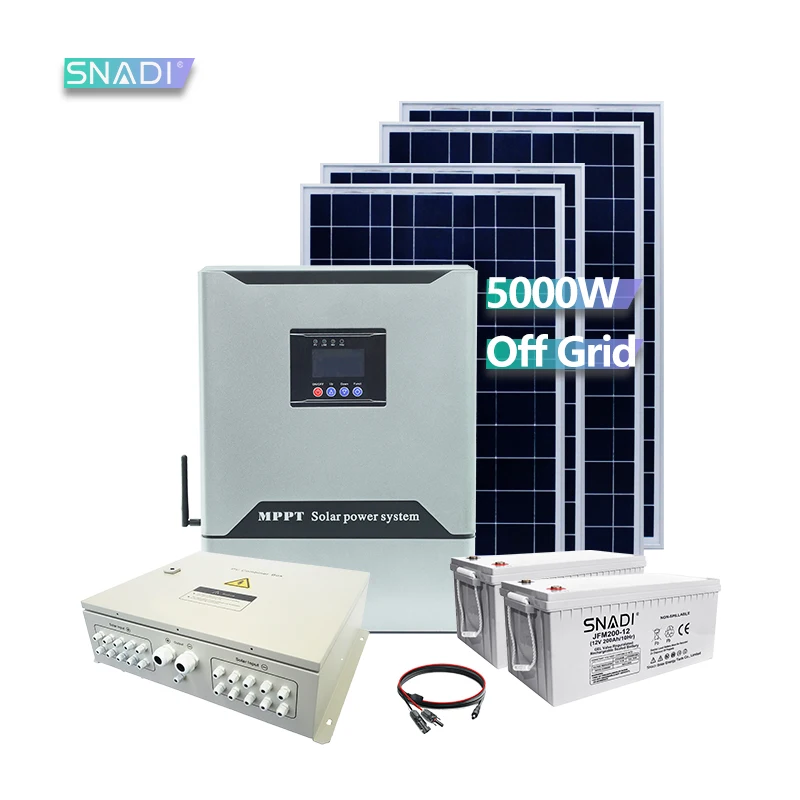

Complete solar system kit for home 1KW 3KW 5KW 10KW solar power systems solar power storage with panels solar energy system
- Category: >>>
- Supplier: Foshan Snat Energy Electrical Technology Co. Ltd.
Share on (1600735455004):
Product Overview
Description
Welcome to be our distributor
Product Description
Solar panels
- 21% conversion efficiency
- Anti-reflection tempered glass
- Anodic aluminium-alloy frame
- MC4 junction box

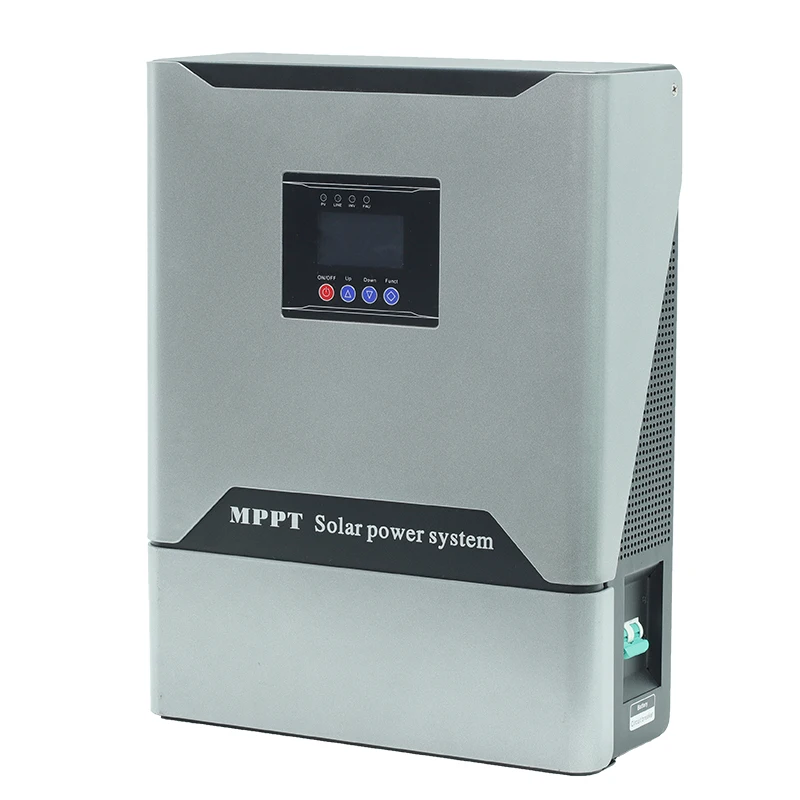

NKM Hybrid Solar Inverter
- A wide range of input voltage
- Double CPU intelligent control technology
- Settable the mains mode
- Controlled by intelligent fan
- Pure sine wave AC output
- LCD display
- Automatic protection
- Intelligent MPPT solar controller, overcharge, over discharge protection
- Number of PV input array: 6
- Max input pv current each array: 16A
- Max output current: 96A, 600Vdc
- Lighting Protection, it reduces solar
cable IP65
- 12V/200Ah
- 54kg
- Silver-coated copper terminals, brass insert maintenance-free
Mounting structure
- Pitched Roof, flat roof, tile roof, tin roof,ground, vertical wall
- High Class Anodized Aluminum- Wind Load: up to 130mph (60m/s)
- Snow Load: up to 30psf (1.4kN/m2)
Connection cable
- Solar panel cables 4mm2
- Battery connection cables 10mm2
- Electric cables Connector
- MC4 Solar connector
- Battery cable connector Connector
- MC4 Solar connector
- Battery cable connector
- Battery connection cables 10mm2
- Electric cables Connector
- MC4 Solar connector
- Battery cable connector Connector
- MC4 Solar connector
- Battery cable connector

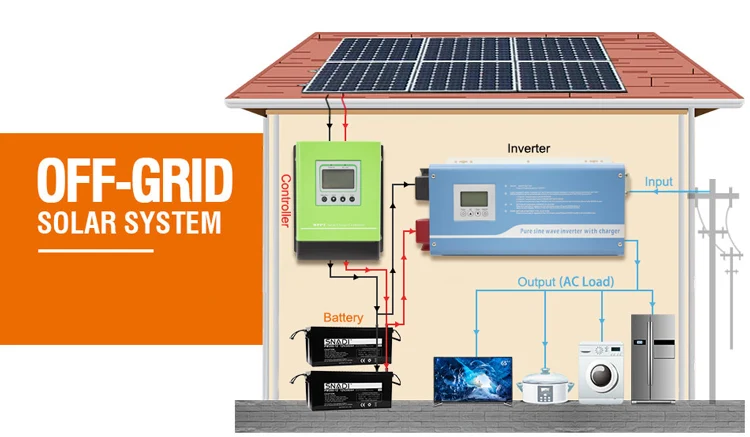

The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, and batteries (including battery cabinets). If the load is AC equipment (220V or 110V), you need to configure the inverter. The functions of each part are as follows:
(1) Photovoltaic modules: Photovoltaic modules are an important part of solar power generation systems and a high value part of solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a battery for storage, or to drive the load.
(2) Photovoltaic combiner box: The photovoltaic combiner box is used to reduce the connection between the PV module and the inverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.
(3) Hybrid Inverter with MPPT controller inbulit: The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.

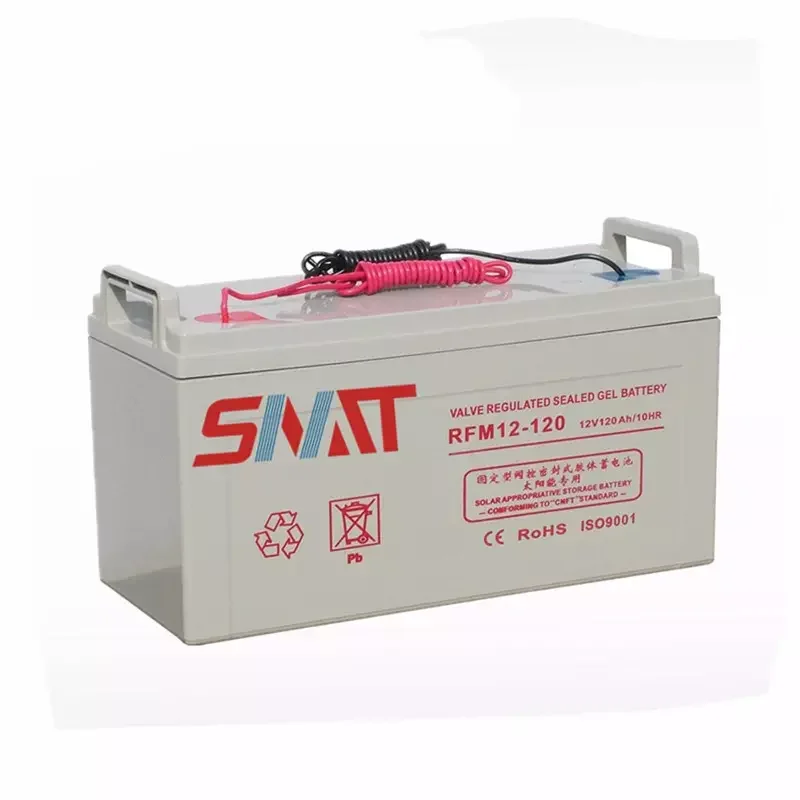

(4) Battery: Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen
batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.
(1) Photovoltaic modules: Photovoltaic modules are an important part of solar power generation systems and a high value part of solar power generation systems. Its role is to convert the radiant energy of the sun into electrical energy, or send it to a battery for storage, or to drive the load.
(2) Photovoltaic combiner box: The photovoltaic combiner box is used to reduce the connection between the PV module and the inverter/controller and is convenient for maintenance. It has perfect functions such as anti-counter-attack, over-current protection and lightning protection to improve the product. Safety and reliability.
(3) Hybrid Inverter with MPPT controller inbulit: The electricity generated by the PV module is DC, and it cannot supply power to the AC load. The inverter needs to convert DC power into AC power and provide it to the load.
(4) Battery: Generally, lead-acid batteries and colloidal batteries are used. In small and micro systems, nickel-hydrogen
batteries, nickel-cadmium batteries or lithium batteries can also be used. Its function is to store the energy generated by the solar panel when there is light, and then release it when needed.
The solar power system consists of photovoltaic modules (including brackets), photovoltaic combiners, solar controllers, and batteries (including battery cabinets). If the load is AC equipment (220V or 110V), you need to configure the inverter.
Solar power system load usage status (all load input voltage is 220VAC, 50Hz) | ||||||||
Appliance name | Load power | Quantity | Daily working hours | Daily power consumption | ||||
Refrigerator | 100w | 1 | 12 hours | 1200Wh | ||||
Energy saving lighting | 25W | 5 | 5 hours | 625Wh | ||||
Fan | 55w | 3 | 8 hours | 1320Wh | ||||
TV | 100W | 1 | 4 hours | 400Wh | ||||
Total electricity usage per day | 3545Wh | |||||||
Company information
FAQ
Q1 MOQ
A MOQ form our conpany is required 1 unit.
Q2 Are you manufacturer or trading company?
A We are professional manufacturer since 2004.
Q3 I need this product and wanna a system for family/industrial/commerical using,can you help me?
A Yes,we have professional technology team average 10 years experience,they can design solar power system in accordance with customers' special requirements.
Q4 How long is your delivery time?
A Within 15 days.
Q5 How about your after sales service?
A Our quality warranty for 1-2 years,any parts will be shipped for free during warranty period.
