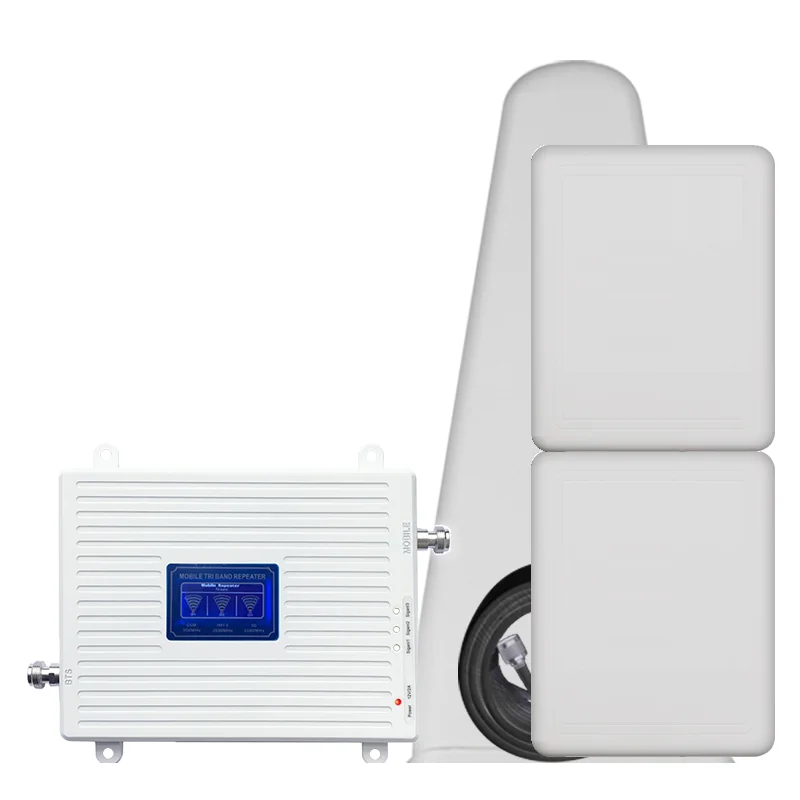

Europe 5 days Delivery HWATEL 4G Signal Booster 3 band 900 1800 2100MHz 4G Amplifier Repeater LOG Panel Antenna Fullkit
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (1600735494861):
Product Overview
Description
900 1800 2100 3-Band Booster
B8 B3 B1 5G 4G 3G 2G
For Europe Middle East Africa
Spain Poland Russia Warehouse
3-Day Delivery!

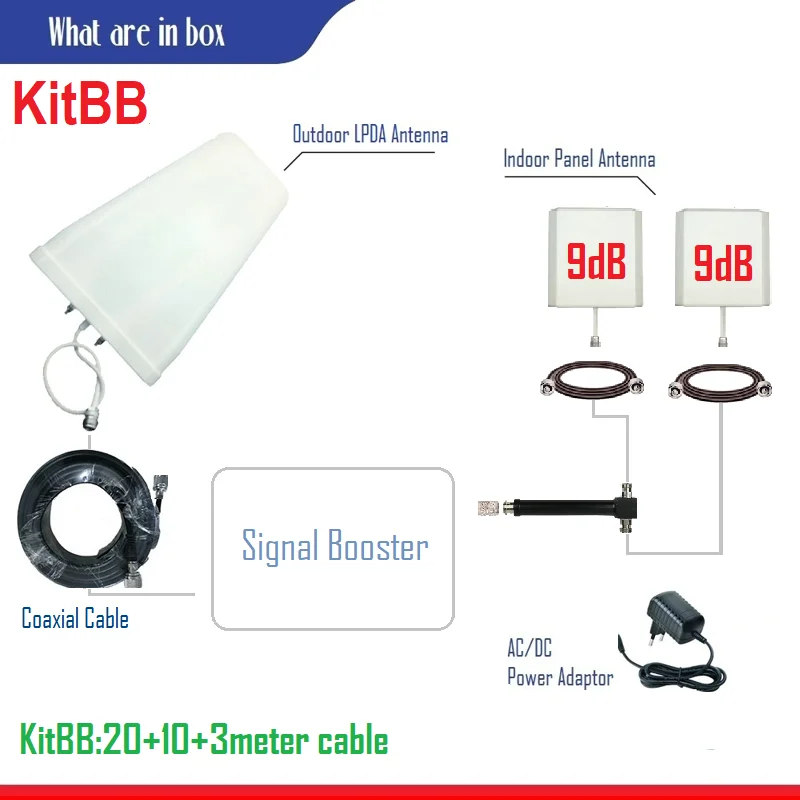

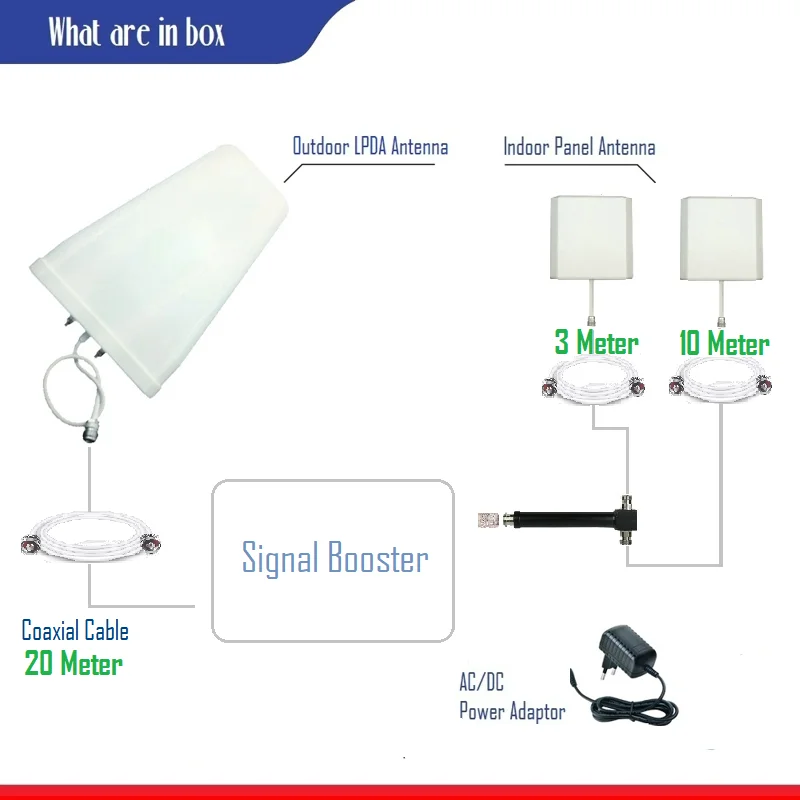

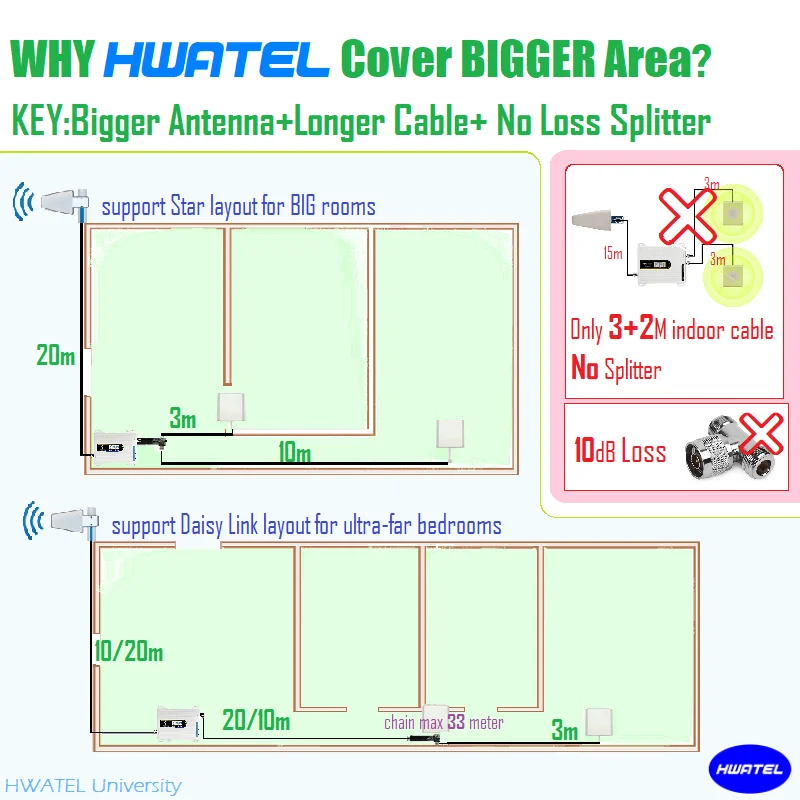

PACKING LIST
1-Booster (AC/DC Adaptor) 1 pcs

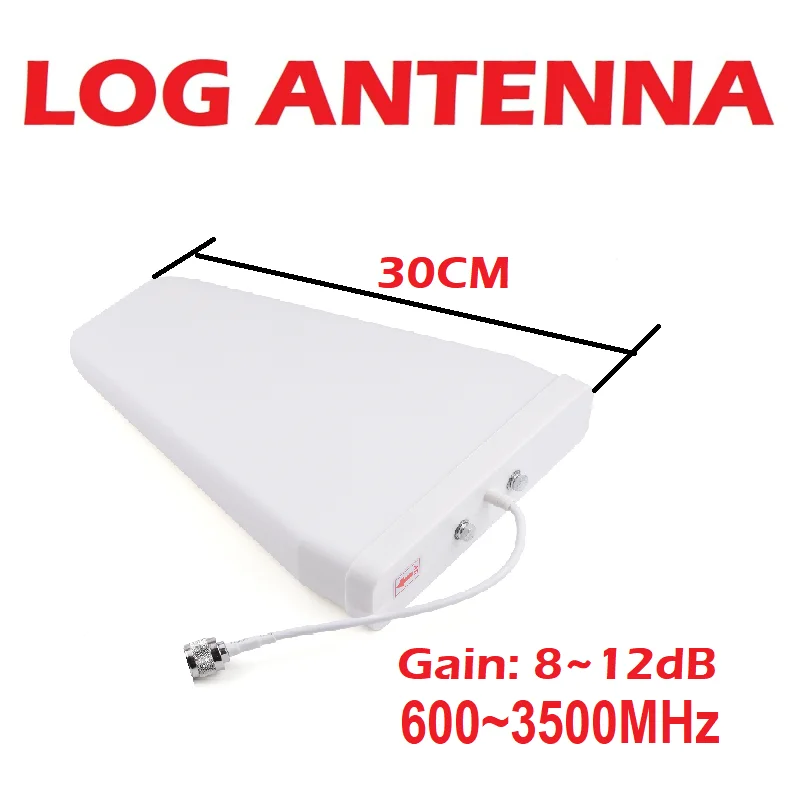

2-Outdoor LOG Antenna 1 pcs

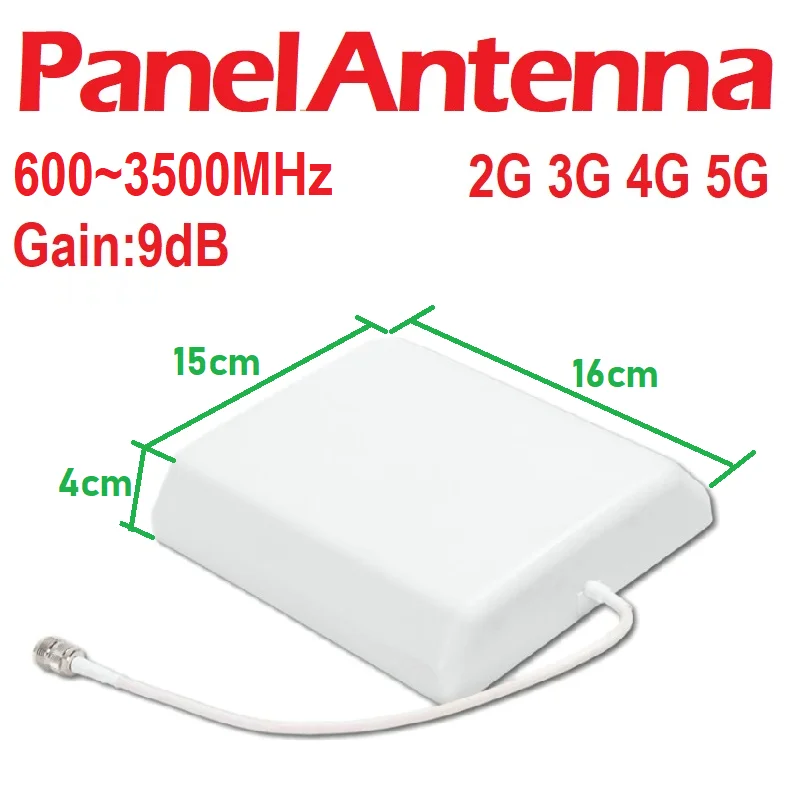

3-Indoor Panel Antenna 2 pcs

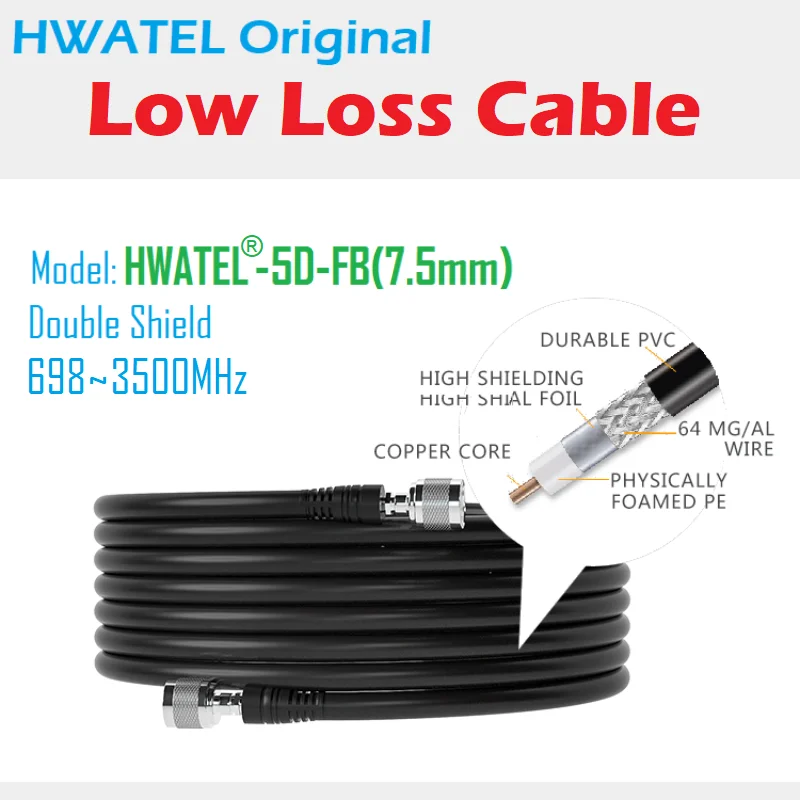

4-Cable 20 meter 1 pcs
5-Cable 10 meter 1 pcs
6-Cable 3 meter 1 pcs

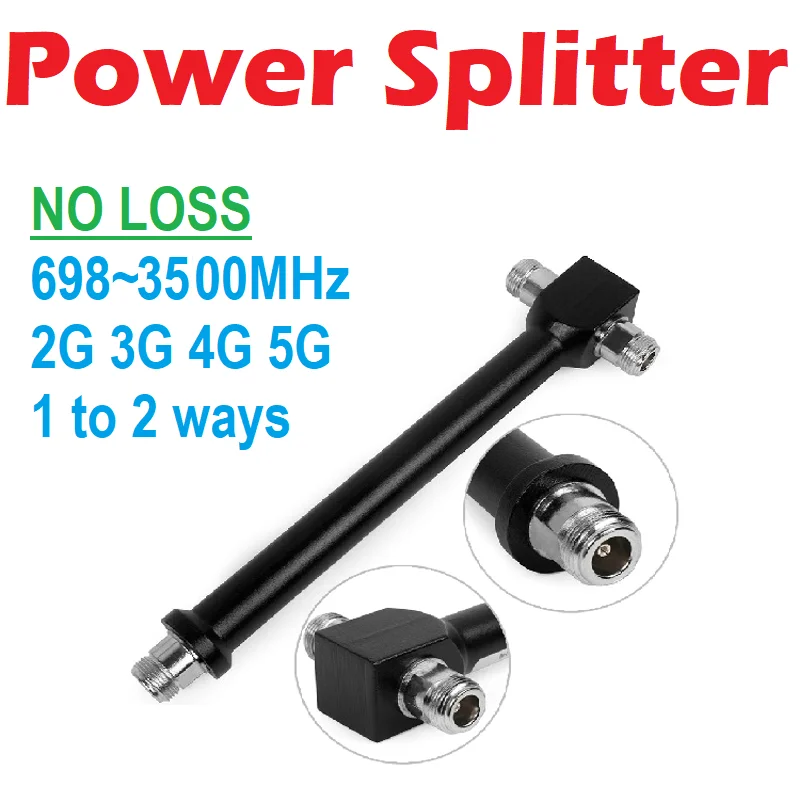

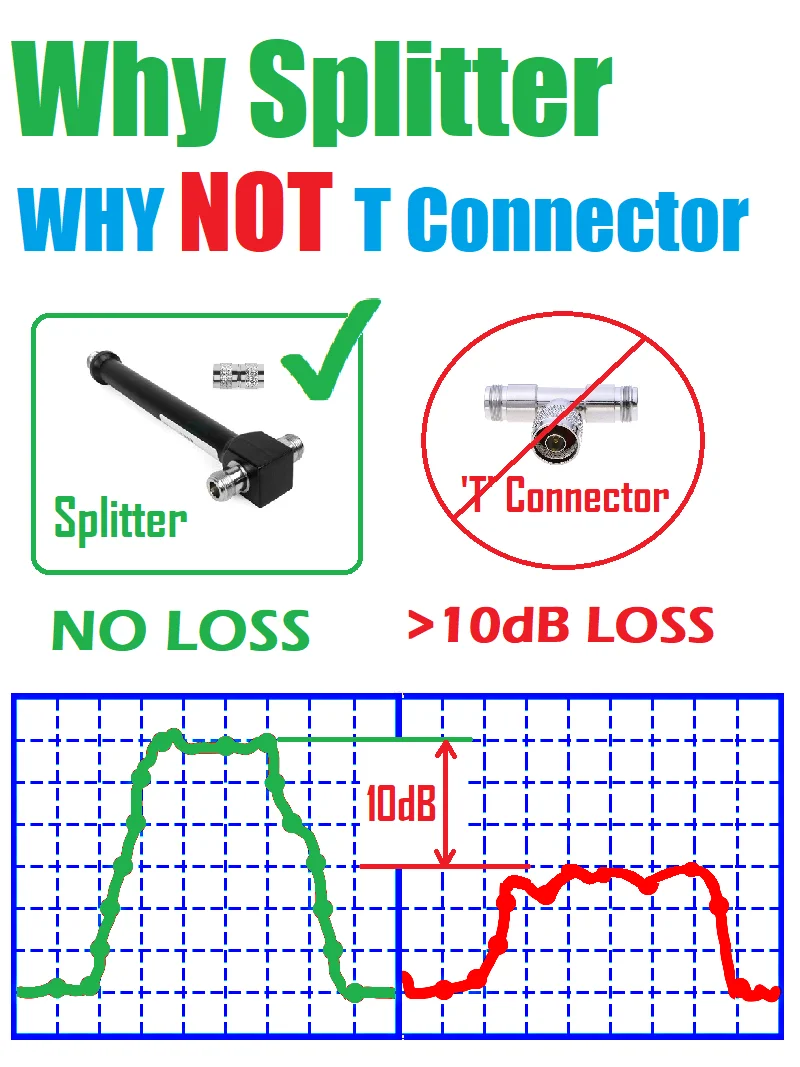

7-No Loss Splitter 1 pcs
8-N bridge 1 pcs
Feature

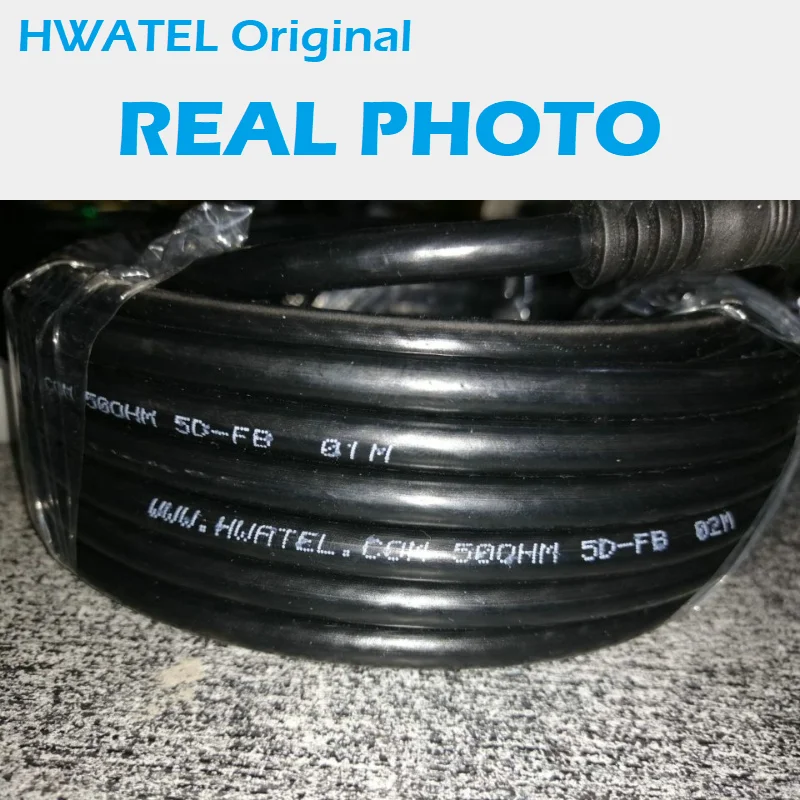

REAL PHOTO
Original Accessories
| Technical Specification | |||
| Tech Parameter | Uplink | Downlink | |
| Frequency Range | band 8,3,1 | ||
| Output Power | 20 ±2dBm | 23 ±2dBm | |
| Gain | 65 ±2 dB | 70±2dB | |
| Bandwidth | 25M | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | <1 Kg | ||
| Gross weight | <2 Kg | ||
| Installation Type | Wall Installation | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
