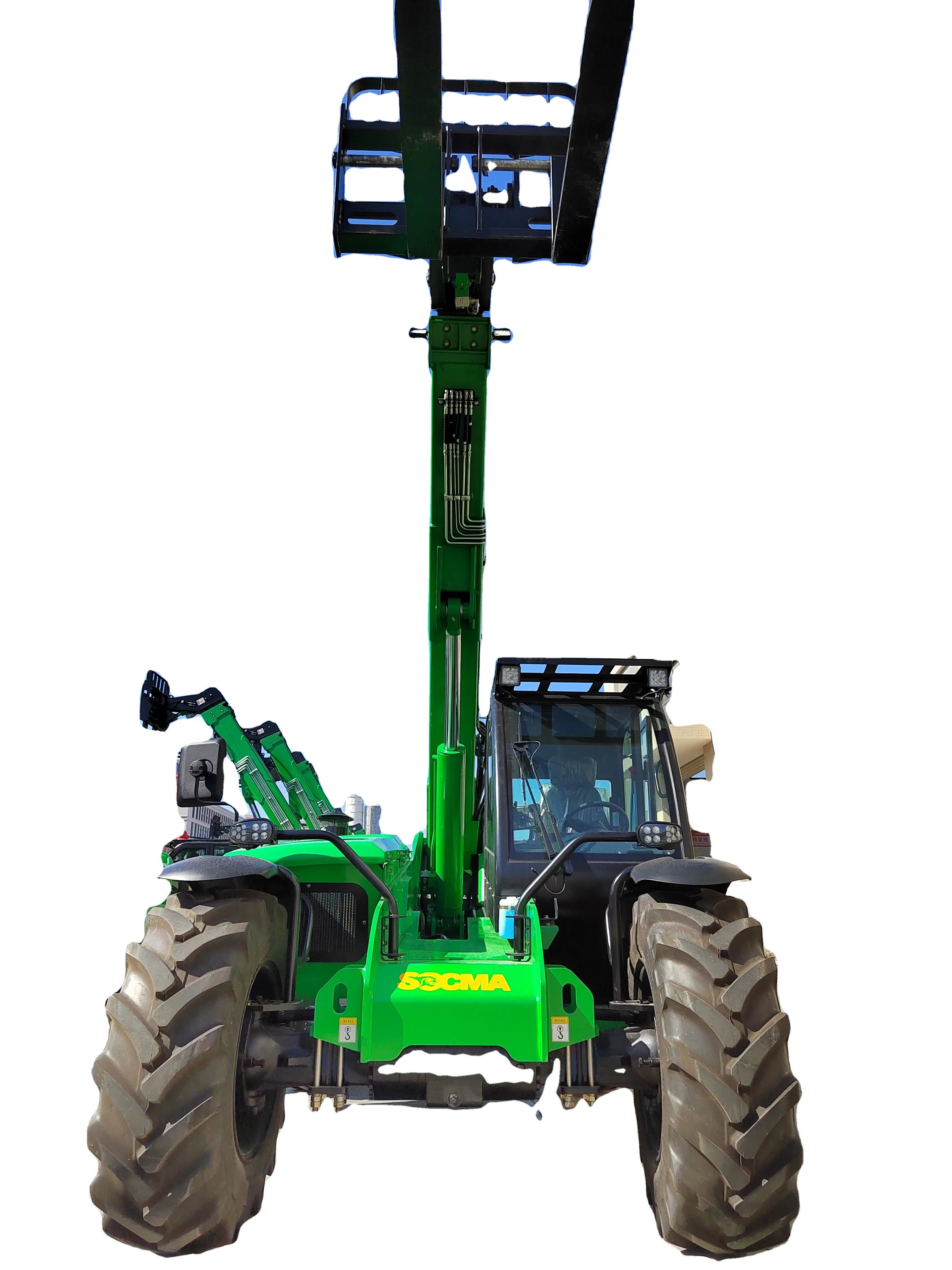

SOCMA 3 tons 3t telehandler with 4WD 4WS steering HNT3007
1, comes with four-wheeldrive and rigid suspension
2, hydraulic mechnical drive, hydraulic power steeringand hydraulic brake, rear-wheel steering
3, the two-stagequadrilateral telescopic boom serves as the working unit.
A regular lift truckis equipped with a fork or a boom
4, the lift truckis applicable to the unstuffing and casing of pellatized goods in containers,as well as handling, stacking and short-distance transportation of a variety ofpackaged goods
5, suitable formany different working environments, is ideal equipment for loading andunloading, lifting, and transportation in mining, factory, architecture,building material, dock, municipal engineering industries, and more
6, a range ofoptions including such accessories as the bucket, lifting hook, and boom, etc.are available to customers
7, offers betterperformance than a general fork truck in terms of the handling height andcross-country ability
| Items | Unit | Deviation allowed | HNT3007-4Z | ||
| Basic parameter | Rated load | kg | - | 3000 | |
| Load center | mm | - | 500 | ||
| Load capacity @ max. Forward reach | kg | - | 1300 | ||
| Max. Lifting height | m | 1.50% | 7050 | ||
| Max. Horizontal reach(without fork) | m | 1.50% | 3220 | ||
| Min. Ground clearance | mm | 1.50% | 380 | ||
| Min. Turning radius (outer tire center) | mm | 1.50% | 4850 | ||
| Angle | Boom frame upward angle | ° | ±1 | 63 | |
| Boom frame downward angle | ° | ±1 | -3 | ||
| Operating weight | kg | 5% | 8200 | ||
| Overall dimension | Length (without fork) | mm | 2% | 5020 | |
| Width | mm | 2% | 2250 | ||
| Height | mm | 2% | 2340 | ||
| Wheel base | mm | 2% | 2900 | ||
| Front wheel tread | mm | 2% | 1790 | ||
| Rear wheel tread | mm | 2% | 1790 | ||
| Fork size | (L*W*T) | mm | - | 1200x50x150 | |
| Engine | DF Cummins QSB3.9-C100 | - | QSB3.9-C80 | ||
| Rated power | kw/rpm | - | 60//2200 | ||
| Transmission type | - | Hydraulic static transmission | |||
| Driving system | Max. Travelling speed (unloaded) | km/h | 10% | 25 | |
| Gradeability | % | - | 25% | ||
| Tire | Front wheel 2pcs | - | - | 16/70-24-24PR | |
| Rear wheel 2 pcs | - | - | 16/70-24-24PR | ||
| capacity | Hydraulic oil tank | L | 160 | ||
| Fuel tank | L | 120 | |||
