Bearing Square Flanged Bearings F205 Pillow Block Bearing Ucf205
- Category: >>>
- Supplier: Liaocheng Boyunda Bearing Co. Ltd.
Share on (1600735814422):
Product Overview
Description
Product Show
features of bearings | ||

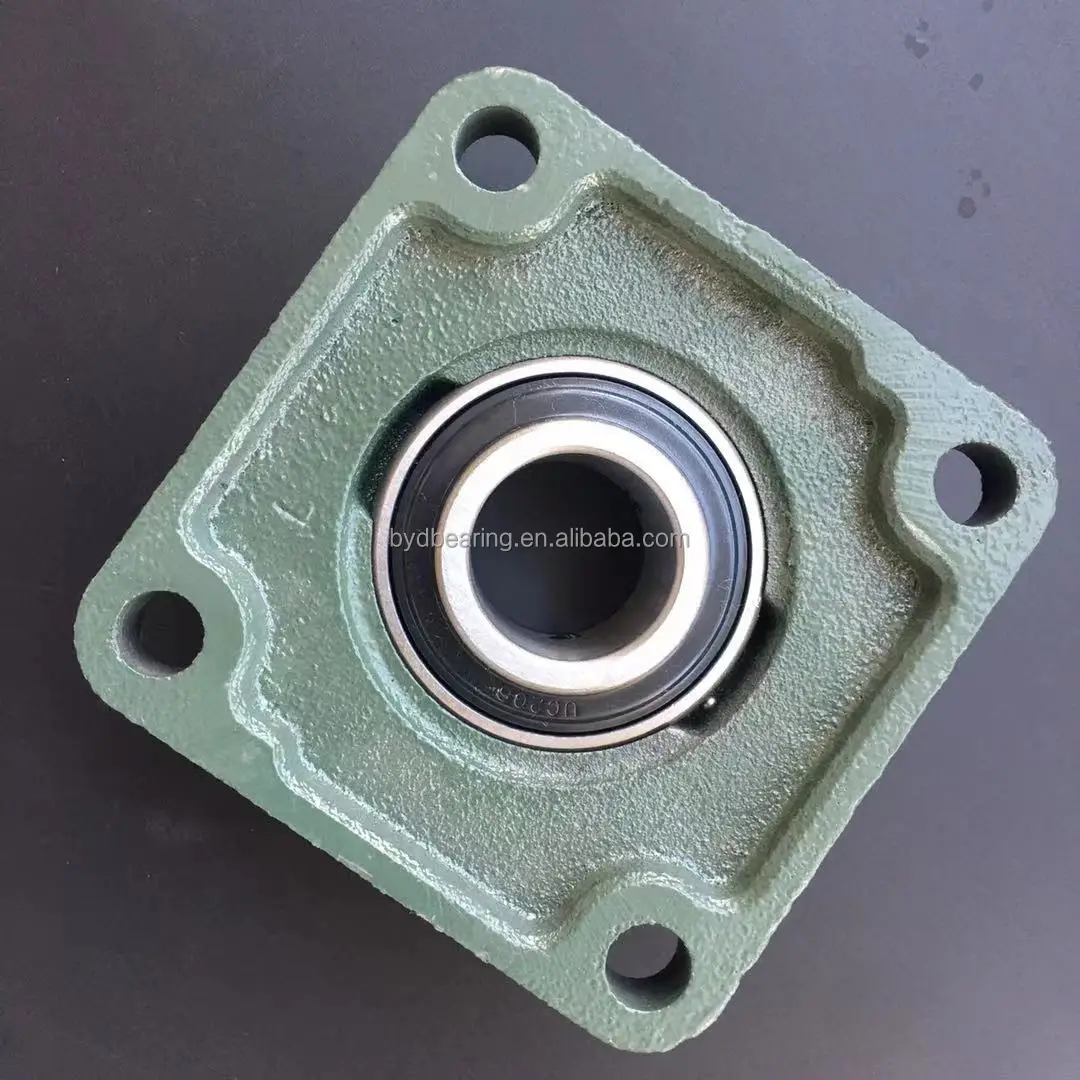

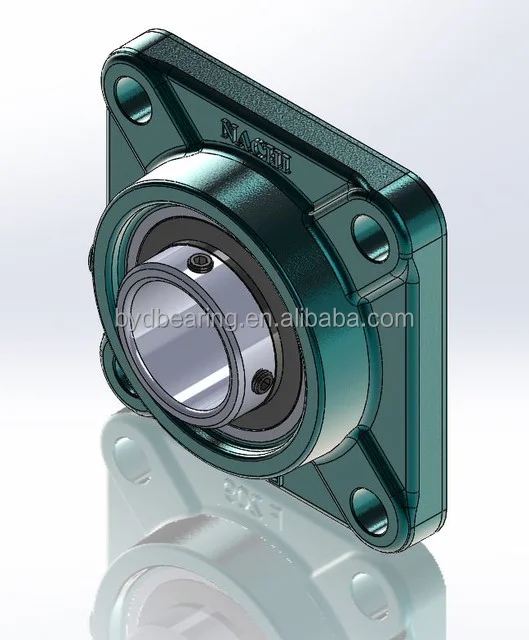

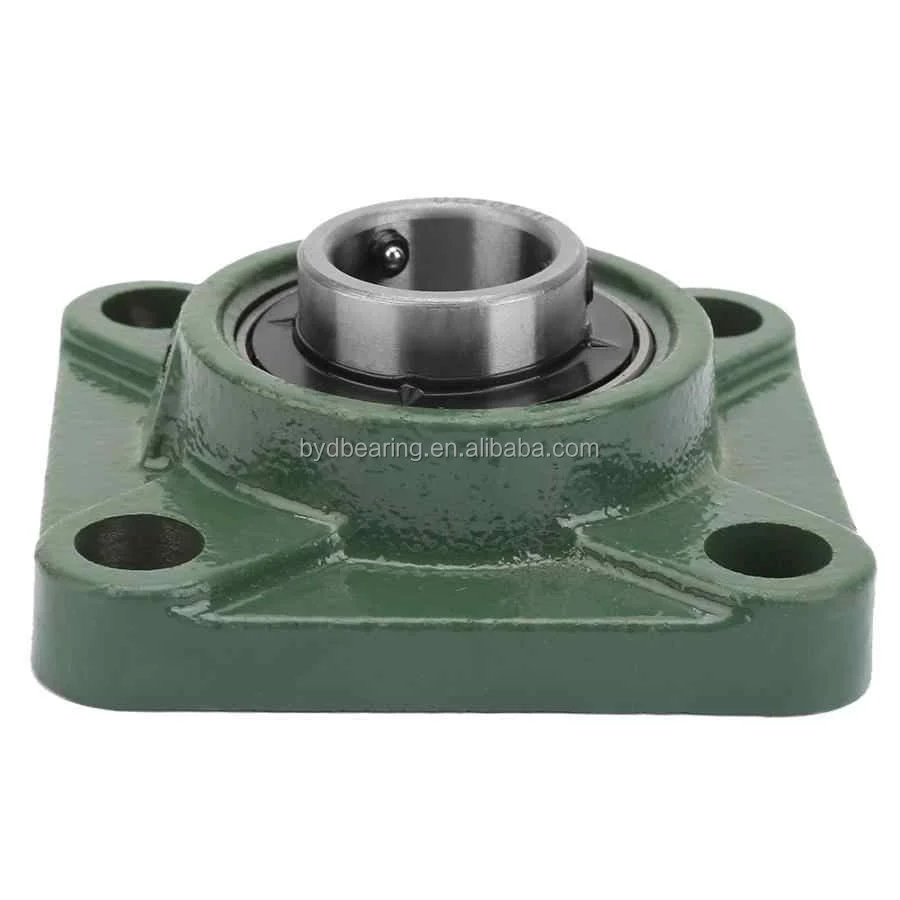

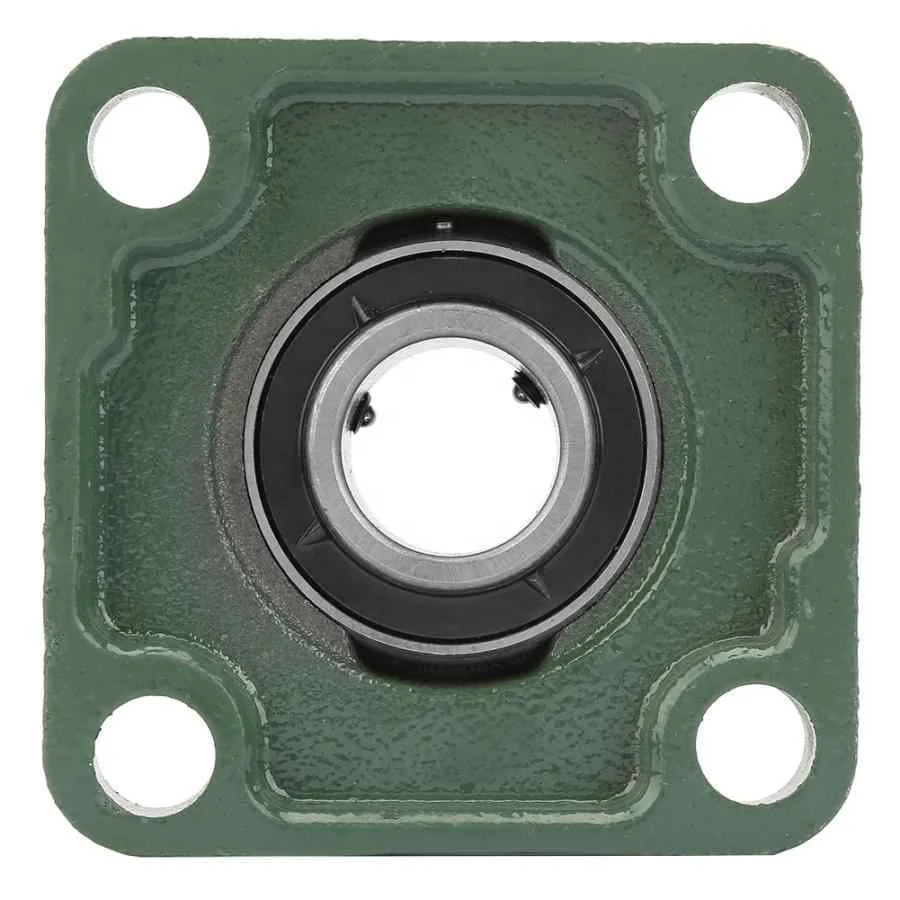

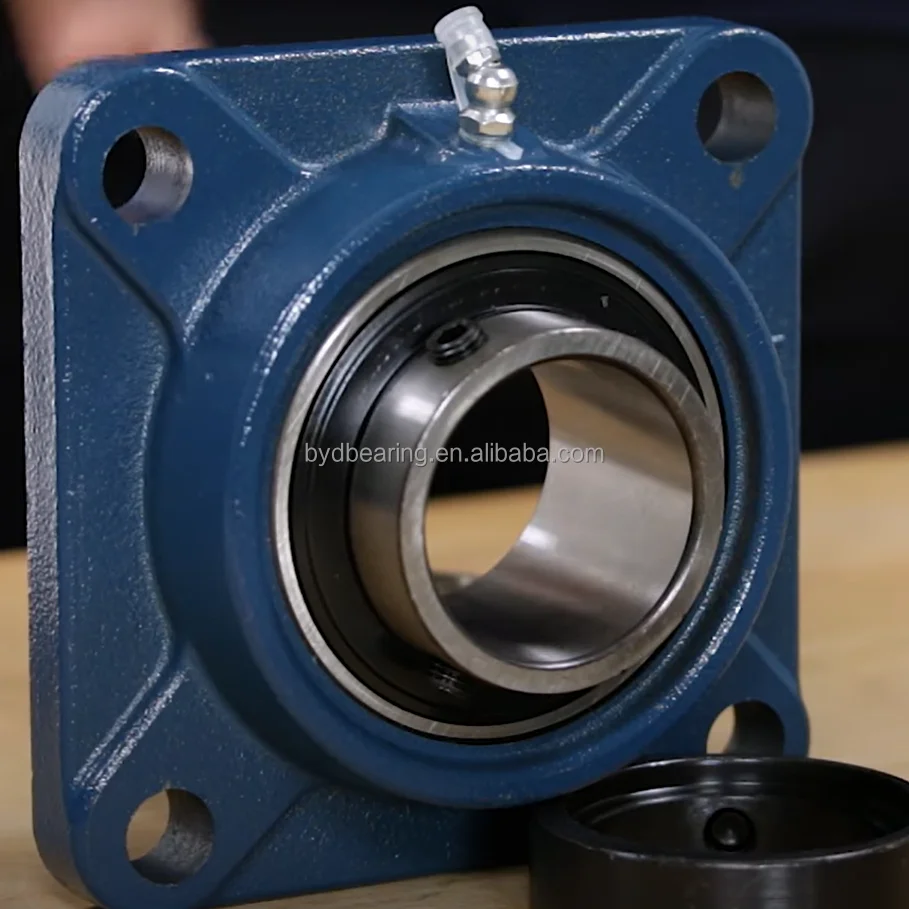

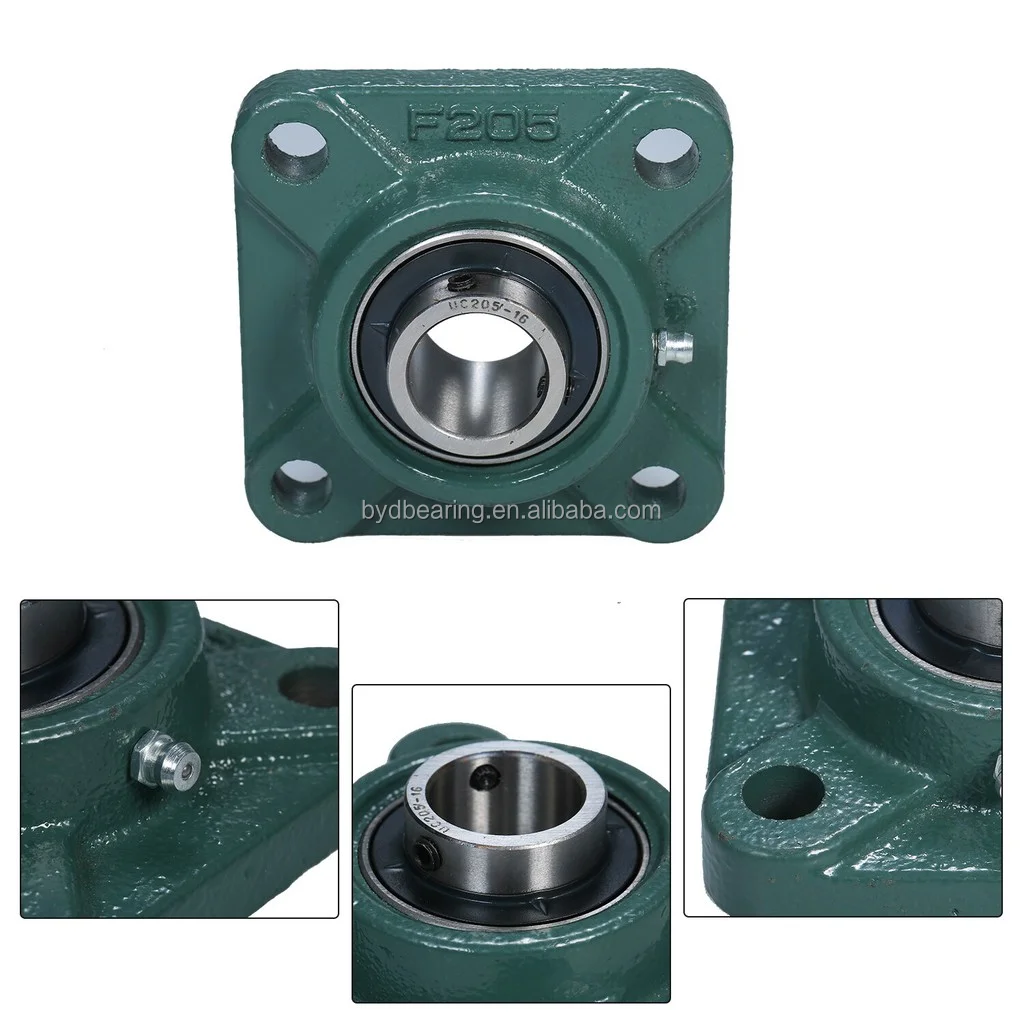

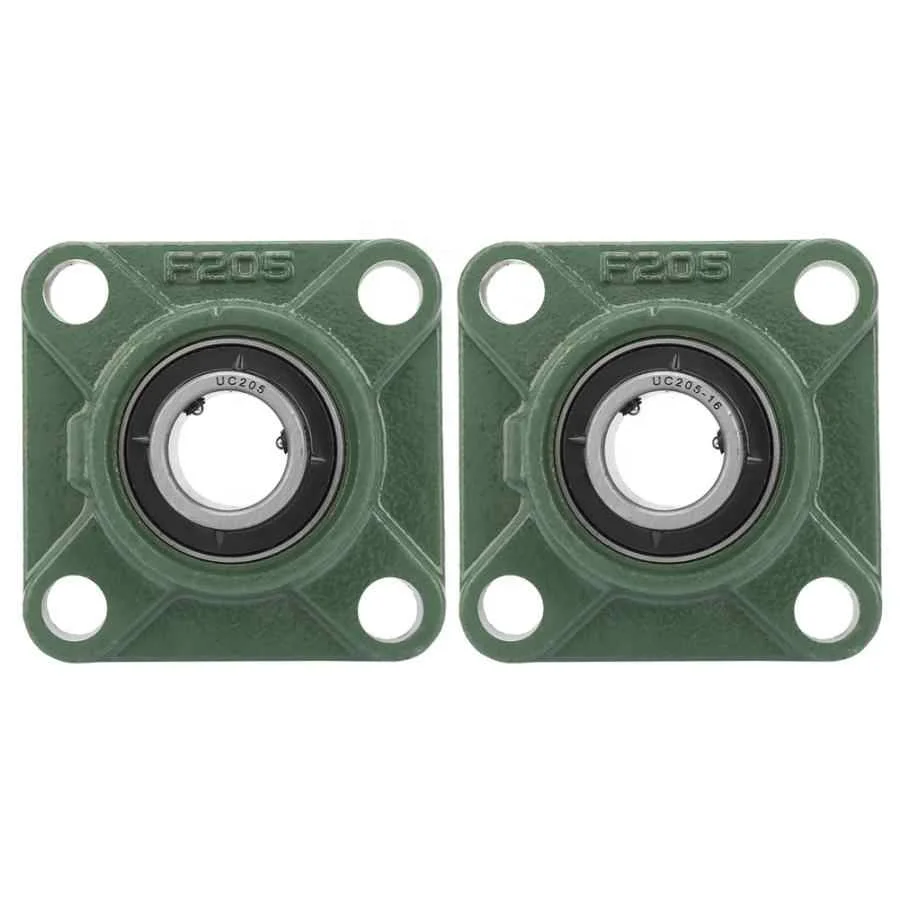

* consisting of a ball bearing insert UC 205 and a cast iron housing F 205 | ||
* 4-hole flange bearing design allows installation in a variety of applications and is suitable for very high radial loads | ||
* the housing is made of cast iron and therefore inexpensive and robust | ||
* the bearing insert has an extended inner ring with grub screws | ||
* The radial insert ball bearing housing unit is mounted on the shaft with two grub screws | ||
* smooth running and good behavior with tilting due to the extended inner ring | ||
* static misalignments can be compensated up to an angle of 2° | ||
* two-piece sealing system: with sheet steel washer reinforced rubber seal inside; outside additionally with upstream slinger made of sheet steel for high mechanical protection against foreign matter | ||
* lubricated for life; under normal operating conditions relubrication is not required | ||
* housing with integrated lubrication hole | ||
* to protect against corrosion, the housing is painted; the bearing insert and the mounting surface are treated with corrosion protection oil | ||
* In addition to this article, we can also offer bearings of the brands FAG, KOYO, NSK, SKF, SNR, etc. on request. | ||
Pillow block bearings applications:
The flange bearing UCF is suitable for very high radial loads and for installation in various applications. It is particularly
robust with its gray cast iron housing.
robust with its gray cast iron housing.
Hot sale products
spherical roller bearings
deep groove ball bearings
taper roller bearings
Product Paramenters

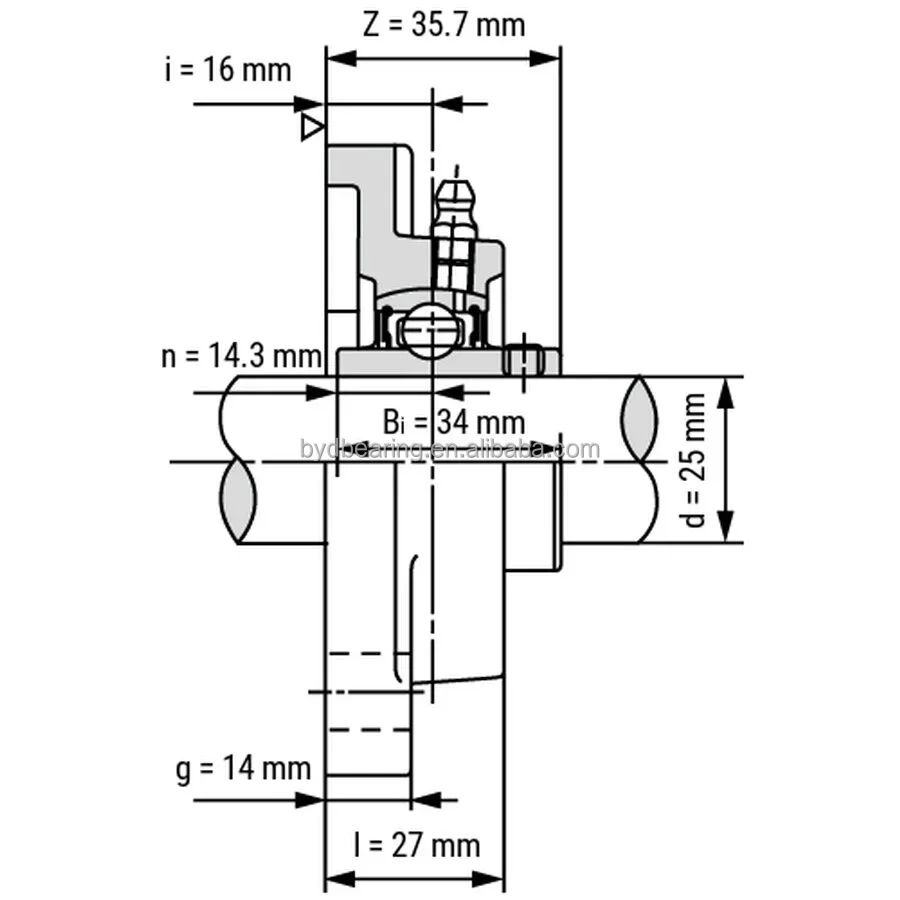

pillow block bearing ：UCF205 | ||
Inside Ø (mm): | 25 | |
Tolerance for inside-Ø (mm): | 0,018/0 | |
a (mm): | 95 | |
e (mm): | 70 | |
i (mm): | 16 | |
Shaft Fastening: | Grub Screws | |
Housing Type: | Flange | |
Grub Screw: | M6 | |
Bearing No.: | UC 205 | |
Housing No.: | F 205 | |
Ring Material: | Chrome Steel | |
Rolling Element Material: | Chrome Steel | |
Cage Material: | Sheet Steel | |
Housing Material: | Cast Iron | |
Number of Mounting Holes: | 4 | |
Product weight: | 0,8200 Kg | |
0.79Product weight: | 0.63-11.3KGS | |
