1800MHZ 5G 4G LTE Band 3 B3 DCS 1800 MHz Cellular Amplifier Signal Booster Repeater Brazil
- Category: >>>
- Supplier: Hwatel (Beijing) Technology Co. Ltd.
Share on (1600735822995):
Product Overview
Description

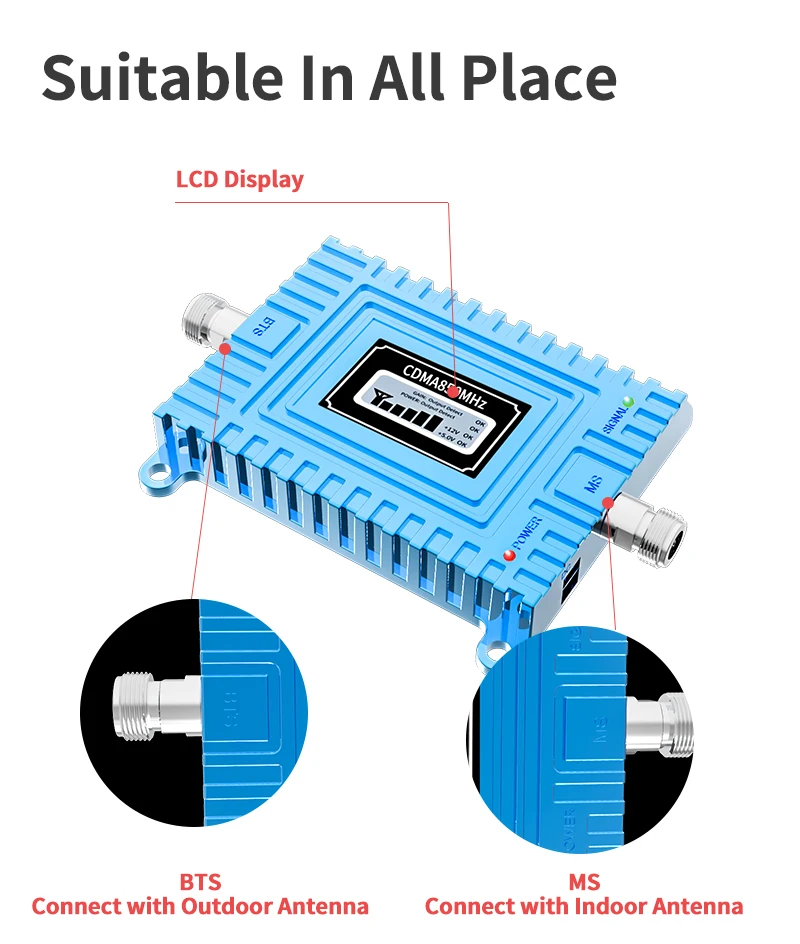

5G 1800M Band 3 Booster

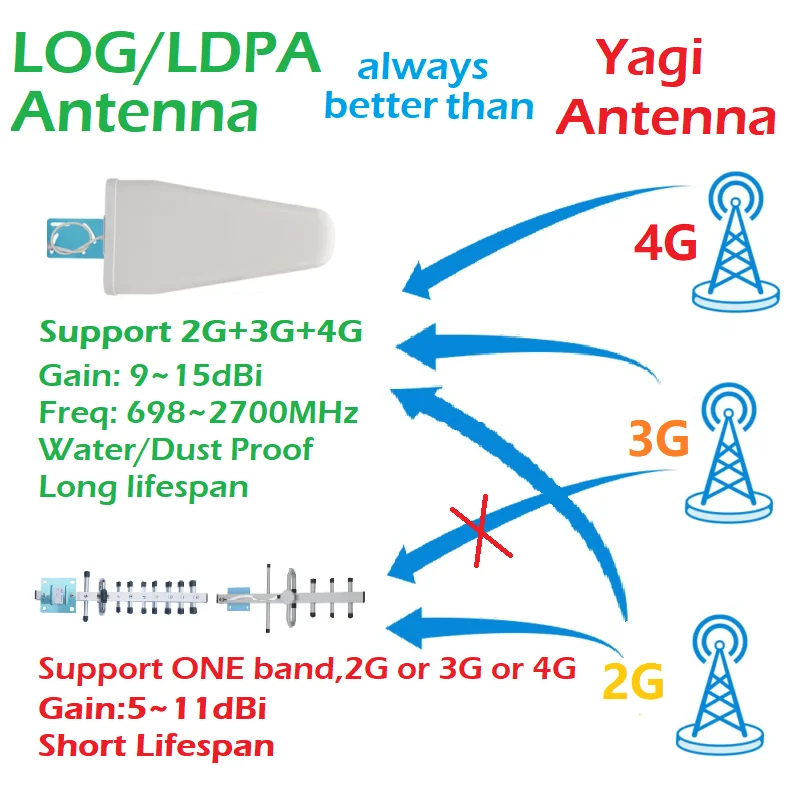

WHY NOT YAGI Antenna?

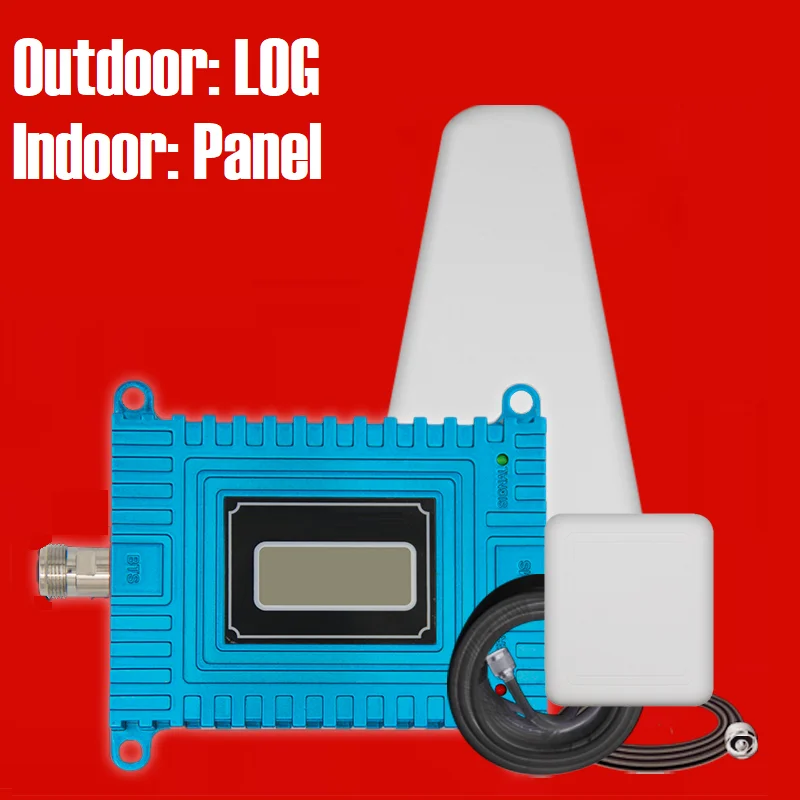

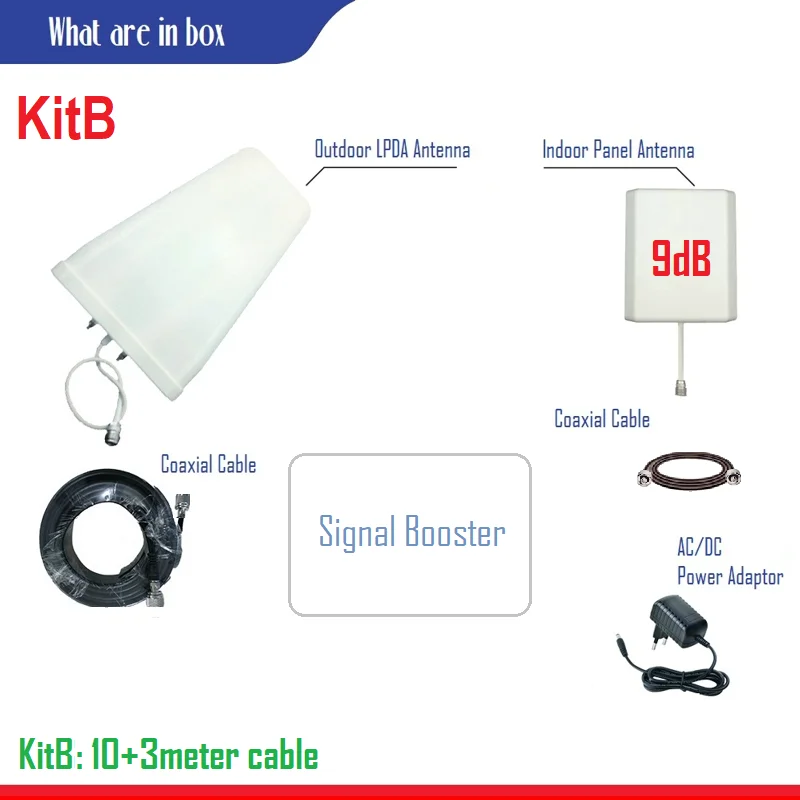

Packing List

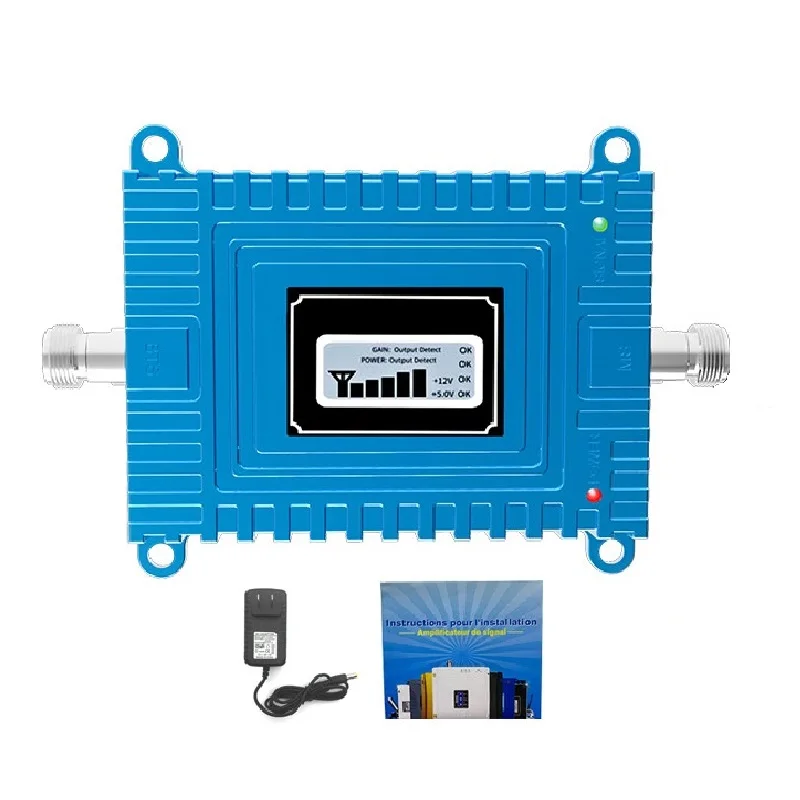

1-Booster (AC/DC Adaptor) 1 pcs

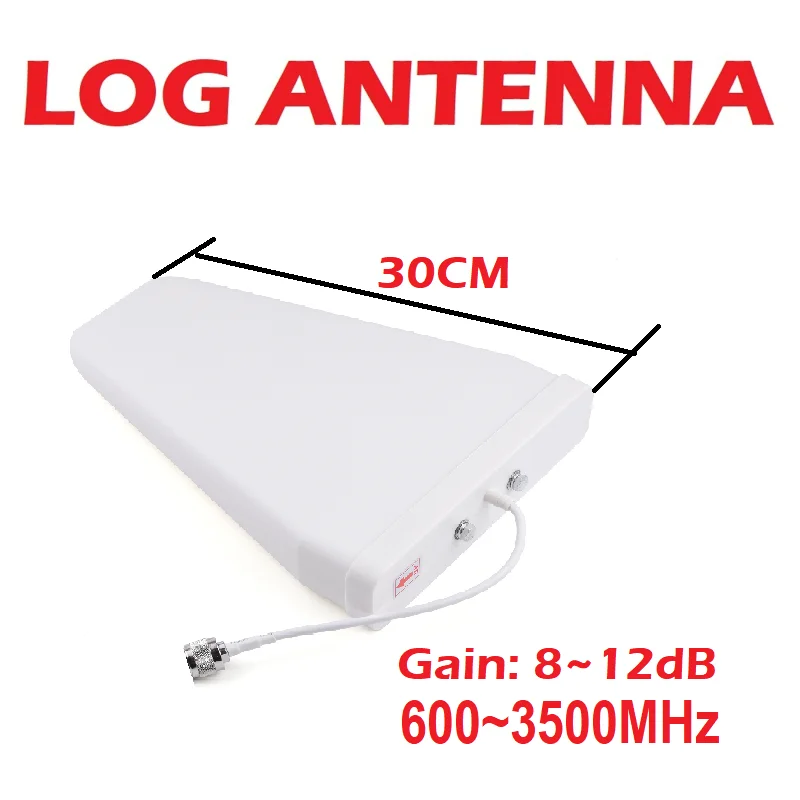

2-Outdoor LOG Antenna 1 pcs

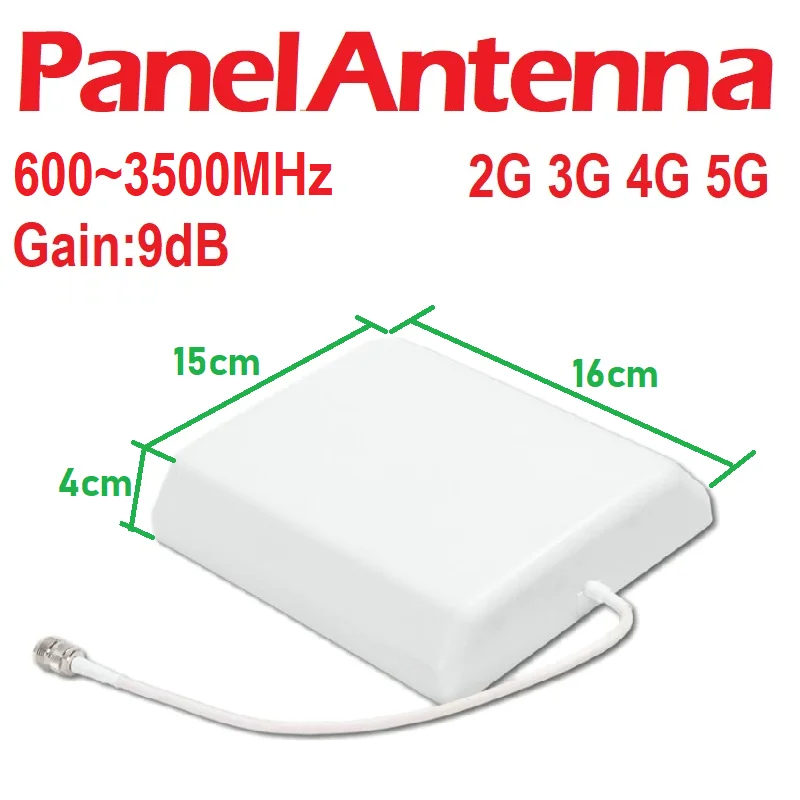

3-Indoor Panel Antenna 1 pcs

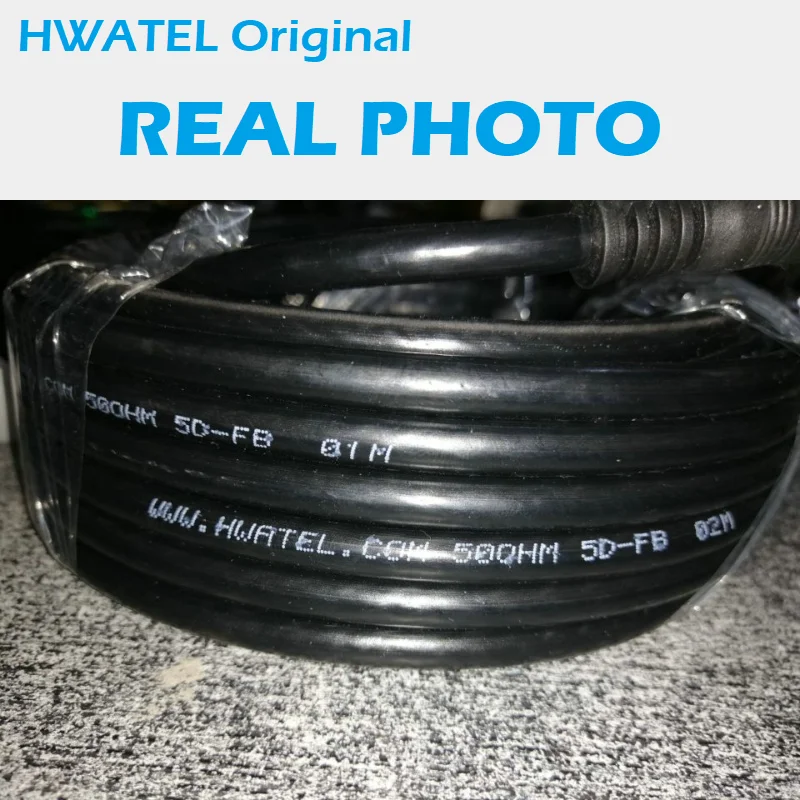

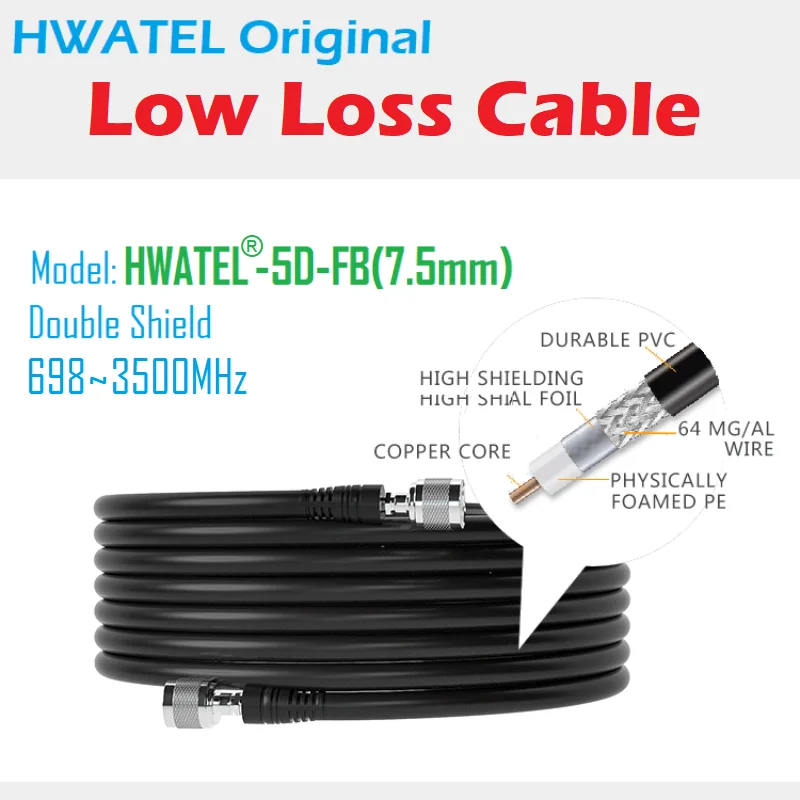

4-Cable 10 meter 1 pcs
5-Cable 3 meter 1 pcs
Feature
| Technical Specification | |||
| Tech Parameter | Uplink | Downlink | |

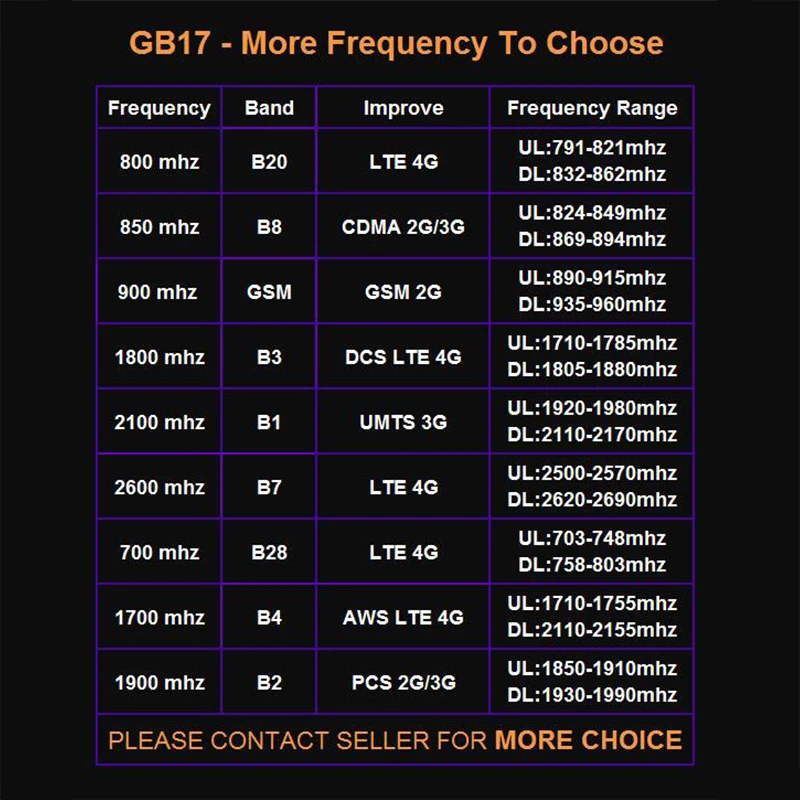

| Frequency Range | BAND 3 | ||
| Output Power | 17 ±2dBm | 23±2dBm | |
| Gain | 60 ±2 dB | 70 ±3dB | |
| Ripple in Band | GSM≤4dB | ||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| Intermodulation Products | 9KHz~1GHz | ≤ -36 dBm | |
| 1GHz~12.75GHz | ≤ -30 dBm | ||
| VSWR | ≤3 | ||
| MTBF | >50000 hours | ||
| Power Supply | AC:100~240V, 50/ 60Hz;DC:5V 1A | ||
| Power Comsumption | < 3W | ||
| Impedance | 50 ohm | ||
| Mechanical Specification | |||
| RF Connector | N-Female | ||

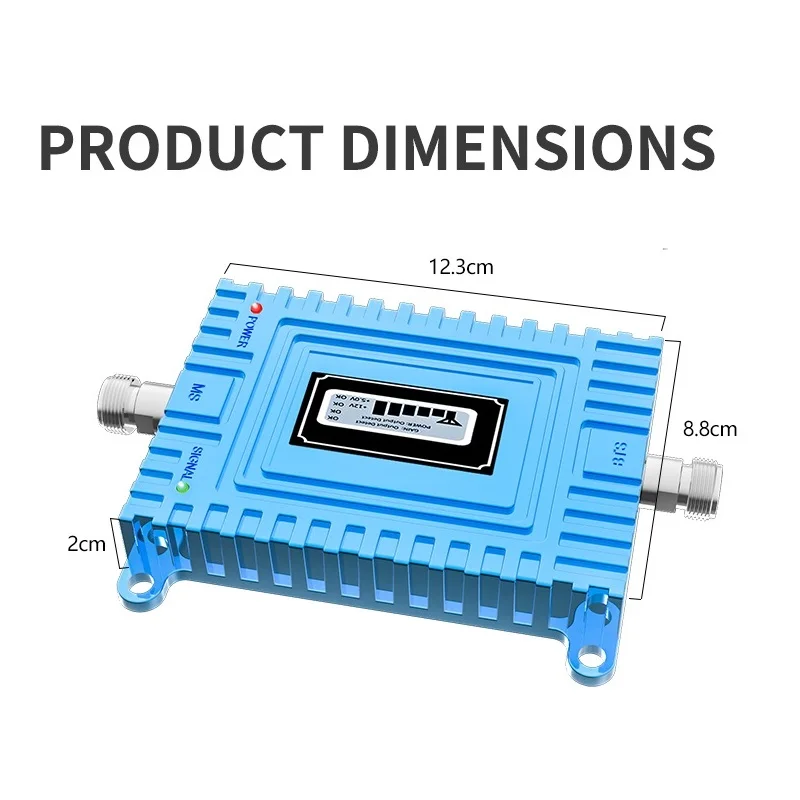

| Dimensions (D*W*H ) | 145*100*20(mm) | ||
| Cooling | Heatsink Convection cooling | ||
| Net weight | < 0.7Kg | ||
| Packing size (D*W*H ) | 240*140*75(mm) | ||
| Gross weight | < 1Kg | ||
| Installation Type | Wall Installation | ||
| Environment Conditions | IP40 | ||
| Humidity | < 90% | ||
| Operating Temperature | -10℃ ~ 55℃ | ||
