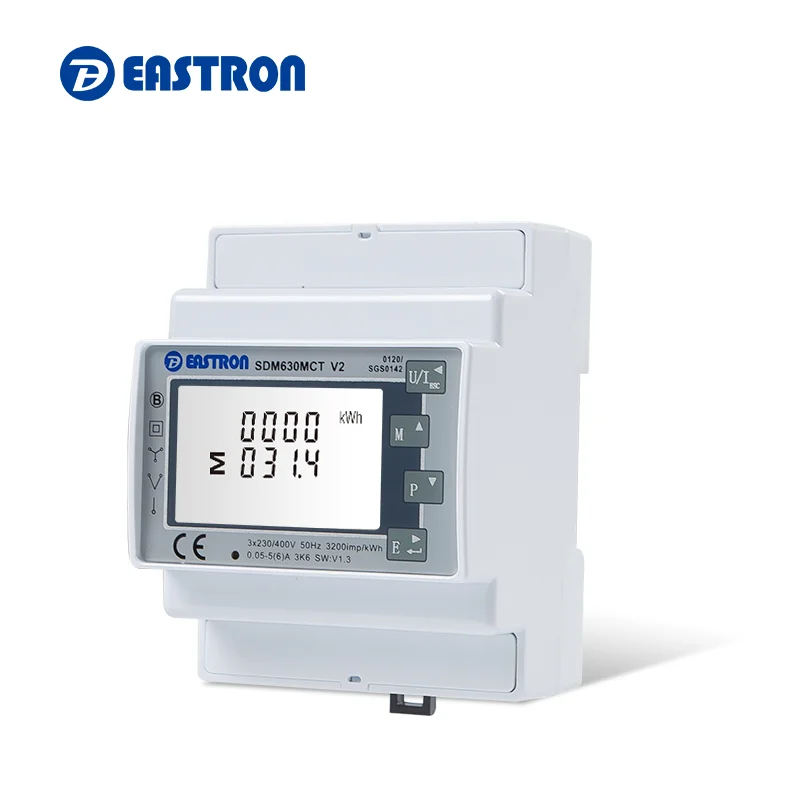

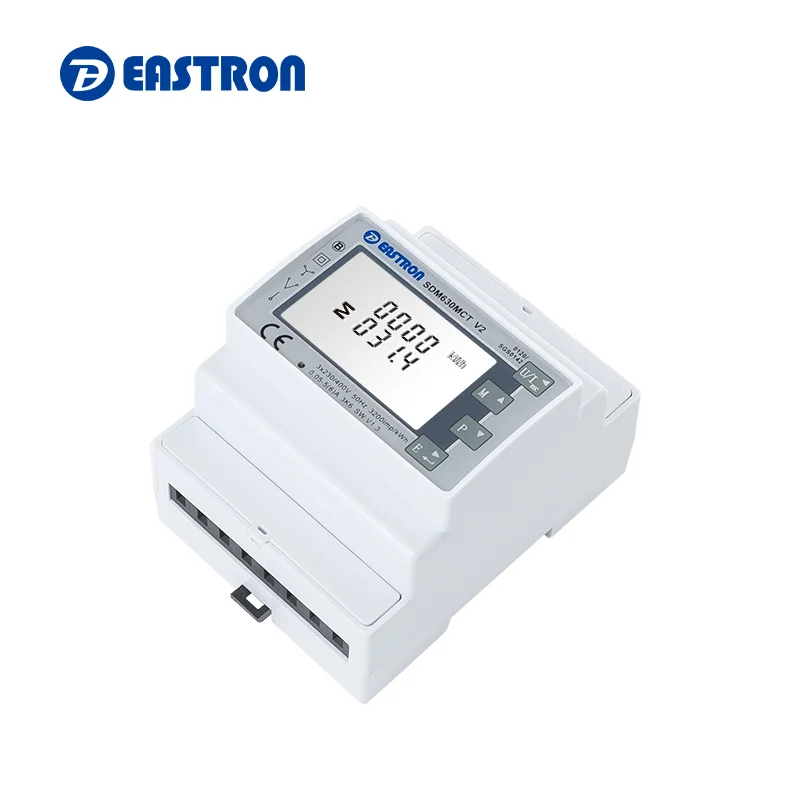

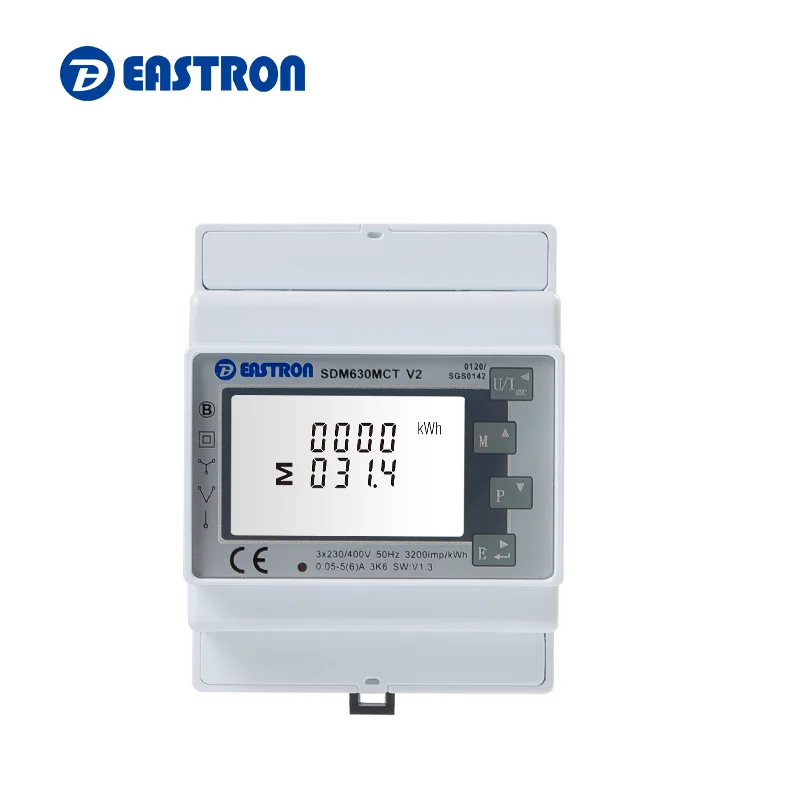

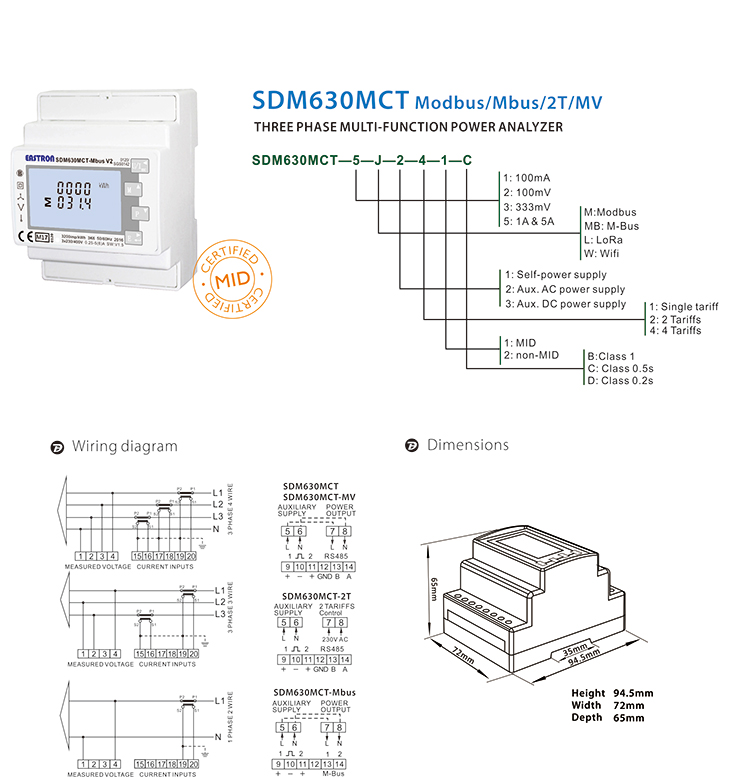

SDM630MCT V2 LCD Display 3 phase 4 Wire Modbus CT Connected Energy Meter for Solar PV
- Category: >>>
- Supplier: Zhejiang Eastron Electronic Co. Ltd.
Share on (1600736147125):
Product Overview
Description
Product Description
SDM630M CT series measures and displays the characteristics of 1p2w, 3p3w and 3p4w supplies, including voltage, frequency, current, power, active and reactive energy, imported or exported, harmonic etc. Bi-directional measurement makes it an ideal choice for Solar PV measurement.
The meter can be configured to work with a wide range of CTs, giving the unit a wide range of operation.
Two pulse outputs and 1 communication port (Mbus/Modbus) are provided for remote monitoring in AMR system or SCADA system.
The unit has been approved to meet the requirements of EU Directive 2014/32/EU.
Characteristics
Multi-parameters.
Bi-directional measurement IMP & EXP
Modbus / Mbus
Two pulse outputs
Multi-tariff
Dual power source
Accuracy Class 0.5S / 1.0
Touch button opercation
Din rail mounting
Backlit LCD Display
100A direct connect
MID approved
Tecnical Specifications
Application
Packing & Delivery
About US
Eastron is one of the leading high-tech manufacturer and supplier for electricity products and energy measurement solutions.
Over the years, we have developed a rich range of electricity meters, sensors, communication modules and management systems. Ourproducts are widely used in such applications as:
•Switchboard/ Panel Boards, EV Charging Points and Infrastructures;
•System Integrators for remote monitoring;
•Renewable energy (Solar, Wind )
•Switchboard/ Panel Boards, EV Charging Points and Infrastructures;
•System Integrators for remote monitoring;
•Renewable energy (Solar, Wind )
