E9 20 Replacement Filter Element for Hankison Filters 0.01 Micron

Product Overview

Description

E3-20 Replacement Filter Element for Hankison Filters 0.01 Micron



1. Technial specifications:

Hankison series, filtration rating E1~E9, flow rate 0.5~500NM3/min.

b. It can remove solid and liquid particles of 0.01 micron and greater.

c. Flow rate can reach 1.72 Nm3/min.

d. Filtration rating is 0.01 μm with 0.001 ppm of oil content.

e. Quality class: ISO 8573.1

f. Maximum liquid load at intake is 40 ppm w/w.



2. Reference table:

Grade       Flow rate NM3/min	E1 Filter element for eliminating oil and odour	E3 Super-high efficiency filter element for eliminating oil	E5 High efficiency filter element for eliminating oil	E7 Intake pipe filter element	E9 Separator/filter element
0.57	E1-12	E3-12	E5-12	E7-12	E9-12
1	E1-16	E3-16	E5-16	E7-16	E9-16
1.72	E1-20	E3-20	E5-20	E7-20	E9-20
2.9	E1-24	E3-24	E5-24	E7-24	E9-24
4.9	E1-28	E3-28	E5-28	E7-28	E9-28
7.2	E1-32	E3-32	E5-32	E7-32	E9-32
11	E1-36	E3-36	E5-36	E7-36	E9-36
14	E1-40	E3-40	E5-40	E7-40	E9-40
18	E1-44	E3-44	E5-44	E7-44	E9-44
22	E1-48	E3-48	E5-48	E7-48	E9-48

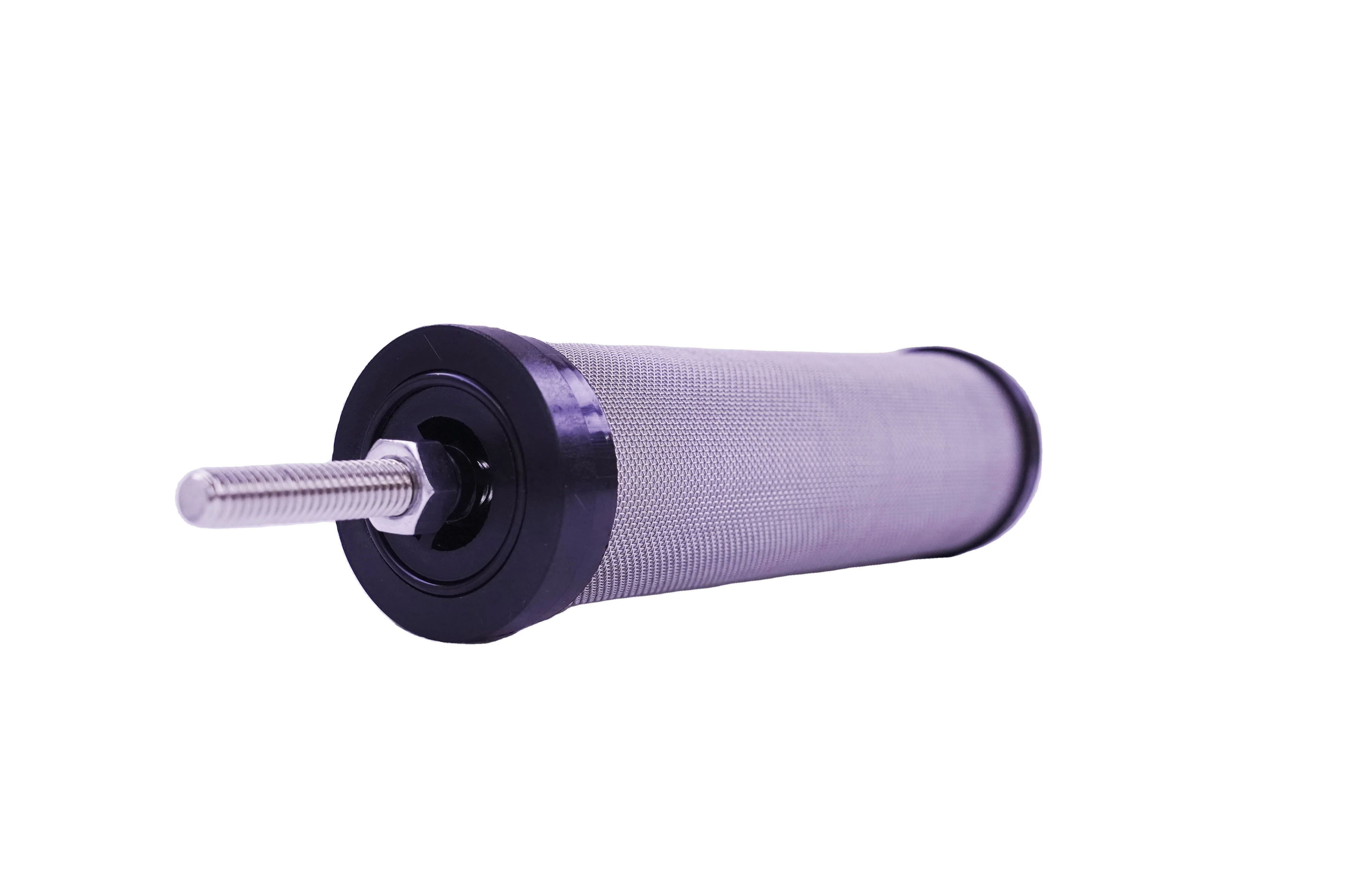

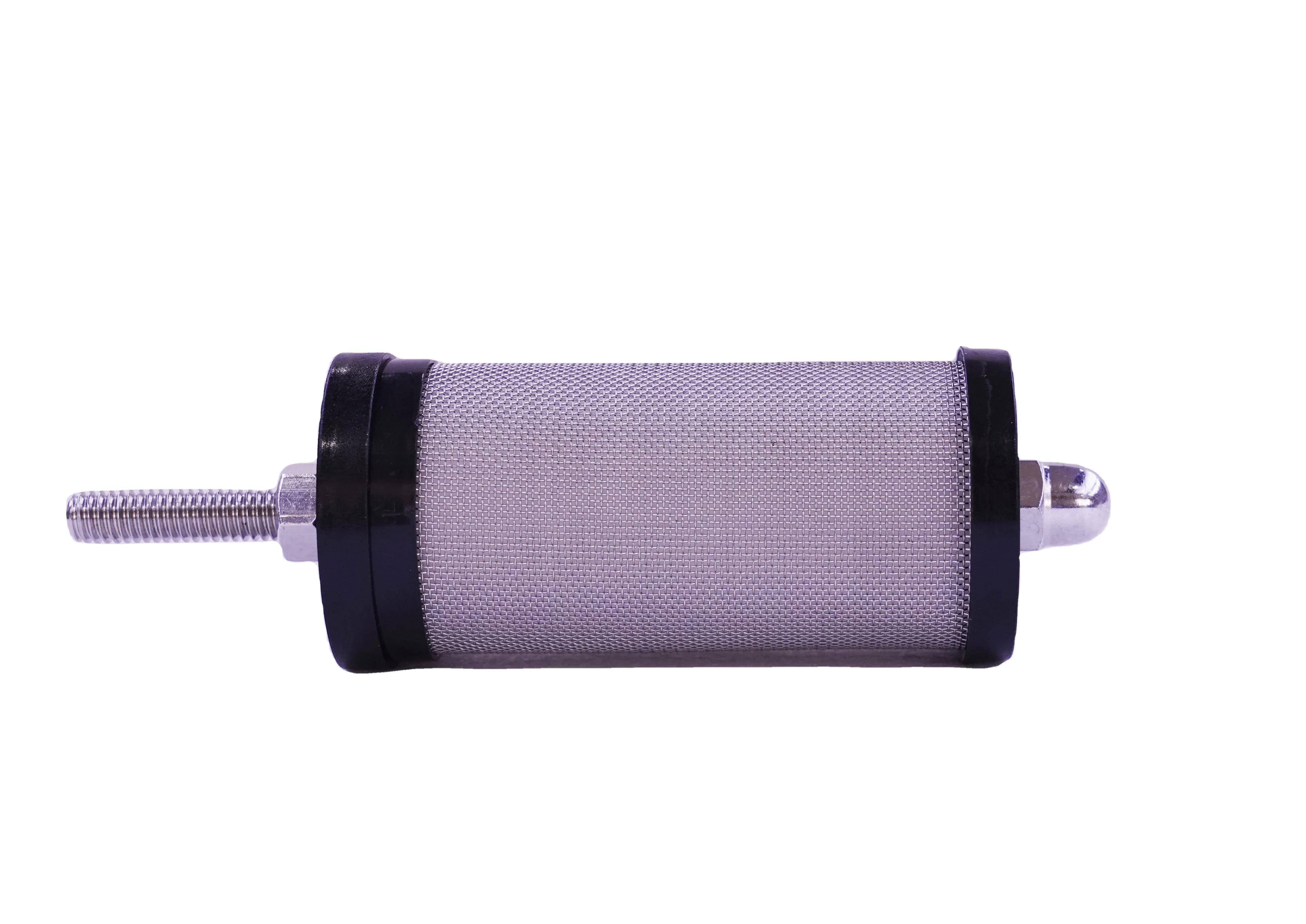

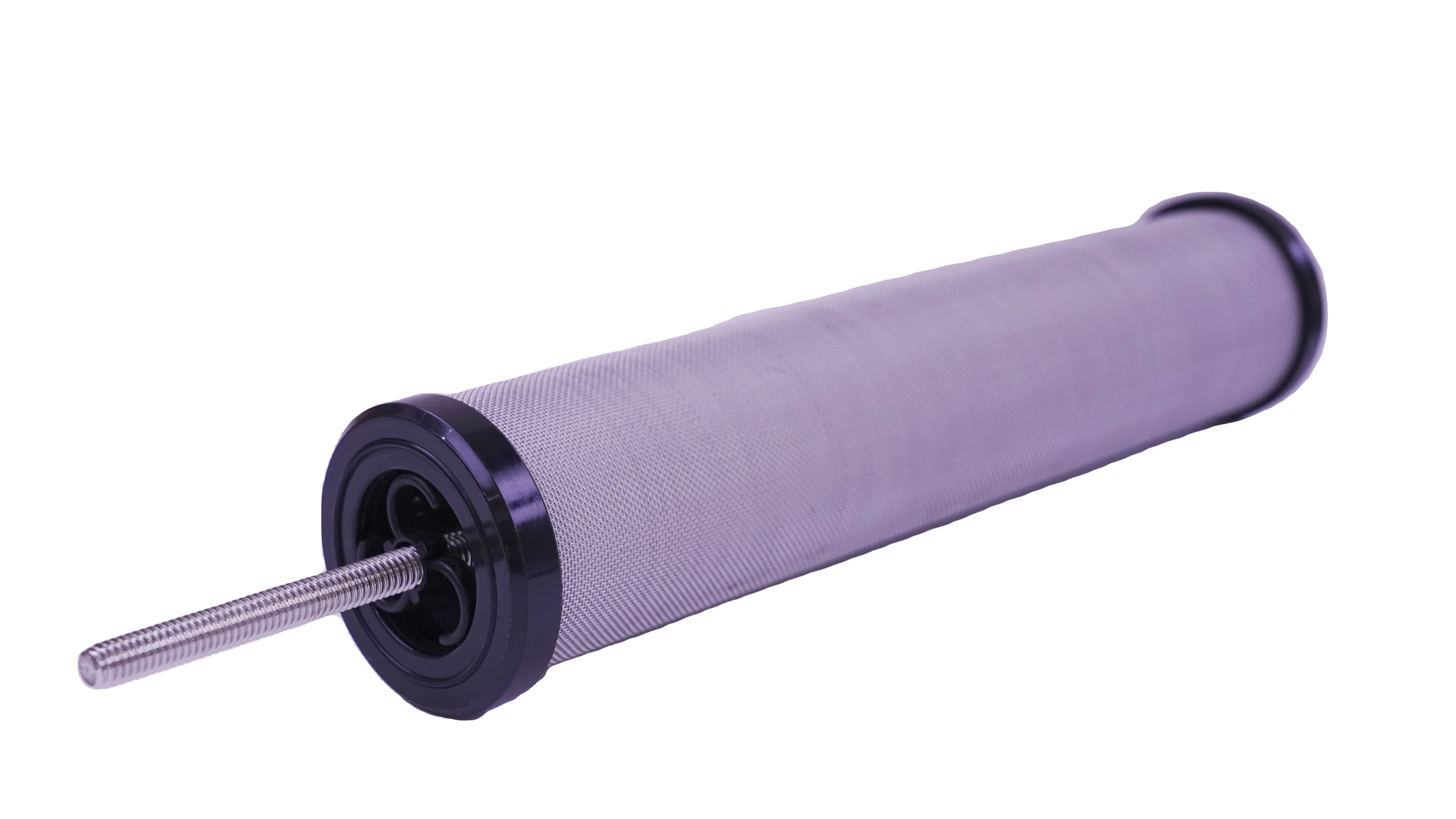

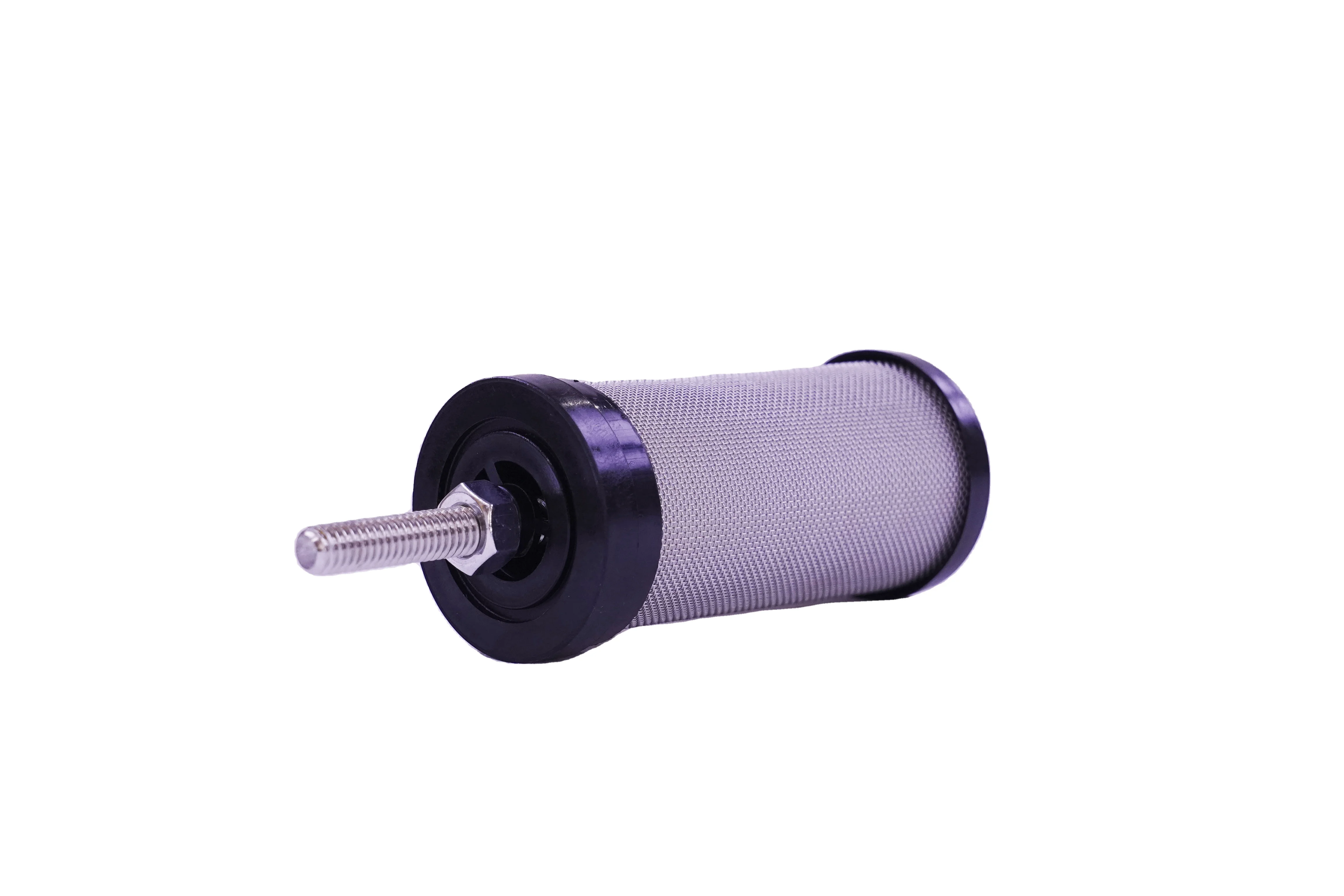

3. Picture:



4. Marking:

Laser print at the bottom end caps



5 Packaging & Shipping:

a. Packaging: carton with plastic bag

b. Shipping: by ocean, air, courier, decdied by customers



6. Test method:

The test stand is imported from Genman GMN Company. The test method is in accordance with ISO 8573-2 and ISO 12500-1 standard. Our products can supply you with the best performance and reach your requirements through GMN test stand.



7. Our services:

Provide the optimal solution for compressed air system.

a. one year warranty

b. after-sales service

c. OEM  service
