Sunlight viewable lcd BOE MV185WHB N20 18.5 inch lcd screen panel for advertising display with full viewing angle
- Category: >>>
- Supplier: Guangzhou Xianheng Techonology Co. Ltd.
Share on (1600736211786):
Product Overview
Description
Products Description
China Top LCD module kits supply

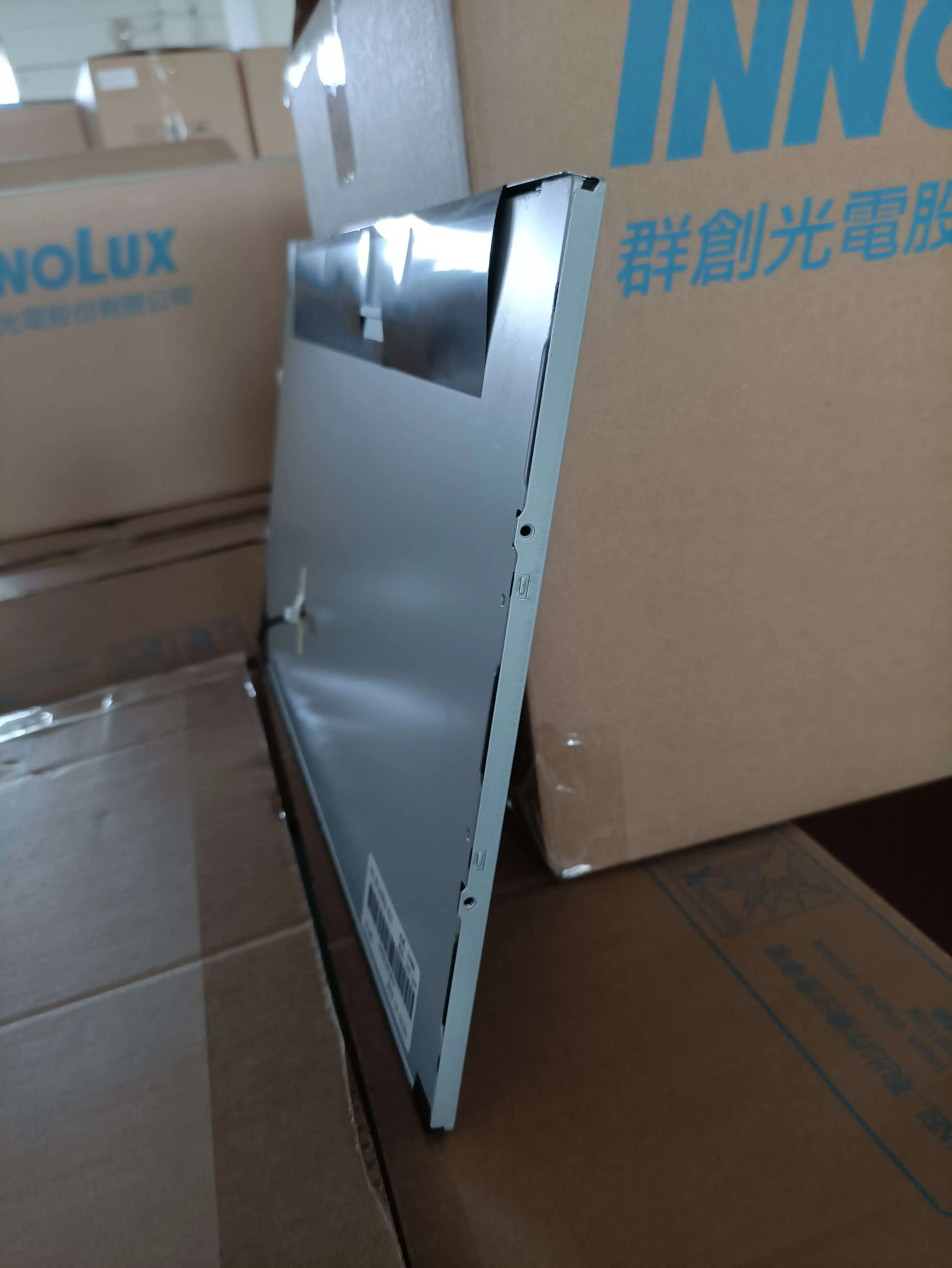

Sunlight viewable lcd BOE MV185WHB-N20 18.5 inch lcd screen panel for advertising display with full viewing angle

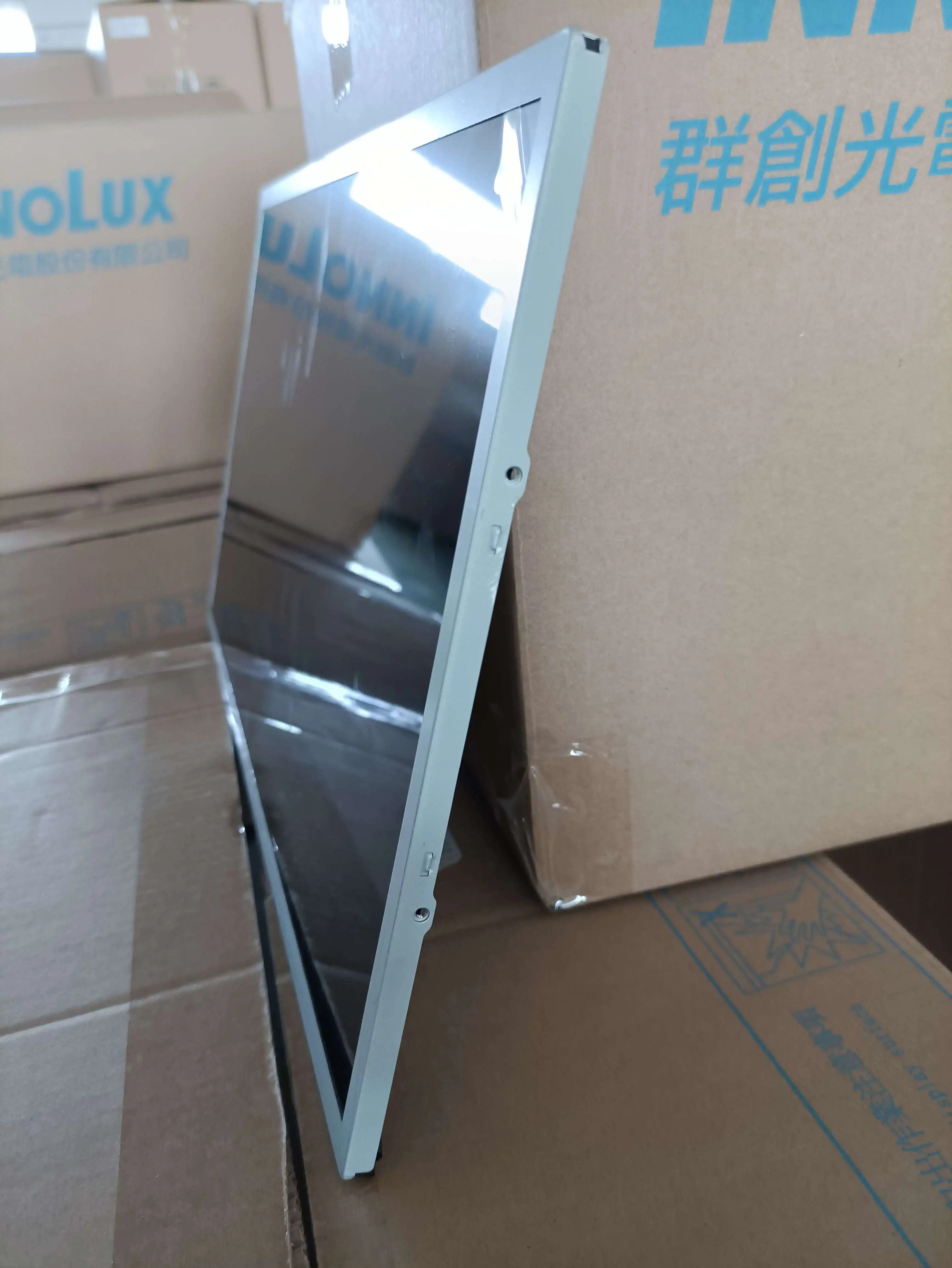

Front View
BOE MV185WHB-N20

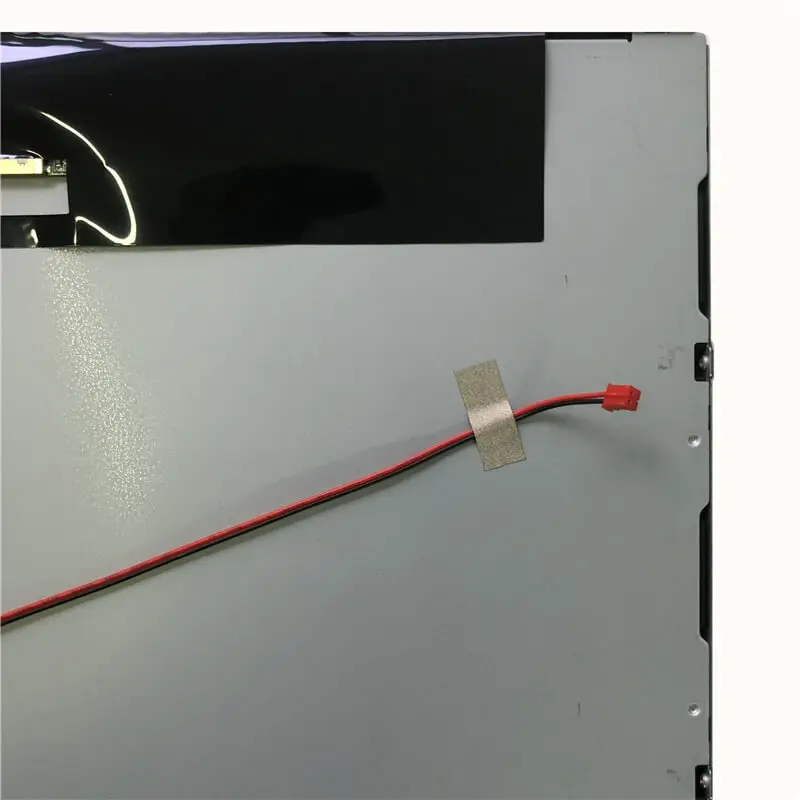

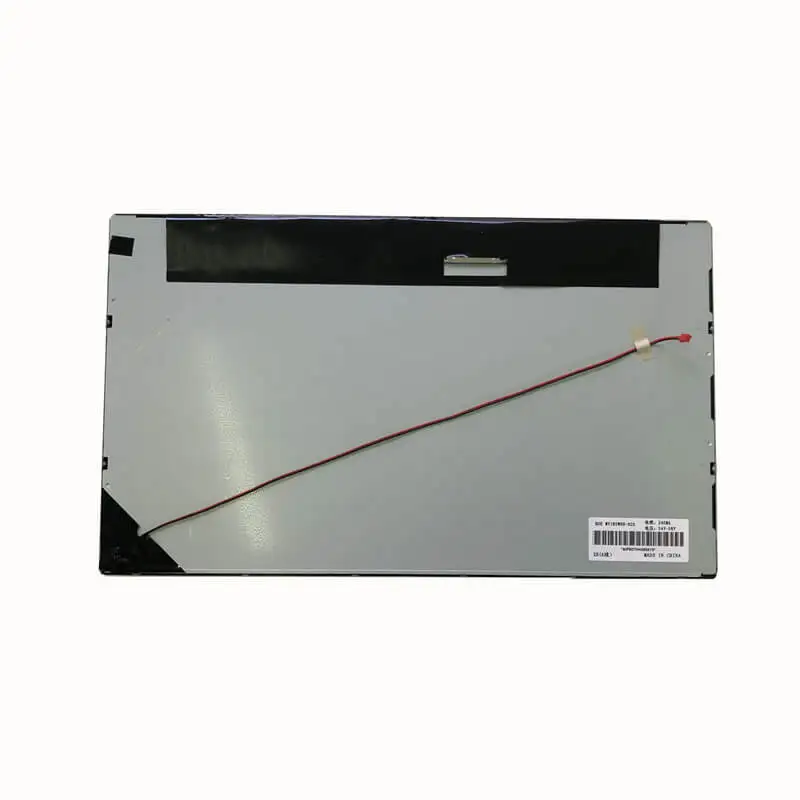

Rear View
BOE MV185WHB-N20

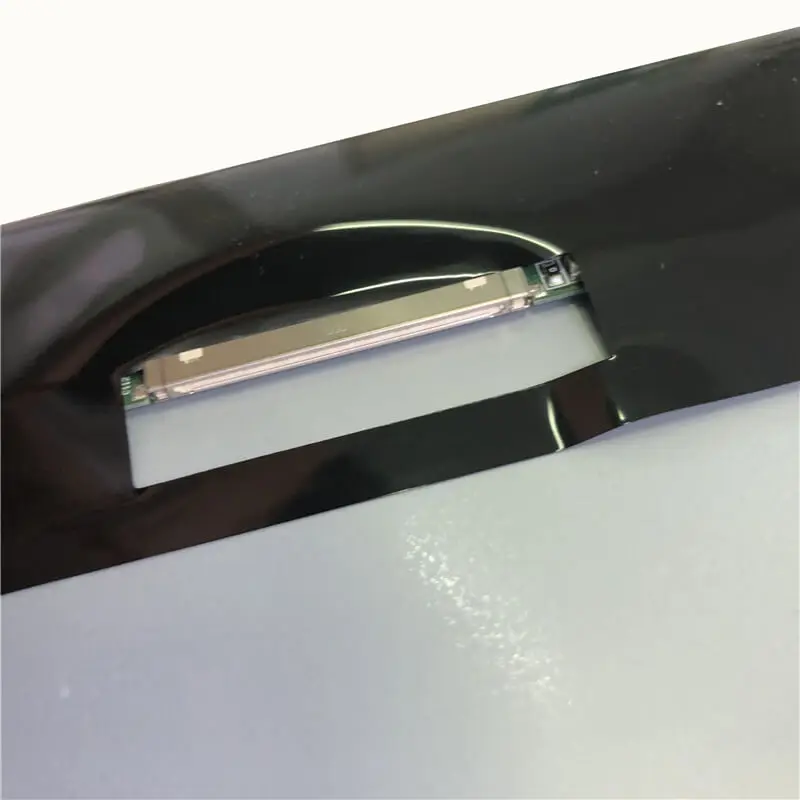

LVDS interface
BOE MV185WHB-N20
Manufacturer | BOE |
Screen Size | 18.5 inch |
Work Mode | MV185WHB-N20 |
Screen Type | a-Si TFT-LCD |
Arrangement | RGB Vertical Stripe |
Pixel Number | 1366(RGB)×768 (WXGA) |
Active Area(mm) | 409.8 × 230.4 (H×V) |
Bezel Area(mm) | - |
Outline(mm) | 422.2 × 244.1 × 1.32 (H×V×D) |
Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Luminance | 1000 (cd/m²) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down |
Good View at | Symmetry |
Glass Thickness | 0.50+0.50 mm |
Color Depth | 16.7M |
Mass | 295.6g (Typ.) |
Refresh Rate | 60Hz |
Model Name | ADS, Normally Black, Transmissive |
Response | 14 (Typ.)(G to G) ms 5.2% (Typ.)(with Polarizer) |
Used for | Desktop Monitor |
Touch panel | Without |
Signal Type | LVDS (1 ch, 8-bit) , Connector , 30 pins |
Voltage Supply | 5.0V (Typ.) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
Hot Models
Product packaging
PACKAGE
Standard export carton packing.
DELIVERY TIME
3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.
