Economical Potent Euro Hopper Dryer For Injection Machine
US $550.00-$1210
100kg Automatic Plastic Pellets hopper Dryer Machine
- Category: Plastic Drying Machines >>>
- Supplier: Guangdong Xiaojuren Machinery Co. Ltd.
Share on (1600736223288):
Product Overview
Description
Model HHD- | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
Capacity(L) | 50 | 75 | 100 | 150 | 200 | 300 | 400 | 500 | 600 |
Heater Power(KW) | 4.5 | 5.2 | 6 | 9 | 12 | 15 | 18 | 18 | 21 |
Power Supply(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Blower Power(W) | 155 | 155 | 215 | 215 | 320 | 320 | 340 | 340 | 1100 |
Blower Flange(mm) | 120 | 120 | 150 | 150 | 190 | 190 | 220 | 220 | 230 |
Net Weight(kg) | 40 | 46 | 60 | 80 | 100 | 140 | 185 | 198 | 270 |

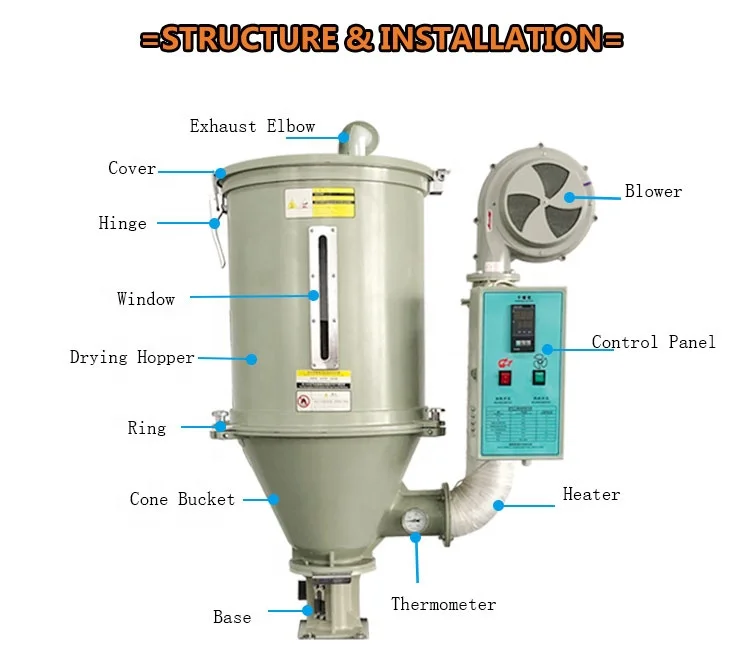

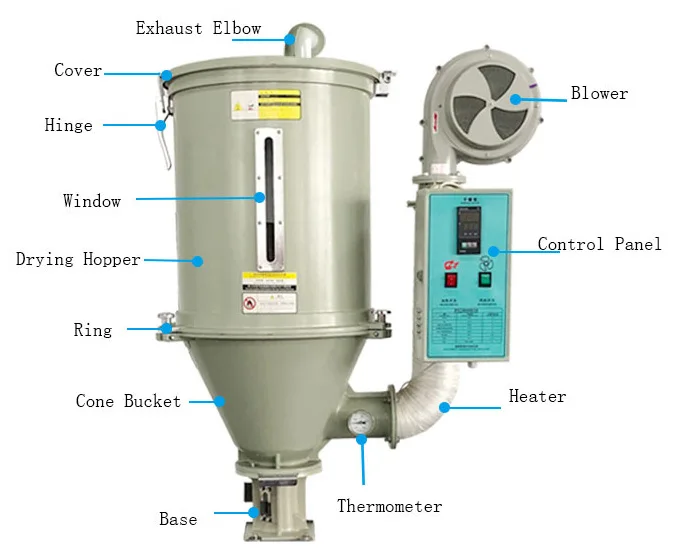

Standard hopper dryer
The hopper dryers are mainly used for drying plastic particles such as PP, PE, ABS, PVC, etc., and are composed of heaters, fans,silos and control systems. Use high-temperature hot air to treat various wet raw materials to fully dry the raw materials and ensure product quality.
Feature:

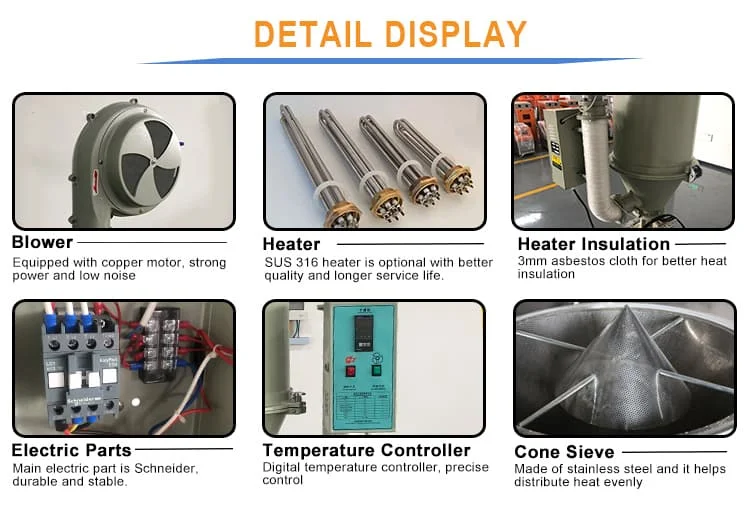

1. The high-performance hot air diffusion device is adopted to evenly disperse the hot air to keep the drying temperature of the plastic uniform, which is highly efficient and energy-saving.
2. Curved eletric heating tube designed, avoid burning caused by raw materials dust accumulation at the bottom of tank.
3 Material contact surface is made of stainless steel.
4. The material barrel is separated from the bottom, which is convenient for material cleaning and quick for material
replacement.

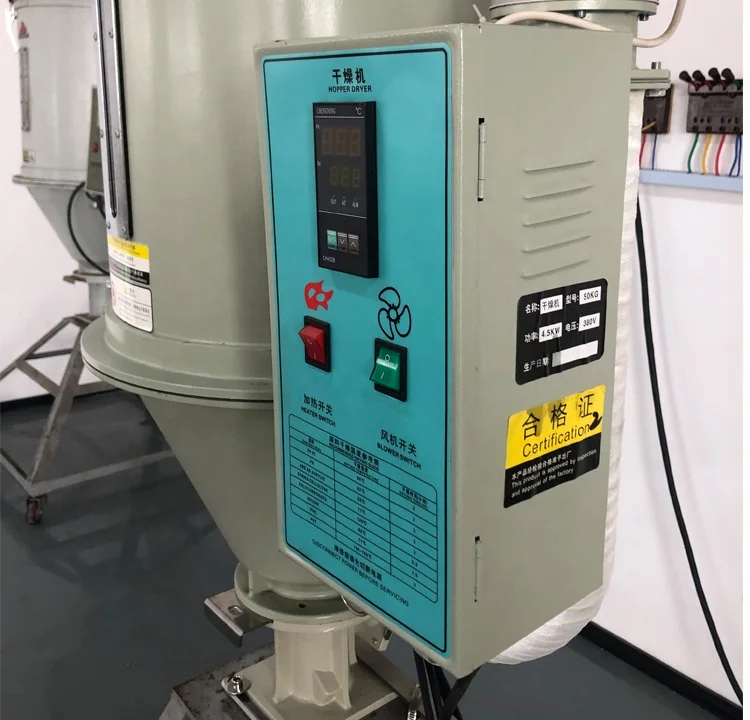

5. Precisely temperature control by adopts digital (proportional deviation) display temperature controller .
6. Precisely cast aluminum shell, smooth surface and good performance of keeping heat.

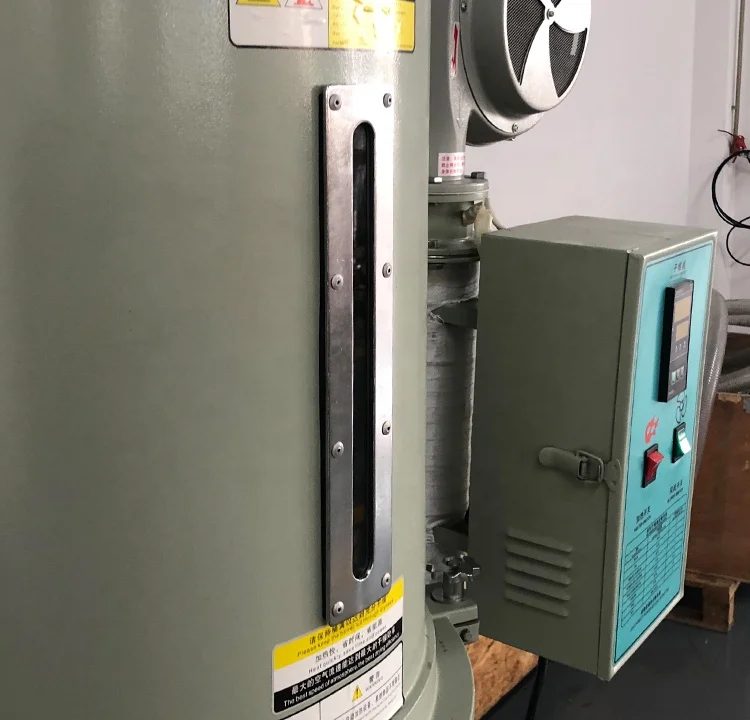

7. Low noise blower,machine seat installed with visual window, can observe internal raw materials directly.
8. There are double overheating protection devices, which are safe and reliable.
2. Curved eletric heating tube designed, avoid burning caused by raw materials dust accumulation at the bottom of tank.
3 Material contact surface is made of stainless steel.
4. The material barrel is separated from the bottom, which is convenient for material cleaning and quick for material
replacement.
5. Precisely temperature control by adopts digital (proportional deviation) display temperature controller .
6. Precisely cast aluminum shell, smooth surface and good performance of keeping heat.
7. Low noise blower,machine seat installed with visual window, can observe internal raw materials directly.
8. There are double overheating protection devices, which are safe and reliable.
Working principle:
When the plastic hopper dryer is in use, start the heater to heat the air in the silo, start the fan to make the air flow to dehumidify,and through continuous heating and air flow, the water in the plastic particles is gradually evaporated to achieve drying effect.
Company introduction:
Since its establishment, Hengju has been focusing on the research and development of dehumidifying & drying, dosing & mixing and central conveying systems to make products closer to customer’s demand and customize complete automation solutions for customers.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Relying on strong professional technology and stable quality, we have won high comments from customers at home and abroad.Covering industries include auto parts, chemical industry,pelletizing, new energy, new materials, etc., and excellent performance in bio-degradable plastics such as PLA, PBAT, and pipe/sheet/ cable extrusion and other fields!
