Powerful quad core CortexA53 processor i.MX8M plus SOM with NPU, GPU, arm single board computer industrial linux android board
- Category: >>>
- Supplier: Zhejiang Qiyang Intelligent Technology Co. Ltd.
Share on (1600736229502):
Product Overview
Description
Product Description
Product Name | Core board |
Product Number | IAC-IMX8MP-CM |
Advantage | Low power consumption, small size, high performance |
Application | Smart Transportation, Smart Home, New Retail Equipment |
Operating System | Android，Linux |
Brand Name | Qiyang |
Product Paramenters

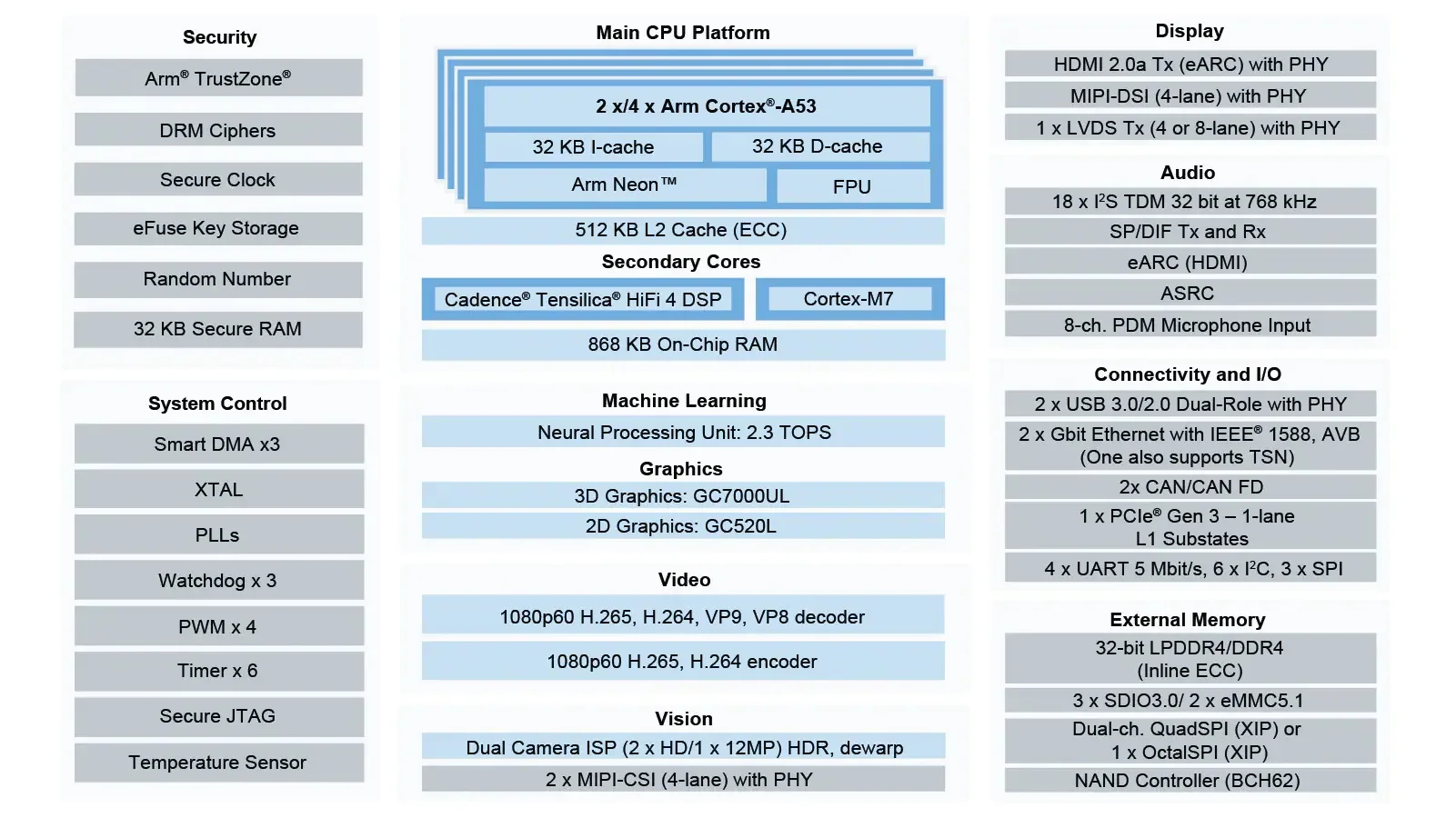

Hardware Resources | CPU | NX-P i.MX8M Plus ，Quad ARM® Cortex™-A53@1.6 GHz + Cortex-M7@800MHz |
NPU | 2.3TOPS | |
GPU | GC7000UL with OpenCL and Vulkan support 16 GFLOPS OpenGL ES 3.0/3.1、 Vulkan、 Open CL 1.2FP、 OpenVG1.1 | |
VPU | Support 1080p60, H.265/4, VP8, VP9 video decoding; support 1080P60, H.265/4 video codes | |
ISP | Dual Camera ISP (12MP) | |
RAM | 2GB LPDDR4 | |
Flash | 16GB eMMC | |
Network | 2 * Gbit/s Ethernet (1x TSN); On board WIFI Module, support 2.4GHz/5GHz Dual -frequency wifi, 802.11a/b/g/b/ac protocol | |
UART | 1 * Cortex-A53 Debug UART; 1 * Cortex-M7 Debug UART; 4 x RS232(3 * Three-line RS232、 1 * Five-line RS232); 1 * RS485 | |
USB | 3*USB3.0 HOST; 1*USB Type-C | |
CAN | 2 * CAN-FD | |
Display | 1*MIPI-DSI(4 line),with resolution of 1920x1080@60; 1*LVDS(2 line)， with resolution of 1920x1080@60; 1*HDMI(eARC)，with resolution of 1920x1080@60; | |
Audio | 2 Speaker power amplifier output; dual -channel audio output (headset socket); MIC audio input | |
Camera | 2*MIPI-CSI(4 line)，support two camera input at the same time | |
Expansion Interface | M.2 M-KEY（To connect SSD）; M.2 B-KEY(To connect 5G module); SIM Card; 3*GPIO(1.8V) | |
Input Interface | I2C | |
Other | Reservation circuit, Watching dog circuit, Real time clock | |
Power Input | +12V power supply | |
Resource | Development Tools | Development environment: Virtual Machine VM15.5.0+ubuntu14.04 or Ubuntu 16.04 |
Application layer development debug tool | ||
Cross-compiler | ||
Common terminal development debugging tool | ||
Image File | ISO of matched operating system | |
Test Program | Interface using demo test program and test program source code | |
Source Code | Bootloader, kernel, system source code | |
Manual | Mainboard User manual,Hardware Manual, Device Manual | |
Mechanical Chart | Back Plane’s Structure & Size | |
Electrical Specification | Size | Core board:Core board:60mm*63mm(8 floors PCB); Carrier board:200mm*150mm(4 floor PCB) |
Power Consumption | ≤5W | |
Operation Temperature | -40℃ ~ +85℃ | |
Operation Humidity | 5% ~ 95%, Non-Condensing | |
Operate System | Linux, Android |
Details Images

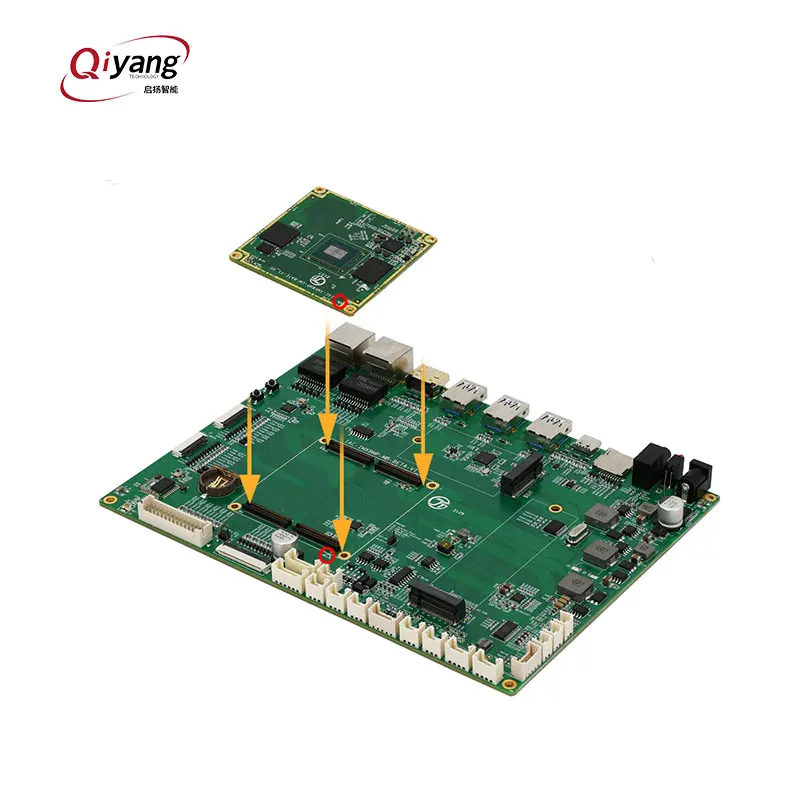

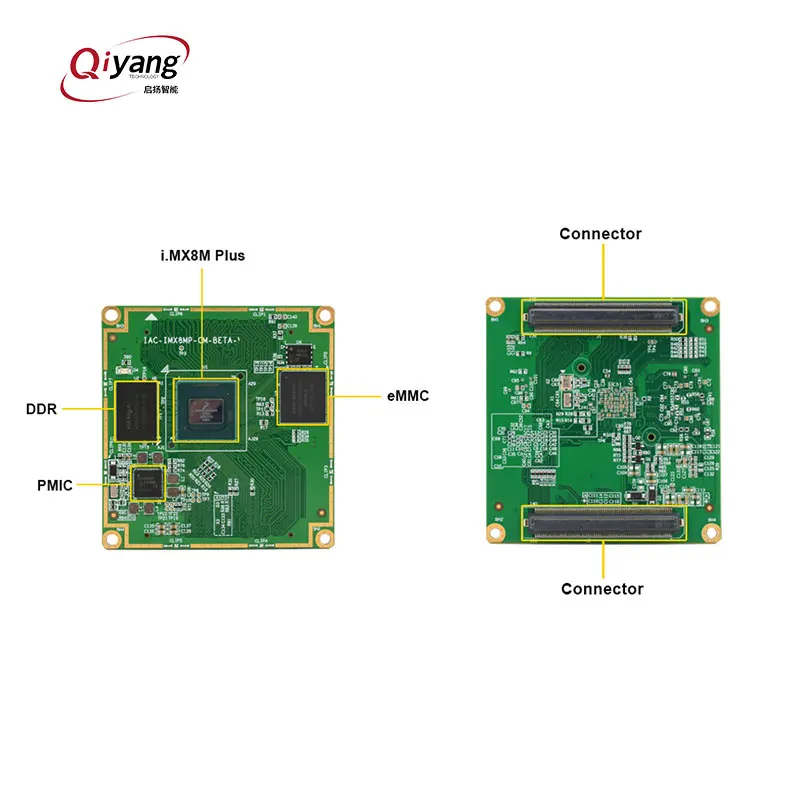

Interface display
Application area
Accessories
Technical support
Company Profile
FAQ
