Good Price Three Layer Co extrusion Line Multi Layers Plastic Extruder Machine
- Category: >>>
- Supplier: Tianhua Institute of Chemical Machinery and Automation Co. Ltd.
Share on (1600736259170):
Product Overview
Description
Products Description

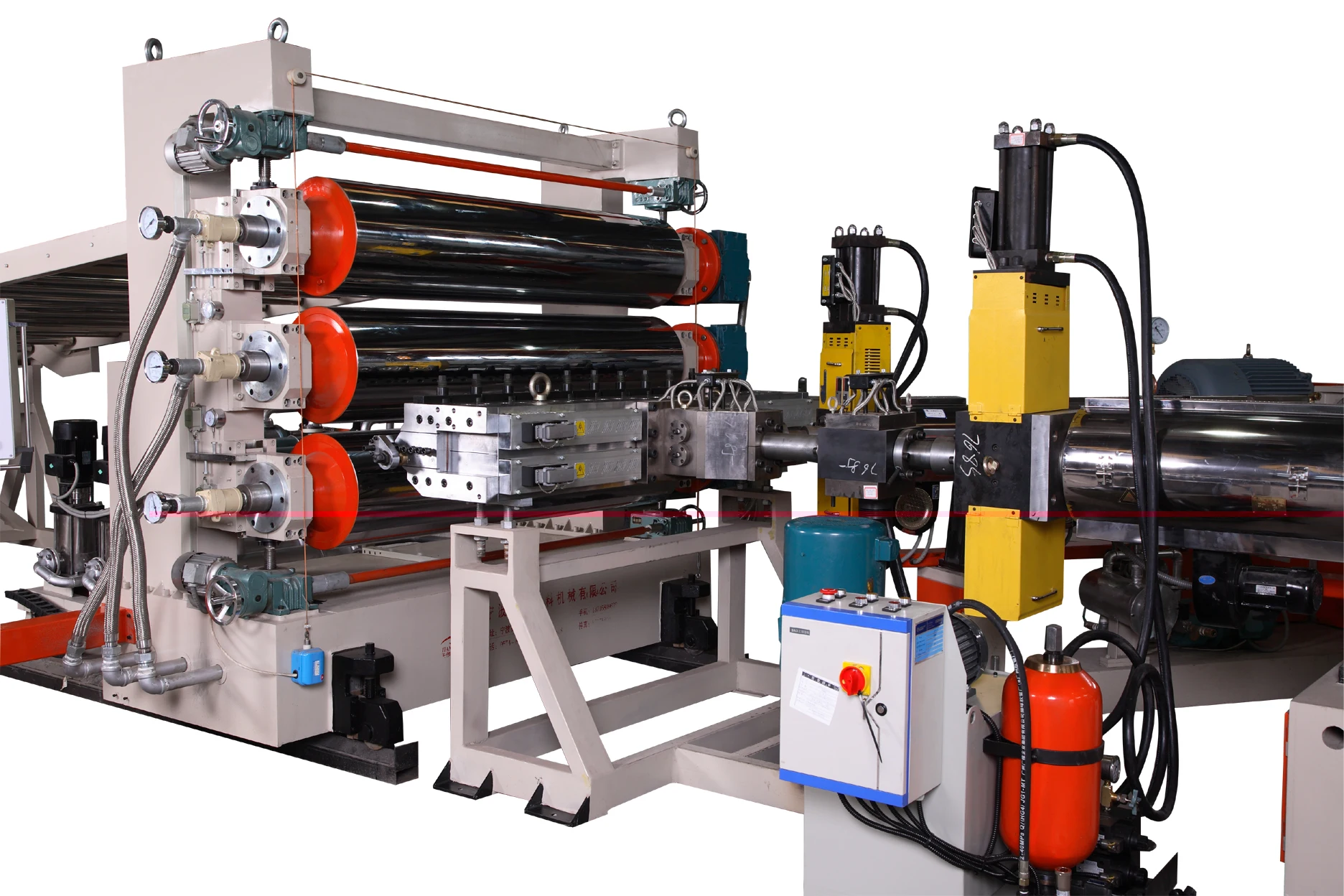

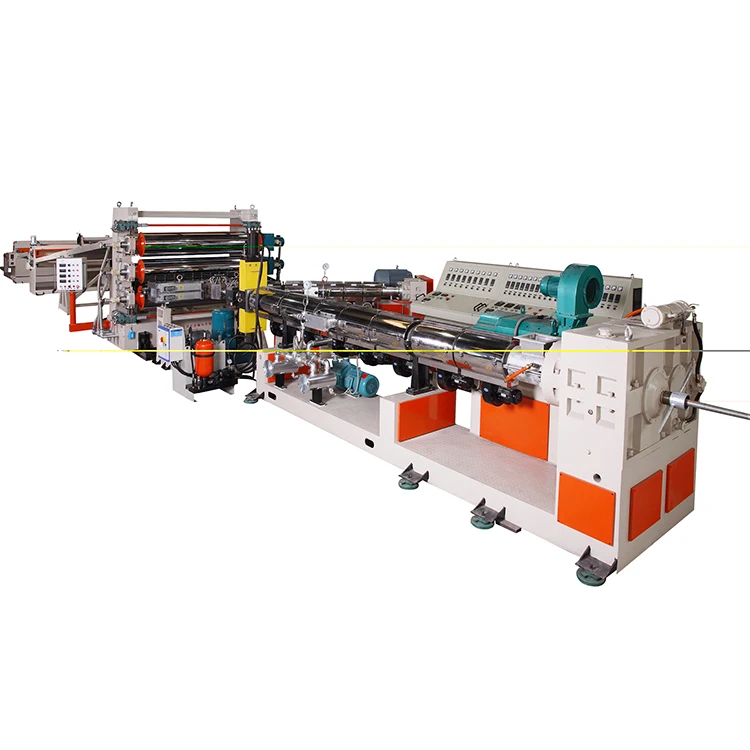

Three-Layer High Quality Plastic Extrusion Machines Plastic Sheet Extrusion Line Abs Pc Sheet Extruder
Technique parameter
Plate thickness | 1-4mm |
Plate Width | 1-900mm |
Weight | 14T |
Total Power | 130kw |
Overall Dimension | 17600*5700*3300mm |
Yield | Around 300KG/HR |
Auto Grade | Full Auto |
Diameter of Roller | 400mm or customized |
Diameter of Barrel | 100/70/50mm or customized |
Lamination Device | Included,printed film on the sheet is ok |
Distribution Device | Included,more layers sheet can be made |
Layers of Sheet | 1-5 layers |
OEM and ODM |
Extrusion Screws
According to the different material features, it adopts ideal, reasonable and high-efficiency single-layers extruder, which has the characteristics of high output, good plasticizing capacity.

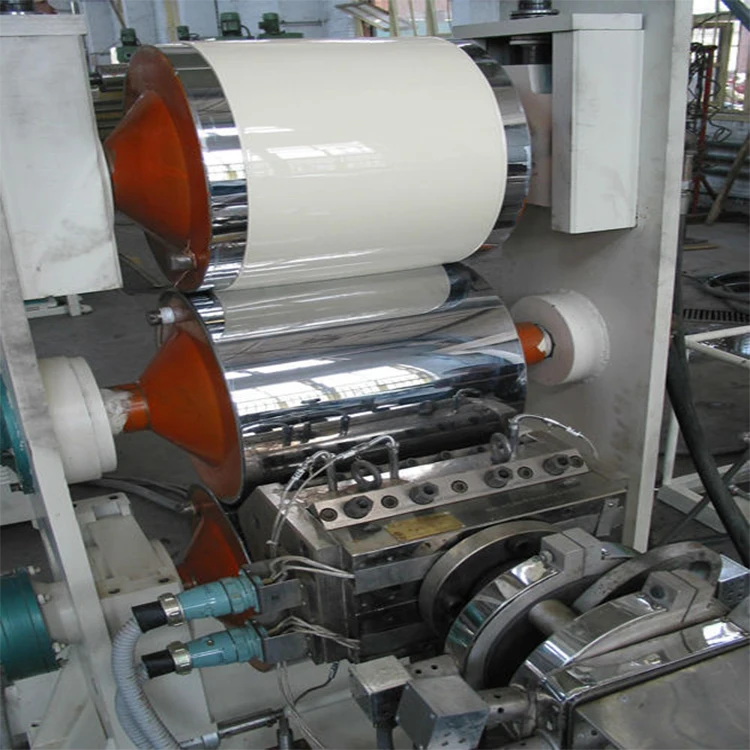

Mould
It processes hard chrome plating and mirror polishing, ensuring to extrude stable, uniform, good smooth finish sheet.

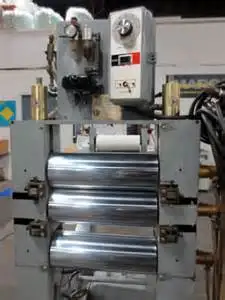

It adopts vertical structure and the independent control of oil and water control device, to ensure precise constant temperature control.
Rollers adjust the speed independently, which has the characteristics of easy operation, easy to adjust thickness, high density sheet.
It adopts the design of upper-lower cylinder pressure type, stepless frequency conversion timing, which is suitable for different extruded speed.
Track the length of sheet transfer, it provides strong guarantee for the stable production.
The cutting board is adopted motor drive type, which has the function of auto measuring length and cutting.
It can cut the sheet length effectively and smoothly.
Application
This production line is capable of continuously produce mono-layer or multi-layer ABS, PC, PP, PE, PS, PMMA, HIPS sheet. The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement, bathroom, automotive trim etc.
This production line is capable of continuously produce mono-layer or multi-layer ABS, PC, PP, PE, PS, PMMA, HIPS sheet. The products are widely used in the fields of luggage, refrigerator, air conditioner, advertisement, bathroom, automotive trim etc.
Company Profile
Tian Hua Institute of Chemical Machinery & Automation Limited Company, established in 1958, is a professional manufacturer engaged in the research, development, production, sale and service of chemical machinery and control systems. We have our general headquarter in Lanzhou our production bases in Nanjing with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. In recent years, our company has introduced a series of advanced equipment including plastic machines, waste heat boilers, dryer technology and devices, regenerative thermal oxidizer,chromatogram online analyses system. In addition, we have obtained ISO Certificate of conformity of health safety and environmental management system certifications. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as North America, the European region, Southeast Asia, India, Mideast region, South America. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements.
