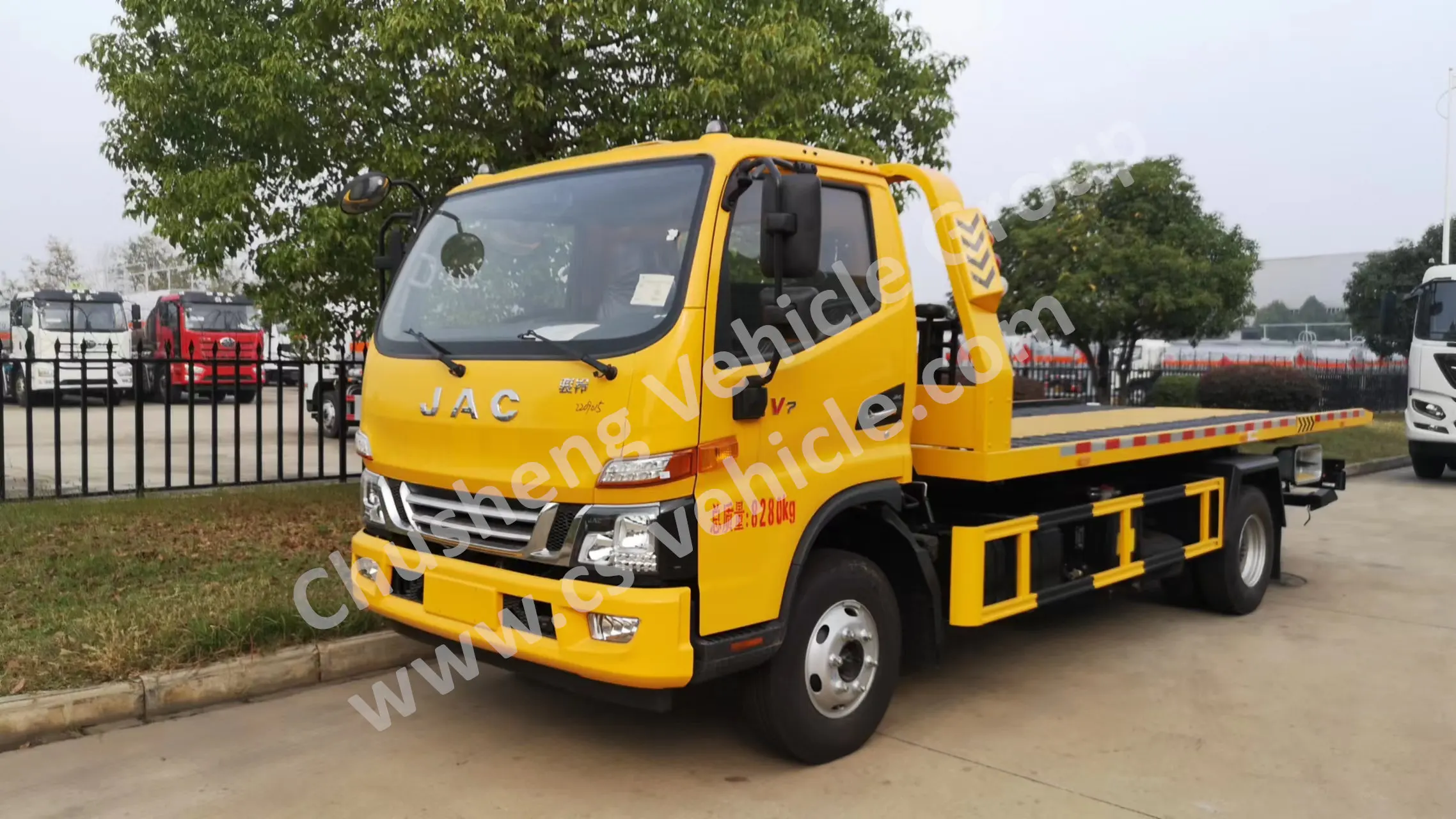

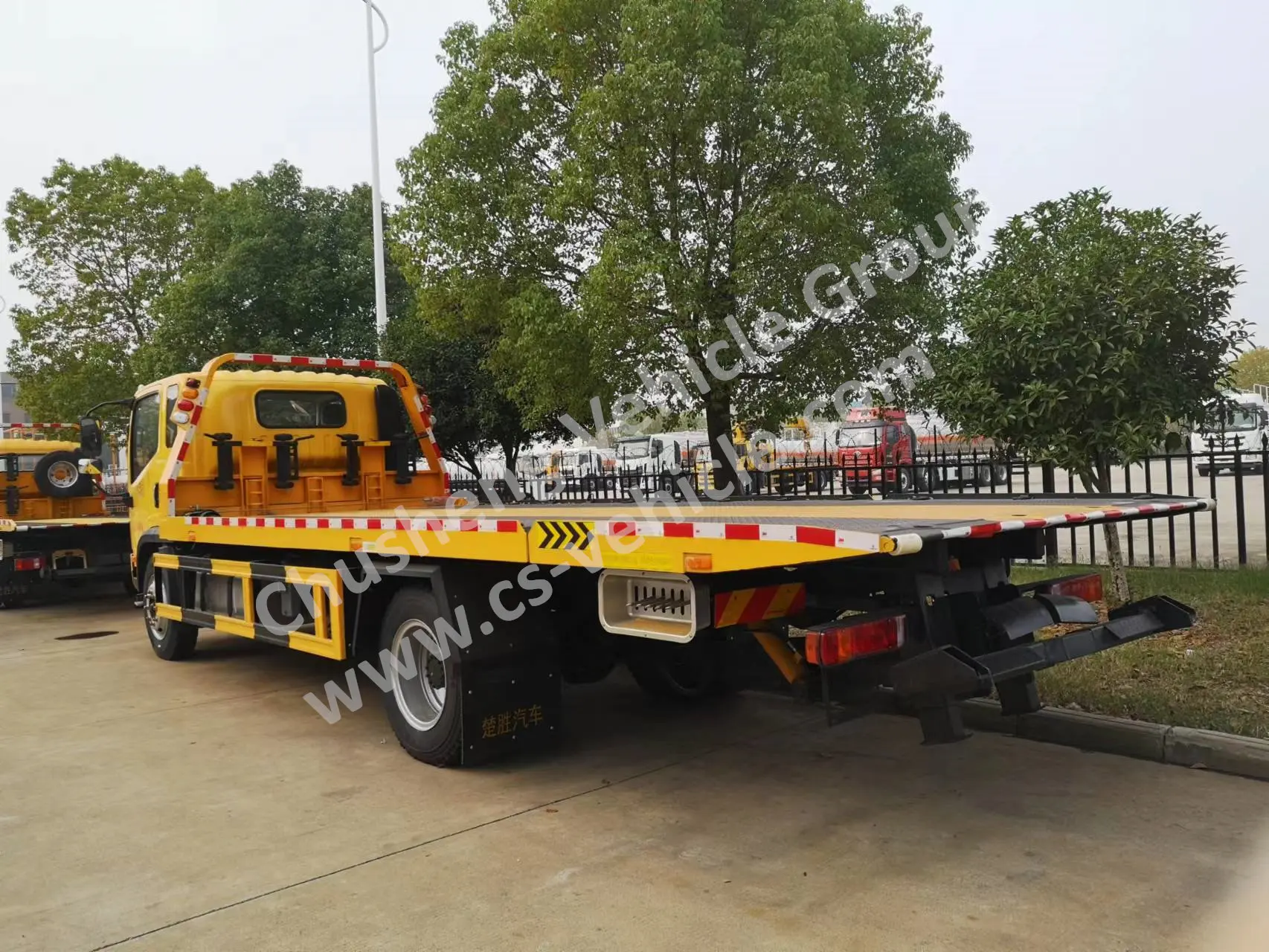

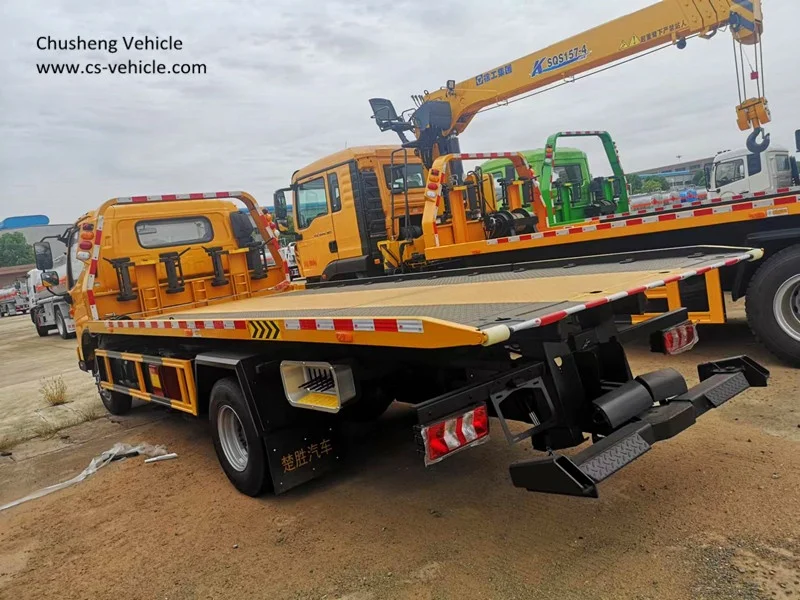

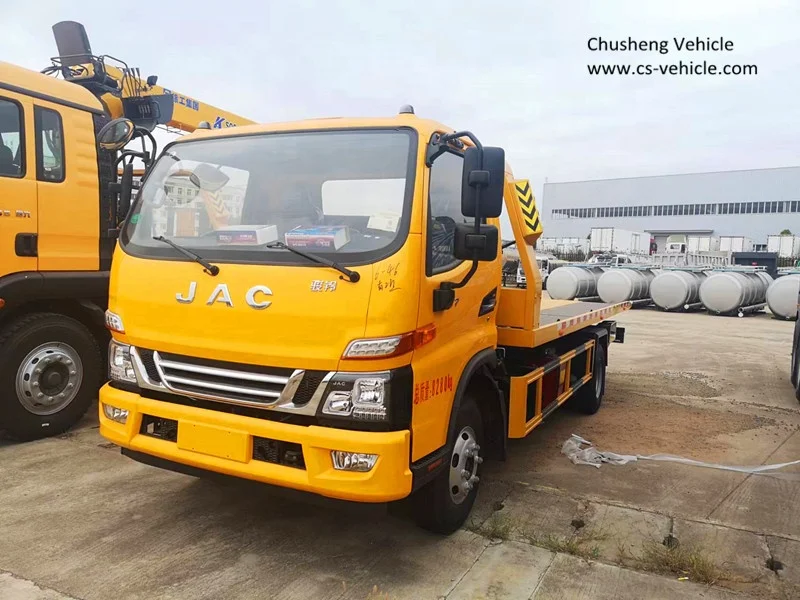

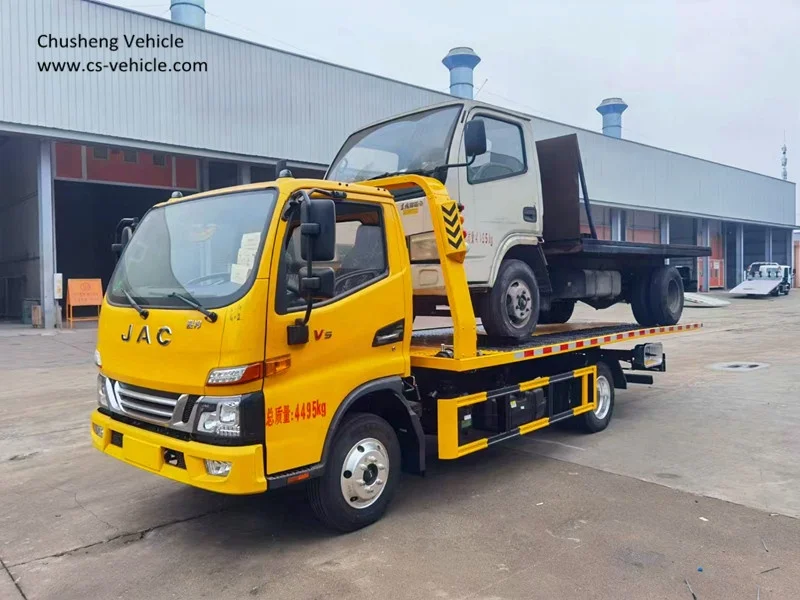

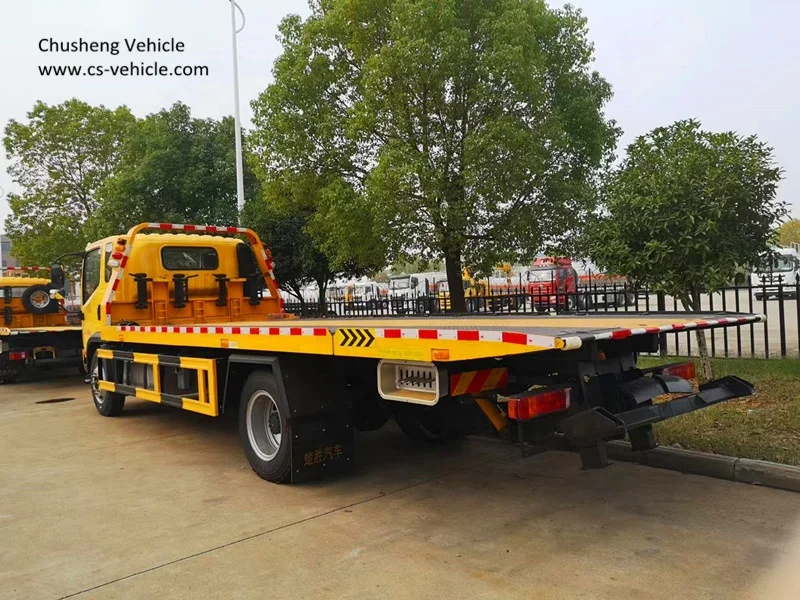

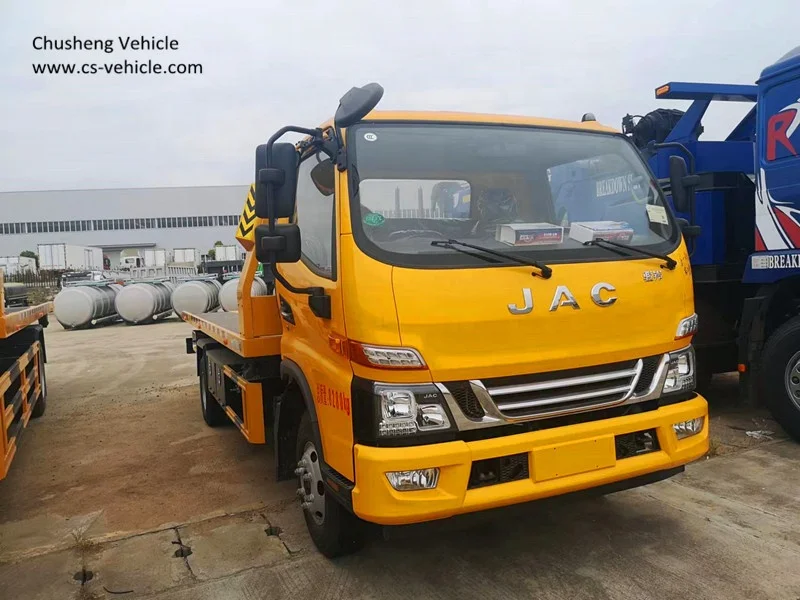

| Product name | JAC 4x2 flatbed wrecker towing truck | |
| Drive Model | 4x2 | |
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 6500X2300X2320mm |
| Wheel base (mm) | 3360mm | |
| Weight in KGS | Curb Weight | 4060kgs |
| GVW | 8280kgs | |
| Max. driving speed (km/h) | 90 | |
| Engine | Model | CY4102 |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |
| Horse Power(HP) | 116HP | |
| Emission standard | Euro III | |
| Gearbox | 5 forwards & 1 reverse | |
| Fuel tank (L) | 120L | |
| Tire | 7.00R16 6pcs + 1 spare tire | |
| UPPER | ||
| Platform Organ | LXW(mm) | 5100x2200 |
| Platform power stroke(mm) | 2680 | |
| Min angle | 7.6 | |
| Max lifting capacity(kg) | 4000 | |
| Winch rating pulling capacity(kg) | 4000 | |
| Length of steel(m) | 21 | |
| Hoisting Organ | Max under-hoisting capacity(mm) | 1300 |
| Rating under-hoisting capacity(mm) | 1005 | |
| Fully extended max under-hoisting capacity(mm) | 700 | |
| Rating under-pulling capacity(kg) | 6400 | |
With auxiliary wheels, hooks, bundling belt, automatic sliding plate; Caution light, air condition are optional. | ||



Nude and waxed RO-RO vessel, Container vessel or Bulk vessel suitable for tow truck
(1)Wax:
Do wax spray process to against the trailer body suffer seawater corrosion during shipping
(2)Package:
Stable fixing with steel wire,to protect the trailer during shipping
(3)Shipping:
Reliable logistic service from famous freight supplier makes transport process safely and promptly
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.

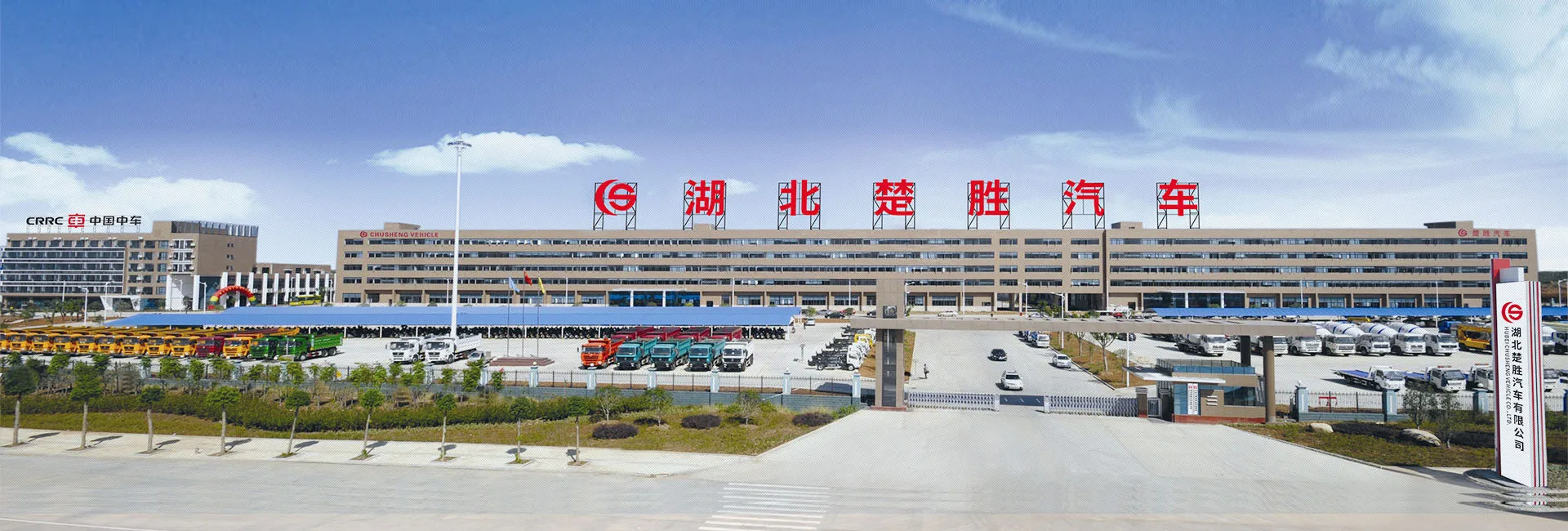

1. CHUSHENG VEHICLE GROUP CO.,LTD. is a famous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2. Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3. We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc. Our product have passed the ISO9001 quality system certification, and CCC certificate.

1. Q: Are you original manufacturer?
A: Yes, we are a leading manufacture in China and we have the whole series products you need. we have big factories in China. All factories produce all kind of trucks or trailers.
2. Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment.
3. Q: How long will I receive my product?
A: Usually 25-30 days after the deposit is received.
4. Q: How can I know the quality?
A: we can offer quality report; you can send someone to check or your autherize some agent to test.
5. Q: How can I place order?
A: Confirm the products details , sign the contract and then pay the deposit.
