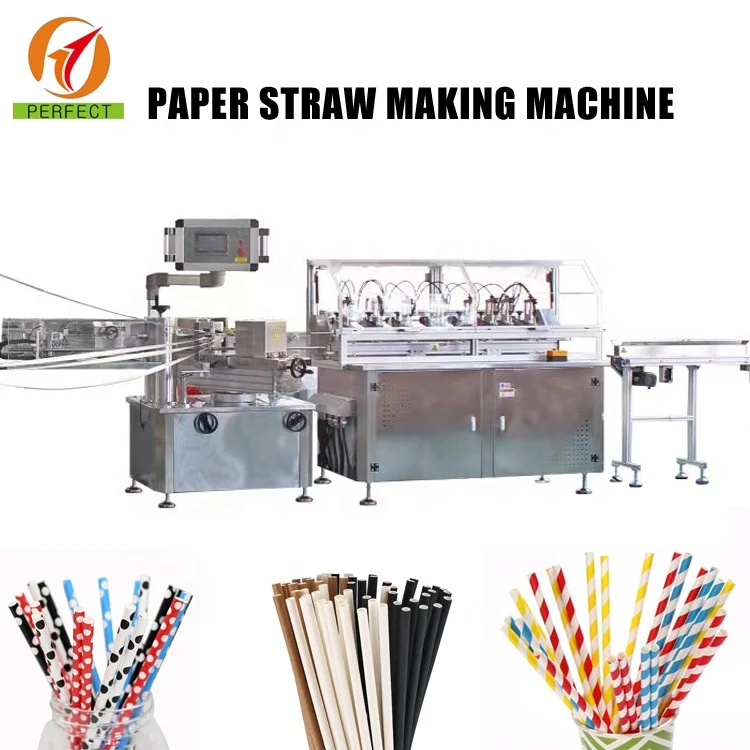

six cutter rolling flexible 7 knife plc forming glue roller u shape fully automatic paper drinking straws making machine
- Category: Straw Making Machines >>>
- Supplier: Zhengzhou Perfect Co. Ltd.
Share on (1600736313378):
Product Overview
Description
six cutter rolling flexible 7 knife plc forming glue roller u shape fully automatic paper drinking straws making machine
Product Description
♦Application♦

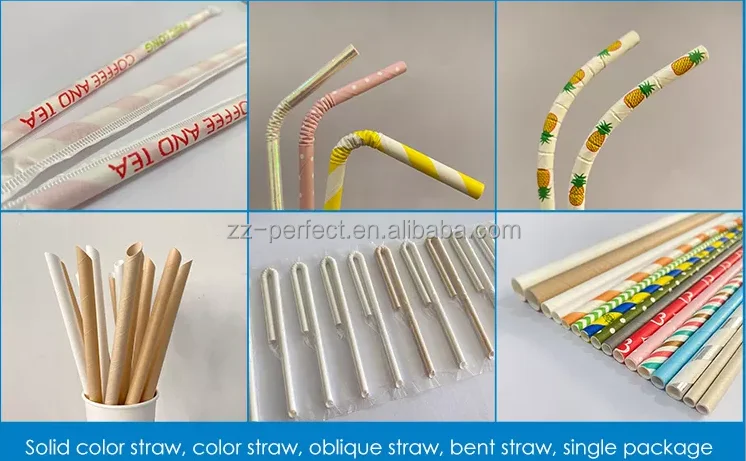

This paper straw making machine is used for making various kinds of paper drinking straw.
♦Technical parameters♦
| Inner Diameter | 5-10mm |
| Roll Of Paper | 2-3 Plies |
| Thickness | 0.25-1mm |
| Cutting Length | 100-820mm |
| Hub Wheel | Two Head |
| Way Of Fixing Shaft | Clamp |
| Way Of Fixing Length | Encoder |
| Production speed | 10-45m/Min (20-30 degree summer 20-45m/min , 0-10 degree Winter 10-25m/min ) |
| Way Of Cutting | Circular Cutting Blade |
| Way Of Gluing | Single / Double Side |
| Type Of Paper Reel Stand | T-bar |
| Blade | 5 Groups |
| Driving | Winding Belt 1500*15*2mm |
| Paper Reel Stand | 3 Plies T-bar l Paper Reel Stand |
| Glue System | 3 Plies Glue Loading Unit |
| Main Motor | 1.5kwx2 CHINA XINLING |
| Inverter | 3.7kw CHINA RIHONG |
| Servo Motor | 1.3kw JAPAN YASKAWA |
| Control System | CHINA |
| Pathway System | TAIWAN SHANGYIN |
| Operator | 1-2 Persons |
| Main Part Dimension | 3250*1100*1450mm |
| Overall Dimension | 7200*4800*1500mm |
| Weight | 1500kgs |
| Way Of Scraping Glue | Independent Glue Box/Polyurethane Scraping Blade |

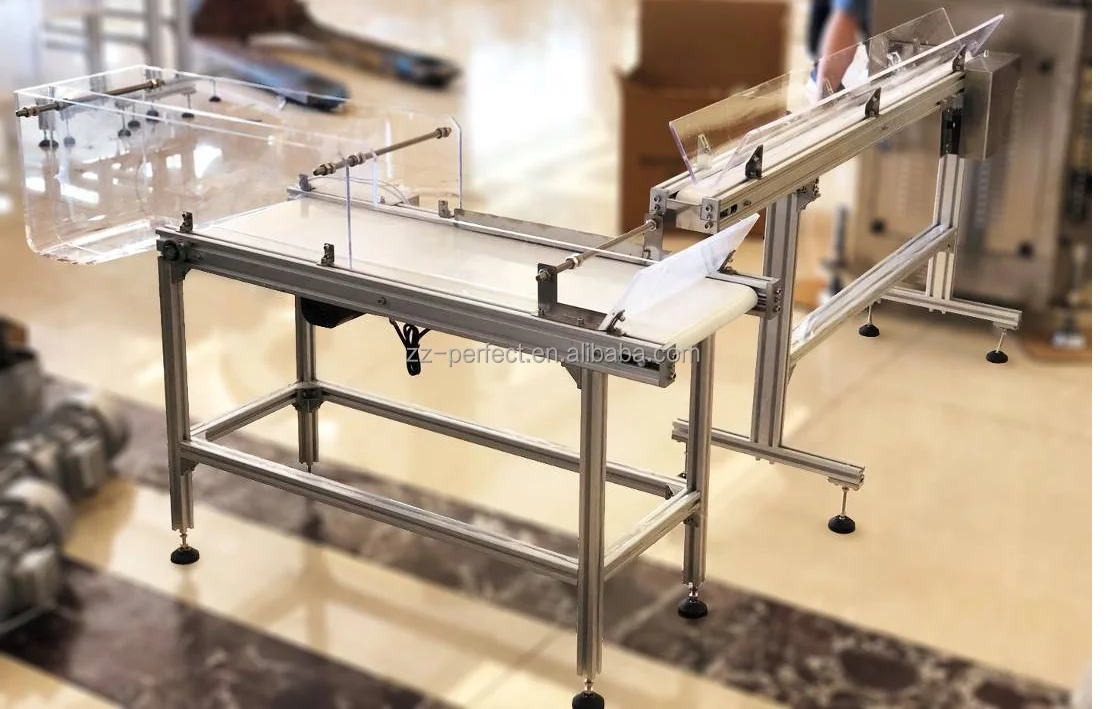

| Moving Finished Tube | Automatically |
| Lubricating Oil | Automatic Giving |
| Spare Parts And Professional Tools | |
| Allen Wrench | 1 piece |
| Open-End Wrench | 1 piece |
| Useful Tools | 1 set |
| Blade | 5 pieces |
| Belt | 2 pcs |
♦Features♦

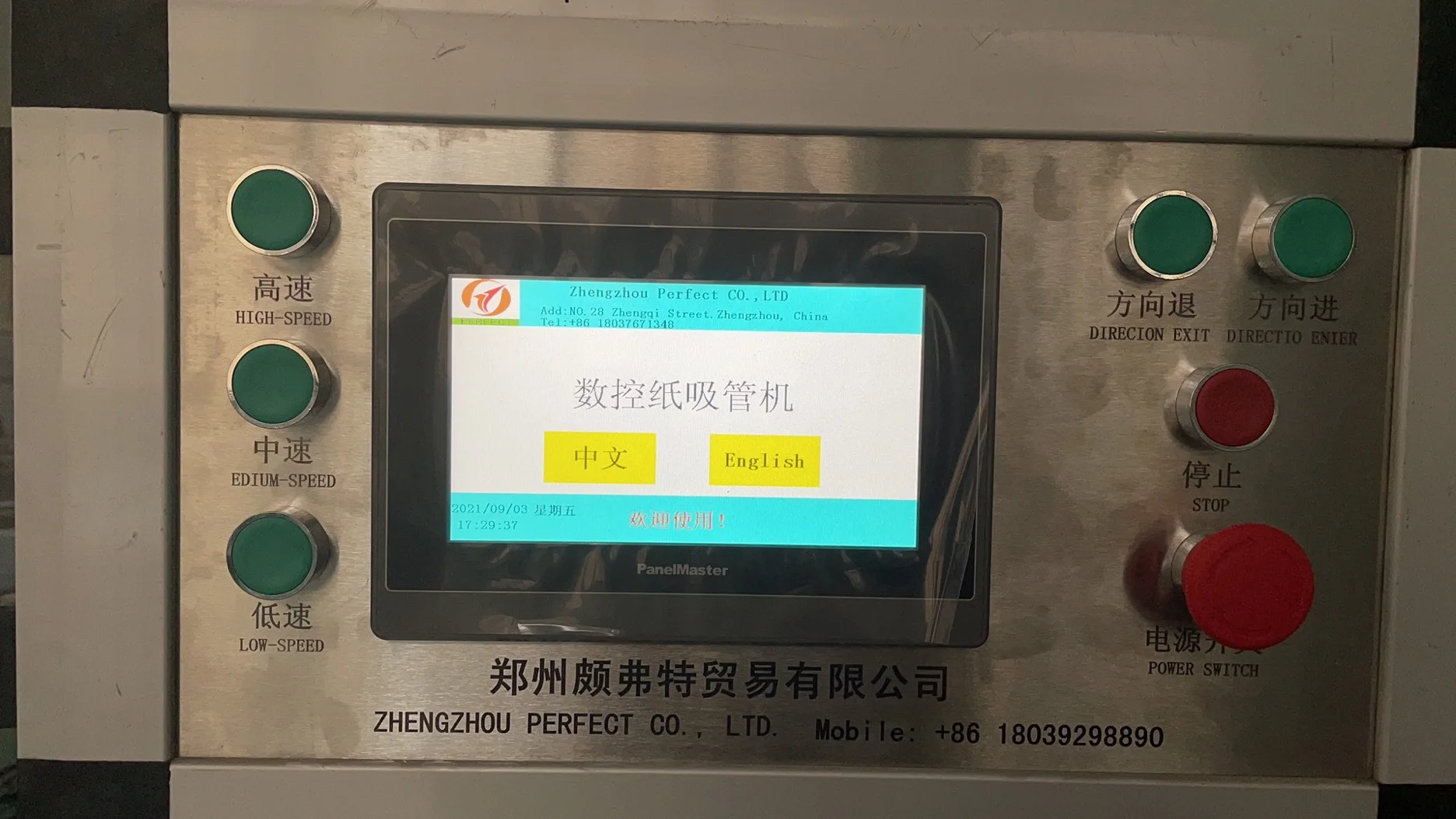

1. Adopt microcomputer set in-line cut length, more accurately; Touch screen convenient for data adjusting;
2. Adopt human-machine operation interface, more convenient for operation;
3. Paper reeling stand , Slitting rolls are easily placed into reel stand by electric lifting device;
4.Choose Single or double glue coating unit
5. Spiral winding part , Hanging-type operation panel, specialized operation system , Belt tension device (hand-wheel driven)
6. Multi-knife System in-line cutting unit controlled by encoder,cutting final paper tube directly.
♦Details & Advantages♦

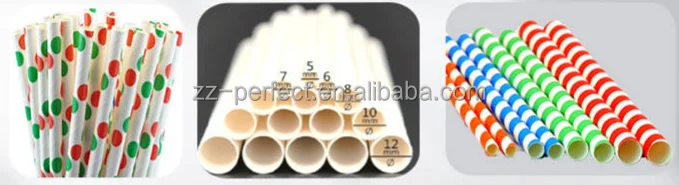

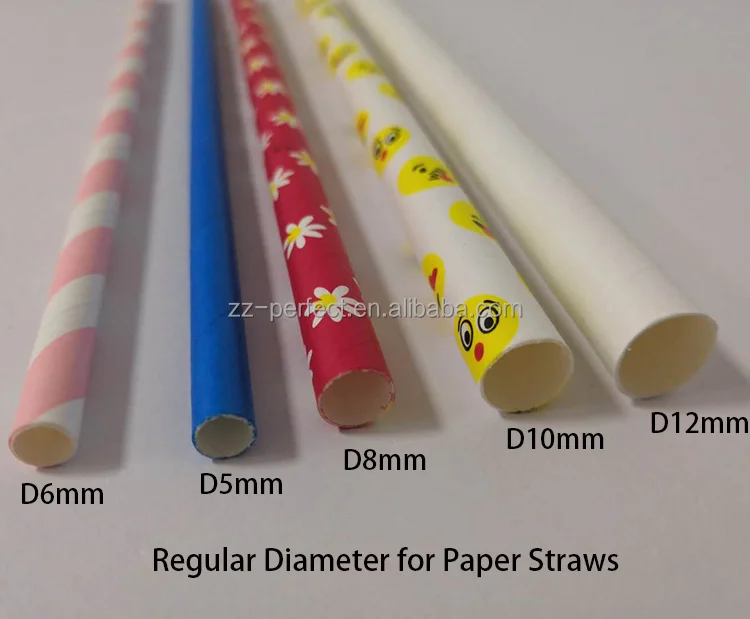

Inner Diameter: 4.3-12mm
Paper Roll: 2-3 Plies
Thickness: 0.25-1mm
Roll width: Max 850mm

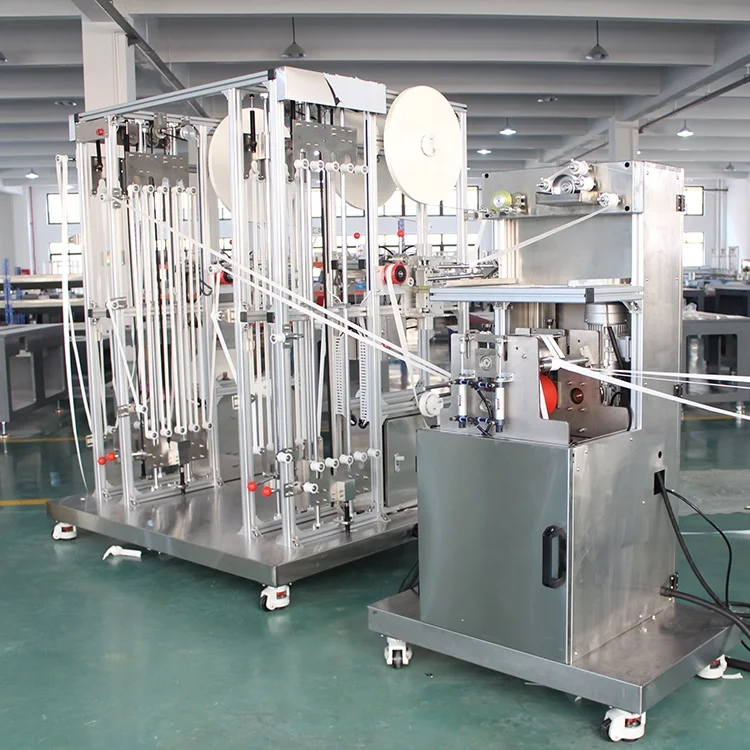

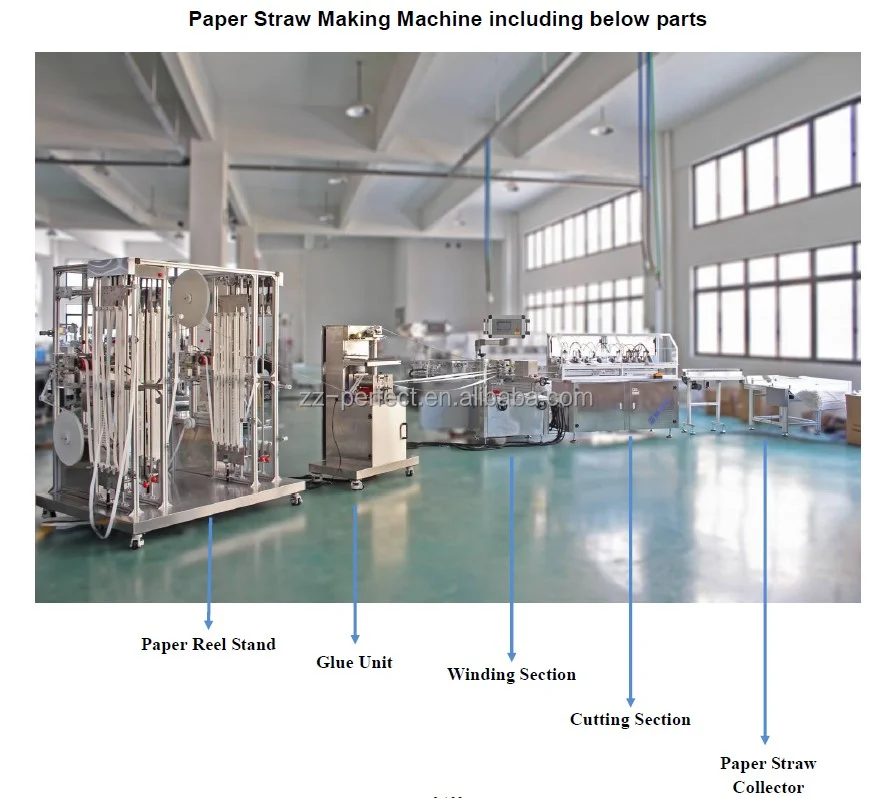

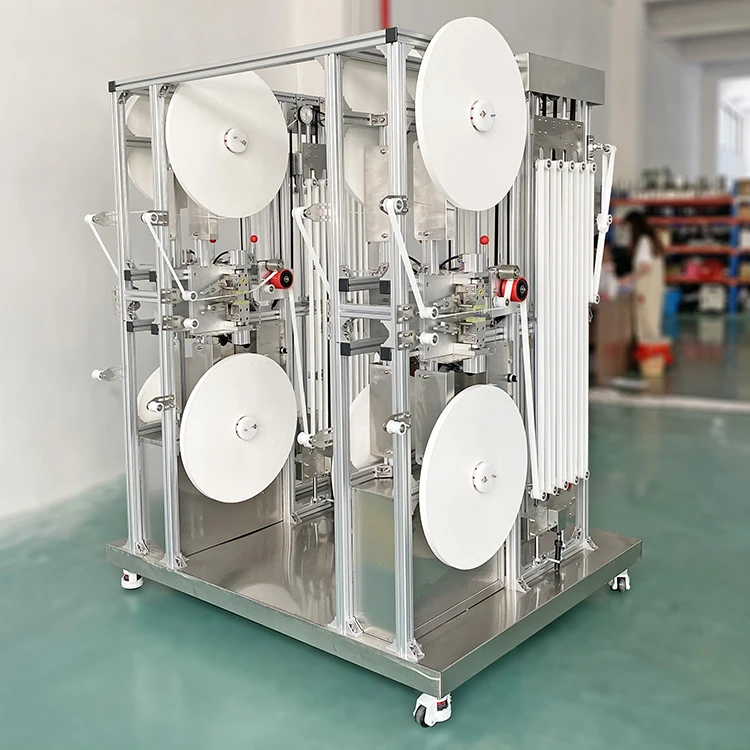

Paper Reel Stand
4 Layers Auto Paper Splicer,
can make both 3 layers and 4 layers

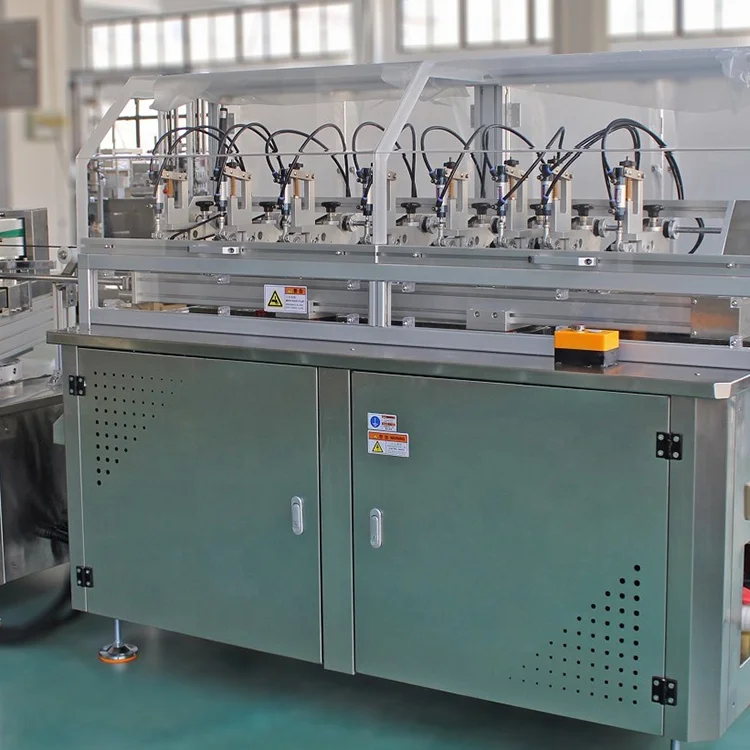

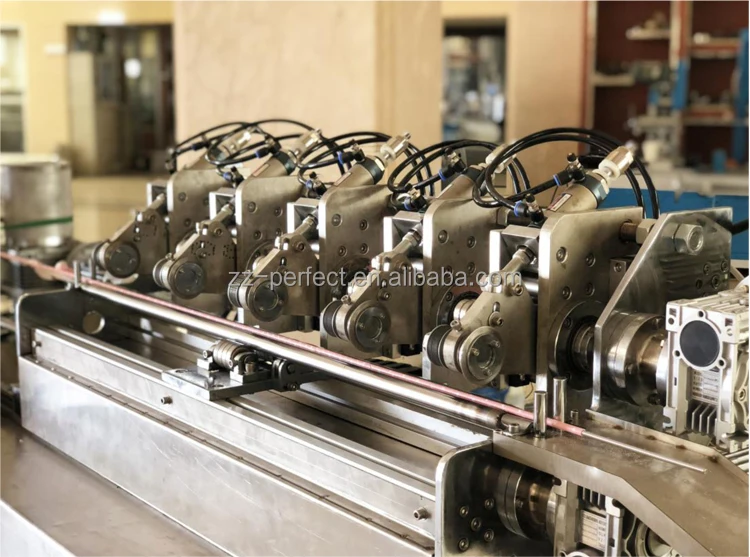

Cutting Section
8 Blades Cutting System
- Less W astes and More Efficiency

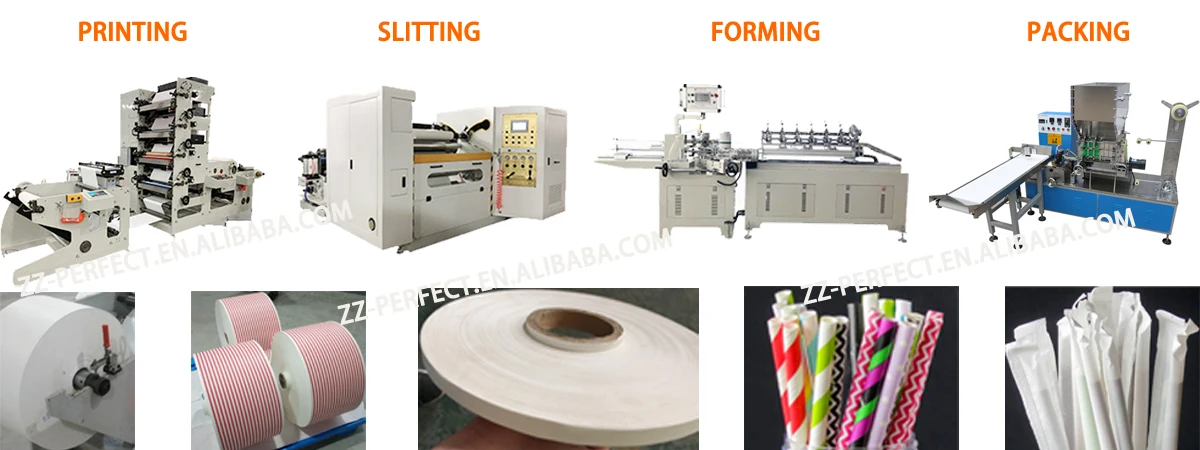

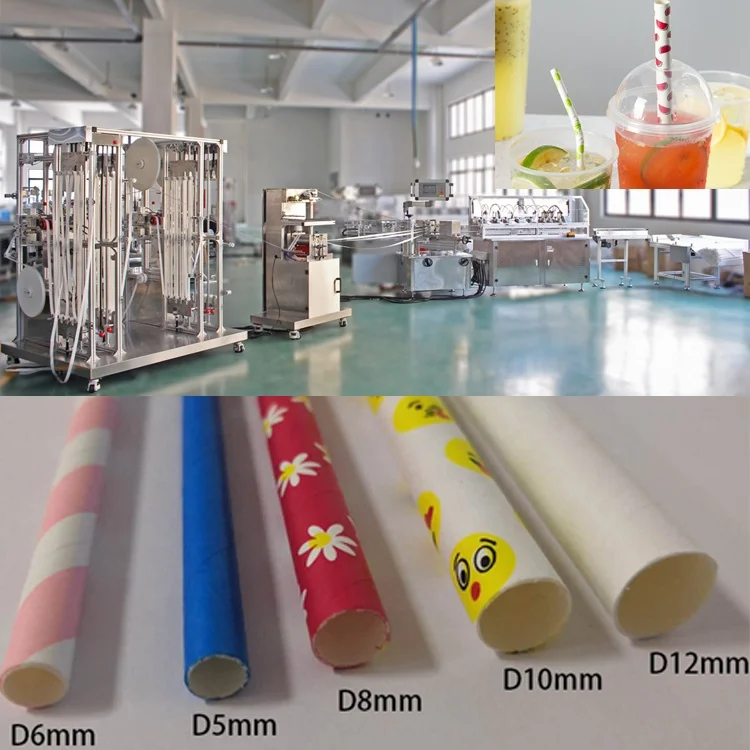

One stop solution for paper straw production & packing
High speed paper straw making & drying & single packing & multiple packing production line
Paper drinking straw packing machine with logo printing

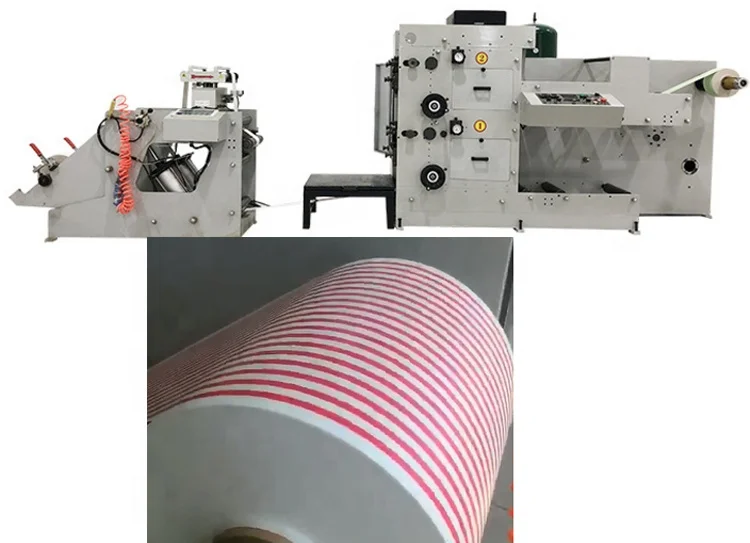

Straw paper flexo printing machine

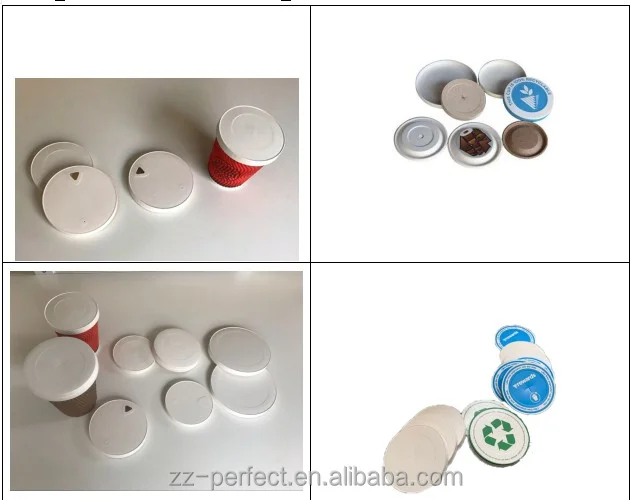

Paper lid forming making machine
Paper cup punching machine
Paper cup printing machine
Other paper cup making machine:

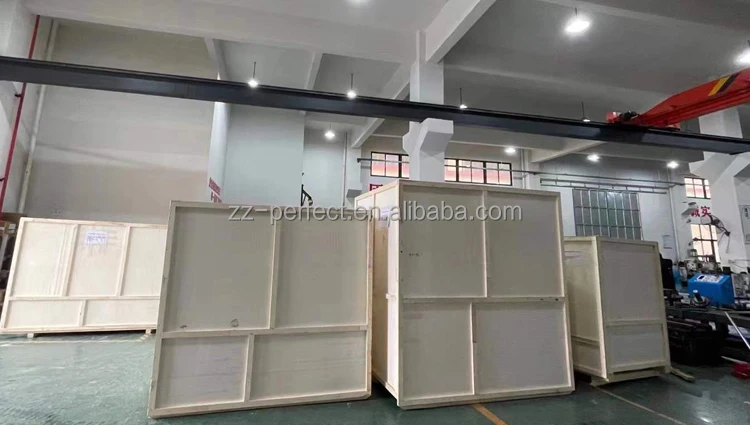

| Package detail | Wooden case/high speed artistic paper beverage straw single cutting making machine make drinking juice straw |
| Package size | 39m×18m×2.2m |
| Gross weight | 3500kg |
Our Services
1. Pre-Sales Service | 2. After-Sales Service | 3.Package & Delivery |
* Inquiry and consulting support. * Sample testing support. | * Training how to install the machine, training how to use the machine.
| Our service team will pack goods under export standard, and prepare delivery in time as agreement.
|
 | Technical Support | |
Our service team will give you 24 hours support, and technical guidance by email, telephone, what's app and fax for regular maintenance and support. | ||

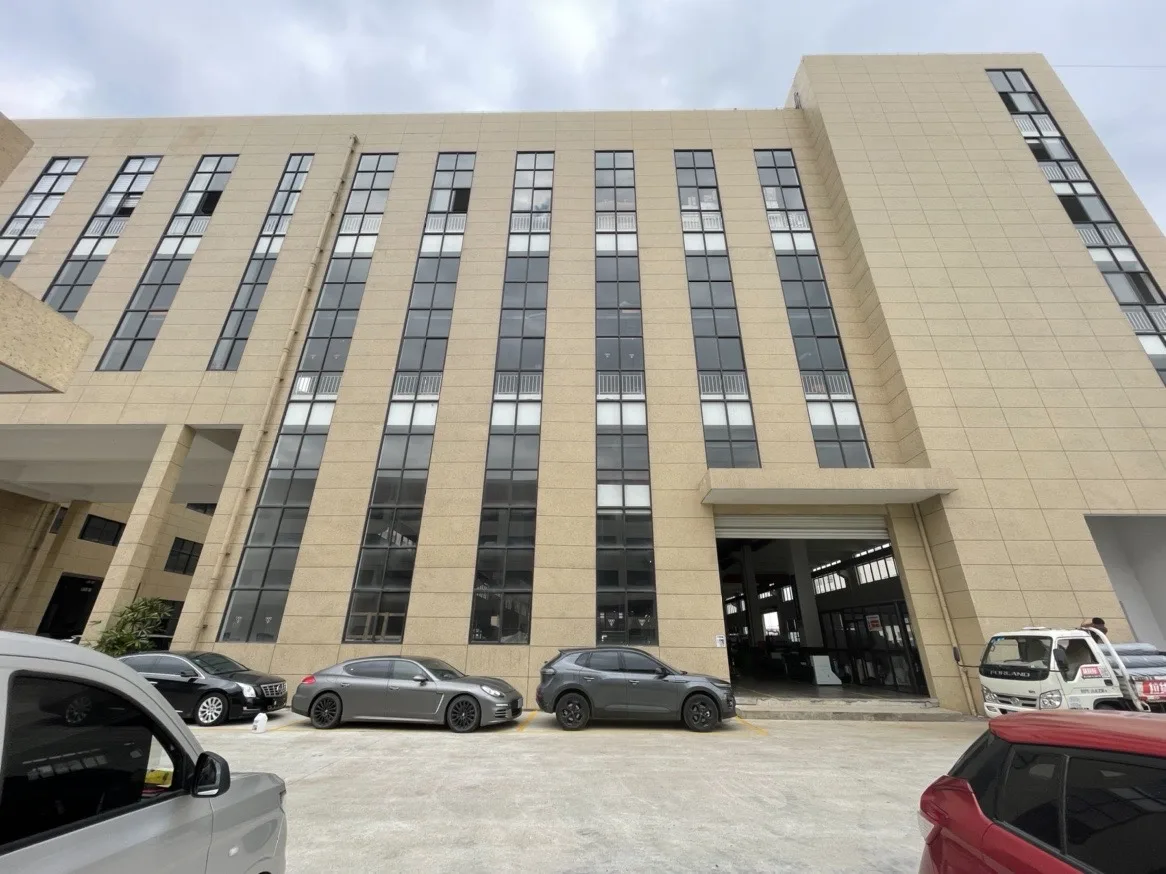

Company Information
Zhengzhou Perfect Co.,Ltd as a professional paper straw machines manufacturer is more than 10 years, we have much experience on paper straw & tube production line . Our main products are as below:
--high speed artistic paper beverage straw single cutting making machine make drinking juice straw

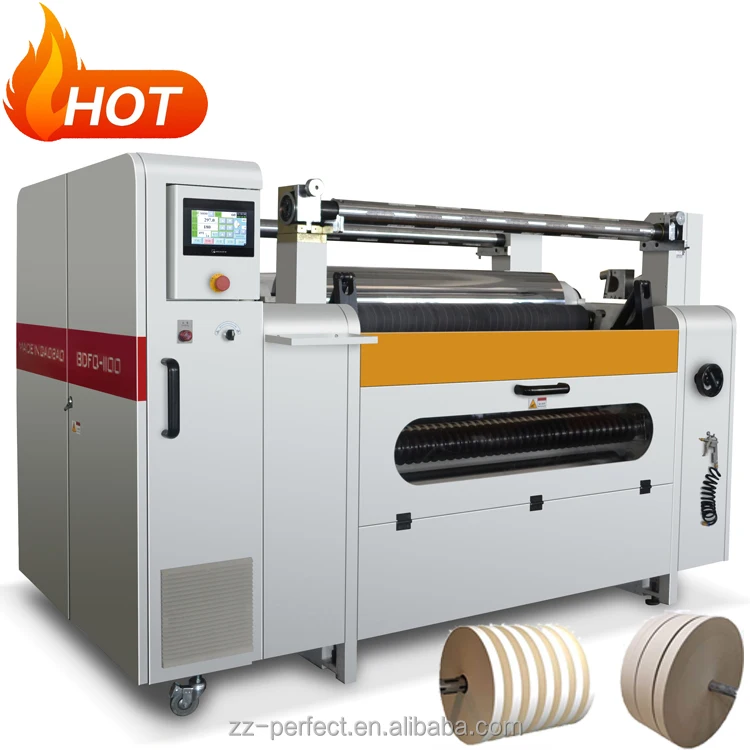

--Jumbo paper slitting rewinding machine
--Single straw packing machine
--multiple/bulk straw packing machine

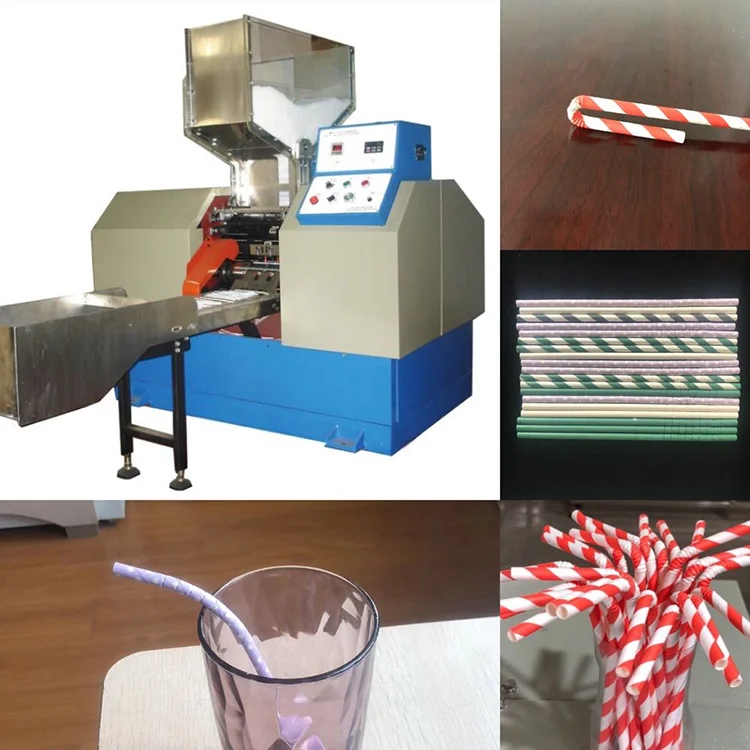

--Paper straw bending machine
--U shape paper straw packing machine
--Straw machine and packing machine connecting system
Our machines have been exported to USA, UK, Bulgaria, Turkey, Croatia, Vietnam, India, Indonesia, Mexico, Ecuador, Lithuania, Ukraine, Brazil, Poland, Egypt, Sweden, Taiwan area. We have our experienced R&D team, strict quality control system and excellent after-sales service, aims to provide customers with high quality machines at a reasonable price.
We always believe: Quality & Service is the Key of Success!!!
FAQ
Q: Do you factory accept customized configuration?
A: Yes. About electric parts, you could choose SIEMENS, Schneider, Delta and etc. For the machine device, web guiding, vedio monitor, pneumatic-unwinding loader,elctric-rewinding unloader, slitting station ratary die cutting station, lamination and waste rewinding are optional. For the specific combination, pls contact us.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always regard great importance to quality controlling from the very small thing (even a small screw we will choose the best quality) from the beginning.
Always a pre-production sample before mass production;
Always final Inspection before shipment;
Q: What is your after-sales service?
A: Our after-sales service is first class. We have a powerful team to help you solve problems.The Warranty is one year and if the machine is damaged by natural not by human, we can send the new parts to you for free.
Q: What terms of payment you accept?
A: 30% T/T in advance, 70% T/T balance before delivery. We also accept L/C and Western Union.
