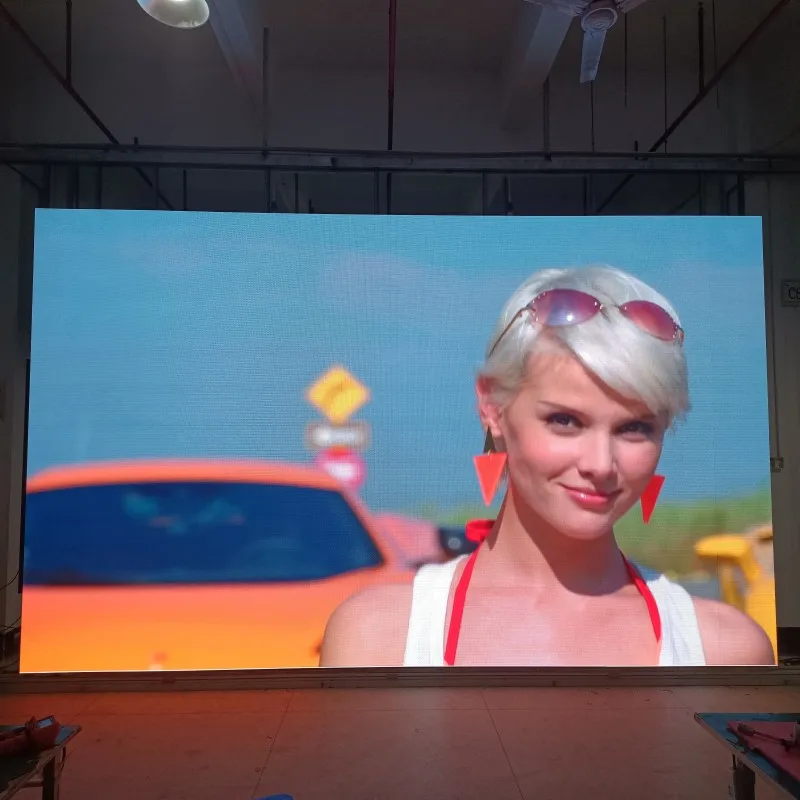

Fixed Pitch 2.5mm LED Video Wall Panel Price,Church Pantalla Giant Smd Full Color
- Category: >>>
- Supplier: Shenzhen Topled Optotech Co. Ltd.
Share on (1600736322320):
Product Overview
Description
Product Overviews
Topled full color Wall Mounted p2.5 rental screen smd indoor led wall Movie Video Spacing Panel Pantalla Led
Characteristic
1. Gorgeous Picture: Non-reflective screen, which brings better viewing experience.
2. Perfect Image: Our products use special IC for LED which owns high refresh rate and achieves no shadows
3. Light Weight: The body uses aluminum profile stitching weighing 5-8kg, which is light and non- corrosive.
4. Elegant Appearance: We adopt CNC processing technique to produce standard module and cabinet which can easily do seamless assemble.
5. Standard Size: We use professional buckles and standard modular panels which can snap together easily.
6. Easy Setup: Back modules are made easier for connection.
7. Energy -saving: Our products get low energy cost and high efficiency.
Attention
In order to offer you a suitable solution, Please state general info about your project.
1. Pixel pitch or view distance you need.
2. Dimension
3. Location of installation. ( eg, on poles, on wall of building, ect)
4. Purpose. ( what are you going to do with the LED Screen)
Parameters
| P2.5 |
Pixel Pitch(mm) | 2.5 |
Physical Density | 111,111 |
LED Configuration | 1RGB |
LED type | SMD1415 |
Module Size | 160*160 |
Module Resolution | 64×64 |
Module Max. Current | 3A |
Driving Mode | Constant Current IC |
Scanning Mode | 1/16 |
Horizontal Viewing Angle | 140 |
Vertical Viewing Angle | 140 |
Brightness | 1500 |
Grey Scale | 16bit |
Refresh Rate | ≥3840 |
Cabinet Resolution | 480*480 |
Cabinet Size | 576×576 |
Cabinet Weight(kg) | 10KG |
Cabinet Thickness | 85mm |
Cabinet Material | Iron/Aluminum |
Color | >16.7 |
Input Voltage | AC 110V~220V +/-10% |
Frame Frequency | 50-60 |
Protection Level | IP43 |
Working Temperature(℃) | -40° -+65° |
Storage Humidity Range(RH) | 10%~90% |
Life Span(H) | 100,000 hours |
Die-cast aluminum
Application
Indoor Small pitch Led Display has the ability to play monitor videos and graphic information in real time. It is widely used in far viewing distance , such as shopping mall, conference center, stock exchange. Hotel, supermarket, gymnasium, stadium, TV station etc.

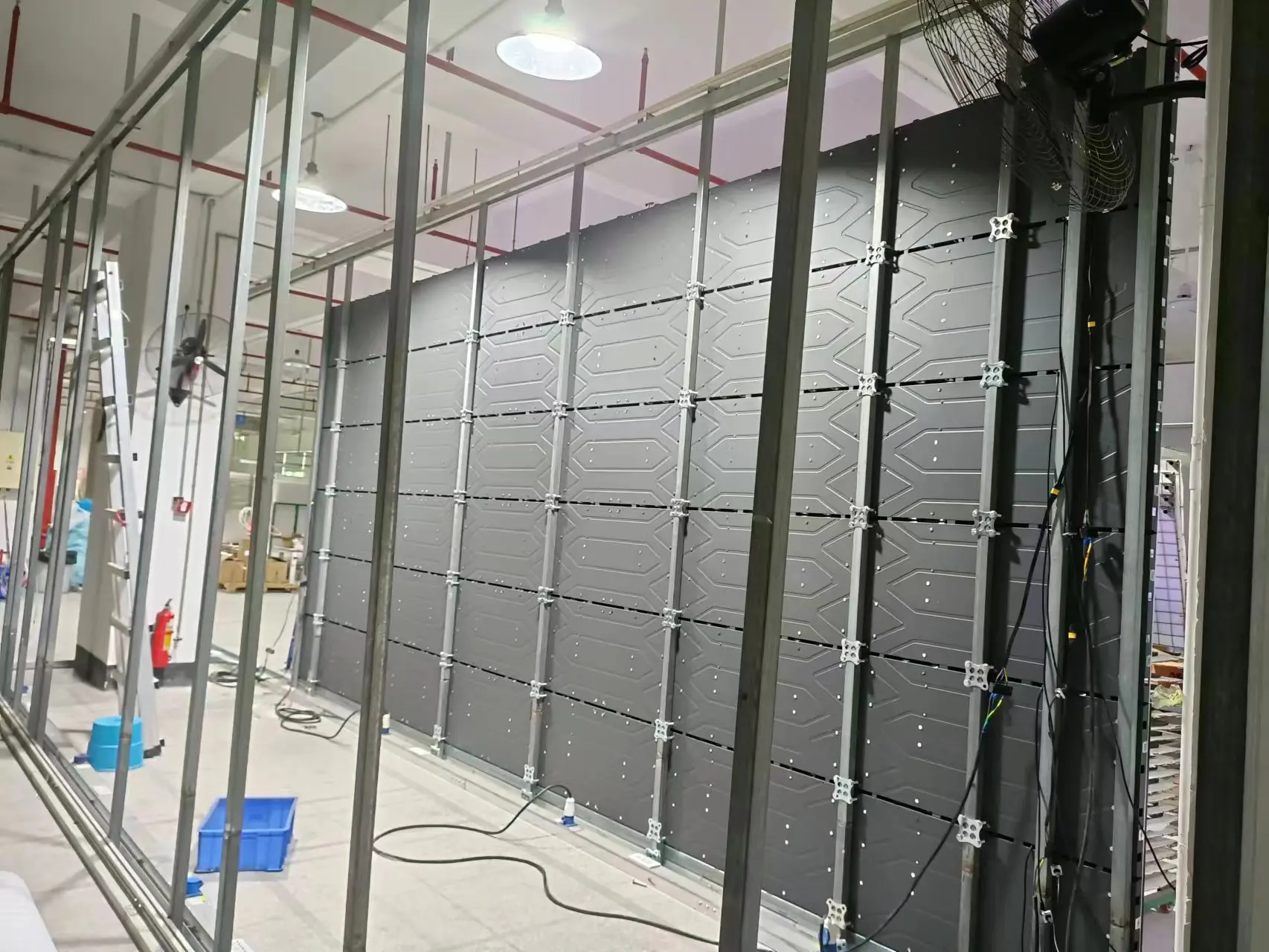

LED display installation methods
Packing&Shipping
Company Information
Why choose us /Trust us?
Our Services
FAQ
Why so many clients choose TOPLED?
Our led display has applied many countries in the world. Many countries have our projects.
TOPLED's led display unique advantage
-------service
>Our engineer will be on your service. We can give you technology support at any time.
We will be tracking your orders, from the pre-sale to the after-sale and also serve you in this process.
--------price
Our price is based on the quantity, We have the basic price for one square meter. For each additional 5 square meter will have a discount when beyond 10 square meter. What is more, free power and fan will send to you. The cabinet will be free.
--------Quality
Quality is our reputation, we have eight steps for our quality inspection, From material to the finished goods. Quality is what we pursuit.
Choose TOPLED, you choose the cost-effective , high quality and good service.
