Explosion proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list
Explosion-proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list
Explosion-proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list
Explosion-proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list
Explosion-proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list
Explosion-proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list
Explosion-proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list

Explosion proof stainless steel mini duct axial fan 300/400/500/600/700/750 mm price list

Share on (1600736363296):


Price:$80.00 - $300.00

Quantity:


Product Overview

Description



Product Description

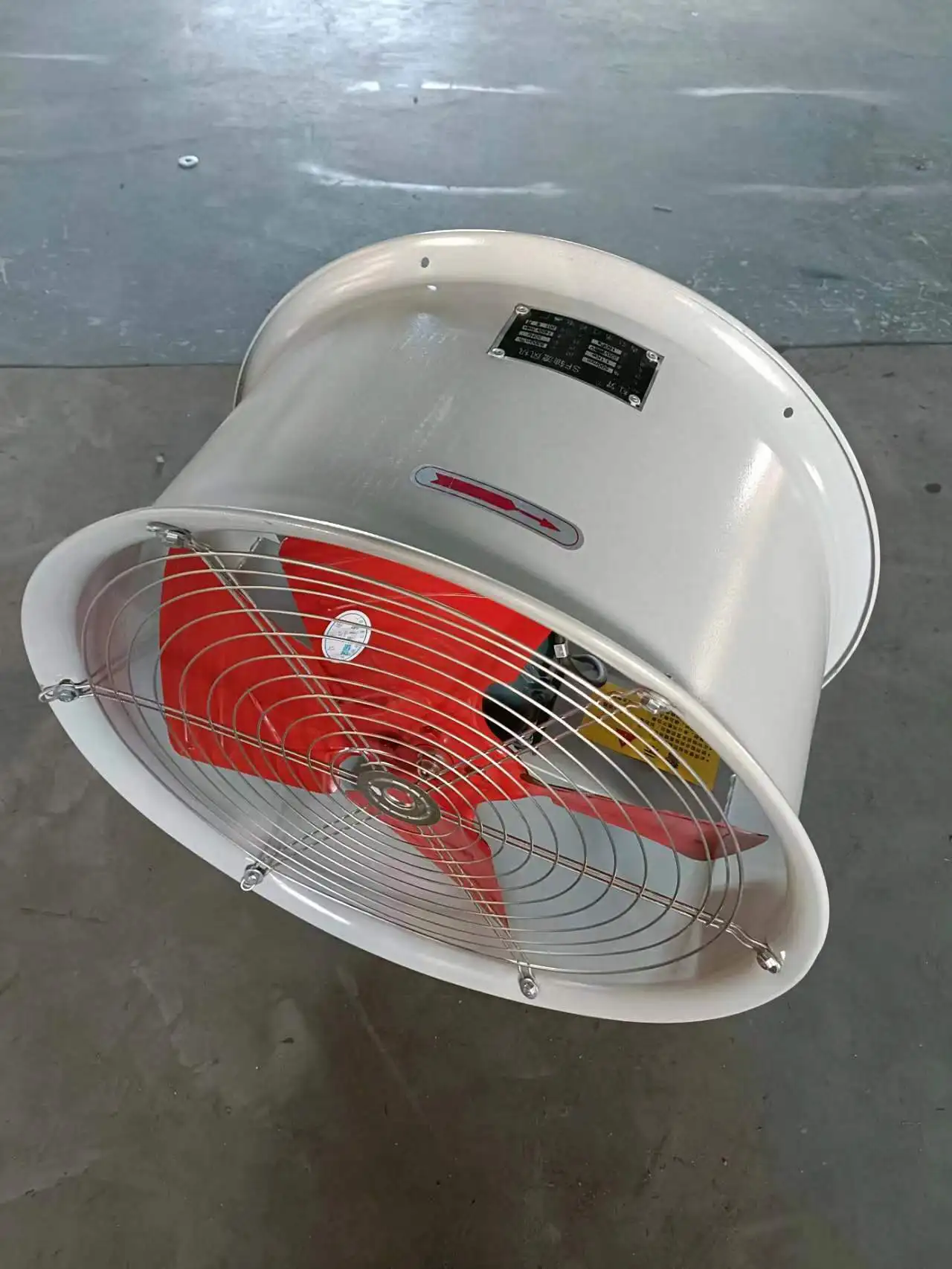

Industrial Ventilation Axial Flow Fan

Pengsheng Axial fan series: SF series axial fan has the characteristics of smooth operation, high effect, low noise, solid structure, beautiful appearance and so on. It is produced in strict accordance with the requirements of GB/T13724-91. This series of products are widely used in industrial and mining enterprises, civil buildings ventilation, also used in chemical industry, light industry, video medicine, metallurgy, power stations and other workplaces and storage ventilation and air conditioning system.



Features：
1. All-copper core motor, durable upgrade with low energy consumption
2. Deep groove ball bearing, high speed, low friction and load resistance
3. Strong wind and low noise, optimized low-noise design
4. Metal spray, thickened iron plate electrostatic spray shell, anti-corrosion and anti-rust, strong and durable
5. U-shaped one-piece aluminum alloy fan blades, large arc, strong wind
6.Front and rear high-density protective net, bold encryption, firm and durable




Specification

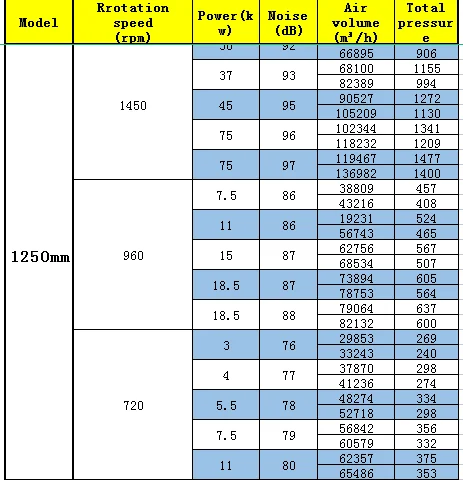

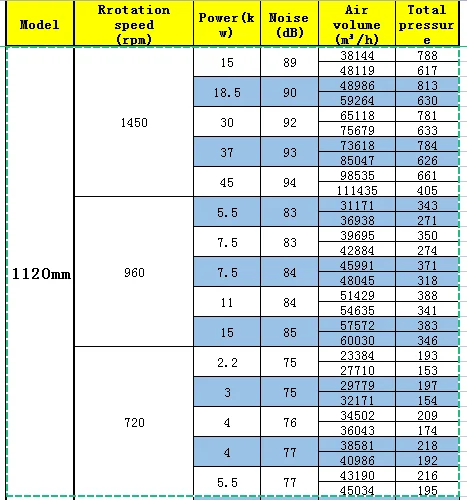

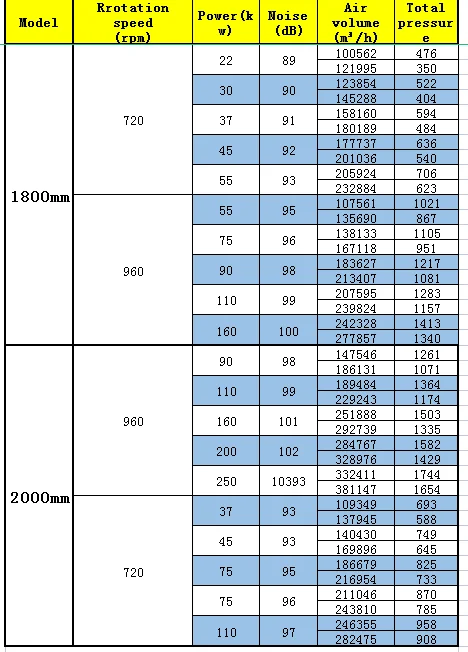

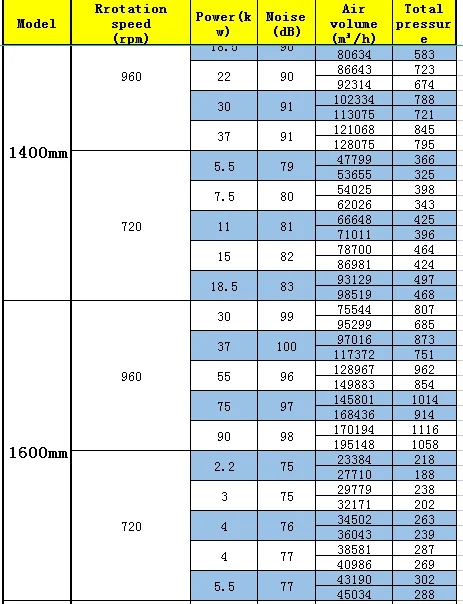

The Technical data
Model
Rrotation speed (rpm)
Air volume (m³/h)
Total pressure
 (pa)
Static pressure
(pa)
Power
(kw)

250mm
2900
2100-1400
90-126
50-81
0.18
1450
1100-700
23-33
13-25
0.12

300mm
2900
3000-2000
120-150
60-120
0.37
1450
1900-1200
40-50
20-30
0.18


350mm
2900
4600-3000
140-210
60-160
0.37
5500-3500
160-220
60-170
0.55
1450
2900-1800
50-65
20-40
0.25




400mm
2900
5000-3000
110-200
60-180
0.55
6500-4000
160-250
70-200
0.75
7000-4500
200-280
80-210
1.1
1450
3500-2000
60-70
30-60
0.25
4000-2500
70-78
35-52
0.37
4300-2800
72-80
26-47
0.55



500mm
1450
6500-5300
125-135
60-90
0.37
7000-5500
130-145
70-105
0.55
8500-6000
138-150
80-100
0.75
960
4600-3600
57-61
40-50
0.18
5600-4000
60-66
40-48
0.25

550mm
1450
9000-6000
138-150
80-116
0.75
960
6500-4600
61-75
42-50
0.37



600mm
1450
11500-7500
140-160
80-130
1.1
13500-8000
160-180
80-130
1.5
14500-8500
165-200
80-135
2.2
960
8500-5000
57-85
45-55
0.37
9600-5600
72-100
45-58
0.55



700mm
1450
17500-10000
180-220
140-175
1.5
20000-12000
200-250
145-180
2.2
21000-13000
220-300
150-185
3
960
13000-8000
88-110
63-80
0.75
14000-8600
96-130
65-82
1.1




800mm
1450
25000-15000
180-270
100-260
2.2
27000-17000
210-300
120-260
3
30000-20000
240-330
125-265
4
33000-23000
270-350
125-270
5.5
960
20000-13000
110-145
53-105
1.5
22000-15000
120-155
50-100
2.2




900mm
1450
34000-20000
240-340
160-320
4
36000-22000
250-350
150-310
5.5
40000-24000
320-380
155-320
7.5
960
22000-13000
100-140
70-120
2.2
24000-15000
120-160
70-136
3
28000-18000
140-180
75-140
4


1000mm
1450
36000-23000
250-400
160-370
5.5
40000-28000
270-420
165-380
7.5
960
31500-20000
150-220
90-170
4
33000-21000
160-230
90-176
5.5














Packing & Delivery


We can pack the goods in wooden cases and iron frames according to the requirements of customers, which is convenient for shipping or air transportation.




Company Profile


Qingdao Peng Sheng Electrical Appliance Co., Ltd. is the source manufacturer and exporter of Axial Flow Fan,Greenhouse Fan,Exhaust Fan,Garden Greenhouse,Roof Fan etc. we keep exporting fans for more than eight years.We have products ranges include centrifugal fans, axial fans, roof fans，misting fans.，And fan accessories. We are not only specialized in standard & bulk fans & blowers manufacture but also the project solution and fan type selection.Meanwhile we provide custom, semi-custom, OEM fans.
We have advanced processing equipments (Laser cuttings, CNC lathers & bendings, Rolling. Dynamic balance) and experienced workers, they ensure the fans with high quality. And the fans be test by airway system so their technicalparameters are truth & reliable.
