1260 1350 1430 Alumina Silicate Ceramic Fiber Insulation Roll Blankets For Wood Stoves
- Category: >>>
- Supplier: Henan Pyrocore Corporation
Share on (1600736436717):
Product Overview
Description
Product Description
Ceramic fiber blanket is made of special ceramic fiber through double needle-punching processing. The double needle-punching techniques improve the degree of fiber intertexture, and the performance of delamination resistance as well as tensile strength. Theblanket does not contain any bonding agent and with the characteristics of stable chemical performance, resistance to the erosion of most chemicals, The physical property like refractory and insulation keep same when meet with oil, water or steam.
Specification
Technical Index | ||||||||||||||
Ceramic Fiber Blanket | PYR-1050 | PYR-1260ST | PYR-1260HP | PYR-1350HP | PYR-1430Zr | PYR-1600PCF | ||||||||
Max.Service Temperature(℃) | 1050 | 1260 | 1260 | 1350 | 1430 | 1600 | ||||||||
Density(KG/m³) | 96-160 | 96-160 | 96-160 | 96-160 | 96-160 | 96-160 | ||||||||
Liner Shrinkage%(24h, 128kg/m³) | ≤3.0(950℃) | ≤3.0(1000℃) | ≤3.0(1050℃) | ≤3.0(1200℃) | ≤3.0(1300℃) | ≤3.0(1500℃) | ||||||||
Tensile Strength Kpa(128Kg/m³) | 70 | 70 | 70 | 70 | 70 | 70 | ||||||||
Thermal Conductivity Rate(W/m.k)128Kg/m³ | 600℃ | 0.2 | 0.15 | 0.15 | - | - | - | |||||||
800℃ | 0.29 | 0.22 | 0.22 | 0.23 | 0.2 | - | ||||||||
1000℃ | - | 0.31 | 0.31 | 0.32 | 0.27 | 0.24 | ||||||||
Chemical Composition(After burning)% | Al2O3 | ≥40 | ≥43 | ≥45 | ≥52 | ≥37 | ≥72 | |||||||
Al2O3+SiO2 | ≥96.0 | ≥97.0 | ≥98.0 | ≥98.0 | ≥83.0 | ≥99.0 | ||||||||
ZrO3 | - | - | - | - | ≥15 | - | ||||||||
Others | ≤3.0 | ≤3.0 | ≤2.0 | ≤2.0 | ≤2.0 | ≤1.0 | ||||||||
Standard Size | ||||
Lenght(mm) | Width(mm) | Thickness(mm) | ||
7200/15000/20000 | 610(1220) | 6 | ||
7200/15000 | 610(1220) | 10 | ||
7200/15000 | 610(1220) | 12.5 | ||
7200/15000 | 610(1220) | 15 | ||
7200 | 610(1220) | 20/25 | ||
6000/5000 | 610(1220) | 30 | ||
4500 | 610(1220) | 40 | ||
3600 | 610(1220) | 50 | ||
Package | Cartons or woven bags | |||
Other specifications according to customer inquires | ||||

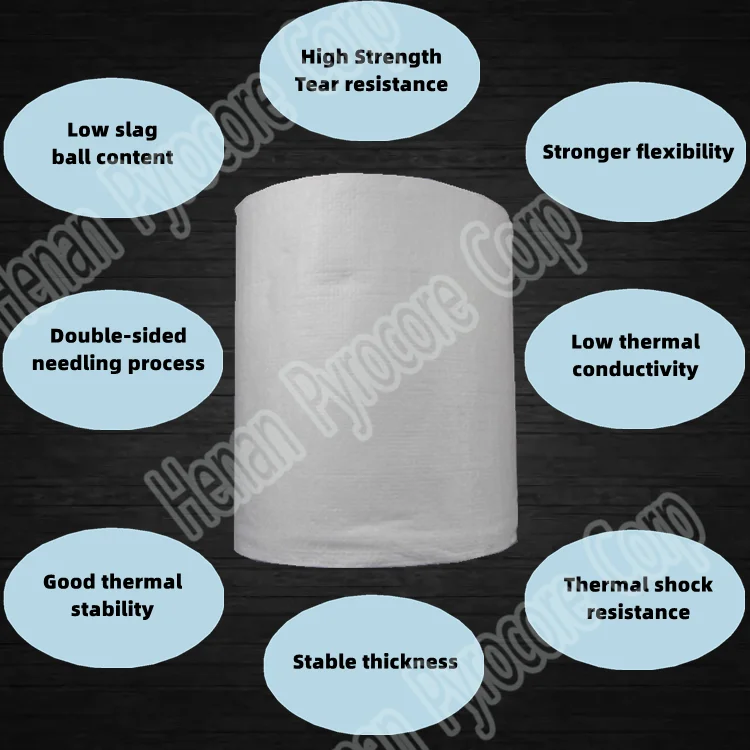

Characteristice
1.Excellent chemical stability, nonflammable.
2.Low thermal conductivity and good insulation.
3.Good tensile strength and springginess.
4.Excellent performance of soundproofing Good obstructing and resistance to heat-shock.
5.Ceramic fiber blanket can be cut into different sizes according to the user needs. They can also be wrapped with aluminum foil on one or both sides to meet the requirements of different industries.
6.We can provide free samples and free design and drawing for you to test.
7.According to your special requirement, we have the ability to offer the design and drawing for free. Our technical team and design capabilities are our most significant advantages.
2.Low thermal conductivity and good insulation.
3.Good tensile strength and springginess.
4.Excellent performance of soundproofing Good obstructing and resistance to heat-shock.
5.Ceramic fiber blanket can be cut into different sizes according to the user needs. They can also be wrapped with aluminum foil on one or both sides to meet the requirements of different industries.
6.We can provide free samples and free design and drawing for you to test.
7.According to your special requirement, we have the ability to offer the design and drawing for free. Our technical team and design capabilities are our most significant advantages.

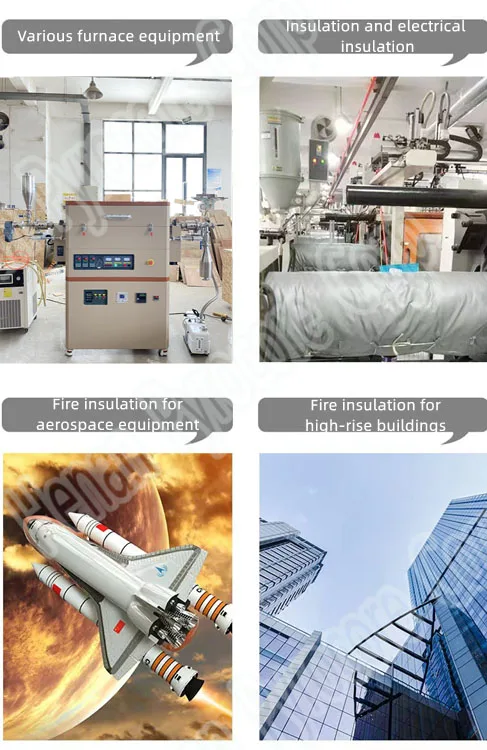

Applications
Applications: various furnaces, high-temperature pipelines and containers heat insulation and thermal insulation; furnace doors,valves, flange sealing, fire doors and fire shutter materials, high-temperature furnace door Min curtain; engine and instrument insulation, fireproof cable covering materials, high-temperature fireproof materials; thermal insulation cover with fabric,high-temperature expansion seam filler, flue lining; metallurgy, machinery, chemical industry, environmental protection and other industries thermal insulation materials for thermal equipment; high-temperature resistant labor protection products, fireproof clothing, high-temperature filtration, sound absorption and other applications instead of asbestos

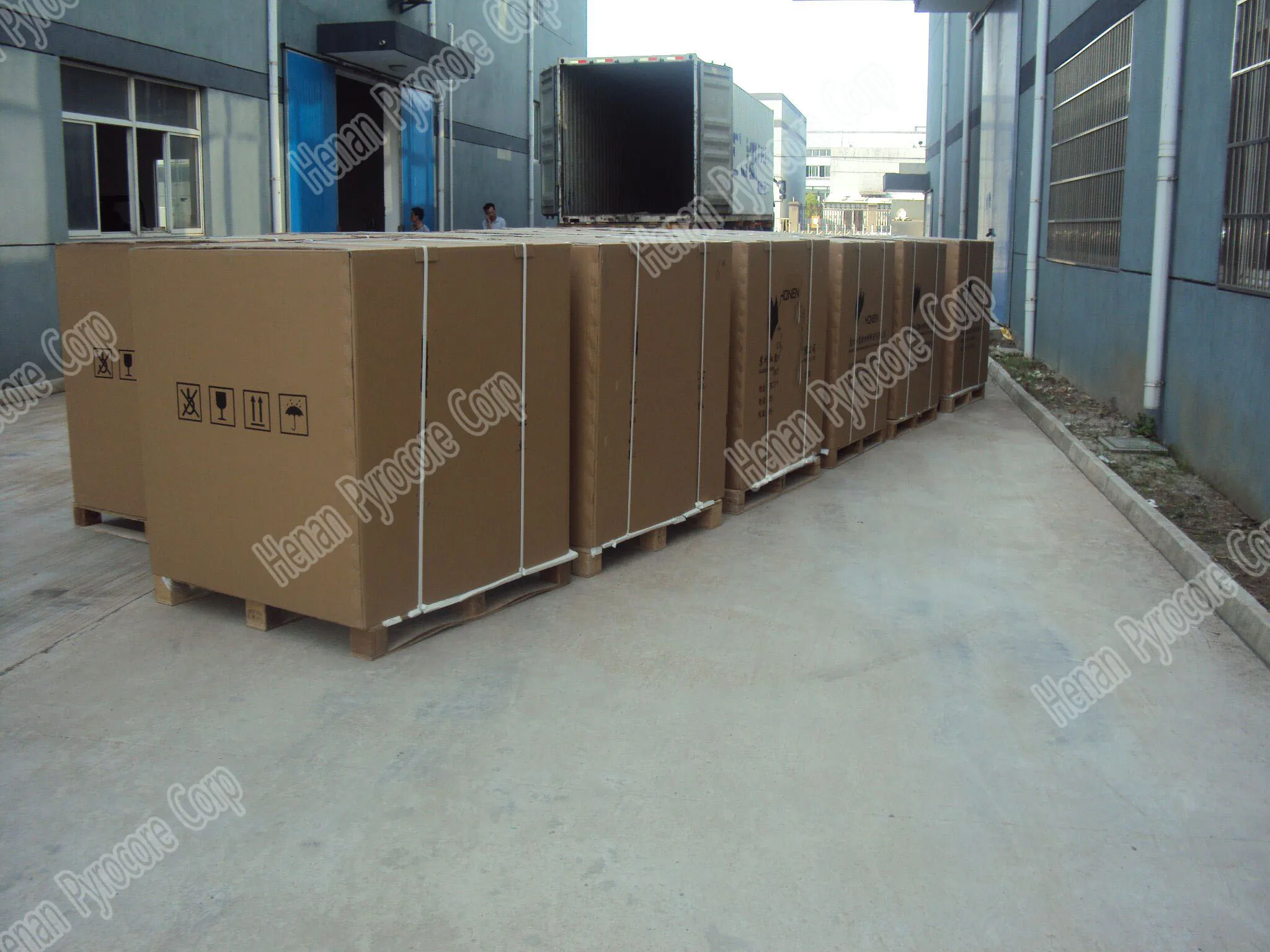

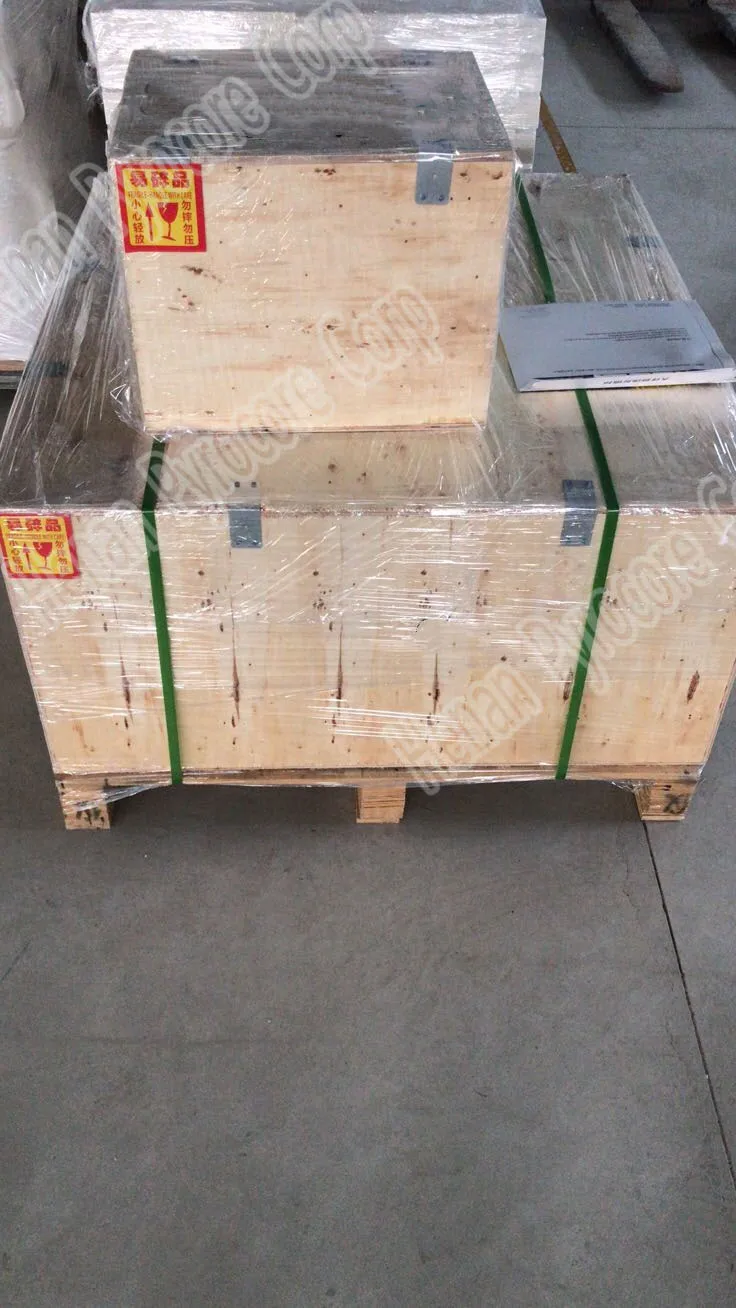

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging We have extensive experience in importing and exporting, and all packaging is carried out by professionals to ensure that no damage or dampness occurs in transit. Usually packed in wooden boxes/cartons with cushioning material inside, if you have special requirements please contact us.

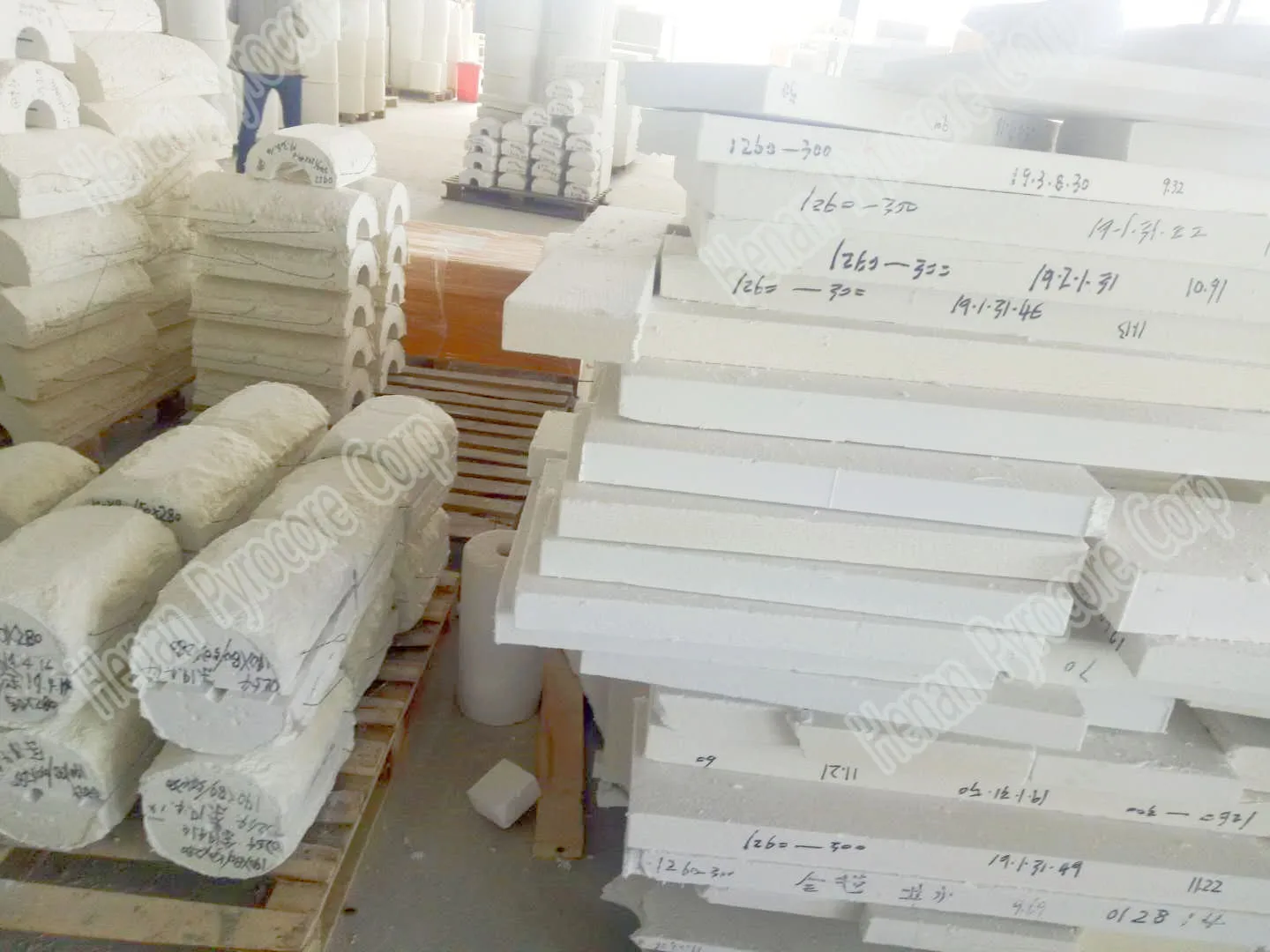

Company Profile
Henan Pyrocore Corporation is a comprehensive company in the refractory industry. We have been trading overseas for decades and you can find our refractory products in many industries around the world. We have our own workshop with advanced production lines, experienced workers and strict inspection processes to provide you with quality products at low prices. Our philosophy is "dedication to customer service", based on our excellent knowledge and service attitude, to provide timely and effective service to our customers.
More information
In addition to the production plant, we also have a professional sales and after-sales service team. Our sales team has rich experience in multi-lingual communication and can accurately understand your problems and propose corresponding solutions, and we will contact you within 12 hours with the fastest speed once you contact us.
The after-sales service team provides customers with a full range of services such as product application, construction and installation, and technical training for operation. They can provide you with specific video installation tutorials or very detailed instructions to help you use the products, and will conduct video phone instruction with you when necessary. They will also respond quickly within 12 hours of your request.
The after-sales service team provides customers with a full range of services such as product application, construction and installation, and technical training for operation. They can provide you with specific video installation tutorials or very detailed instructions to help you use the products, and will conduct video phone instruction with you when necessary. They will also respond quickly within 12 hours of your request.
FAQ
1.Is your company accepting customization?
We have our own factory and excellent technical team, and we accept OEM service.
2.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
3.Can you provide samples?
Of course, we can provide free samples for you to test, and we will refund the courier fee to you when we receive your order.
4.What is the delivery time?
10-25 days after receiving the deposit
5.How do you package your products?
For ceramic fiber blocks, blankets, boards, paper, modules, etc., we pack them in high-silica step woven bags and cartons filled with cushioning material inside.
6.What's your regular practice concerning terms of payment?
Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
We have our own factory and excellent technical team, and we accept OEM service.
2.How to solve the quality problems?
If the products do not conform to customer samples or have quality problems, our company will be responsible to make compensation for it.
3.Can you provide samples?
Of course, we can provide free samples for you to test, and we will refund the courier fee to you when we receive your order.
4.What is the delivery time?
10-25 days after receiving the deposit
5.How do you package your products?
For ceramic fiber blocks, blankets, boards, paper, modules, etc., we pack them in high-silica step woven bags and cartons filled with cushioning material inside.
6.What's your regular practice concerning terms of payment?
Payment terms: T/T 30%-50% deposit after order confirmation, the balance after goods ready before shipping or L/C, or Western Union for small amount. Or PAYPAL.
