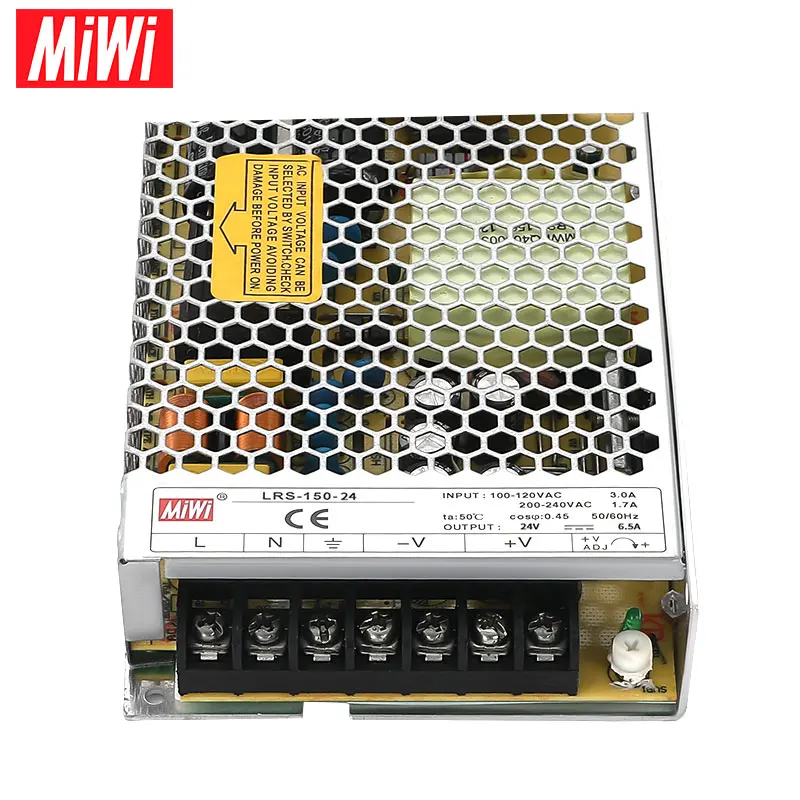

MIWI LRS 150 24 150w 24v ac dc импульсный источник питания
- Category: Power Supplies >>>
- Supplier: Yueqing,Mingwei,Electric,Co.,ltd.
Share on:
Product Overview
Description
You are here:Home>>Single Output Series>>
Product Description
| Model | LRS-150--5 | LRS-150-12 | LRS-150-24 | LRS-150-36 | LRS-150-48 | |
| Output | DC voltage | 5V | 12V | 24V | 36V | 48V |
Voltage tolerance | ±2% | ±1% | ±1% | ±1% | ±1% | |
| Rated current | 22A | 12.5A | 6.5A | 4.3A | 3.3A | |
| Rated power | 110W | 150W | 156W | 154.8W | 154.8W | |
| Ripple&noise | 100mvp-p | 150mVp-p | 200mVp-p | 200mvp-p | 200mvp-p | |
DCvoltage ADJ.range | ±10% | |||||
Line Regulation | ±0.5% | |||||
Load Regulation | ±1% | ±0.5% | ±0.5% | ±0.5% | ±0.5% | |
Setup,rise time Note.5 | 500ms,30ms/230VAC 500ms,30ms/115VAC at full load | |||||
| Hold up time(Typ.) | 40ms/230VAC 35ms/115VAC at full load | |||||
| Input | Voltage range&Frequency range | 85 ~132VAC/170~264VAC selected by switch, 240~373VDC, 47~63Hz | ||||
| AC current | 3A/115VAC 1.7A/230VAC | |||||
| Efficiency | 86% | 88% | 90% | 90.5% | 91% | |
| Inrush current | COLD START 60A/230VAC | |||||
| Leakage current | < 1mA/240VAC | |||||
| Protection | Overload | ≥110~130% rated output power,Protection type:Hiccup mode,recovers automatically after fault condition is removed | ||||
| Over voltage | ≥115~145% rated output power,Protection type:Shut dow O/P Voltage,recovers automatically after restart | |||||
| Environment | Working temp,humidity | -30°C~+70°C, 20%~90%RH | ||||
Storagetemp, humidity | -40°C~+85°C, 10%~95%RH | |||||
| Safety | Withstand voltage | I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:1.25KVAC ,1 min | ||||
Isolated resistance | I/P-O/P, I/P-FG, O/P-FG:500VDC /100M Ohms at 25℃ 70% | |||||
| Fitstandard | Safety standard | CE | ||||
| Others | Dimension | 120*97*30mm (L*W*H) | ||||
>>>Click to get the latest price & catalogue<<<
Application
Main Product
Trade Assurance
About Us
Packaging & Shipping
Packaging Details: Standard corrugated carton or customized as you requested.
Delivery Detail: 1~25 days depend on your quantity.
