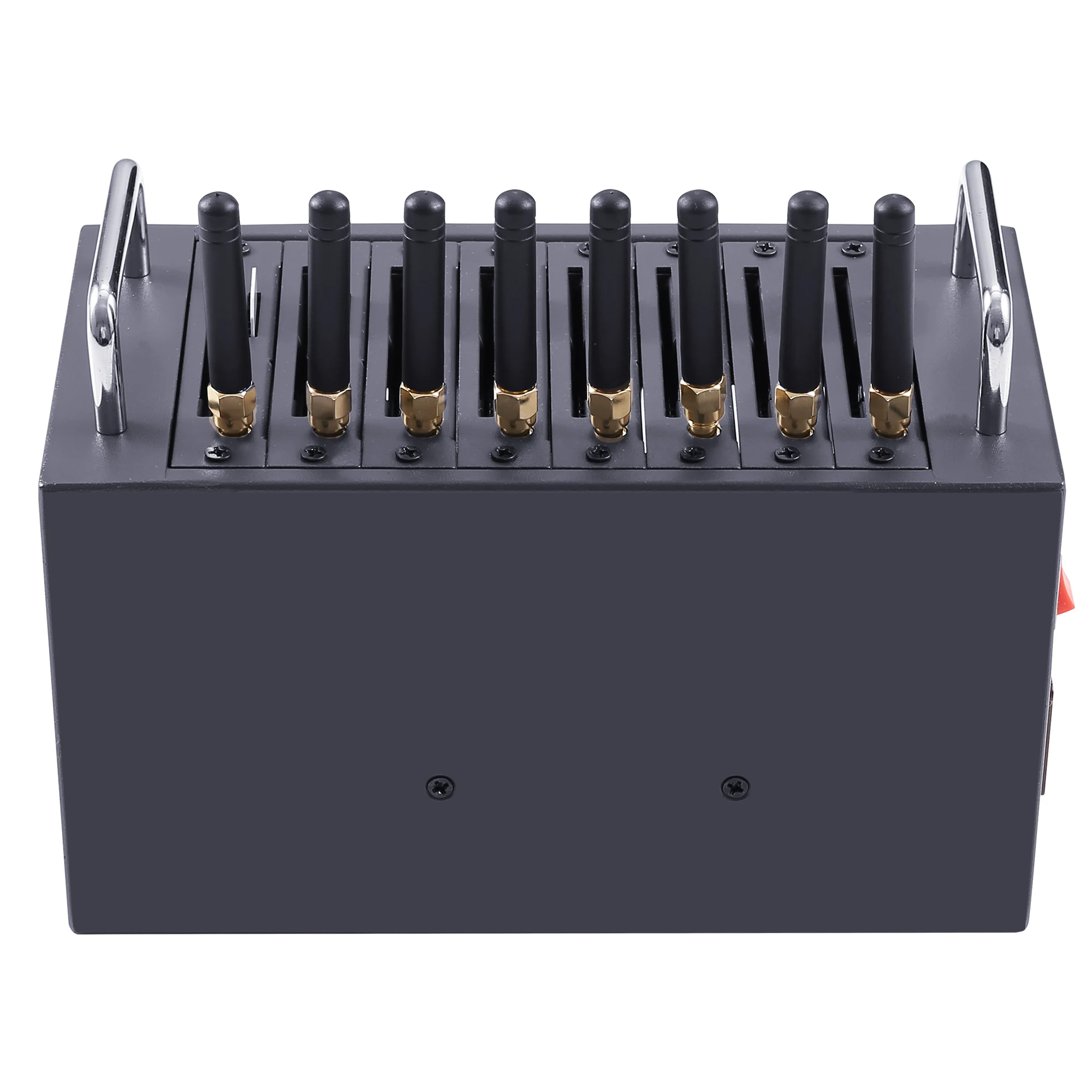

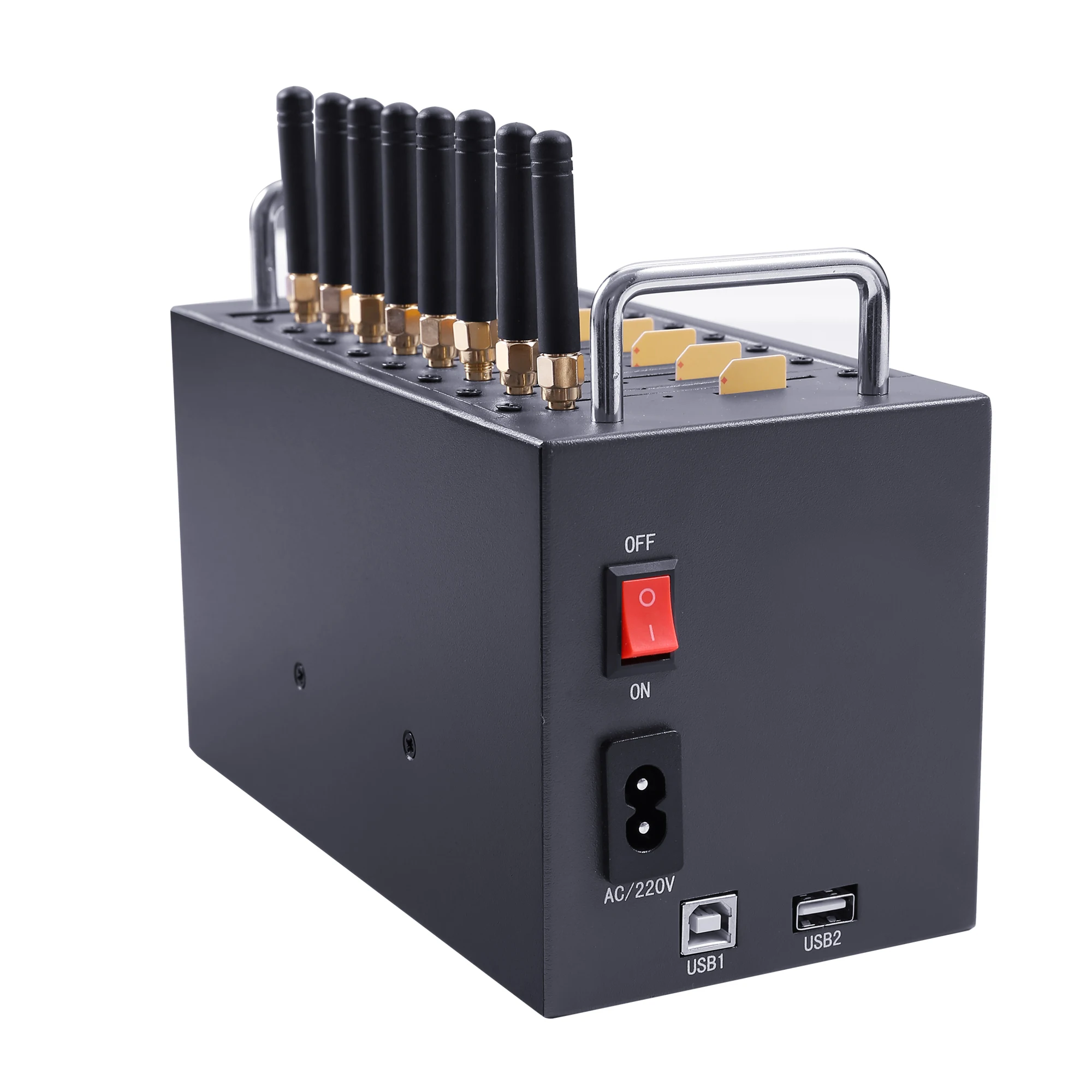

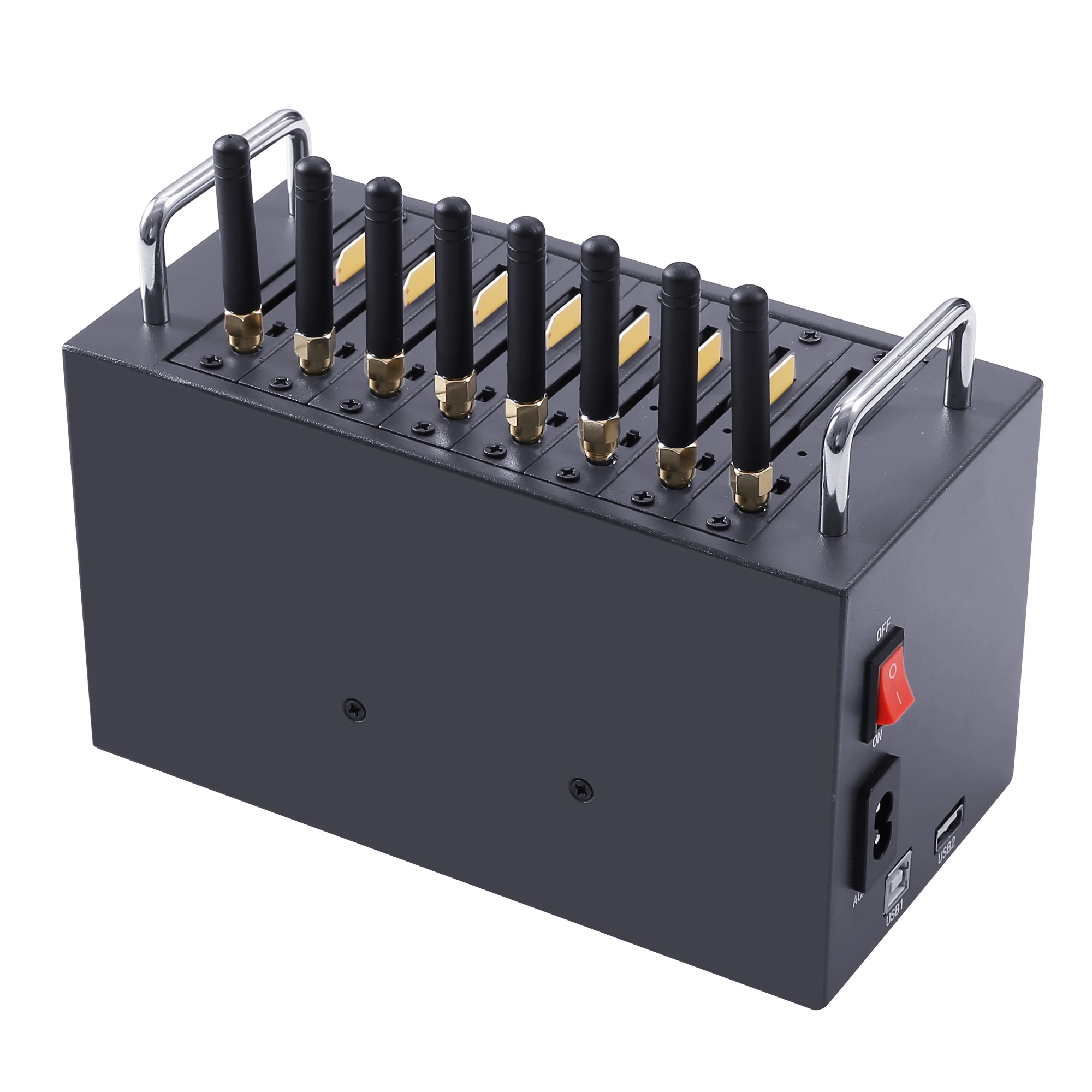

Skyline Voip Products Multi Sim 8 Port Gsm Modem Pool For Bulk Sms Sending 8 Ports Sim Box
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600736492809):
Product Overview
Description
Product Description

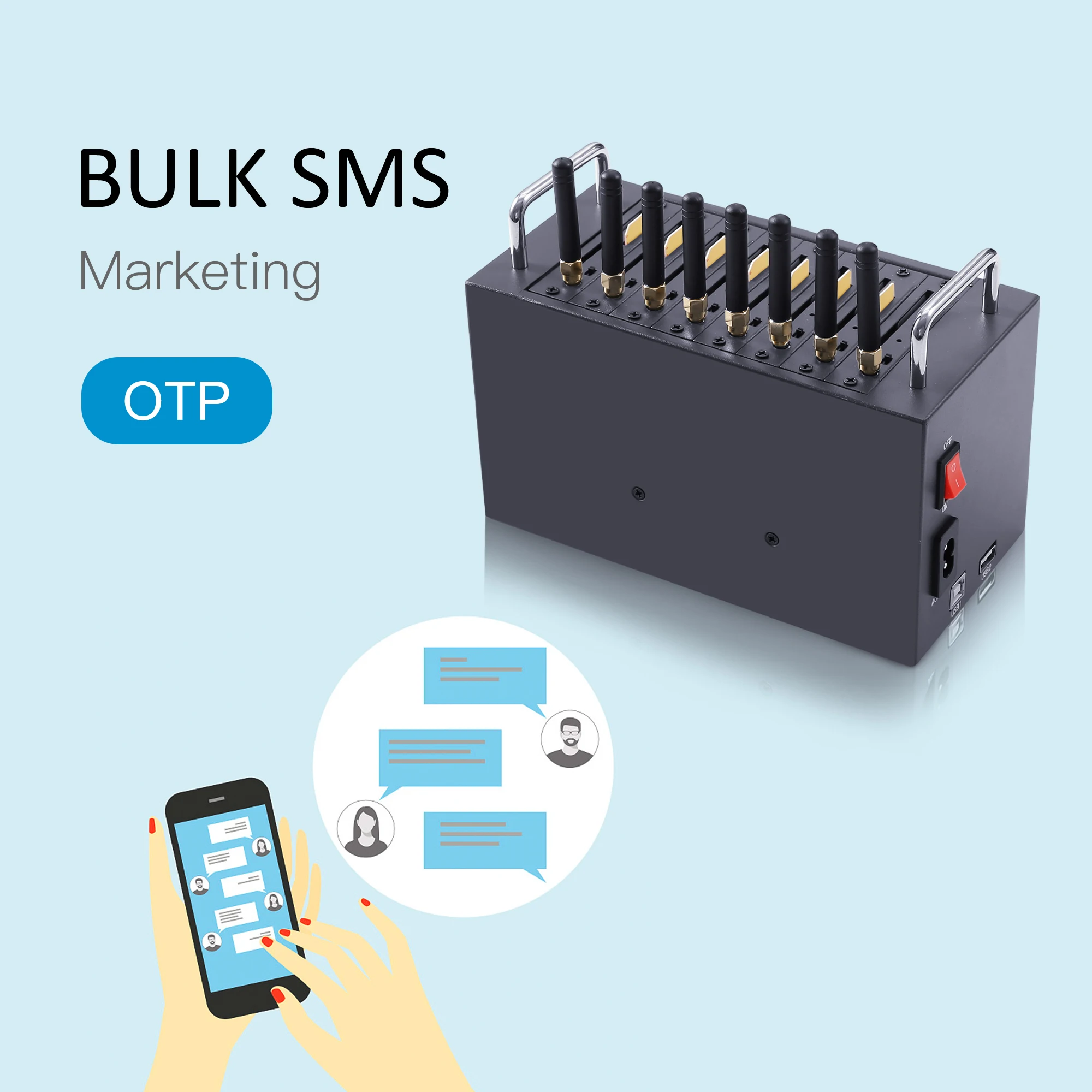

2G 8 PORTS SMS MODEM POOL
There are 1/8/16/32/64 (2G/3G/4G) ports models available.
Contact me for more!
skype:live:demi_1045
WhatsApp/wechat:008613686892147
Telegram: @skylinedemi
Highlights
• 8 x SIM card (big/small) slots
• Receive/ Send Bulk SMS
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 8/16/32/64 Ports Optional
• Free Bulk SMS Software (SMS Caster)
Highlights
• 8 x SIM card (big/small) slots
• Receive/ Send Bulk SMS
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 8/16/32/64 Ports Optional
• Free Bulk SMS Software (SMS Caster)
Specification
Product Name | Multi Ports SMS Modem Pool |
Frequency | UMTS: 800/850/900/2100MHz GSM: 850/900/1800/1900MHz |
Function | Send SMS/MMS Receive SMS IMEI Change AT Command |
SMS Software | SMS Caster (Free) |
Batch send, multitasking, port split send, Intermittent send, Timed Send, Send Failed will try again(Limit the number of try) | |
Support contact import, batch import of information, merge the same contacts, Contact grouping | |
Failed SMS view/export, unfinished task export/save, Outbox and inbox export | |
Port Choice | 8 port, 16 port, 32 port, 64 port |
Hourly SMS Sending Speed | Bulk Send 1000 SMS Per Port Per Hour (1) 1 port= 1000 SMS (2) 8 port= 8000 SMS (3) 16 port= 16000 SMS (4) 32 port= 32000 SMS (5) 64 port= 64000 SMS |
Optional Other Model | 2G: M26, M35 3G: UG96 4G: EC25 |
Power Input | 110~240VAC/ 50~60HZ |
Interface | USB 2.0 & USB 3.0 |
1 Power indicator Per SIM slot SIM card status indicator（4G product includes 4G signal status light） | |
Operation System | Windows/Vista/XP/Win7/Win8/Win9/Win10/Linux/Mac OS X |
How to use
(1) Insert SIM Cards in Modem
(2) Install the USB deriver and SMS Caster (we will send these two free softwares to you via online email)
(3) Following is the steps of sending message via SMS Caster

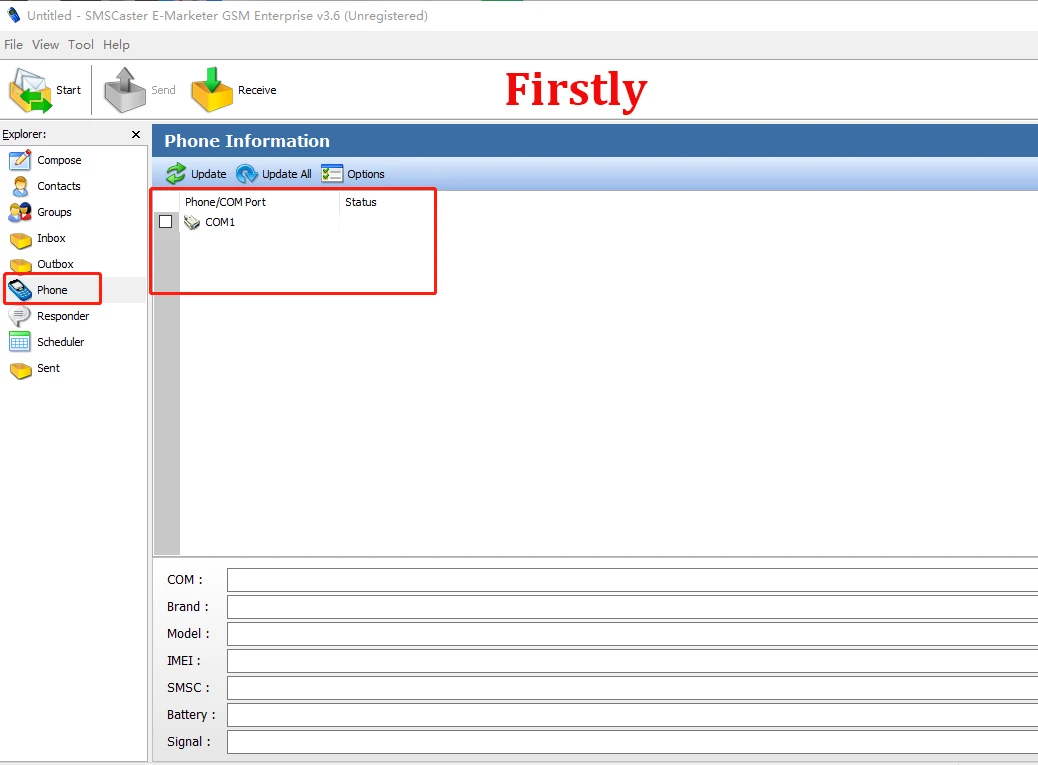

Firstly
1. Install SMS Caster like common software and close it after installing successfully
2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3. Select the driver path for every port, it will install automatically.
4. After completing the driver installation, starting SMSCaster program, all ports will be found.
2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3. Select the driver path for every port, it will install automatically.
4. After completing the driver installation, starting SMSCaster program, all ports will be found.

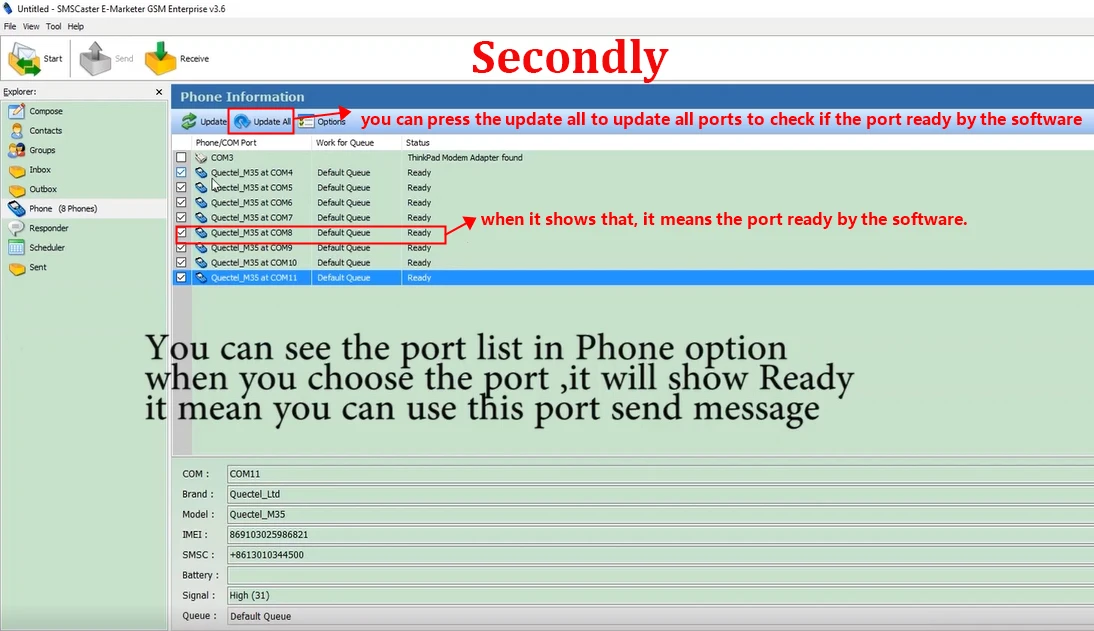

Open the smscaster, click the Phone, then update all, then you can check how many ports can work.
If some ports not shows proper, then you should check the simcards or change another simcards.
When you change simcards, you should shutdown the module, when insert simcards, then start it.
If some ports not shows proper, then you should check the simcards or change another simcards.
When you change simcards, you should shutdown the module, when insert simcards, then start it.

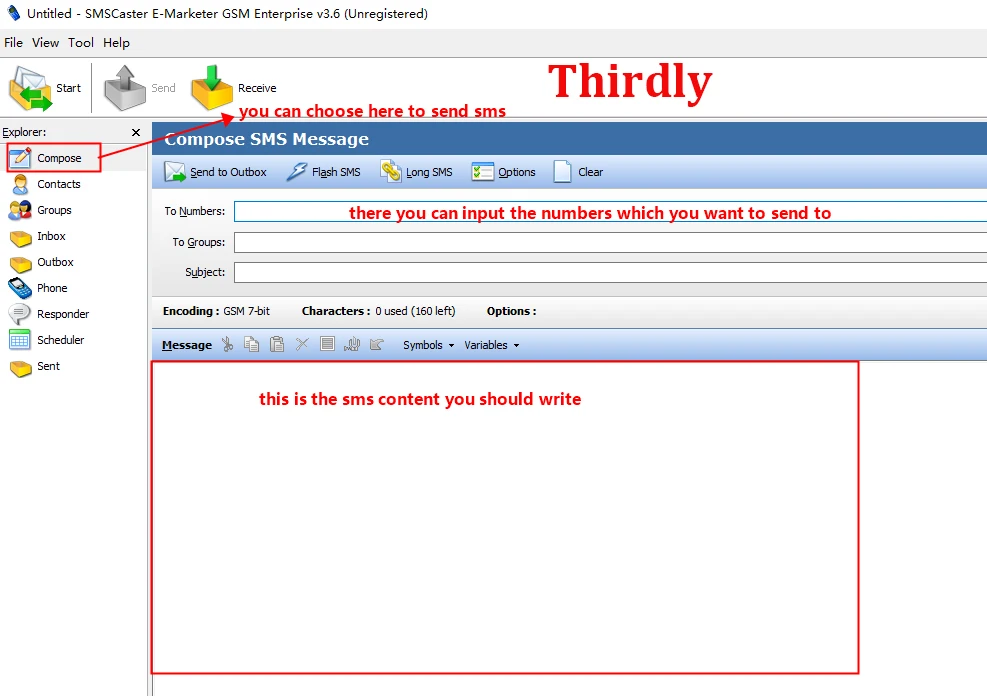

Thirdly
Compose for sending sms ,you can input receiver number in To Numbers if you just want to send few numbers, then input the content, when you finish, then press Send to Outbox, the sms will be sent to Outbox, press the Outbox ,then you can see the detail sms list, then press the Send.
They will be sent out (you should firstly choose the ports which you want to send sms ).
They will be sent out (you should firstly choose the ports which you want to send sms ).

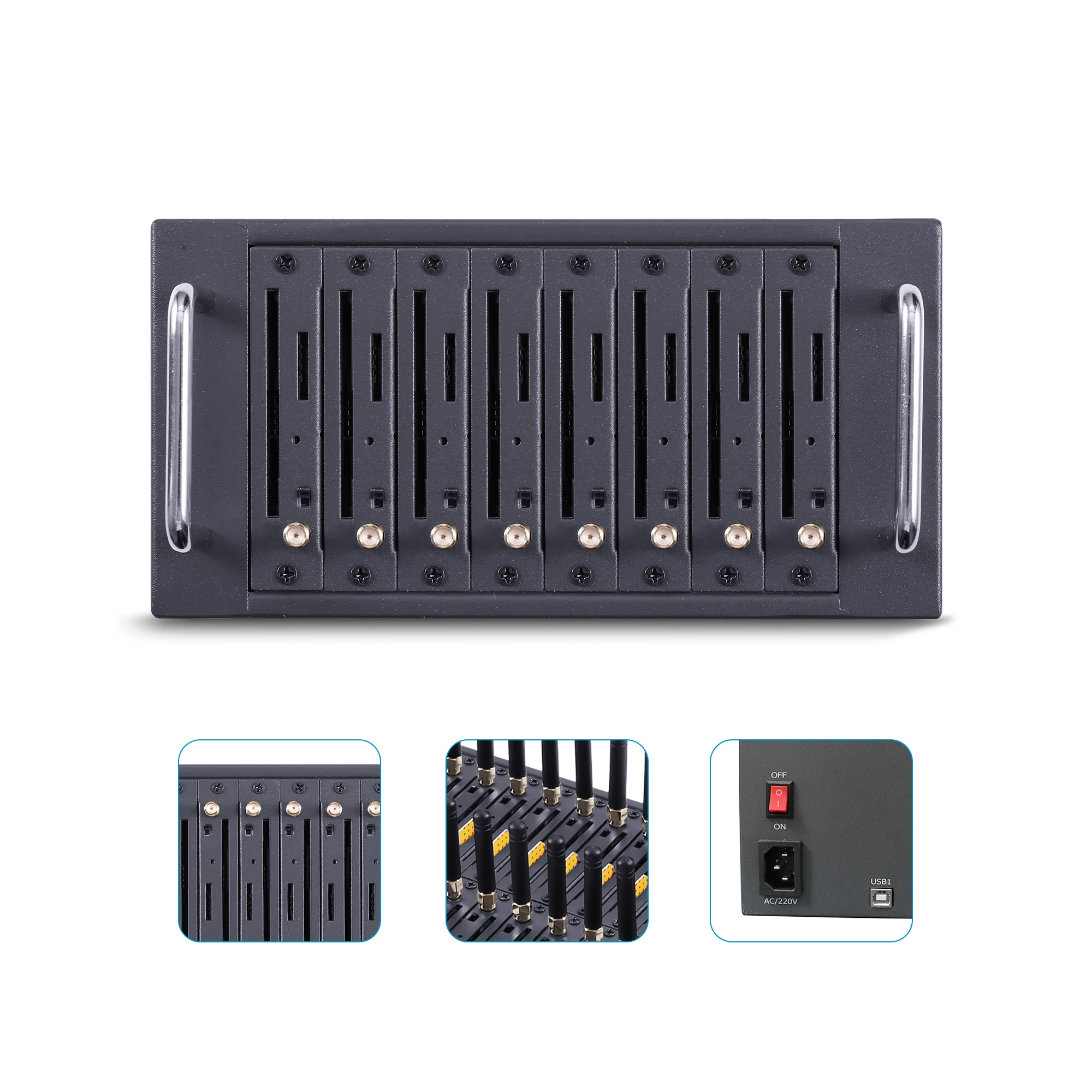

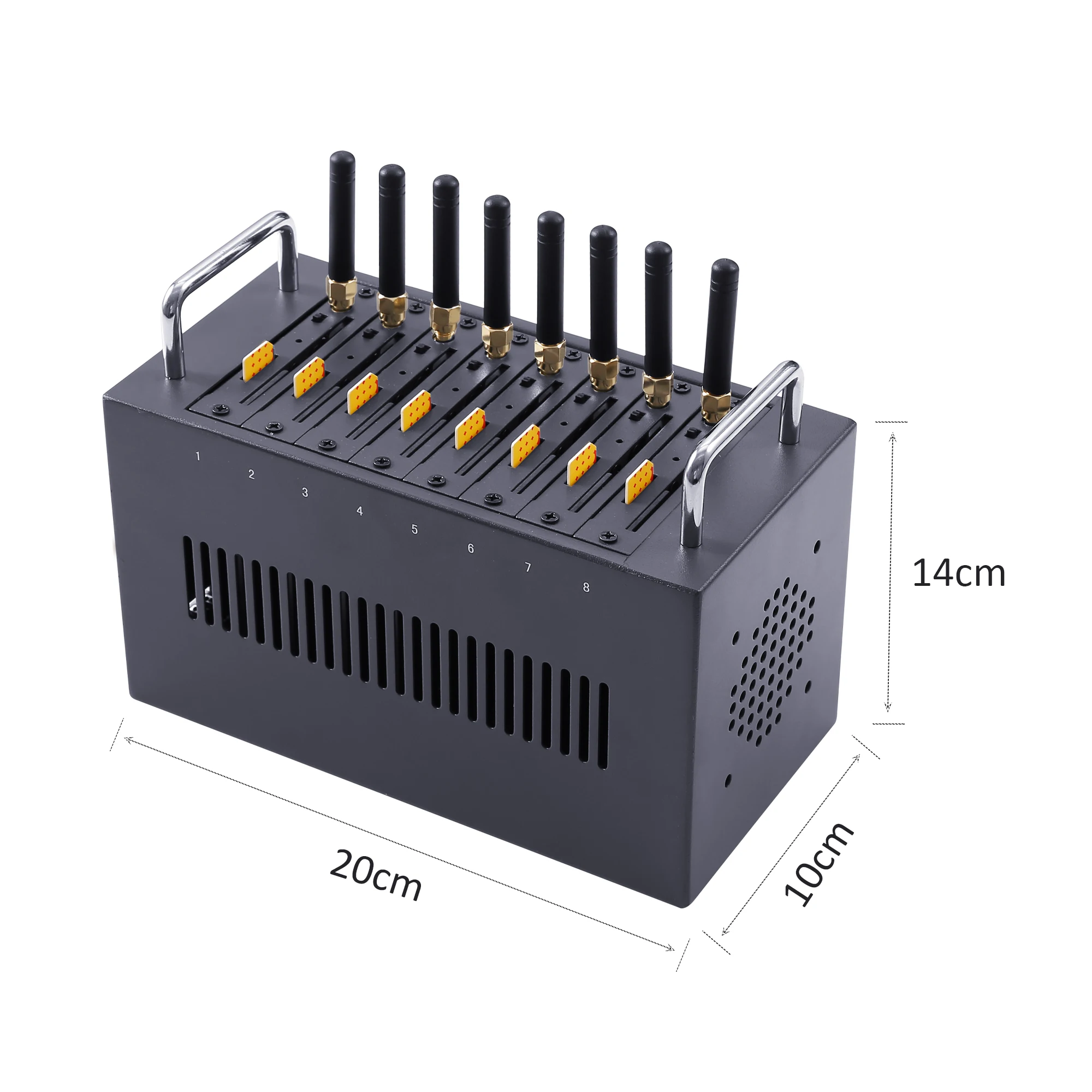

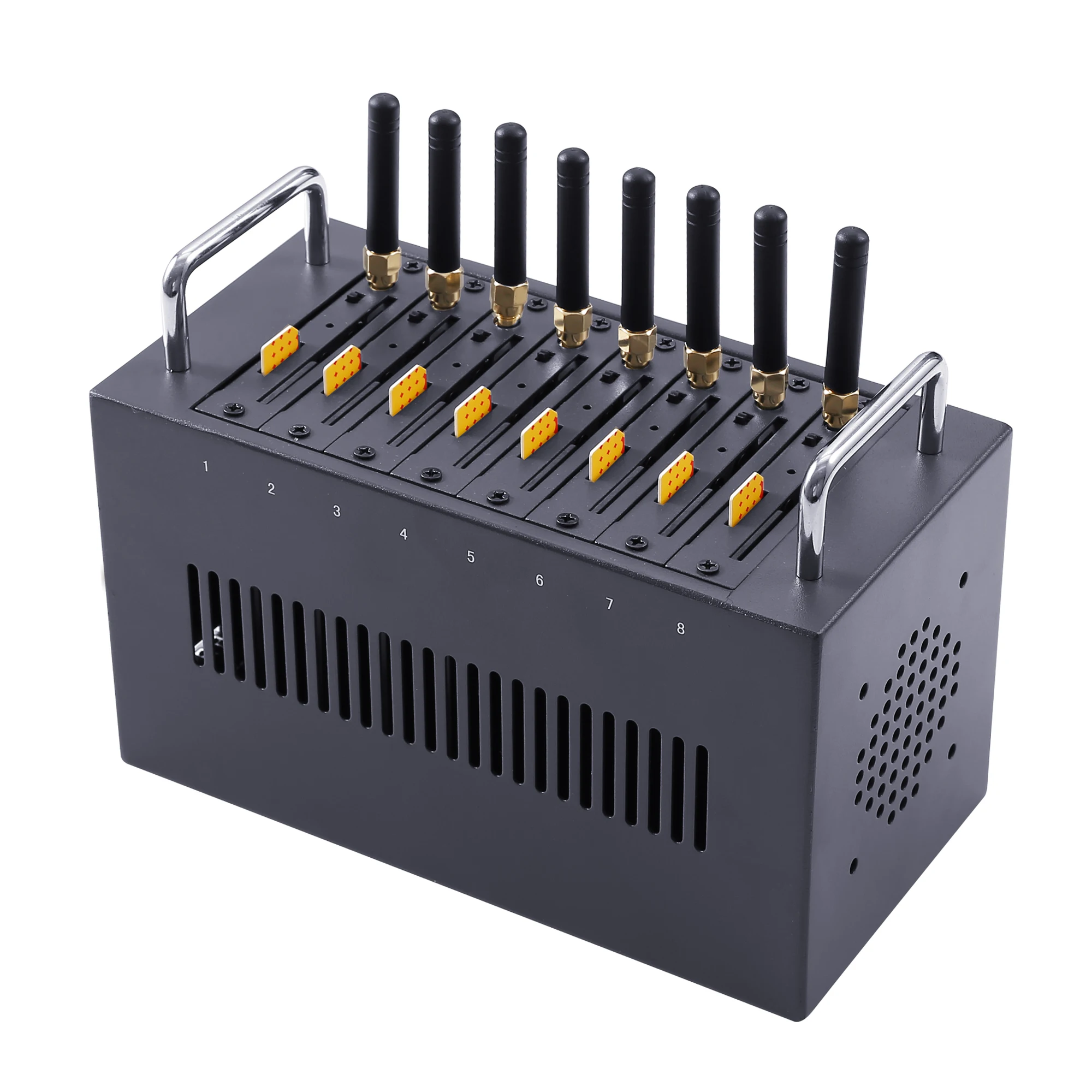

Details Images
Packing&Shipping

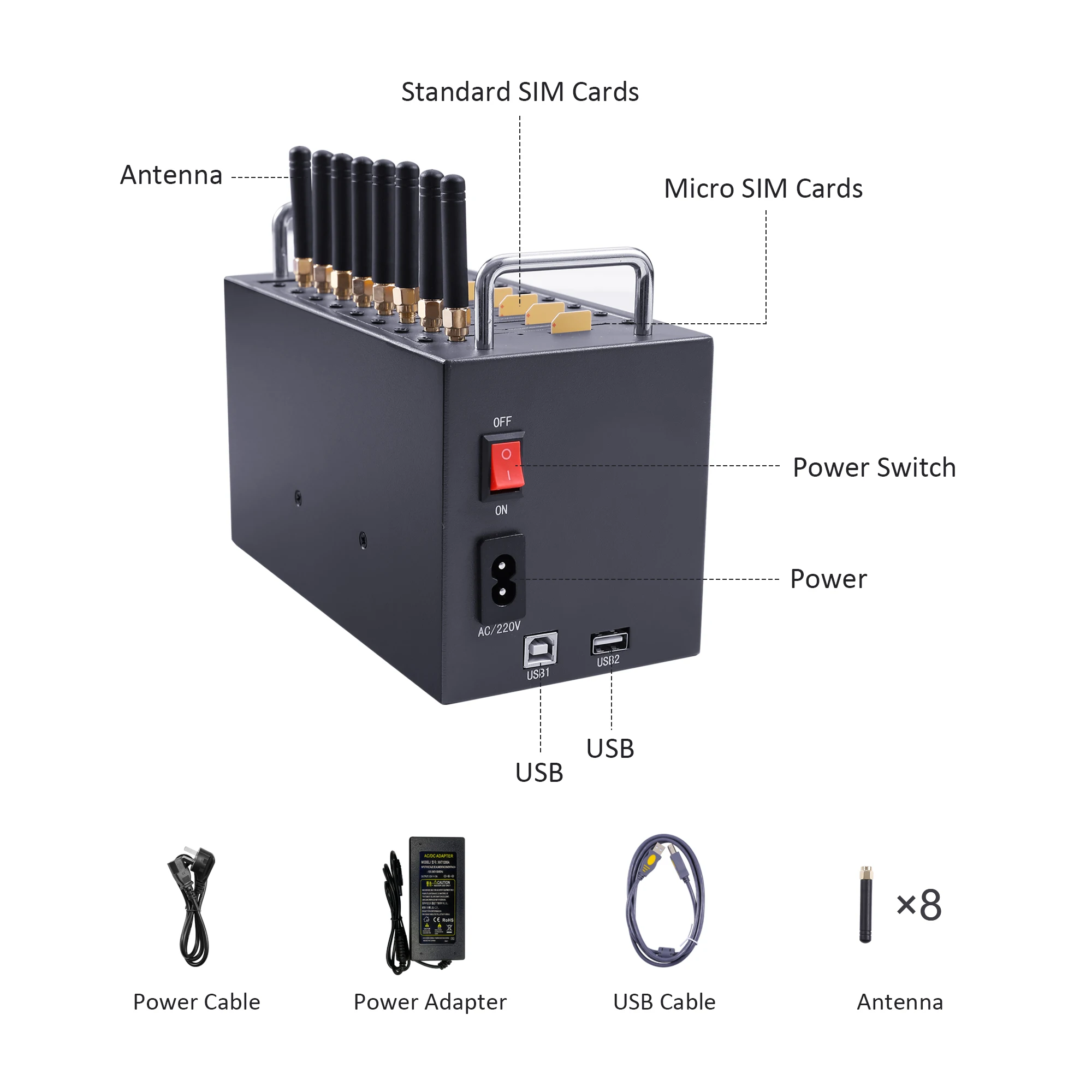

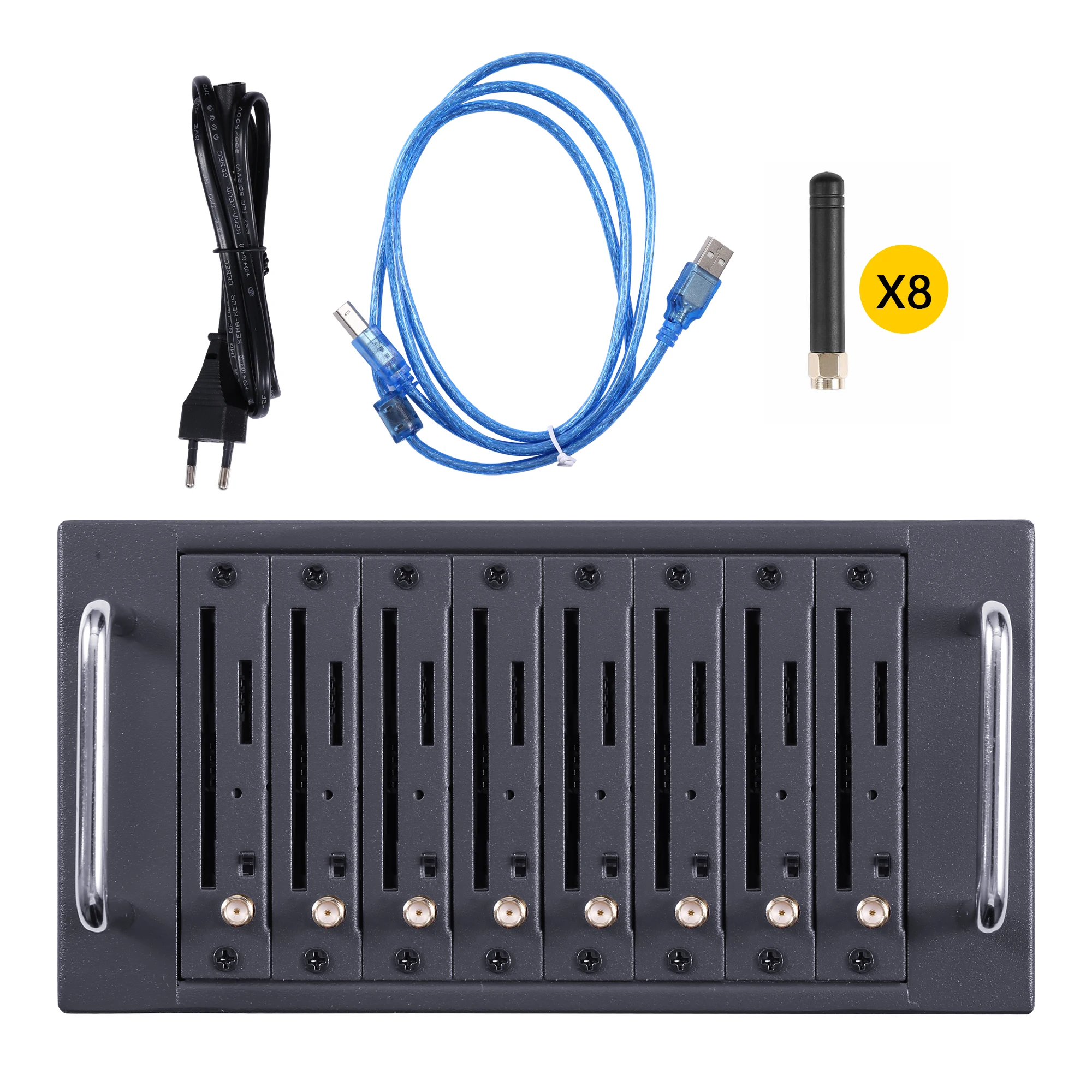

Packing List:
(1) SMS Modem Pool x 1
(2) USB Cable x 1
(3) Power Supply Adapter x 1
(4) Antennas x 8
(1) SMS Modem Pool x 1
(2) USB Cable x 1
(3) Power Supply Adapter x 1
(4) Antennas x 8
Trade Terms | FOB, CFR, EXW, DAP |
Payment Terms | Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T, Webmoney, Skrill, Western Union, USDT |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q.1: How to change IMEI?
(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "at+cgsn"//check IMEI
(6) at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
(7) put in "at+cgsn"//check new IMEI
Q.2: How to make call?
(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "ate1"
(6) Put in "atd number;" for example: atd 0976006161;
(7) Put in"ATH" hung off call
Q.3: How many kinds of modem for 2G GSM, 3G and 4G module?
M26/M35 for 2G GSM, UG96 for 3G, EC25 for 4G
(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "at+cgsn"//check IMEI
(6) at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
(7) put in "at+cgsn"//check new IMEI
Q.2: How to make call?
(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "ate1"
(6) Put in "atd number;" for example: atd 0976006161;
(7) Put in"ATH" hung off call
Q.3: How many kinds of modem for 2G GSM, 3G and 4G module?
M26/M35 for 2G GSM, UG96 for 3G, EC25 for 4G
Q.4: How is the sending speed of 2G, 3G and 4G modem?
2G: 1000 SMS per port per hour.
3G: 2800 SMS per port per hour.
4G: 3000 SMS per port per hour.
2G: 1000 SMS per port per hour.
3G: 2800 SMS per port per hour.
4G: 3000 SMS per port per hour.
Q.5: How about our service?
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
Q.6: What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)
We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatestdesire.
Q.6: What is our main express shipment?
DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)
Q.7: How long we're warranty ?
1 year.
1 year.
Q.8: During warranty time,if have problem,how to do?
We'll test by teamview or send back, we'll exchange new in free.
We'll test by teamview or send back, we'll exchange new in free.
Q.9: How long about our techinical support?
Free in life.
Free in life.
