Product Overview
Description

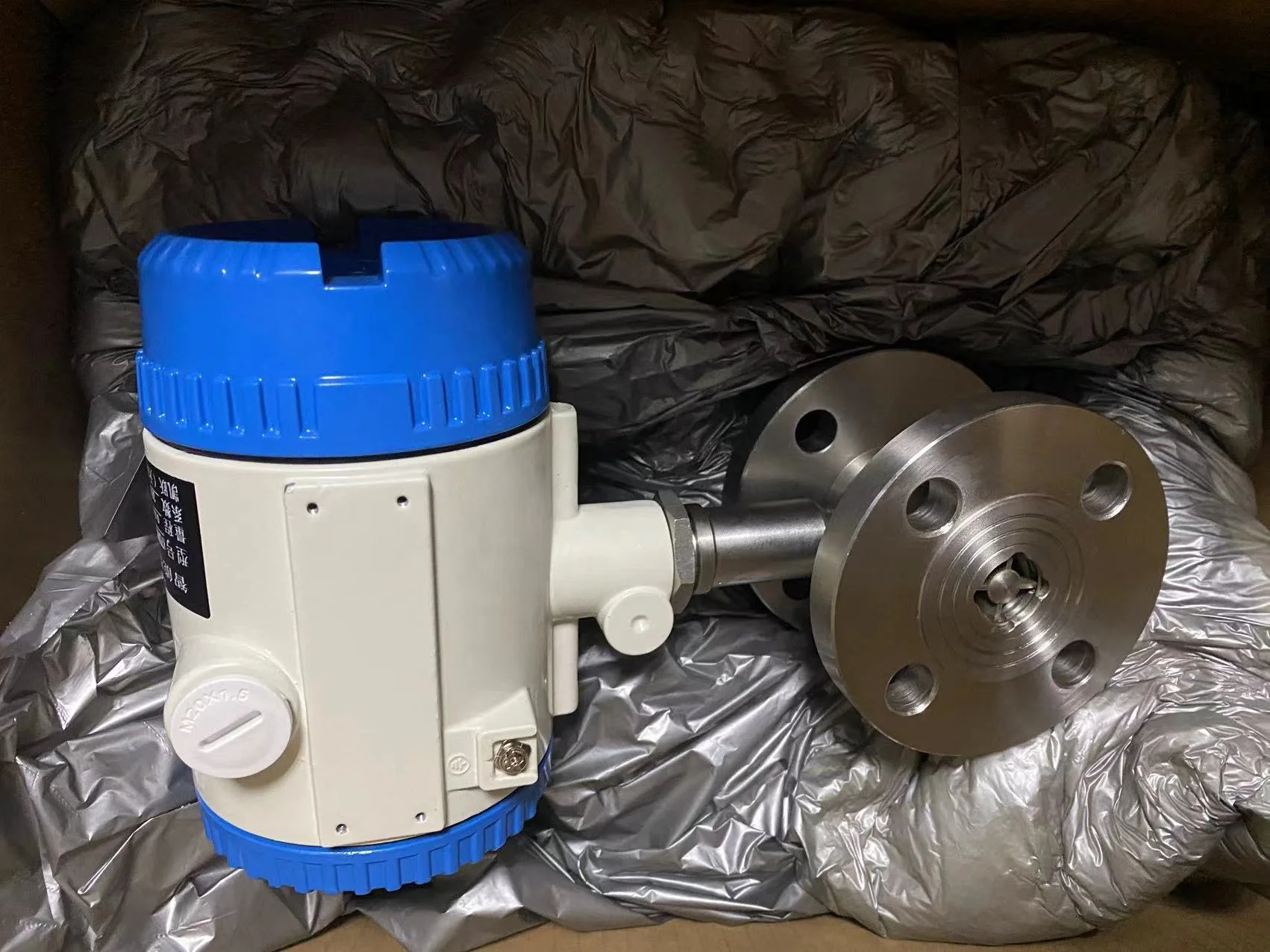

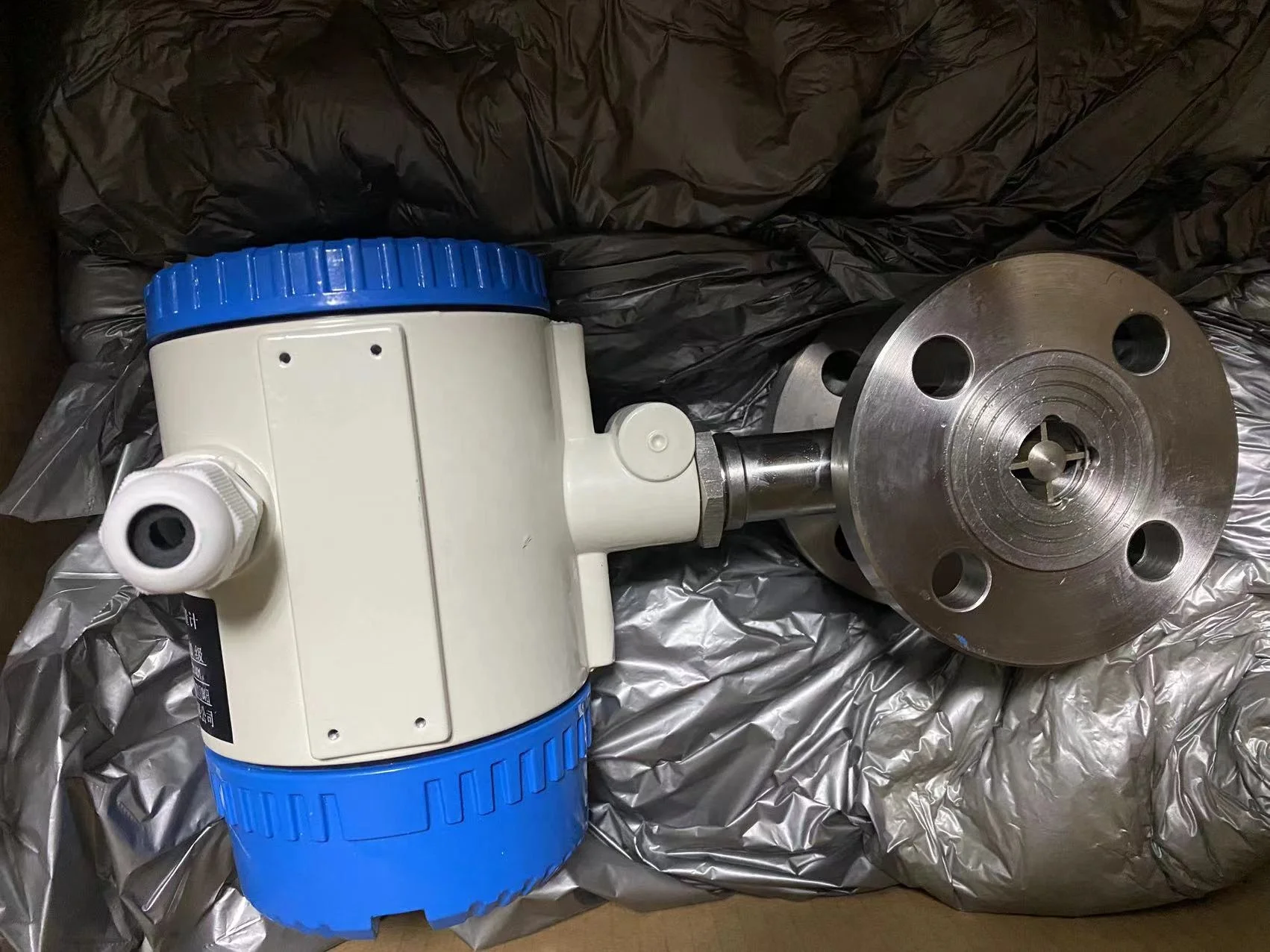

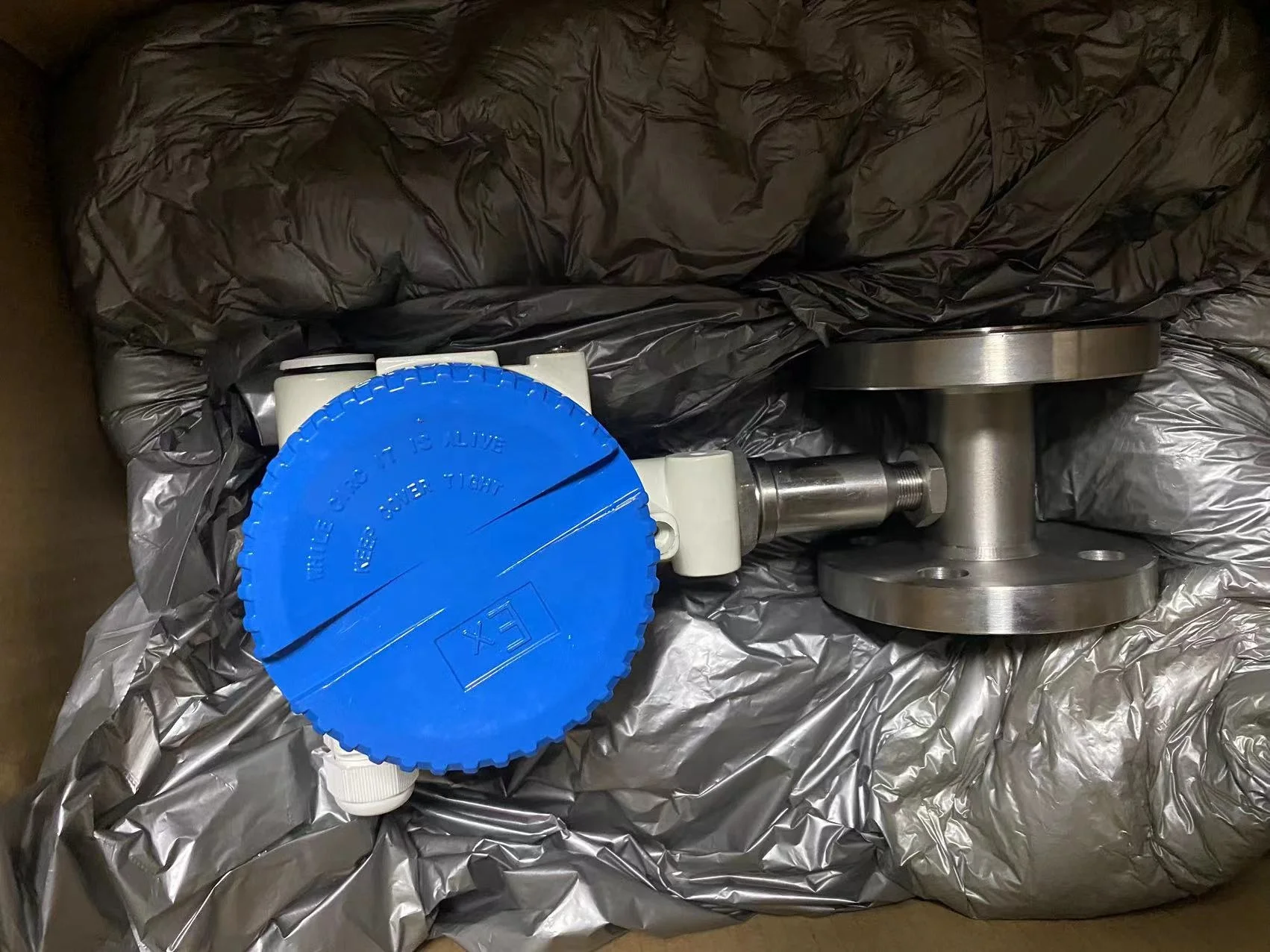

Intelligent turbine flowmeter KTF200
The turbine flowmeter is an impeller type flowmeter, consisting of a sensor and a low power conversion display. According to the
principle of electromagnetic induction, the fluid flow drives the impeller of the sensor to rotate, generating a periodic induced
electric potential. The conversion indicator amplifies the electrical pulse signal obtained from the sensor and displays it. It
has the advantages of high accuracy, good repeatability, strong anti-interference ability and easy installation and maintenance.
principle of electromagnetic induction, the fluid flow drives the impeller of the sensor to rotate, generating a periodic induced
electric potential. The conversion indicator amplifies the electrical pulse signal obtained from the sensor and displays it. It
has the advantages of high accuracy, good repeatability, strong anti-interference ability and easy installation and maintenance.
General

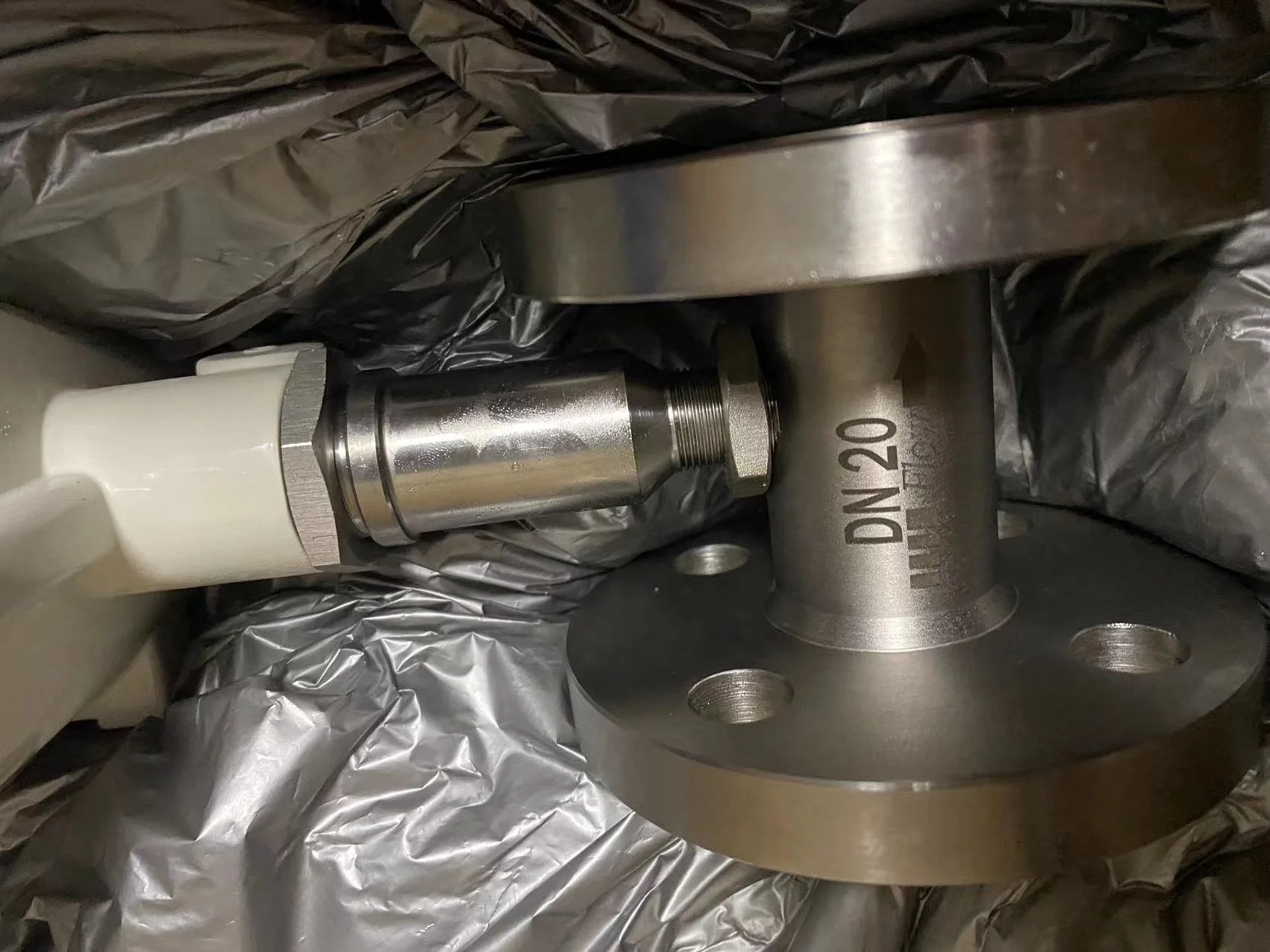

Line Sizes ：DN4-DN200 (Customized)
Fluid Type ：Petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, gas and cryogenic fluids, etc.
Flow range：0.04-800m³/h
Design Pressure：Min：0.025MPa，Max：6.3MPa
Accuracy：±0.5%R；±1.0%R
Ambient temperature: Sensor: -20℃～+80℃，
Medium temperature: -80℃～+120℃
Fluid Type ：Petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, gas and cryogenic fluids, etc.
Flow range：0.04-800m³/h
Design Pressure：Min：0.025MPa，Max：6.3MPa
Accuracy：±0.5%R；±1.0%R
Ambient temperature: Sensor: -20℃～+80℃，
Medium temperature: -80℃～+120℃
Process conditions
Fluid type：Petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, gas and cryogenic fluids, etc.
Sensor body material: 304 SS, 316 (L) SS
Impeller material:2Cr13, Duplex stainless steel
Applicable viscosity: ≤ 5000 Pa.s
Ambient temperature: Sensor:- 20℃～+80℃
Medium temperature: -80℃～+120℃
Ambient humidity: ≤85%RH
Linearity (standard) :±0.5%, ±0.2%,±0.1%
Repeatability ±0.02%
Output:4-20mA,RS485,2/3wire type
Explosion proof: EXd IIB T6 Gb
Weather proof: IP65
Power supply:Battery powered / 24V DC
Mounting form: Φ51 quick release coupling (can be customized with one-piece flange connection, one-piece snap-on)
Cable entry: M20*1.5-6H explosion-proof thread

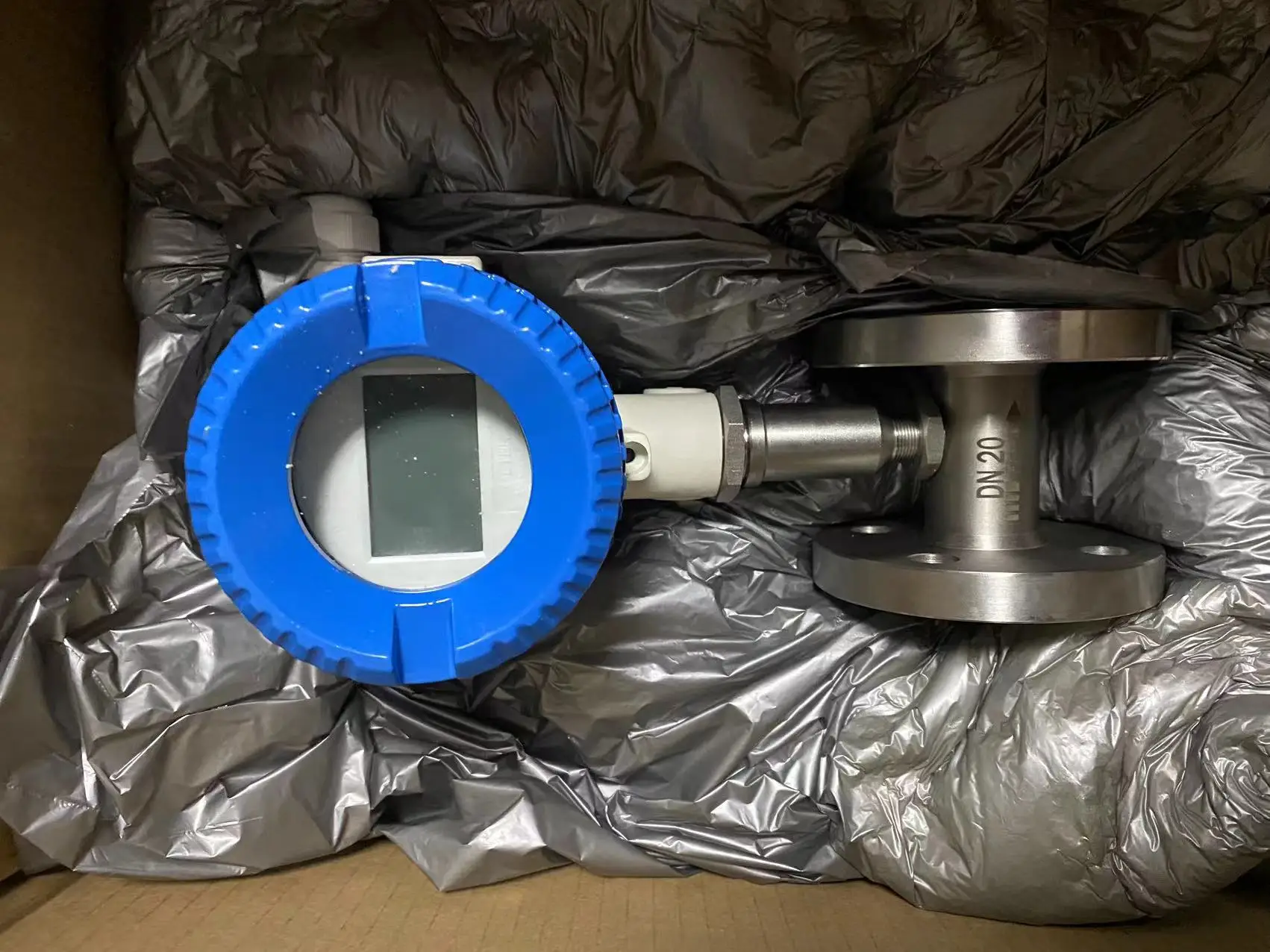

Flow display type: Local LCD/LED,Indicate flowrate/Totalizer
Language: English/ChineseFluid type：Petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, gas and cryogenic fluids, etc.
Sensor body material: 304 SS, 316 (L) SS
Impeller material:2Cr13, Duplex stainless steel
Applicable viscosity: ≤ 5000 Pa.s
Ambient temperature: Sensor:- 20℃～+80℃
Medium temperature: -80℃～+120℃
Ambient humidity: ≤85%RH
Linearity (standard) :±0.5%, ±0.2%,±0.1%
Repeatability ±0.02%
Output:4-20mA,RS485,2/3wire type
Explosion proof: EXd IIB T6 Gb
Weather proof: IP65
Power supply:Battery powered / 24V DC
Mounting form: Φ51 quick release coupling (can be customized with one-piece flange connection, one-piece snap-on)
Cable entry: M20*1.5-6H explosion-proof thread
Flow display type: Local LCD/LED,Indicate flowrate/Totalizer
Language: English/Chinese
Sensor body material: 304 SS, 316 (L) SS
Impeller material:2Cr13, Duplex stainless steel
Applicable viscosity: ≤ 5000 Pa.s
Ambient temperature: Sensor:- 20℃～+80℃
Medium temperature: -80℃～+120℃
Ambient humidity: ≤85%RH
Linearity (standard) :±0.5%, ±0.2%,±0.1%
Repeatability ±0.02%
Output:4-20mA,RS485,2/3wire type
Explosion proof: EXd IIB T6 Gb
Weather proof: IP65
Power supply:Battery powered / 24V DC
Mounting form: Φ51 quick release coupling (can be customized with one-piece flange connection, one-piece snap-on)
Cable entry: M20*1.5-6H explosion-proof thread
Flow display type: Local LCD/LED,Indicate flowrate/Totalizer
Language: English/ChineseFluid type：Petroleum, organic liquids, inorganic liquids, liquefied gas, natural gas, gas and cryogenic fluids, etc.
Sensor body material: 304 SS, 316 (L) SS
Impeller material:2Cr13, Duplex stainless steel
Applicable viscosity: ≤ 5000 Pa.s
Ambient temperature: Sensor:- 20℃～+80℃
Medium temperature: -80℃～+120℃
Ambient humidity: ≤85%RH
Linearity (standard) :±0.5%, ±0.2%,±0.1%
Repeatability ±0.02%
Output:4-20mA,RS485,2/3wire type
Explosion proof: EXd IIB T6 Gb
Weather proof: IP65
Power supply:Battery powered / 24V DC
Mounting form: Φ51 quick release coupling (can be customized with one-piece flange connection, one-piece snap-on)
Cable entry: M20*1.5-6H explosion-proof thread
Flow display type: Local LCD/LED,Indicate flowrate/Totalizer
Language: English/Chinese
Kyue（TianJin） Measurement & Control Co., Ltd. is a technology company focusing on fluid measurement and control, Process control, Wireless intelligent control, Automatic detection equipment, Instruments and Apparatuses, Sealing technology, Non-standard intelligent equipment R&D and manufacturing, import and export agent sales and services technology company.
We focus on "providing one-stop process automation control solutions", we provide customers with scientific automation instrument solutions and timely and high-quality pre-sales consultation and after-sales service. Products are used in petrochemical, environmental engineering, sewage treatment, metallurgy, automobile, medical, laboratory, nuclear power and other area.
We focus on "providing one-stop process automation control solutions", we provide customers with scientific automation instrument solutions and timely and high-quality pre-sales consultation and after-sales service. Products are used in petrochemical, environmental engineering, sewage treatment, metallurgy, automobile, medical, laboratory, nuclear power and other area.
