Flame Retardant NORYL PPO RESIN PX9406P (PPE PS) RESIN
- Category: >>>
- Supplier: Shenzhen Samtion Chemical Co. Ltd.
Share on (1600736525344):
Product Overview
Description
Products Description

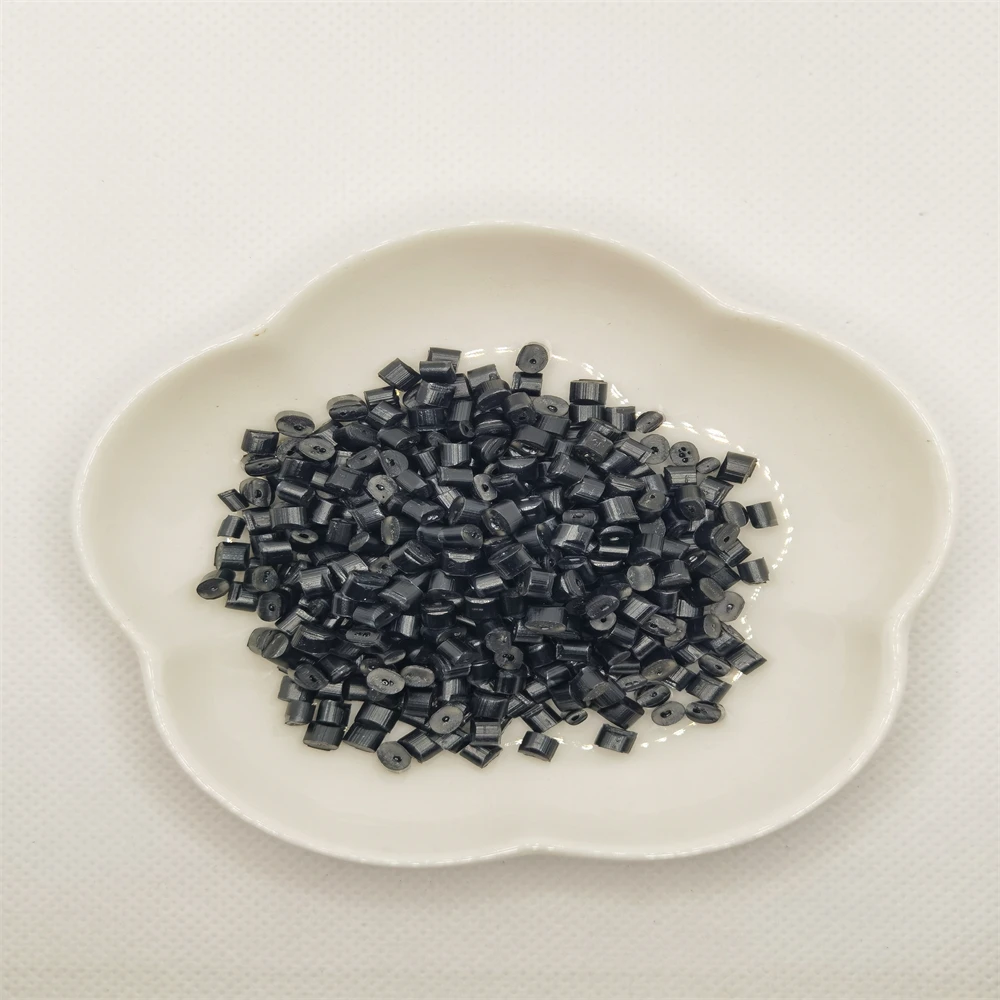

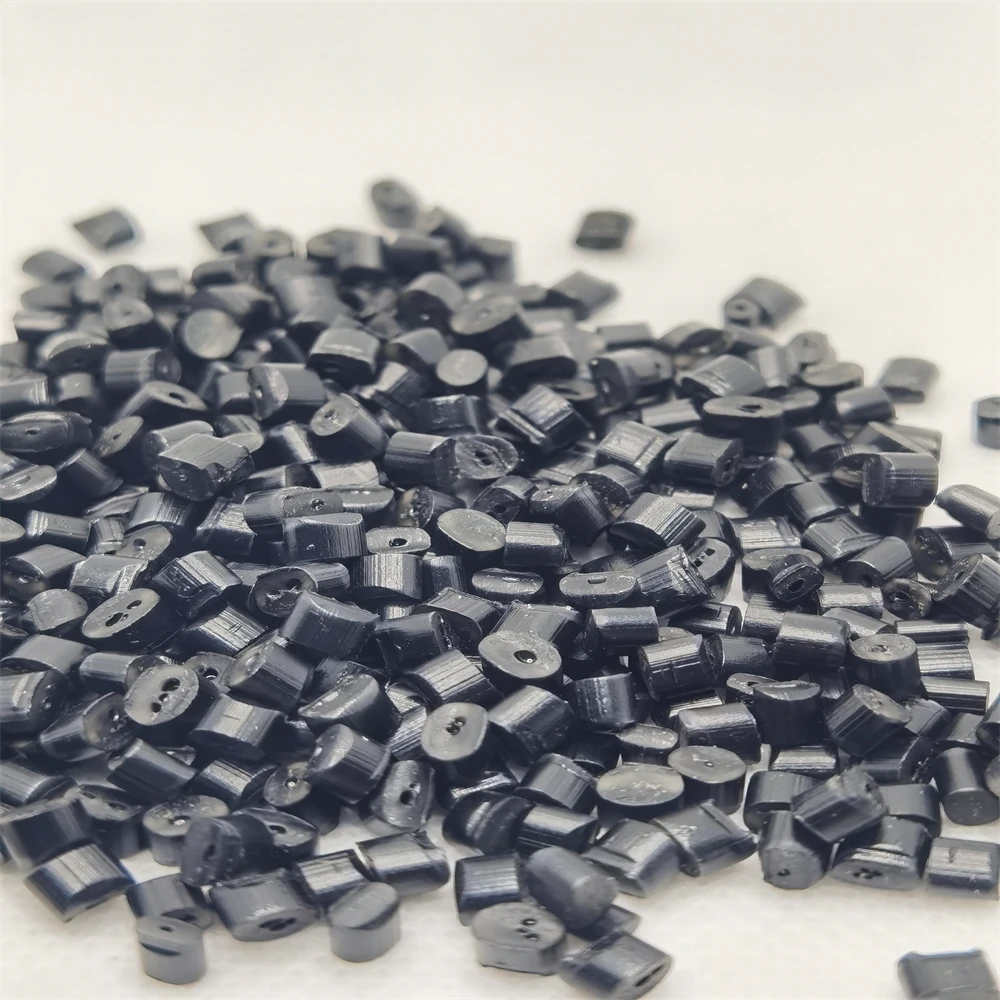

NoryLPX9406P
NORYL™ Resin PX9406P (Americas) is a non-reinforced & heat stabilized blend of polyphenylene ether (PPE) + high impact
polystyrene (HIPS). This injection moldable grade contains non-brominated, non-chlorinated & non-halogenated flame retardant and carries a UL94 flame rating of 5VA at 2.5 mm and V-0 at 0.75 mm. NORYL™ Resin PX9406P (Americas) is VDE certified IEC60335 and offers strong electrical performance at thin wall, high heat resistance, low warpage, low moisture absorption, and dimensional stability. It displays hydrolytic stability and low creep sensitivity. This material is an excellent candidate for unattended appliance applications such as printed circuit board (PCB) holders, terminal blocks & connectors, circuit protection/relay/switches, motor end caps, control box/panels, and battery charger/fuse holders.
polystyrene (HIPS). This injection moldable grade contains non-brominated, non-chlorinated & non-halogenated flame retardant and carries a UL94 flame rating of 5VA at 2.5 mm and V-0 at 0.75 mm. NORYL™ Resin PX9406P (Americas) is VDE certified IEC60335 and offers strong electrical performance at thin wall, high heat resistance, low warpage, low moisture absorption, and dimensional stability. It displays hydrolytic stability and low creep sensitivity. This material is an excellent candidate for unattended appliance applications such as printed circuit board (PCB) holders, terminal blocks & connectors, circuit protection/relay/switches, motor end caps, control box/panels, and battery charger/fuse holders.
"NORYL" for the queen Mary innovation development by oxidation of xylene resin, plastic company in PPO for basic, one of aromatic polyether, the excellent material, through 17 kinds of feature combination, more conducive to injection molding, blow molding,extrusion, vacuum forming, to meet the industry needs lightweight, high security and more durable product requirements. Because of its excellent fire resistance, heat resistance, mechanical strength, electrical characteristics and dimensional stability, coupled with low water absorption and easy processing, it is widely used in water treatment equipment, computers, transaction machines,electronic parts, household appliances, communication equipment, water transportation parts and automobiles and other industries.
Product Paramenters
MECHANICAL | Value | Unit | Standard |
Tensile Stress, yield | 62 | MPa | |
Tensile Strain, break | 85 - 85 | % | |
Flexural Stress | 99 | MPa | ASTM D 790 |
Flexural Modulus | 2350 | MPa | ASTM D 790 |
IMPACT | Value | Unit | Standard |
Izod Impact, notched, 23°C | 166 | J/m | ASTM D 256 |
THERMAL | Value | Unit | Standard |
HDT, 0.45 MPa, 3.2 mm, unannealed | 125 | °C | ASTM D 648 |
CTE, -30°C to 30°C | 7.E-05 - 7.E-05 | 1/°C | TMA |
PHYSICAL | Value | Unit | Standard |
Specific Gravity | 1.09 | - | ASTM D 792 |
Water Absorption, 24 hours | 0.07 | % | ASTM D 570 |
Mold Shrinkage, flow, 3.2 mm | 0.5 - 0.7 | % | |
ELECTRICAL | Value | Unit | Standard |
Surface Resistivity | 1.E+16 | Ohm | ASTM D 257 |
Relative Permittivity, 50/60 Hz | 2.8 | - | ASTM D 150 |
FLAME CHARACTERISTICS | Value | Unit | Standard |
UL Recognized, 94V-2 Flame Class Rating (3) | 0.4 | mm | UL 94 |
UL Recognized, 94V-0 Flame Class Rating (3) | 0.75 | mm | UL 94 |
UL Recognized, 94-5VA Rating (3) | 2.5 | mm | UL 94 |
Melt Volume Rate, MVR at 280°C/5.0 kg | 7 | cm³/10 min | ISO 1133 |
Company Profile
The Shenzhen Samtion Chemical Co., Ltd
Focus on the export and production support of engineering plastics and special modified materials
Focus on the export and production support of engineering plastics and special modified materials
15 Years Experience
We are a leading supplier of top end engineering plastics raw materials.
The company is formed by a group of senior teams engaged in the sales and production of engineering plastic materials for over 15 years.
More Than 1,000 Customers
Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment,transportation and other industries.
Quality Assurance
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS,SGS, REACH,EU, UL, COC / COA certificates!
We are a leading supplier of top end engineering plastics raw materials.
The company is formed by a group of senior teams engaged in the sales and production of engineering plastic materials for over 15 years.
More Than 1,000 Customers
Up to now, we have provided high-quality products and services to more than 1,000 customers in various industries, including: electronics and electrical appliances, medical, food, automotive electronics, optoelectronic communications, photovoltaic new energy, water treatment,transportation and other industries.
Quality Assurance
Every batch of our products is subject to strict quality inspection to ensure the original supply. All products have MSDS, ROHS,SGS, REACH,EU, UL, COC / COA certificates!
Our Advantages
1.Professional focus:
Professional engineer service team with more than 15 years of experience; Provide a complete set of solutions and services from material sales, quality appraisal, mold design, molding and processing.
2.Perfect service:
We have served many high-quality and excellent domestic and foreign enterprises, and We understand the customers'
purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
purchasing, product and service needs; From response time, price advantage, problem handling, etc., we provide comprehensive services based on customer needs in multiple dimensions.
3. Inventory supporting:

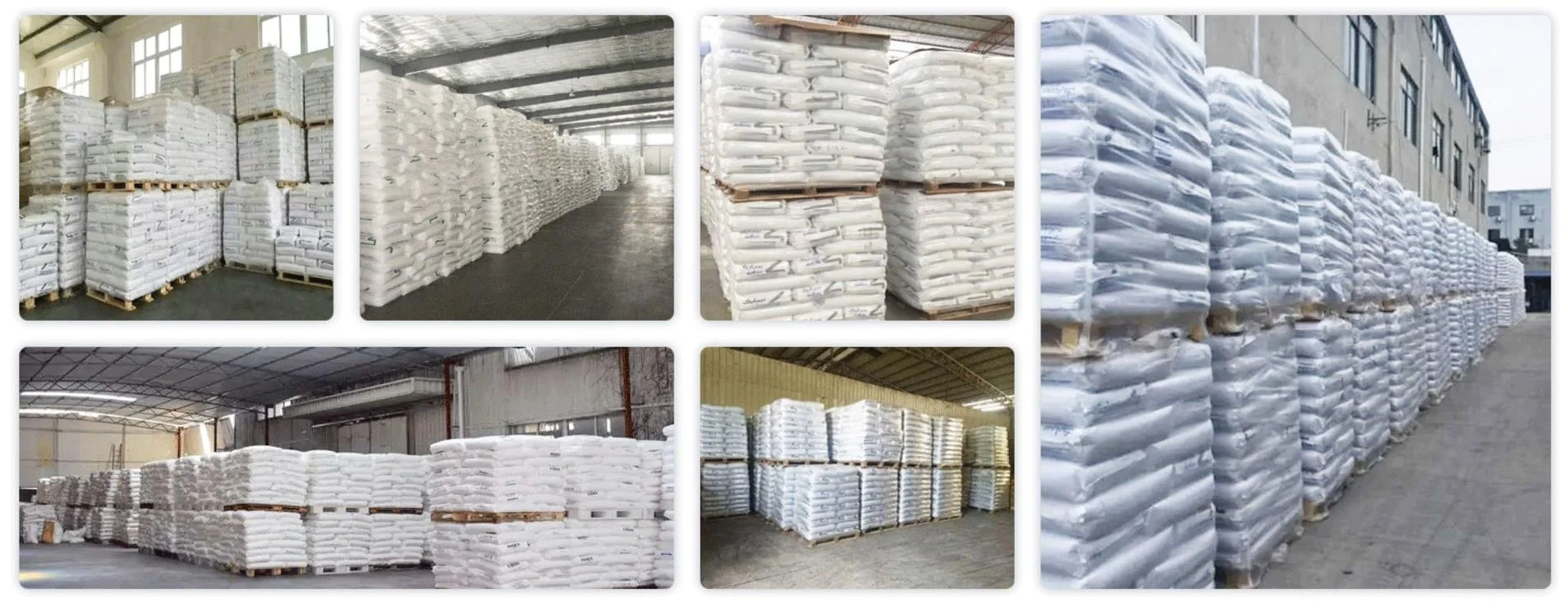

Abundant inventory supporting resources, which are located in Guangzhou, Dongguan, Shenzhen free trade zone and Hong Kong. It has set up warehouses to stock goods, with a standing stock of more than 1000 tons, which can meet the timely spot purchase demand of customers and ensure the reliability and stability of the customer's material supply chain.
