Best Price A1 A2 A3 Uv Printer 6090 Size Uv Printer
- Category: >>>
- Supplier: Zhengzhou Hstar Digital Technology Co. Ltd.
Share on (1600736557359):
Product Overview
Description
Product Description

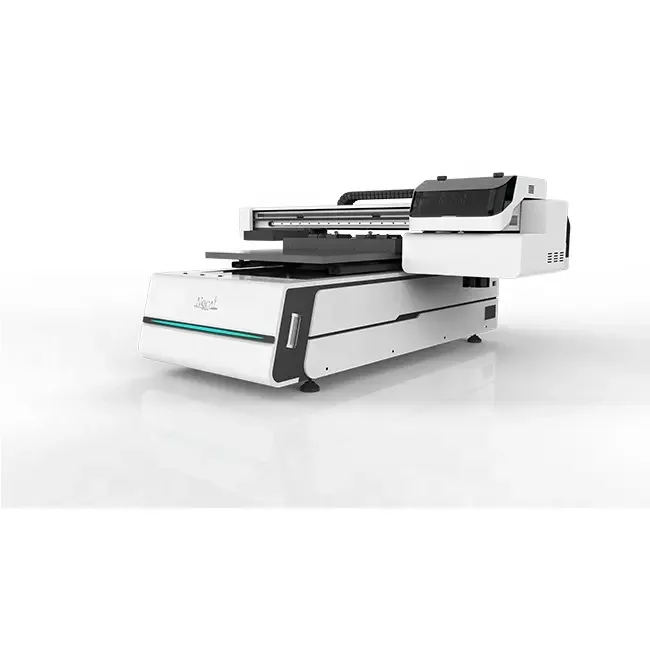

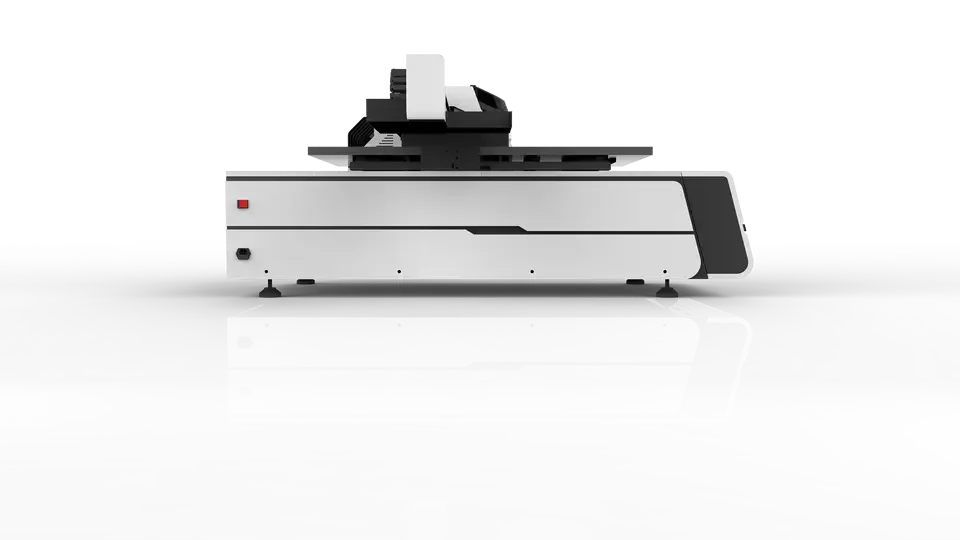

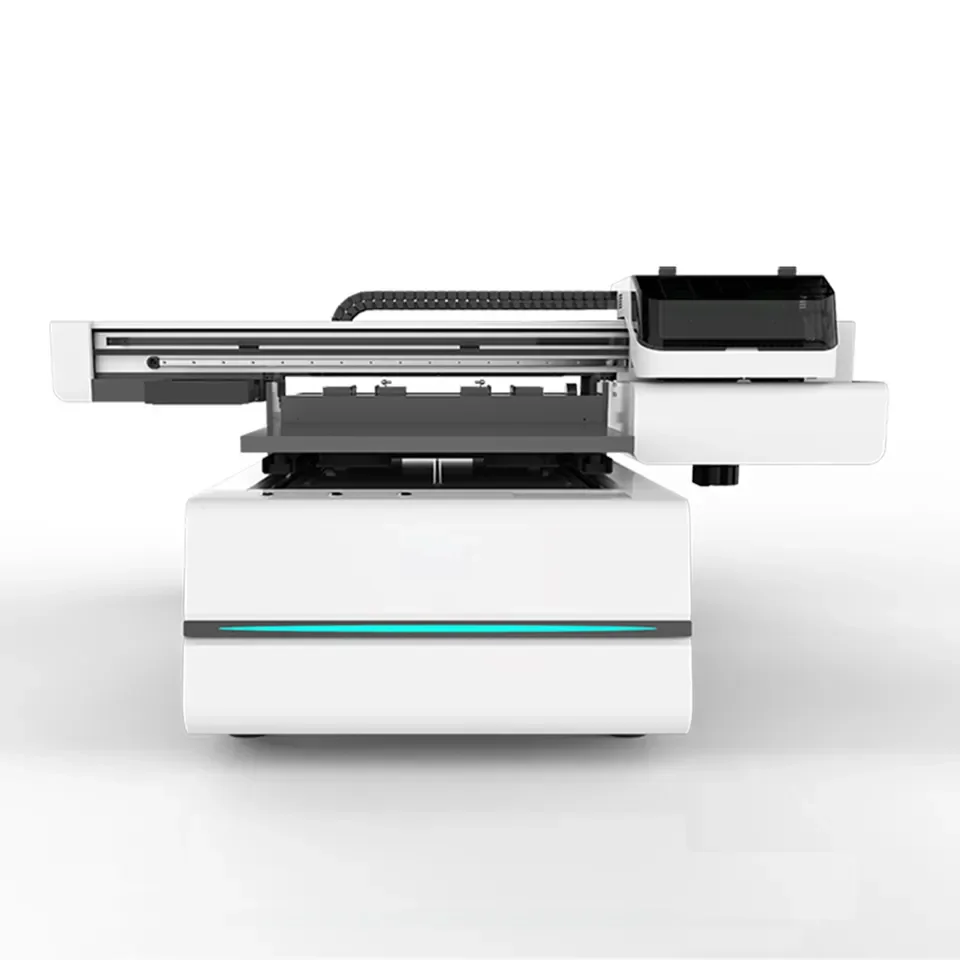

Falt Bed UV6090 A1 Flatbed UV Printer Specifications and Details:
Model | CHR-UV0609PE3 |
Nozzle Configuration | Epson XP600 Print Head |
Head Number | 3 pcs |
Nozzle Quantity | 6*180 |
Nozzle Spraying Strength Range | 2-3mm |
Print Head Theoretical Lifespan | 6-12months |
Ink Drop Size(pl) | 1.8-9.5-19pl/12.96kHz |
Max Injection Frequency(kHz) | 46(Single Drop) |
Max Printing Size | 600*870mm |
Print Height | 0-180mm |
Print Version | Color&White |
Print Mode | CMYKLcLm+W+Vanish / CMYKLcLm+W |
Print Method | One Way/Bidi |
Print Speed | 1.01sqm/h-2.92sqm/h |
Max Print Resolution | 1440dpi |
Guideline&Drag Chain | Imported |
Y Axis Transmission Method | Belt |
Ink Spray Tank | Yes |
Control Panel Board | Yes |
Plate Board | Vacuum Table |
UV Curing Method | Air Cooling |
Fly Ink Purification Device | Yes |
Ink Volume Alarming Function | Yes |
Ink Sucking Method | Lifting Capping System/Ink Pump |
Ink Stirring Function | Yes |
Infrared Detection Height | Yes |
Auto Clean Function | Yes |
White Ink Volume Adjust | Yes |
Color-White Print Function | Yes |
Data Transmission Interface | Network Cable |
RIP Software | FlexiPRINT |
Power Supply Voltage | AC110/220V±10V 50-60HZ |
Image Format | JPEG,PDF,Tiff,EPS,PNG,AI,PSD,etc. |
Platform | Vacuum Platform |
Operation Environment | Temperature:20-28℃,Humidity:35%-65% |
Available Ink | Environmental UV Curing ink |
Printer Diameter(L*W*H) | 1620mm*1590mm*860mm |
Packing Size | 1.8m*1.74m*0.96m |
Volume | 3CBM |
N.W/G.W | 170KG/300KG |
Packaging & Shipping
Delivery | Within 3-7 working days for production, we will arrange delivery after received the total payment. |
Packing | Firstly, Packed the flat bed A1 flatbed uv printer with plastic sheet for clearing and damp proofing. |
Secondly, Then put the flat bed A1 UV flatbed printer into the plywood case for safety and clashing. | |
Thirdly, Transport the plywood case into the container. |
Our service;
1.12 months guarantee of the whole machine(except the printhead)
2.Main parts(excluding the consumables)shall be changed free of charge if there is any problem during the warranty period.
3.Lifetime maintenance free of charge
4.We will provide the UV printer consumable parts at an agency price when you need replacement
5.Machine has been adjusted and tested before delivery
6.Our staff can be sent to your company to install or adjust if necessary.
After-sale service:
1. 24 hours Technical support by Email or Calling.
2. English manual and CD video for machine using and maintaining.
3. Hardware: 1 years for UV printing machine(without person damaged).
Software: Whole life on update for free.
Maintenance and technological support: Whole life.
