Product Overview

Description



Overview

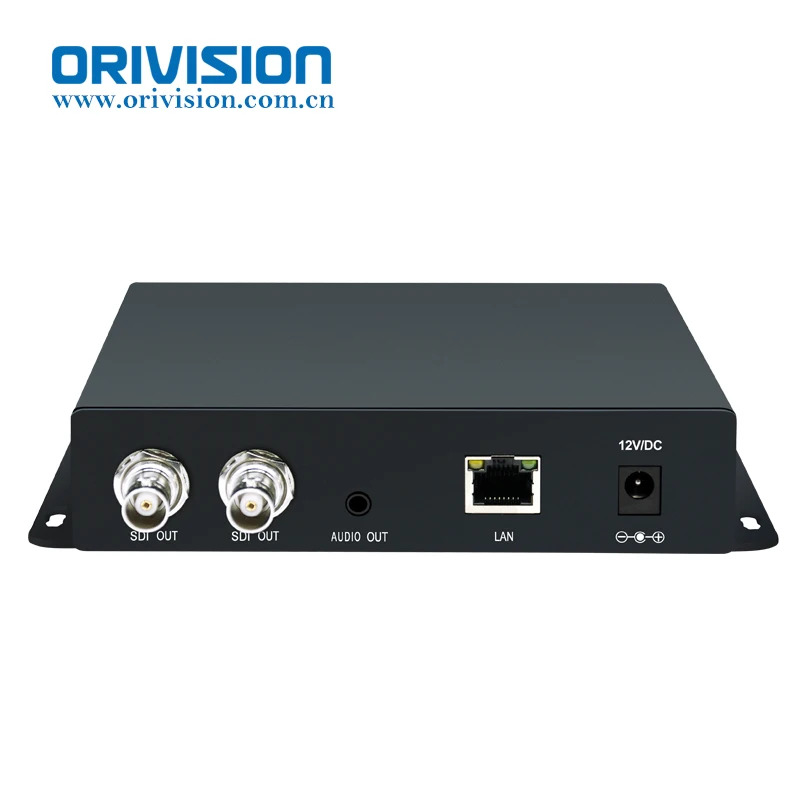

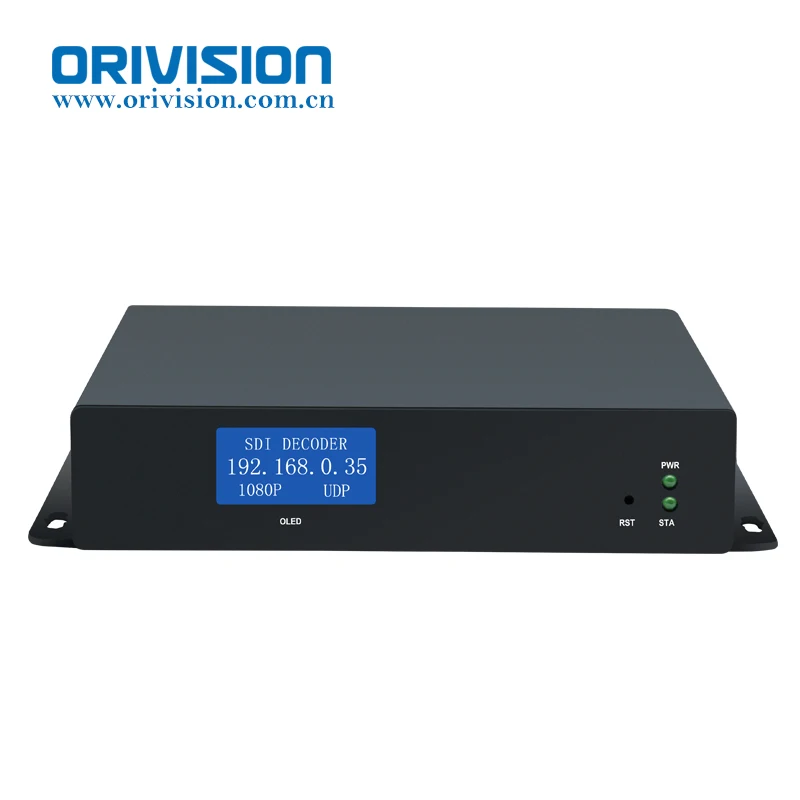

HD HEVC SDI  Hardware Decoder With OLED
DS951 decoder is a professional HD H.265 (HEVC) hardware decoder that brings multiple video streams to SDI. Without relying on a computer, it decodes any IP streams including HTTP/SRT/RTSP/RTMP/UDP/RTP/UTP, etc, and outputs the video to the display wall in up to 9 grids or free layout, and dynamic switching is supported.
DS951 has high integration and low costs . It can be widely used in various HD video systems. It supports POE power supply, OLED real-time display to ensure uninterrupted video streaming. And also supports an RTMP server for direct connection with encoders.

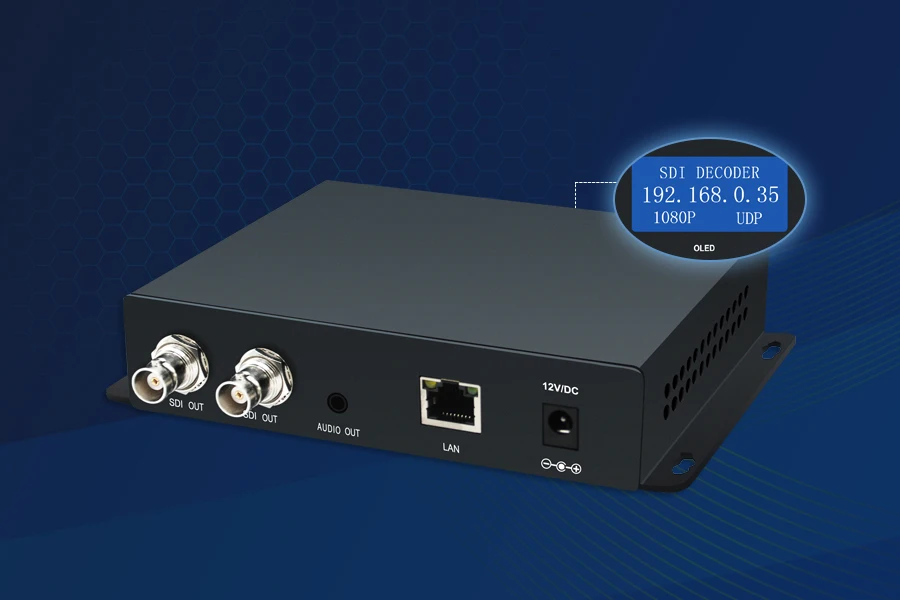

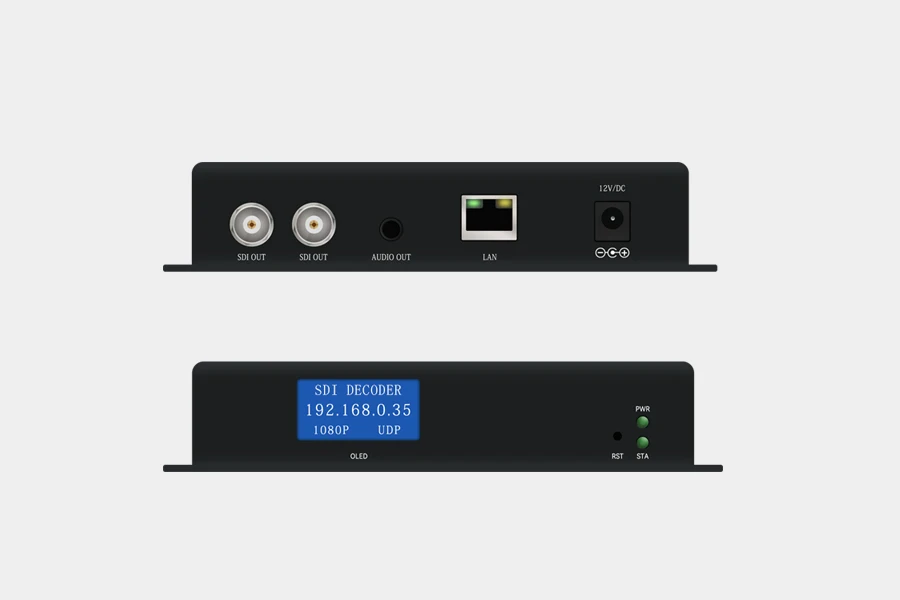

· LCD real-time display
With a built-in LCD screen, users can monitor the IP status and encoding parameters in real-time.


· Low Latency And High Quality
Supports decoding up to H.264/ H.265 IP streams and decode the streams to output 1080P dual SDI.

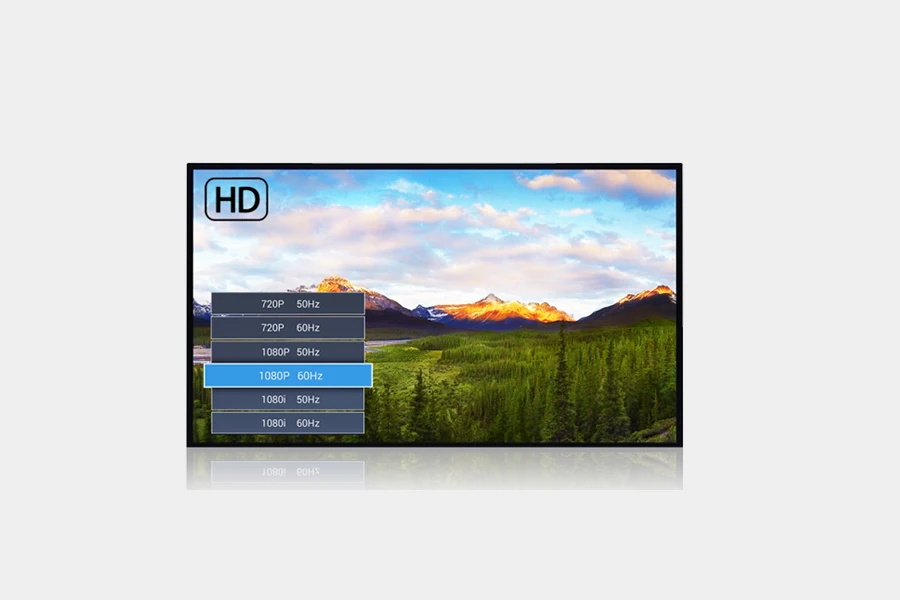

Add resolution:576i;480i;1080i@59.94;720P@59.94


· Powerful IP Decoding Performance
It supports decoding up to 9 channels of videos simultaneous.
*Note: 9 channels with 720p, or 1 / 4 channels of 1080P.

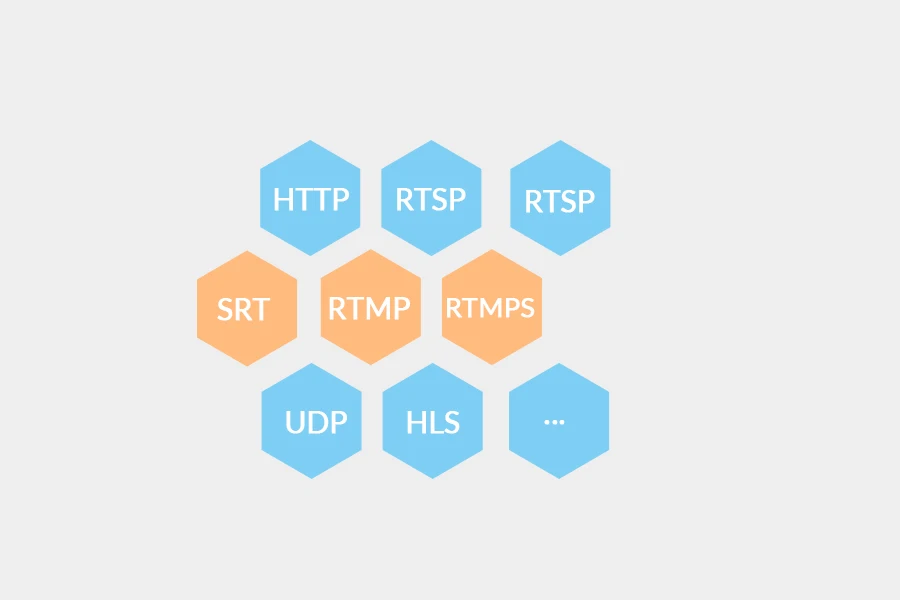

· Multiple Network Protocols
It's compatible with SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.
Decoding with the same or different protocol is available

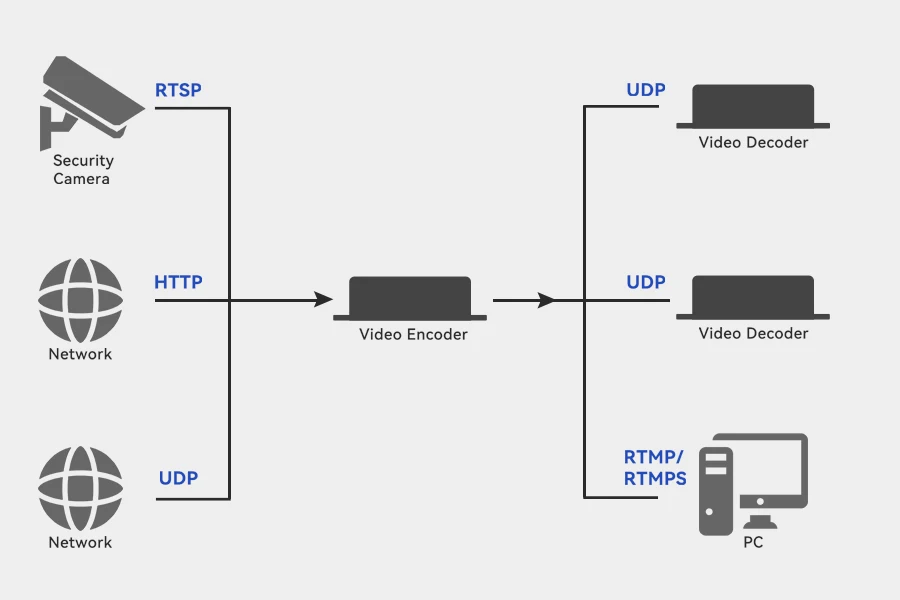

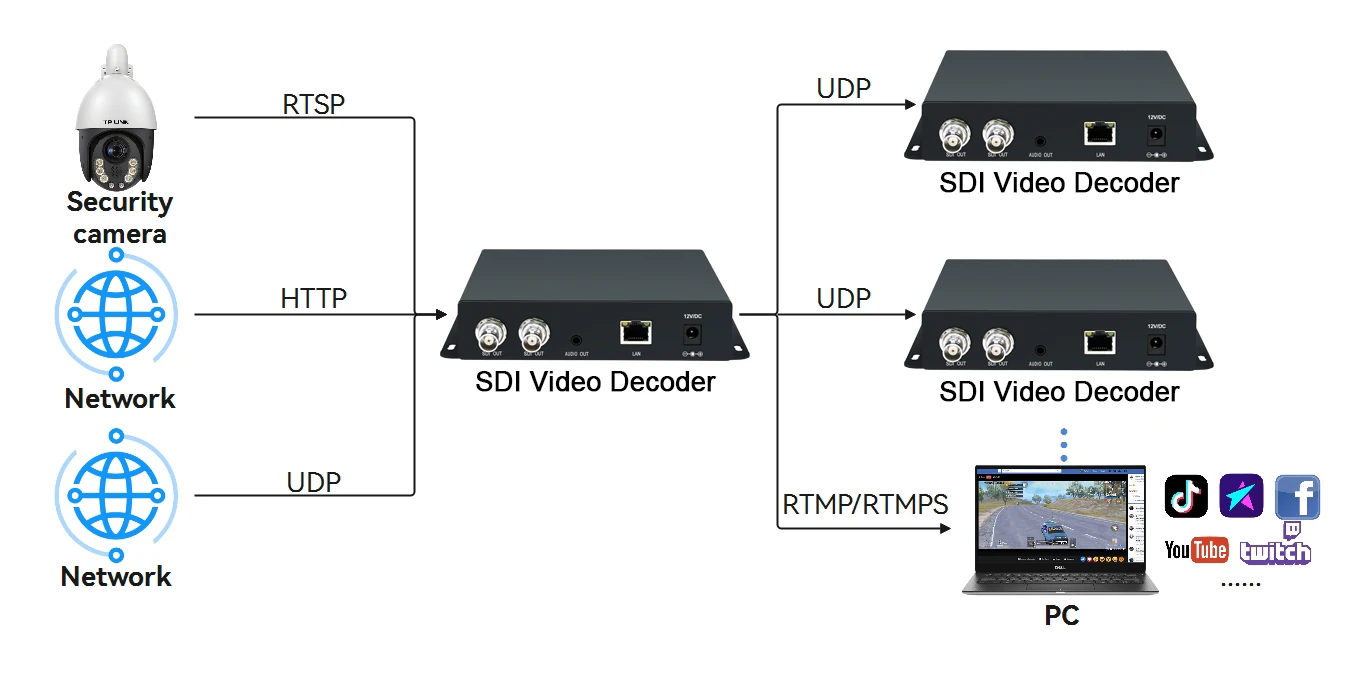

· Protocol Conversion is Available
Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP

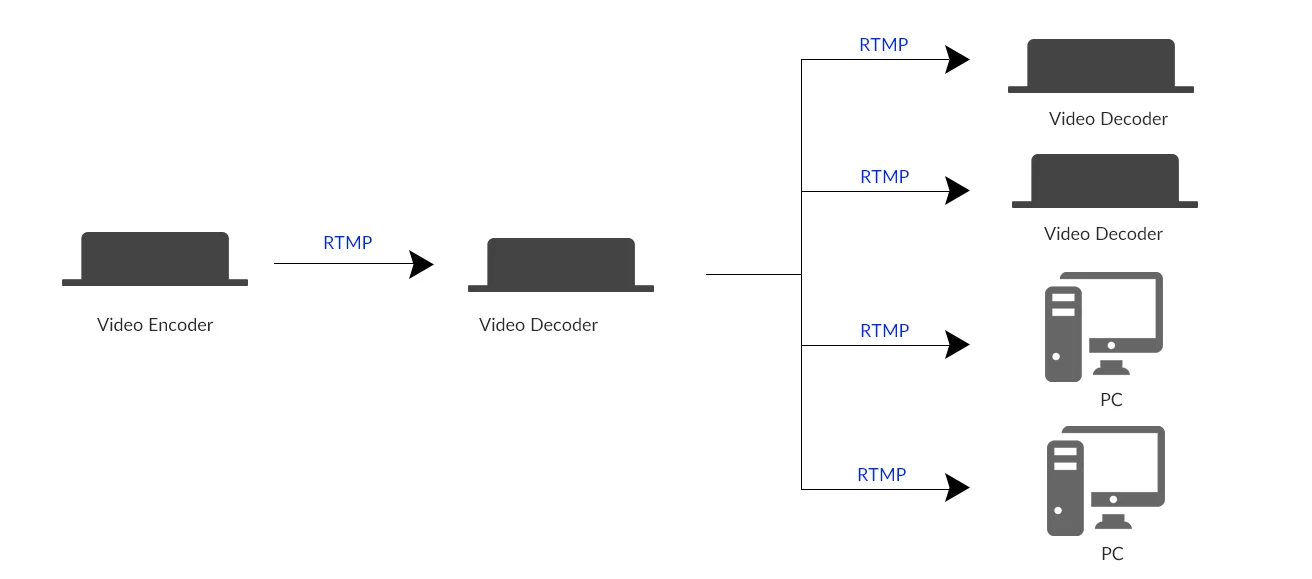

· RTMP Server Supported
With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.

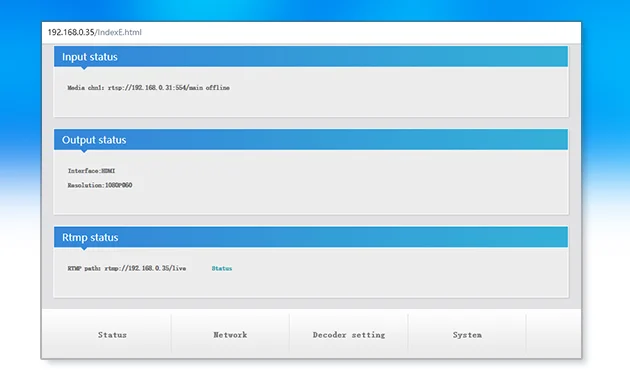

· Web Control
Support Chinese and English interface, pictures, fonts, passwords and other settings and system online upgrades.

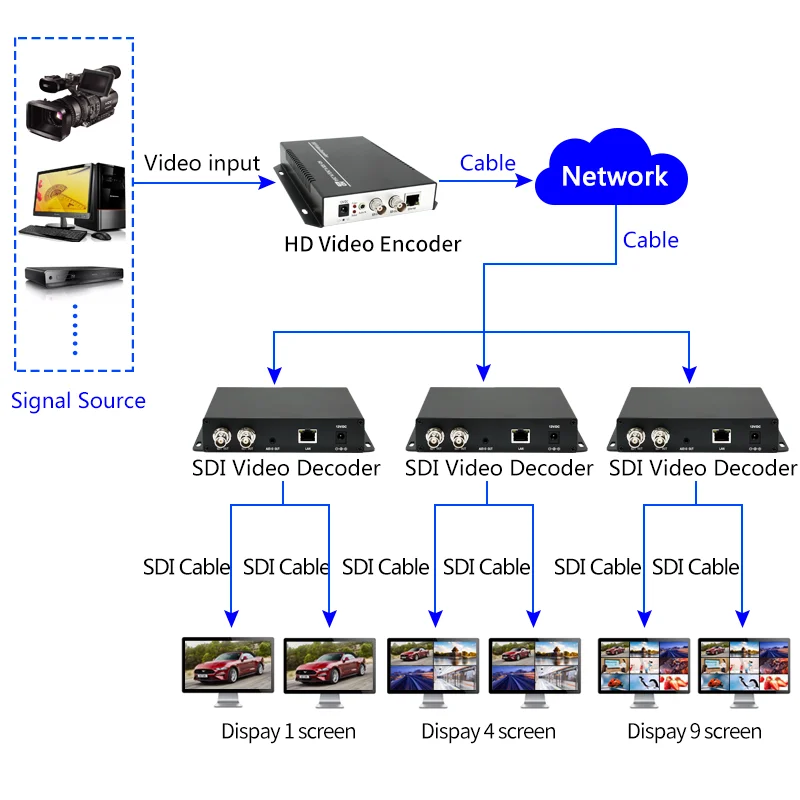

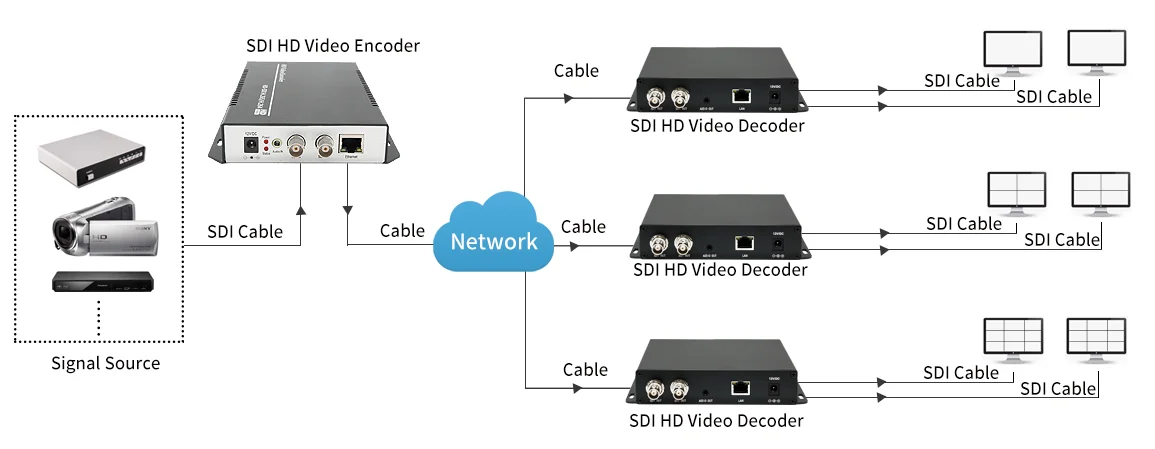

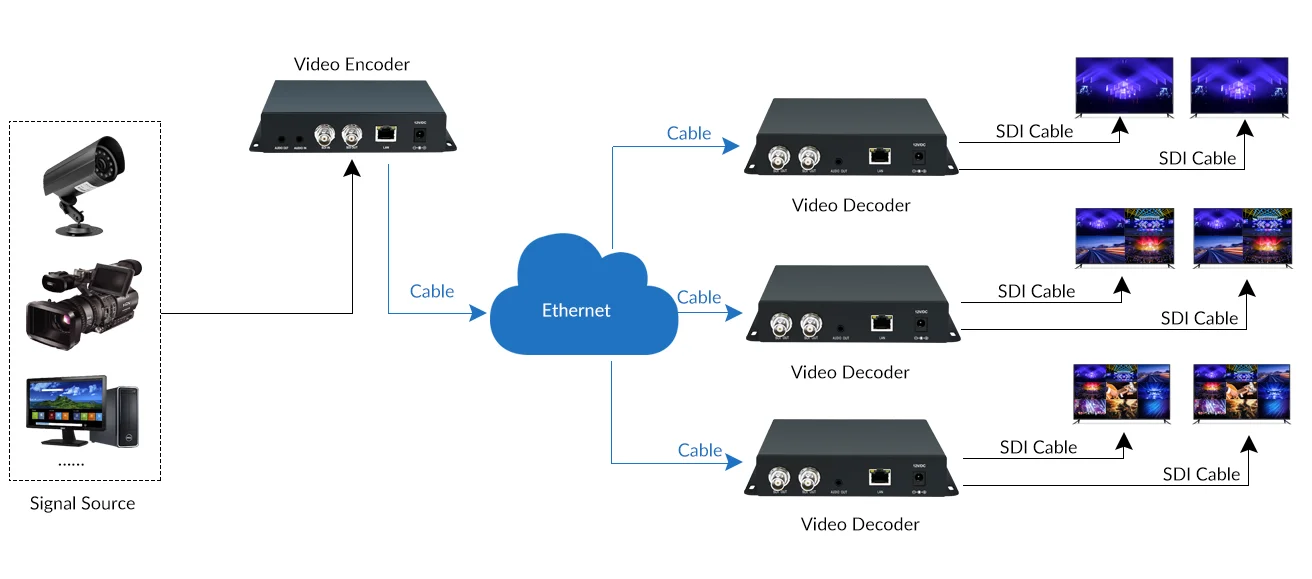

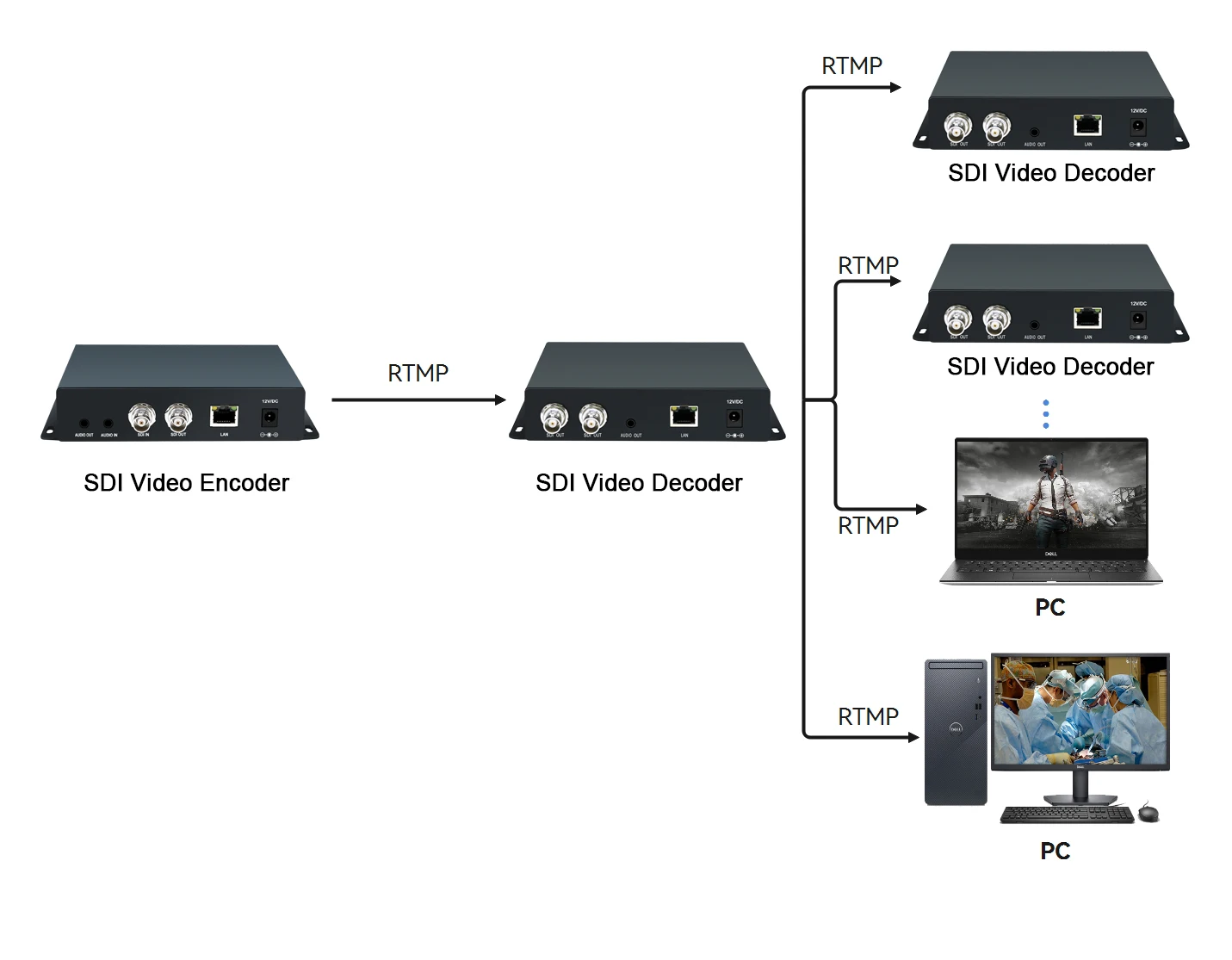

Application Diagram


· Apply to network program production, SRT remote transmission, program production monitoring, audio/video engineering.

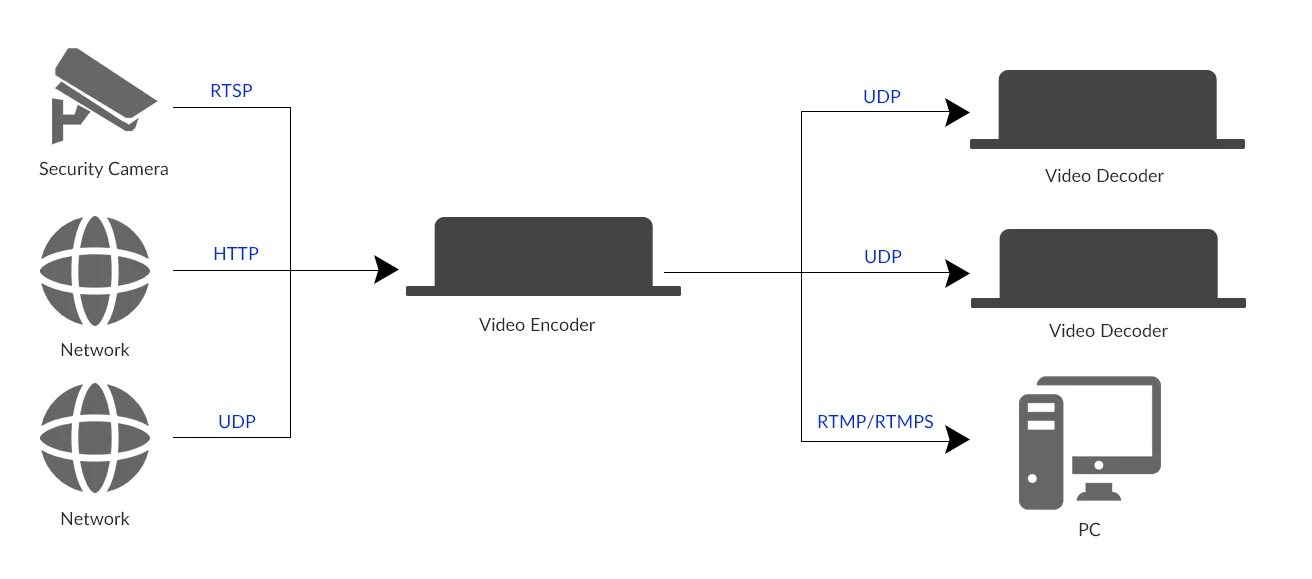

· Support 9 channels RTSP/HTTP/UDP/HTTPS/SRT/RTMP forward to RTMP/ RTMPS/UDP/RTP




· With RMTP server, the encoder can directly transmit the video to ORIVISION decoder using RTMP protocol for decoding without a RTMP platform, to make it easy and convenient.




Related Products




Specification


Model
ZY-DS951
Output
Video
SDI*2
Output Resolution
1080P@60hz, 1080P@50, 1080P@30, 1080P@25, 720P@60, 720P@50, 720P@59.94 1080I@60, 1080I@50, 1080I@59.94 576I 480I and so on.
Pleasecontact us for other resolutions
Decoding
H.265/H.264
Output
1 /4 channels 1080P decoding, 9 channels 720P decoding
Audio
Decoding format
AAC MP3
Stereo
Adjustable sound volume
System
LCD
Device name, IP address, resolution and working status
RJ45
1000M internet access
Protocol
HTTP, HTTPS,RTSP, RTMP, SRT, UDP/RTP,SRT…
Interface
WEB operation interface
Upgrade
Software upgrading through the internet
General Parameters
Dimension
6.4*4.4*1.3in(163*111*32mm)
Weight
0.35kg
Temperature
0~45℃ (work)，-20~80℃ (storage)


Support OEM/ODM






OEM
free print company logo by laser print;
MOQ≥1 unit






ODM
Pls send your requirements to us.
(support@orivision.cn)


FAQ


1. Provide OEM & ODM
OEM: Add customer information in software version and control web for free, MOQ is 1 unit
OEM: Add customer logo on the shell of the device for free, MOQ is 10 units
ODM: The customers can provide your customized requirements, We can evaluate production possibilities for our customers for free,but have to pay for development cost.

2. Provide remote technical support service
Our engineers can provide professional technical support services to customers through remote software, such as
Teamviewer,Skype,whatsapp etc.

3. 3 years warranty
We provide new free spare parts in 3 years because of the product quality problems, except for man-made damage.

4. Provide factory repair service
If the customer has a problem with the equipment, he can send it back to the factory for repair. Maintenance is free, but there will be a material charge.

5. About Import tax
I hope you know that import duty is paid on imported goods in most countries. Our all quote and price don't include your import tax. As to specific rates, please consult your local customs office. I appreciate your understanding!

6. About delivery time
Our the fast delivery time will be within 3 days after payment. But we promise to arrange the delivery within 7 days after receiving the payment, In case of special circumstances.If you want to know more about the delivery time, pls contact us.

7. About the shipping way
Customers can choose their own logistics company when placing orders. Or contact us to specify our desired logistics company. Such us FedEx/ UPS/EMS/ ARAMEX/DHL etc. If you need to know the specific shipping time, please contact us.
