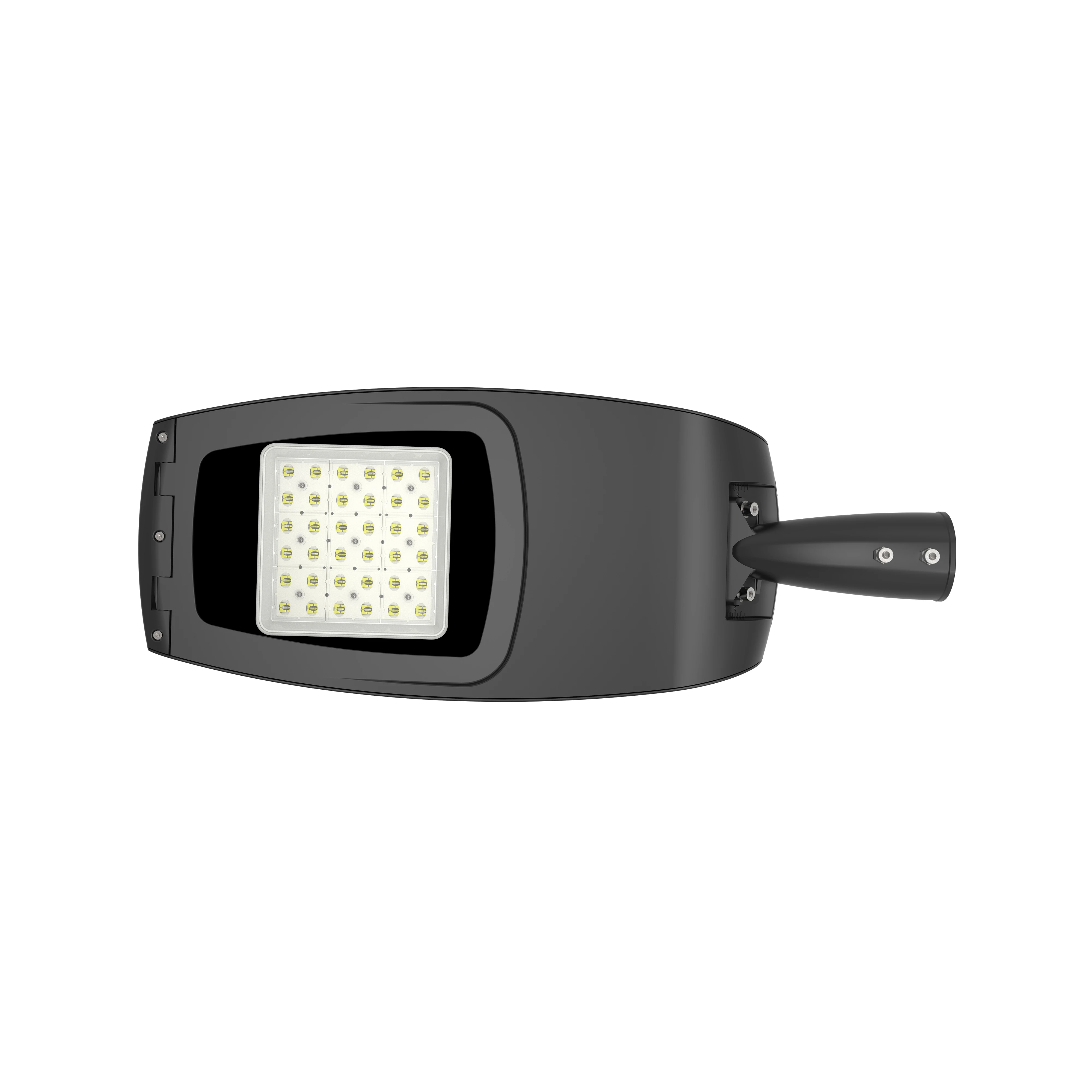

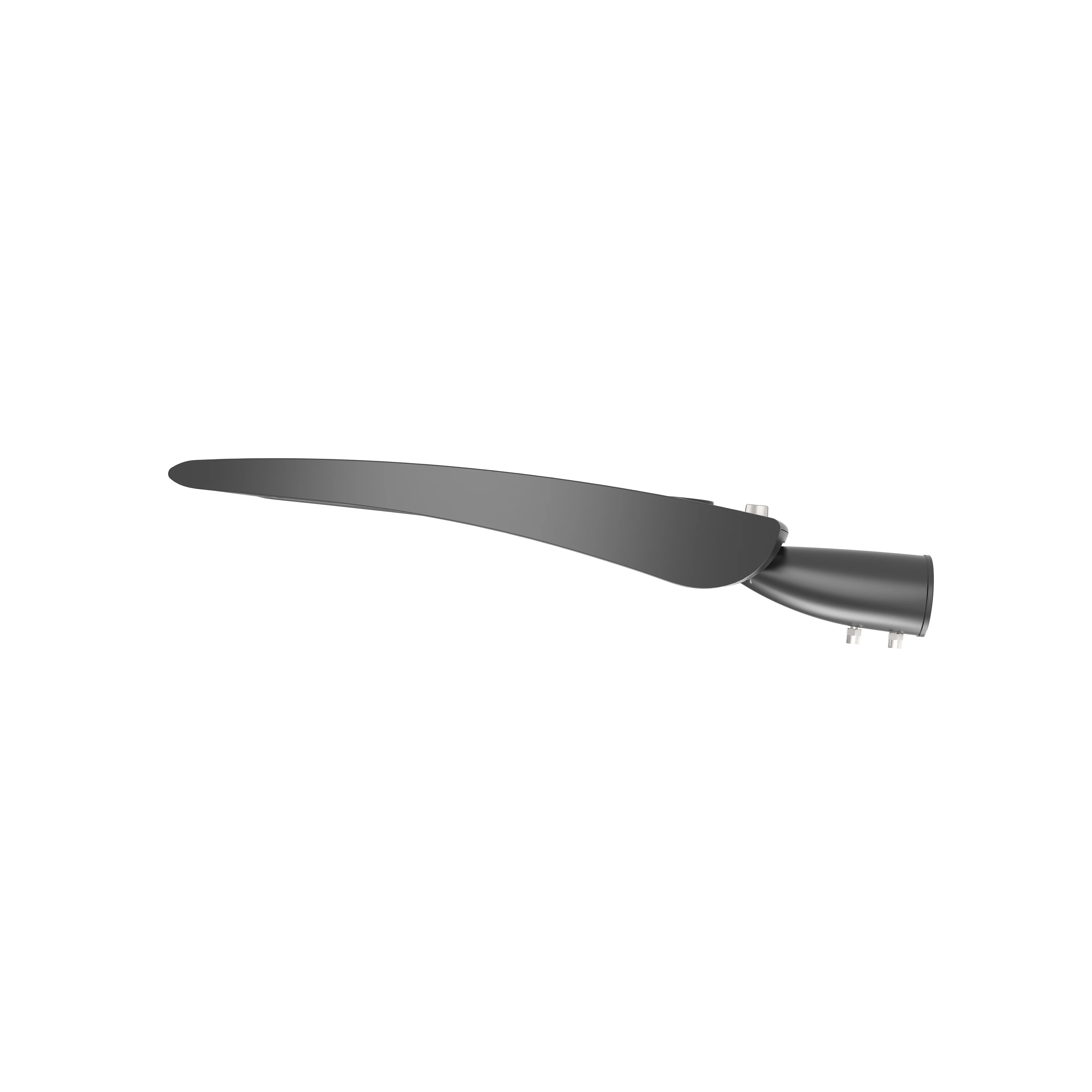

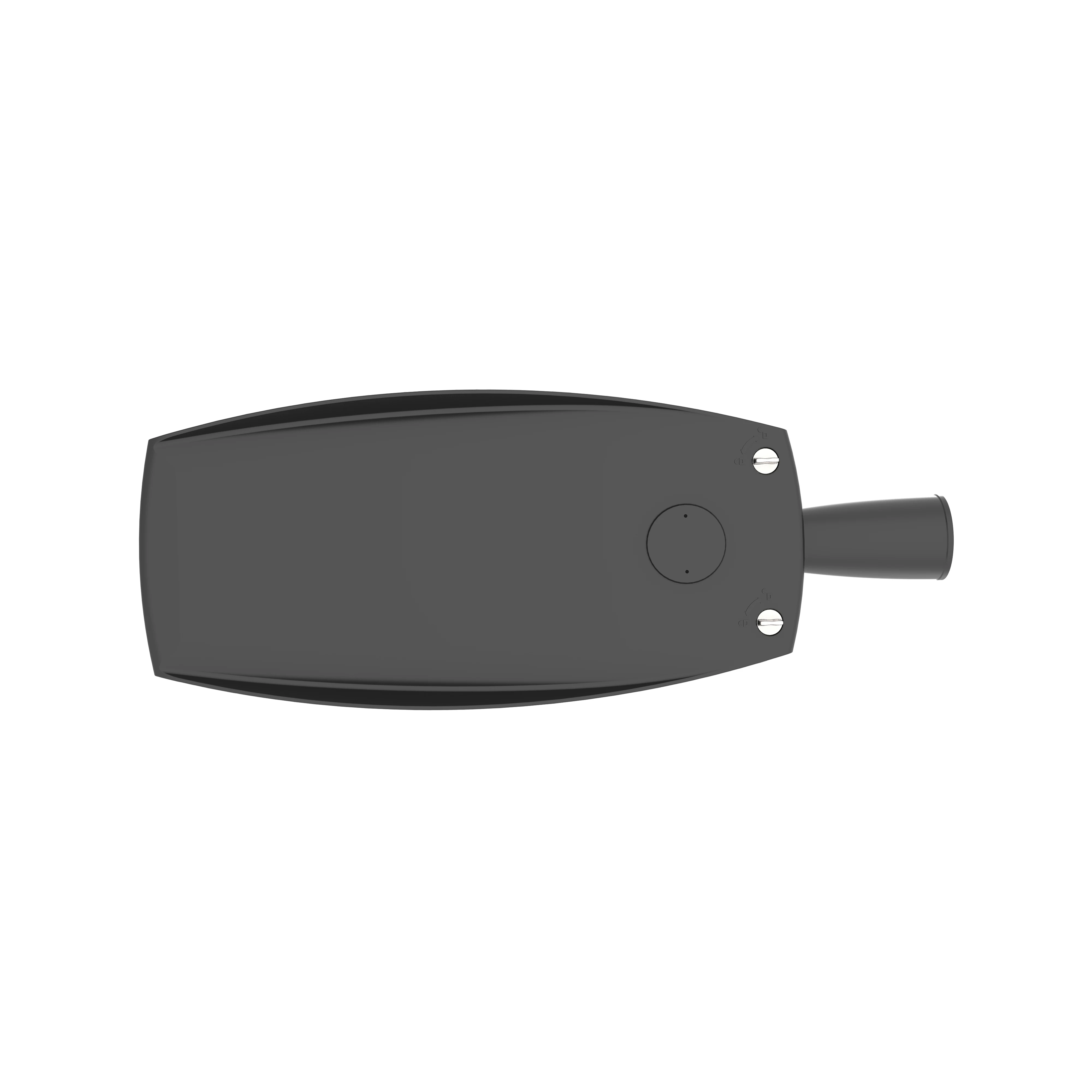

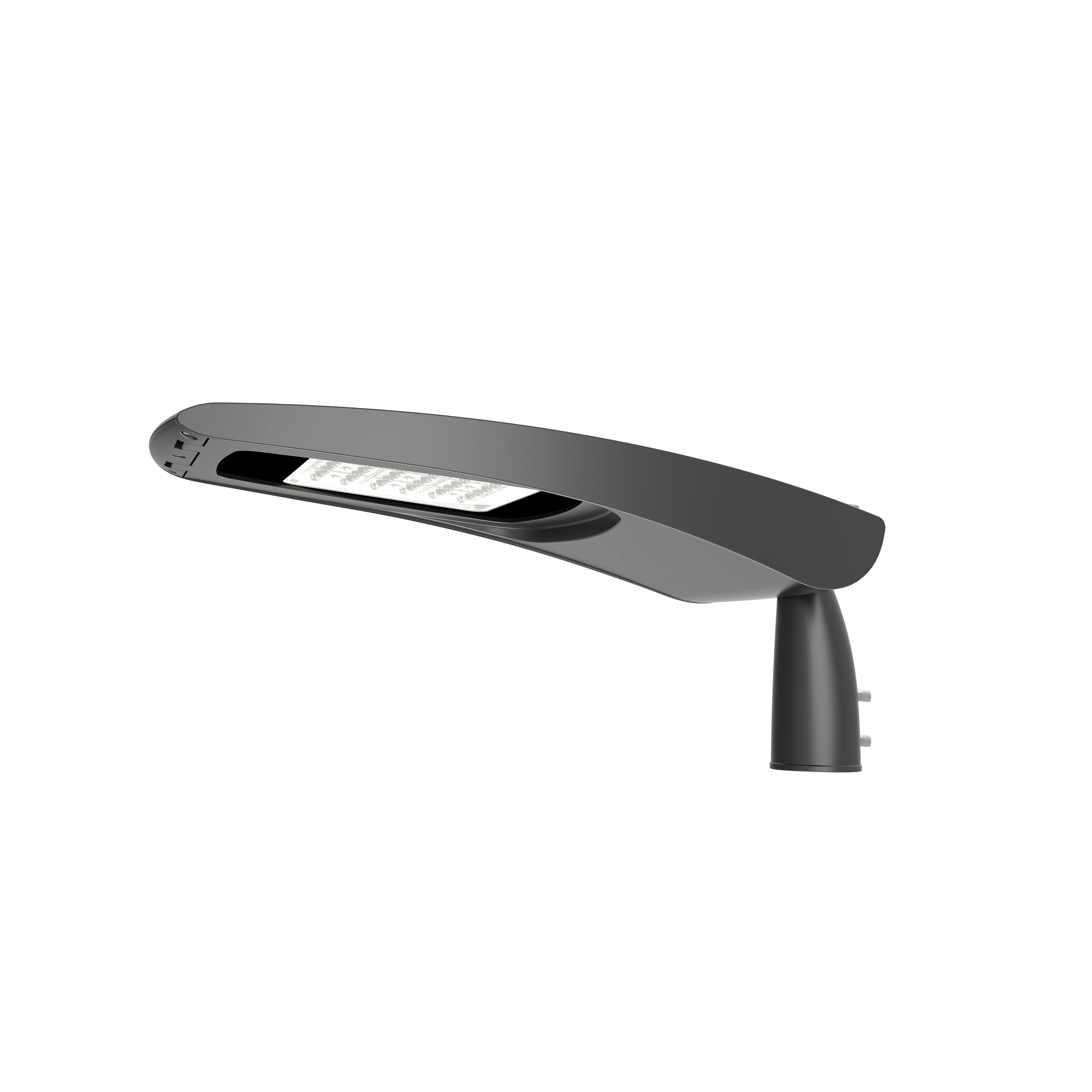

Aluminum Outdoor Street Lamp Lighting 100 120W Nema Zhaga Socket Dali Dimming Dusk to Dawn LED Cobra Head Street Light
- Category: >>>
- Supplier: Ningbo Die-Casting Man Technology Co. Ltd.
Share on (1600736614540):
Product Overview
Description
Quality Control
Qulified system and QC control process
We work under ISO 9001 quality system.
We have quality control for material in-coming inspection, on-line process inspection and finished product quality inspection.
We well control every process to make sure that you products are qualified and under control.
Testing Equipment

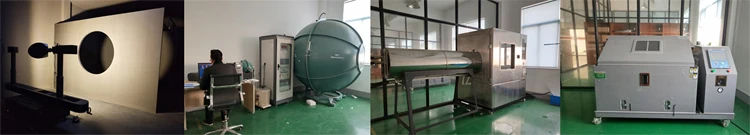

Test Equipment in house
We have Photometric black house testing equipment in house
LED parameter in house to test colour tempreture, efficiency, wattage
IP rate testing machine
IK testing machine
salty spray testing machine
Products Description
Literally Trailblazing
Outdoor Street Lights and pole top luminaires | Die casting man
Type of Protection: IP 66
Protection Class: II
Impact Protection: IK08
Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder- coated).
Type of Protection: IP 66
Protection Class: II
Impact Protection: IK08
Housing made of corrosion resistant pressure die-cast aluminium (seawater resistant powder- coated).
Pole-top fixing with integrated cable routing and stainless steel screws.
Tilting angle can be adjusted and locked in 15 degree steps featuring angular scale.
Cover clear tempered glass. Tool-free maintenance / replacement with disconnect plug .
INSTALL.
This fixture is mounted on a 6-10m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15° , Fixture has internal clamps to secure itself to pole.
This 100 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK10 impact rating.
ENERGY SAVINGS.
High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps .
This fixture provides a lumen output equal to 200 Watt Metal Halide and can reduce your lighting bill when
compared to metal halide and hps lighting.
WARRANTY / CERTIFICATIONS.
LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.
Smart lighting: Dali ,Dali Zhaga, 1-10V, PWM can be requested on dimming type / NEMA sockets available for the integration of components for light management systems or sensors.
Power interruption when the housing is opened.
Tool-free maintenance / replacement with disconnect plug (Power interruption when the housing is opened)
Seawater resistant coating
Operating range: -40°C to +45°C.
Additional advantages
INSTALL.
This fixture is mounted on a 6-10m in pole. lnstalling Ways Both Horizontal and Vertical available and adjustable angle-15°to+15° , Fixture has internal clamps to secure itself to pole.
This 100 Watt LED STREET LIGHT is ideal for residential street and parking lot outdoor lighting applications. It is
also IP66 Wet location rated and can operate in temperatures ranging from -40 degree to 50 degree. This fixture has 1000 hours salt water spray test. Fixture is tough and durable rated at IK10 impact rating.
ENERGY SAVINGS.
High efficiency By illuminating your area with modern LED technology, you get a significant reduction in energy costs as well as superior light quality.
Compared to metal halide lamps ,the average savings obtanined using LED Lighting is approx 70% ,90% to halogen lamps .
This fixture provides a lumen output equal to 200 Watt Metal Halide and can reduce your lighting bill when
compared to metal halide and hps lighting.
WARRANTY / CERTIFICATIONS.
LED Lighting Supply provides a 5 year warranty along with CE and Rebate Eligible certifications.
Smart lighting: Dali ,Dali Zhaga, 1-10V, PWM can be requested on dimming type / NEMA sockets available for the integration of components for light management systems or sensors.
Power interruption when the housing is opened.
Tool-free maintenance / replacement with disconnect plug (Power interruption when the housing is opened)
Seawater resistant coating
Operating range: -40°C to +45°C.
IP66 CE RoHS
Product Specification
Product code | YASL-13-50 | YASL-13-100 | YASL-13-150 | ||||||
Input Wattage | 80W | 120W | 200W | ||||||
Color Temperature | 2700～6500K | 2700～6500K | 2700～6500K | ||||||
Luminous Flux | 10400-12000lm | 15600-18000lm | 26000-30000lm | ||||||
Input Voltage | AC90～305V | AC90～305V | AC90～305V | ||||||
Frequency Range | 50/60Hz | 50/60Hz | 50/60Hz | ||||||
Power Factor | PF≥0.95 | PF≥0.95 | PF≥0.95 | ||||||
Color rendering index | Ra≥70 | Ra≥70 | Ra≥70 | ||||||
Temperature of Working Condition | -40～50℃ | -40～50℃ | -40～50℃ | ||||||
Humidity of Working Condition | 20%～90%RH | 20%～90%RH | 20%～90%RH | ||||||
LED Lifetime | 50000h | 50000h | 50000h | ||||||
Protectin Grade | IP66 | IP66 | IP66 | ||||||
Protection level | IK08/09/10 | IK08/09/10 | IK08/09/10 | ||||||
Installation Pipe Diameter | φ45/60mm | φ45/60mm | φ60/70mm | ||||||
Installation Height | 4-8m | 6-12m | 10-14m | ||||||
Net Weight | 3.9kgs | 5.4kgs | 9.8kgs | ||||||
Gross Weight | 4.6kgs | 6.5kgs | 11.5kgs | ||||||
Packing Size（m m） | 695*285*130 | 790*340*135 | 970*415*180 | ||||||
Product Size | L (mm) | W (mm) | H（mm） |
YASL-13-50M | 641 | 242 | 127 |
YASL-13-100 M | 738 | 289 | 129 |
YASL-13-150 M | 923 | 361 | 127 |
Streetlight Requirements - 5 Years Warranty Product
S.No | Requirement | Requirement | Test Standard | |||
Physical requirements | ||||||
1 | Housing type | Heavy-duty rugged pressure die-cast aluminium alloy | ISO 3522 | |||
2 | Cover | Tempered Glass | ||||
3 | Gasket | Silicon Rubber gasket | ||||
4 | Housing wattage range | 30W 40W 50W 60W 80W 100W 150W 200W 220W 240W | ||||
5 | Socket Options | NEMA socket, Photocell, Smart controller, Shorting Cap | ||||
6 | Stainless-steel components | Minimum 316L Grade 316L | ||||
7 | IP Protection | IP66 | IEC 60529 | |||
8 | IK Protection | IK08 | IEC 62262 | |||
9 | Tool free opening | Tool-free access to gear compartment | ||||
10 | Corrosion tests in artificial atmospheres - Salt spray tests | EN/ISO 9227 - Corrosion tests in artificial atmospheres - Salt spray tests for 1000 hours | EN/ISO 9227 | |||
11 | Vibration test | ANSI C136.31 - Roadway and Area Lighting Equipment - Luminaire Vibration | ANSI C136.31 | |||
LED and Optics | ||||||
1 | LED Make | Osram/CREE | ||||
2 | LED Type | >2W High power LED with ceramic base (3V - Single chip die) >2w | ||||
3 | LED driving current | <750mA | ||||
4 | LED life | >100,000 hours @L95 | LM80 and TM21 | |||
5 | Optics Material | UV PC | ||||
6 | Lighting distributions | Type I, II, III, IV | ||||
Thermal Requirements | ||||||
1 | Product ambient temperature range | -40°C to 55°C | ||||
2 | Product Storage temperature range | up to 85°C | ||||
3 | LED Case temperature (Tc) | <75°C @50°C ambient temperature | UL1598 | |||
4 | Driver Case temperature range | <85°C @50°C ambient temperature | UL1598 | |||
Performance | ||||||
1 | Input Voltage Range | 110V 120V 220V 270 305VAC - 50/60Hz | IEC 60598-2-3 | |||
2 | Power Factor | >0.90 | IEC 60598-2-3 | |||
3 | THD | <20% | IEC 60598-2-3 | |||
4 | Surge Protection | 10KV | ||||
5 | Dimming | 1-10V or 1-10V+DALI | ||||
6 | Appliance class | Class I or Class II | IEC 60598-2-3 | |||
7 | CCT | 3000K/4000K/5700K | ANSI C78.377A | |||
8 | CRI | >70Ra | ANSI C78.377A | |||
9 | MacAdam | <3 Step Binning | ANSI C78.377A | |||
10 | Product life | >100,000 hours @L80 | TM28 | |||
11 | Lumen efficacy As per LM-79 | ≥ 160lm/W (25°C ambient temperature) | LM-79 | |||
12 | Lumen efficacy As per LM-82 | Not more than 5% difference form LM79 result | LM-82 | |||
13 | LED module connector and wire joint connectors | UL approved | IEC 60598-2-3 | |||
14 | Electrical wires between Driver and LED modules and NEMA socket and driver | Must be UL approved | IEC 60598-2-3 | |||
Details Images
Recommend Products

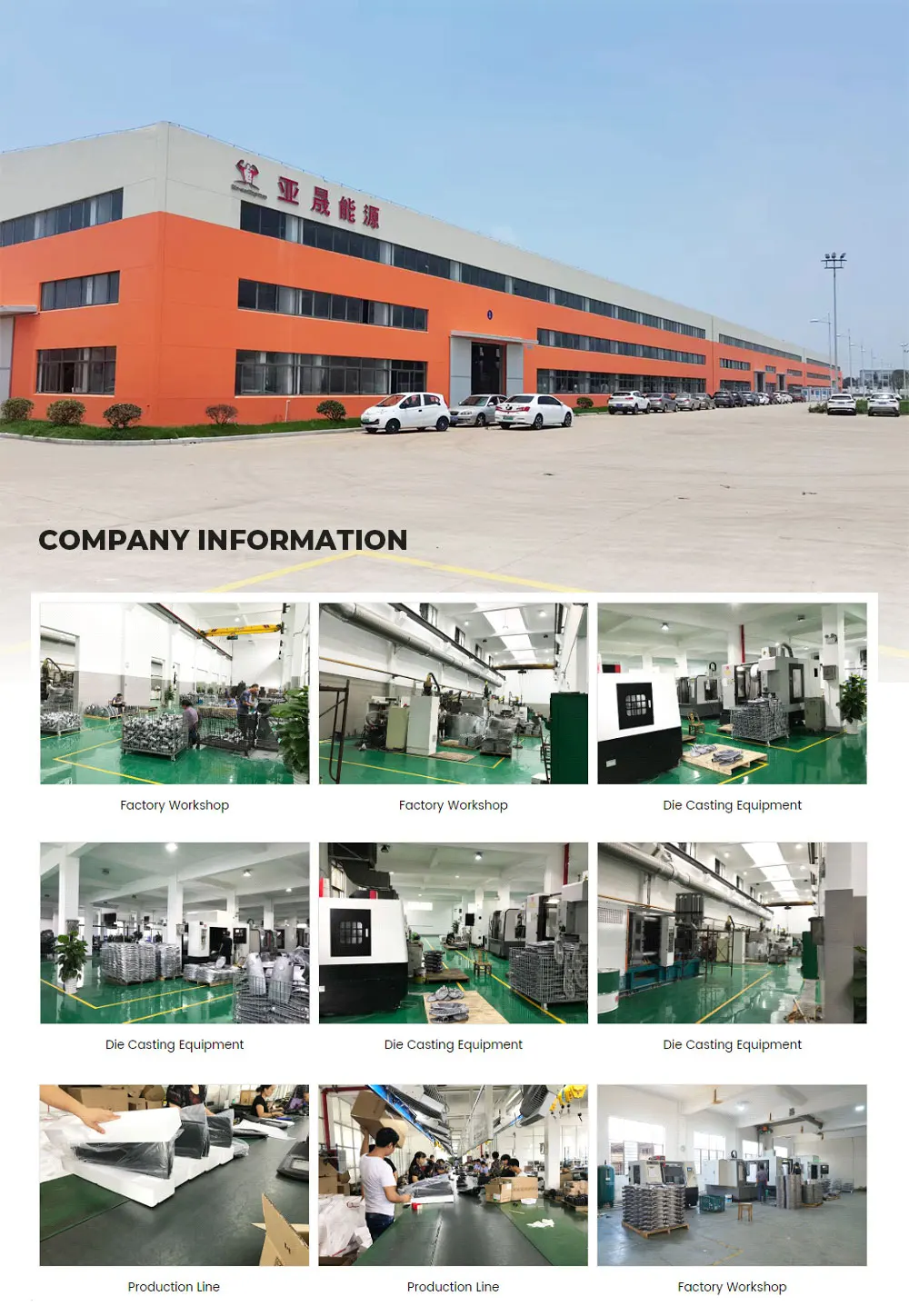

Company Profile
Die-Casting man was established in 1996 which is one of the lighting manufacturers with design & development, production & testing.We continue to offer a superior range of production and service including street light, high bay and die casting OEM products.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
We can offer a full service or simple SKD supply only.
We understand that lighting technology has to be practical, affordable and reliable. So we always design and develop products with our customers needs in mind. We have a team of lighting designers to design, develop and manufacture our own luminaries. Also we fully understand high quality is another important element for long term business development. We keep it in mind that products need to meet all EU requirements when we start design process. Our products are tested in credible, recognized laboratories and throughout product development process they go through rigorous performance testing too.
We are a company never stand still on products and service.
VR
Certifications
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service ?
A: Yes. we do.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5-7 days.
Q3. Do you have any MOQ limit for led light order?
A: Regular 100 MOQ and we accept small order quantity from beginning.
Q4. Do you supply OEM and ODM service ?
A: Yes. we do.
Q5: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.
Q6: Do you supply empty house only， without LED and driver ?
A: Yes, we do.
