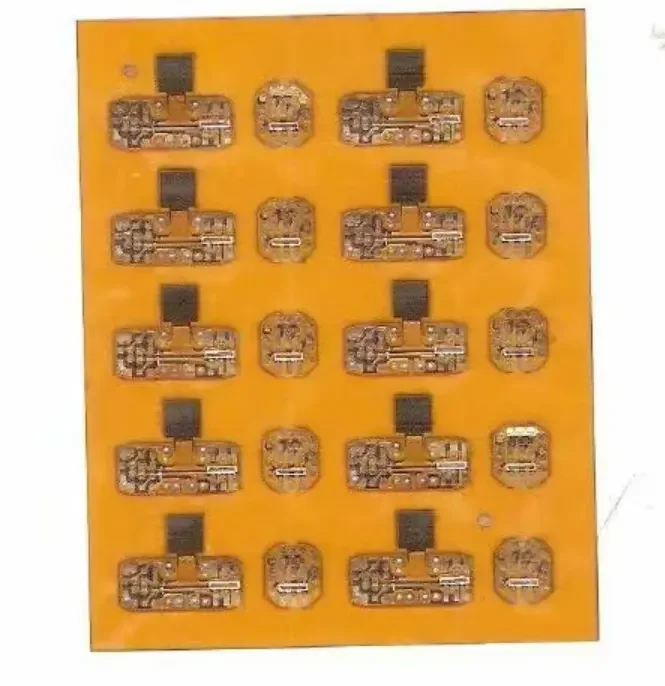

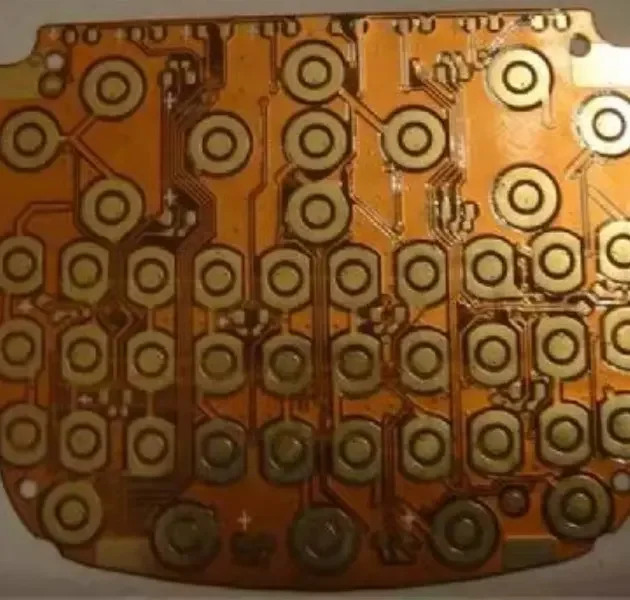

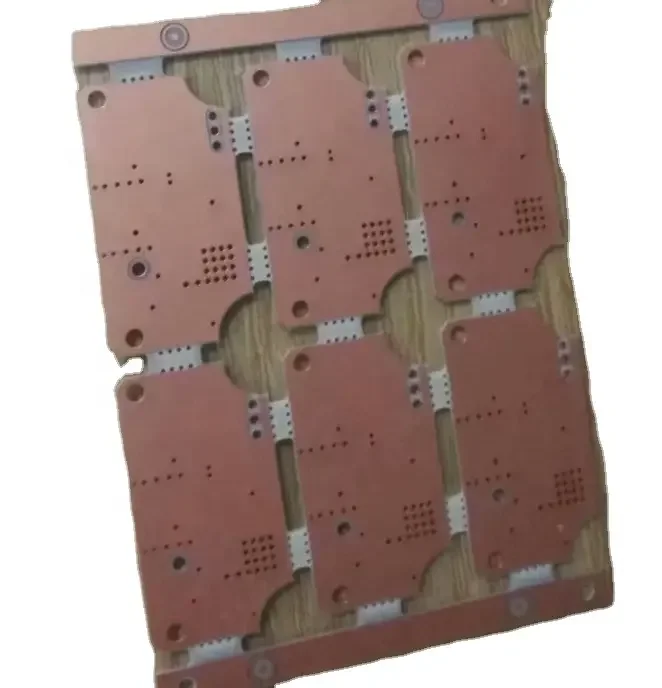

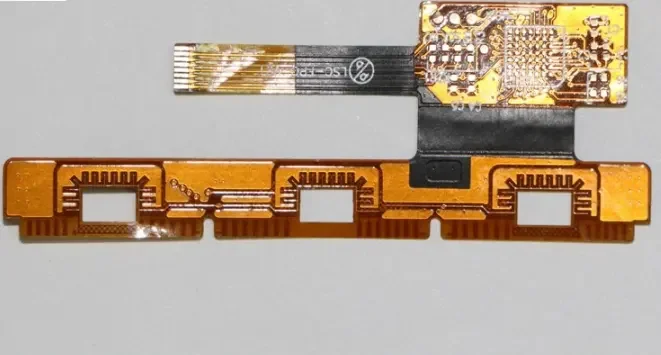

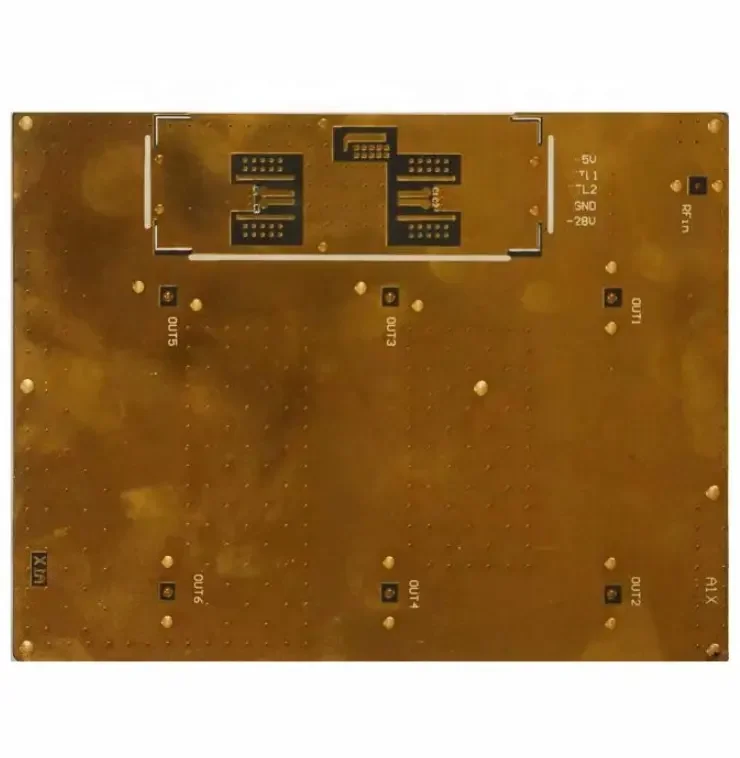

Hot Sale Low Price China FPC Manufacture Flex Board Flexible PCB Supplier

Product Overview

Description

Hot Sale Low Price China FPC Manufacture Flex Board Flexible PCB Supplier

if have Gerber file or enquire. please email is violet(at)akesoncircuit(dot)com(dot) cn

Type	PCB	FPC
Scope	Multilayers(1-40layer),HDI(4-20)	Flex,Rigid Flex
Multilayers	1-40 layers, board thickness  8mil-126mil (0.2mm-3.2mm)	4-40 layers, board thickness 15mil-126mil (0.38mm-3.2mm)
HDI Buried/Blind Via	4-18 layers, board thickness 15mil-126mil(0.38mm-3.2mm) 1+N+1,2+N+2,3+N+3,Anylayer	4-20 layers, board thickness 10mil-126mil(0.25mm-3.2mm)
HDI	/	1+N+1,2+N+2,3+N+3,Anylayer
Flex & Rigid-Flex PCB	/	1-8layers Flex PCB ,2-12layers Rigid-flex PCB HDI+Rigid-flex PCB
Laminate	Shengyi,EMC,ITEQ,Panasionic,Hitachi....

Products infomation
8 layer,
Material:FR4(Tg180) material,
PCB thickness:1.60mm thick,
Final copper:1 OZ finished copper on all layers,
Surface:ENIG surface finish,
Ttchnology:with hard gold finger at edge-board,
Solder mask:green solder mask,
with impedance control
6.0/7.0mil min w/s(line width/spacing),
min drill bit:0.20mm,
min BGA pad size:0.33mm

Deliverables
1/Quotes in 24 hours or less
2/Standard production leadtime of 20 working days (4 weeks)
3/Prototype leadtime of 5 to 10 working days (1-2 weeks)
4/Stack-ups and impedance simulation in 36 hours
5/Initial response to technical questions or quality concerns in 36 hours
6/DFM and EQ's prior to PO placement upon request
Quality system
1/Akeson has mature and stringent Q
2/100% AOI, 100% ET, 100% FQC + FQA
3/SPC and Cpk programs
4/Lean Manufacturing and 6S programs
5/Advanced inspection and lab equipment
6/Standard QA report with every shipment
7/RoHS and REACH Compliance
8/Conflict Minerals Compliance

Akeson circuit Co.,ltd
sales:violet shen
Tel:86075529974750
pohne/webchat:13410525760
skype: akesoncircuit-sale
