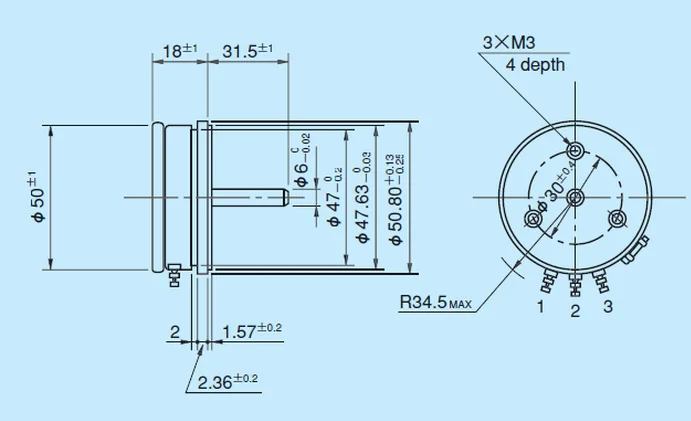

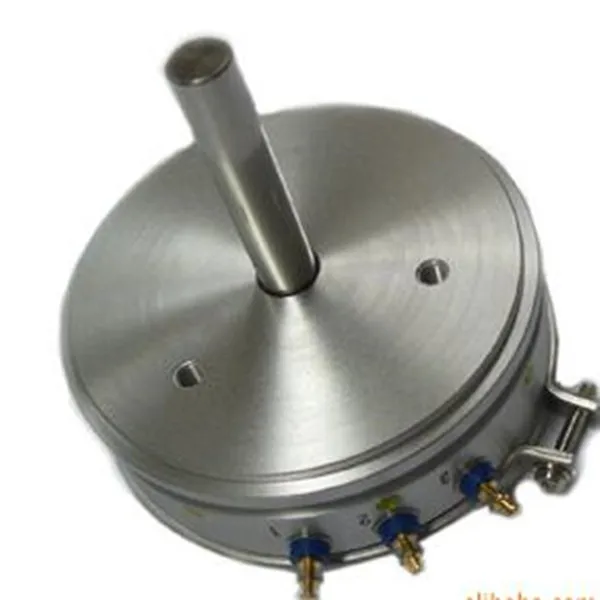

CP50 5 K Ohm 0.5% Sakae potentiometer

Electrical:

Standard Resistance

1K, 2K, 3K, 5K ()

Resistance Tolerance

±15%

Independent Linearity

0.1%, 0.2%, 0.3%, 0.5%, 1.0%

Electrical Travel

345°±2°

Power Rating

2W ( @70°C )

Resist. Temperature Coefficient Of Wire

≤±400 P.P.M/°C

Insulation Resistance

≥1000Mat 500V.D.C

Dielectric Strength

1 minute at 1000V(AC.RMS)

Output Smoothness

≤±0.10%

Mechanical:

Mechanical Travel

360°(Endless)

Starting Torque (MAX.)

≤10x10-4N.M

Bearing

2 Pairs Ball Bearing

Shaft

Stainless Steel

Housing Case

Aluminum alloy

Environmental:

Life Expectancy

Approx. 50,000,000(Shaft Revolutions)

Operating Temperature

-55°C~ 125°C

Vibration

15G 2000Hz

Shock

50G 11ms

Single-turn
