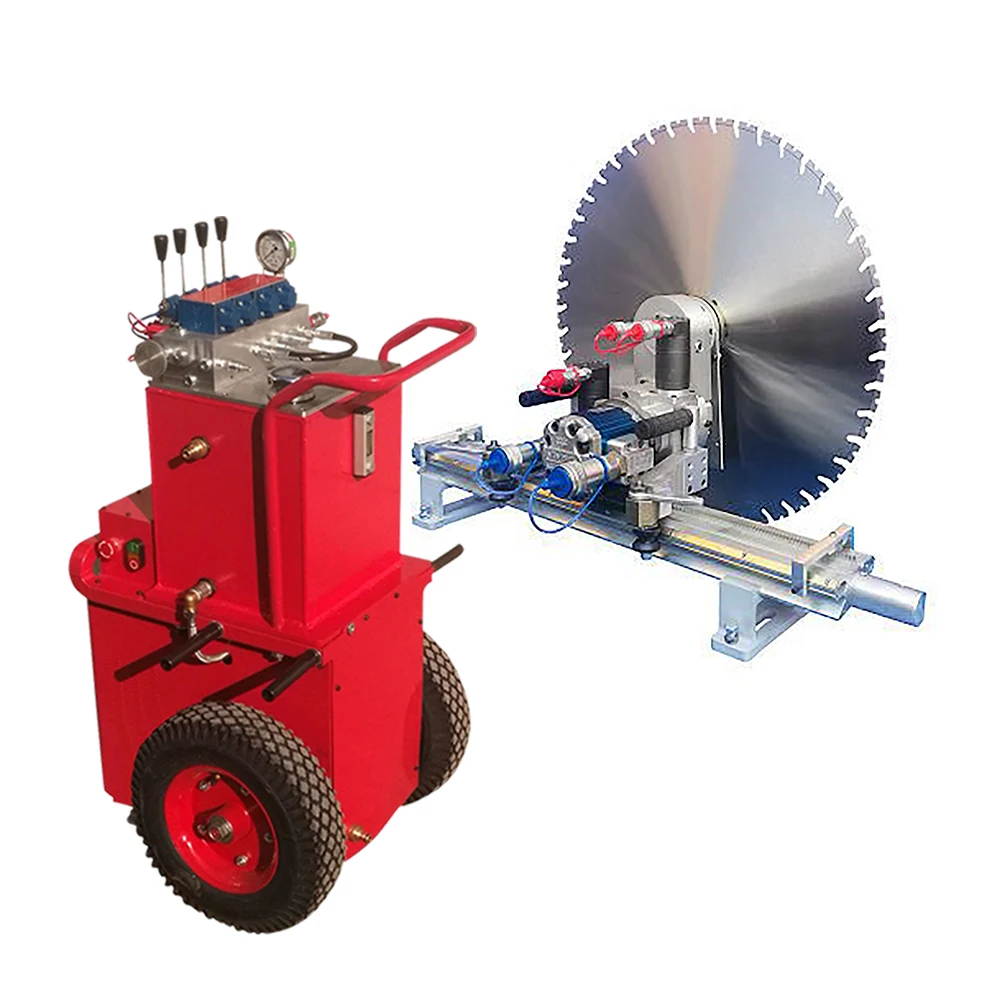

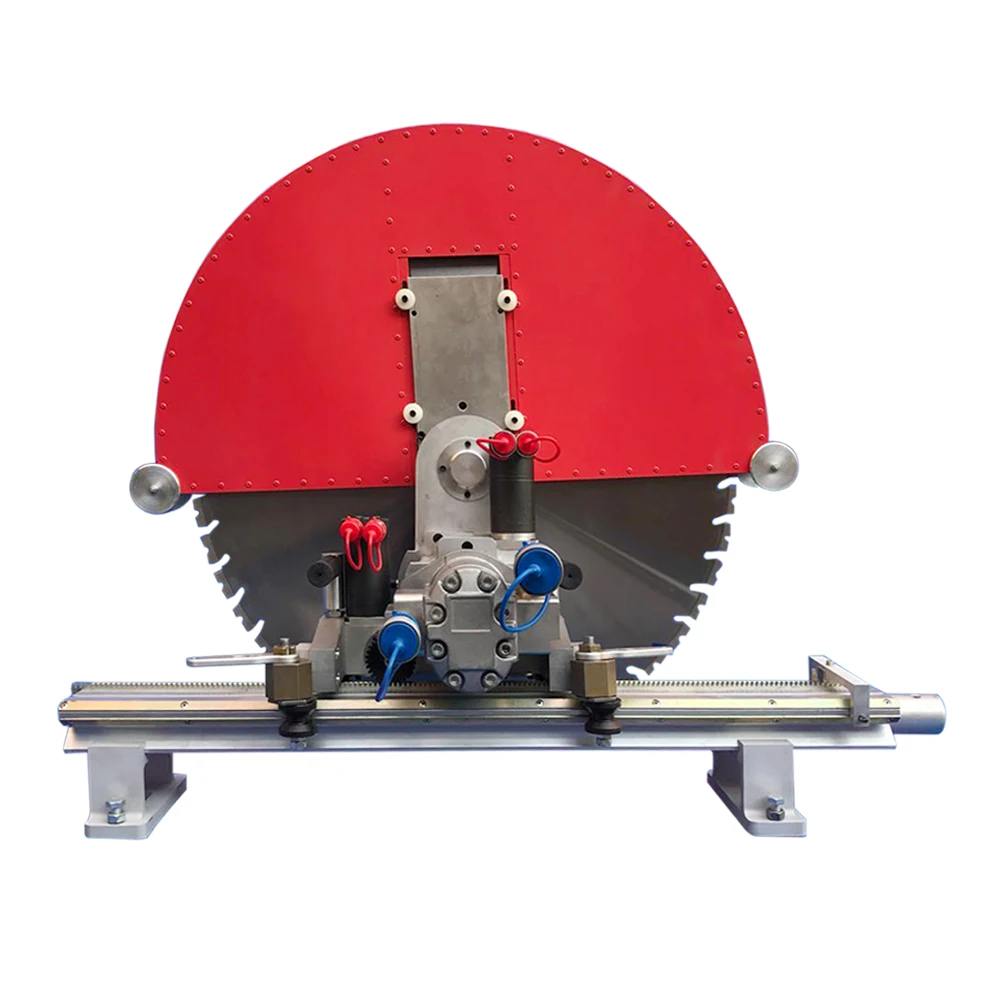

Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale
Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale
Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale
Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale
Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale
Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale
Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale

Home use second hand hydraulic pvc panel cutter wall saw machine cutting concrete for sale

Share on (1600736673189):


Price:$5,500.00 - $7,280.00

Quantity:


Product Overview

Description



Products Description




Wall cutting machine is mainly used for building or old building renovation, reinforcement, change the design, you can cut the door, window or elevator hole and other large area wall cutting.
The structure of non-destructive, one-time molding, in addition to the traditional master can avoid the construction of the damage to the structure of the building; drilling round hole way consumption time, material, human, but also can save a lot of rest time and cost.




Technical Parameter


Electric Wall Cutting Machine
Model
YG-800
YG-1000
YG-1200
Saw blade diameter
Φ800mm
Φ1000mm
Φ1200mm
Cut depth
320mm
400mm
500mm
 Motor power
6150W
Cutting efficiency
3-6m/h
Voltage
220v
Best use length
100m
Size
1000*1000*800mm
1200*1200*800mm
1400*1400*900mm
Weight
50kg
78kg
98kg
Frequency
50-60Hz
Semi-automatic add a set of servo motor: 1500 w
Automatic add two sets of gear sets
Remote add two servo motor: 1500 w

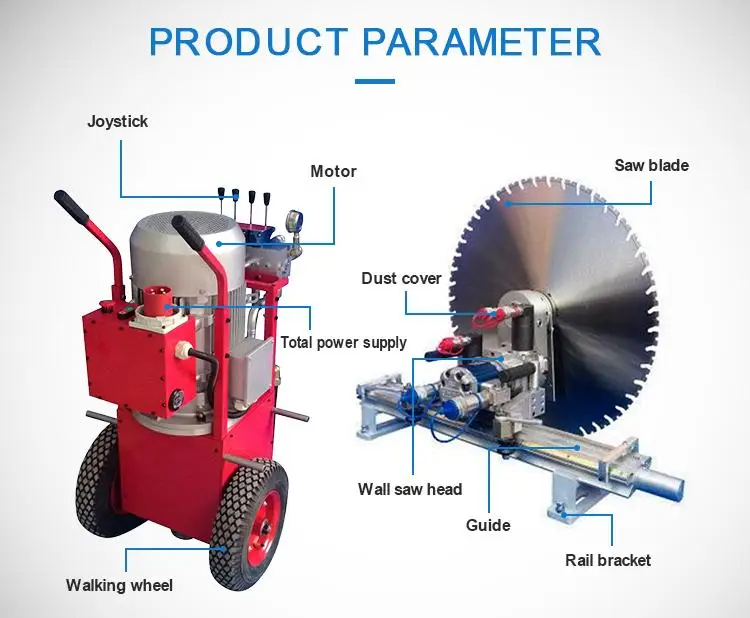

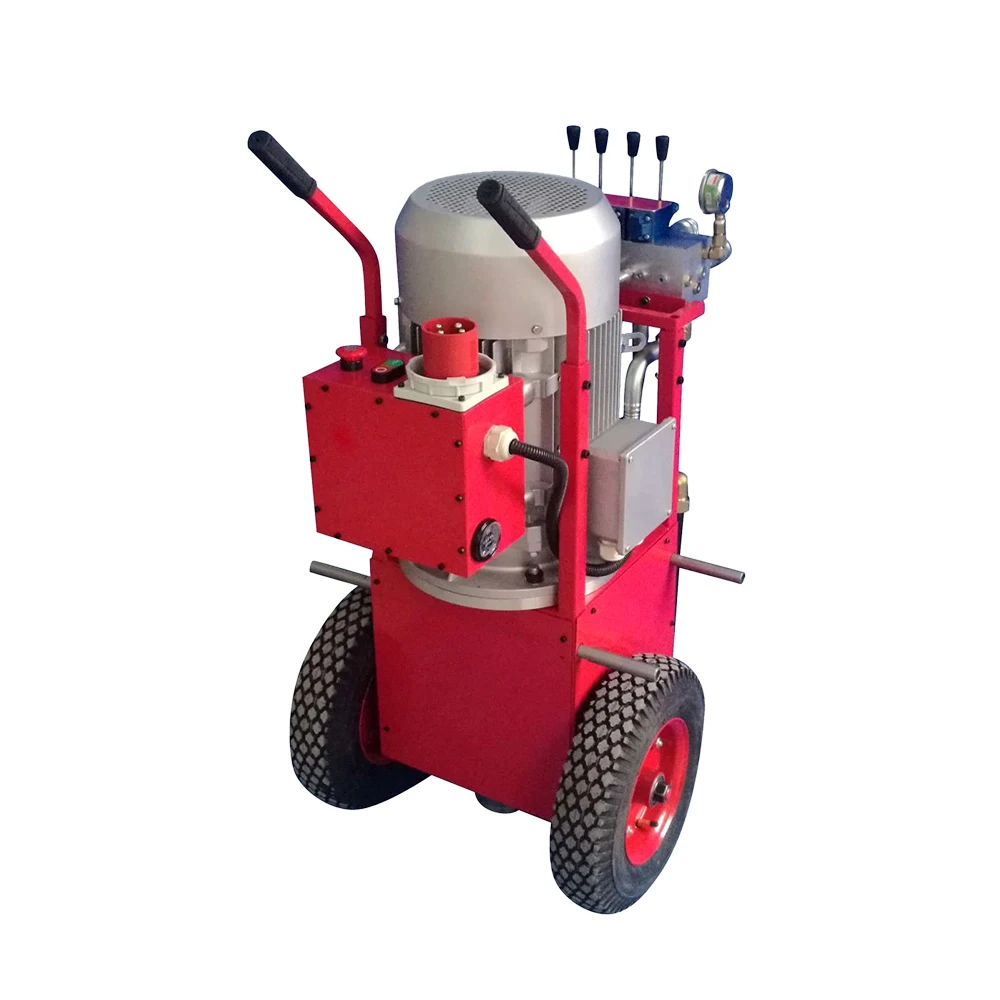

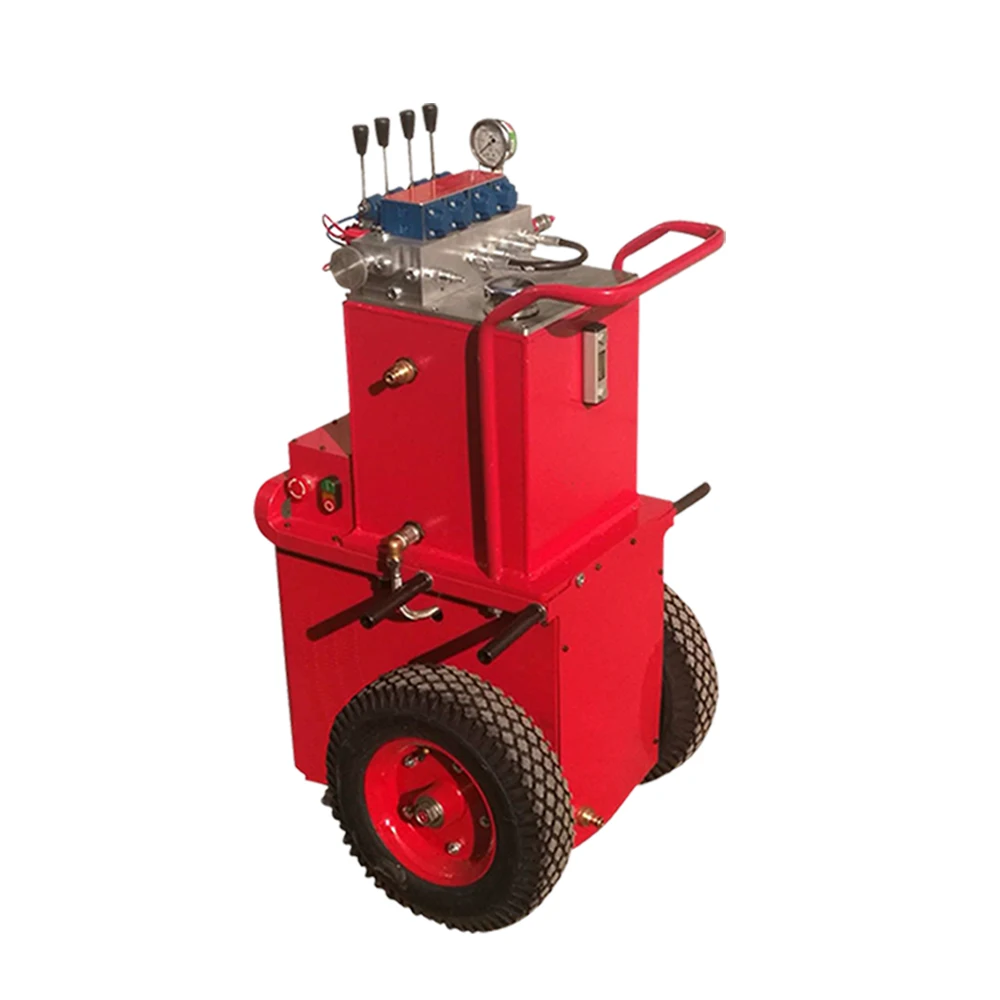

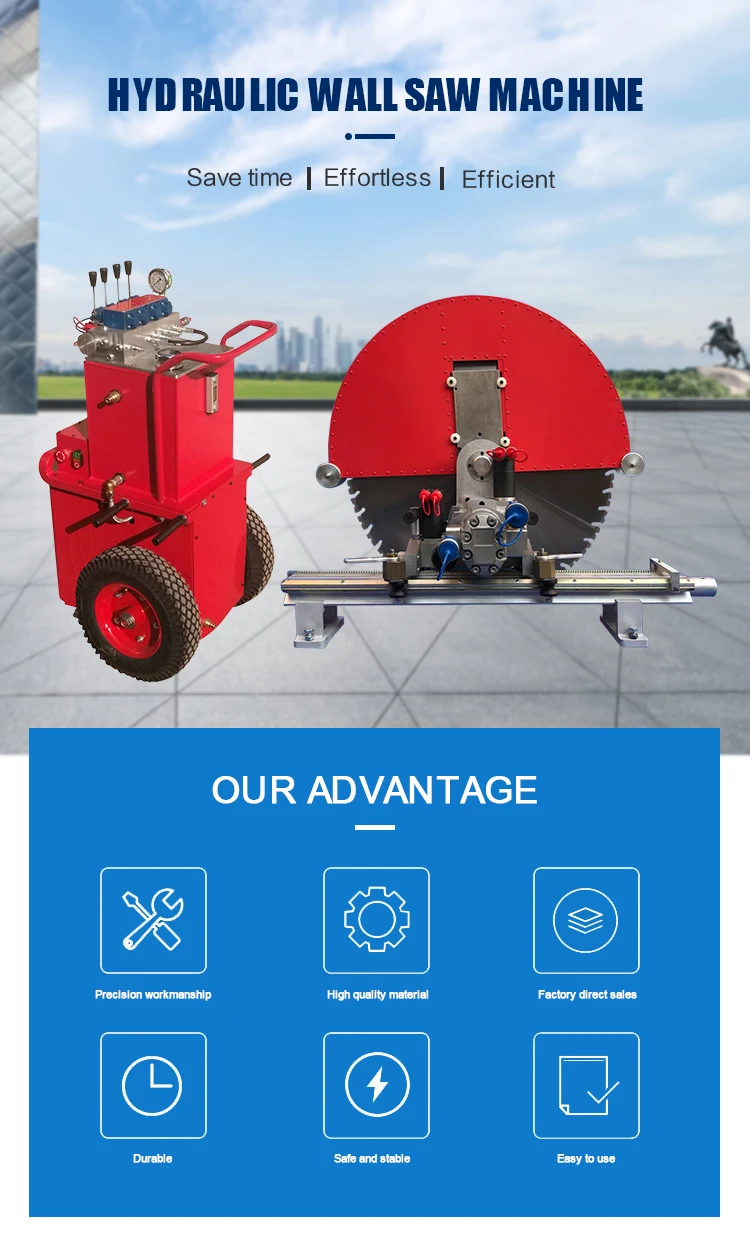

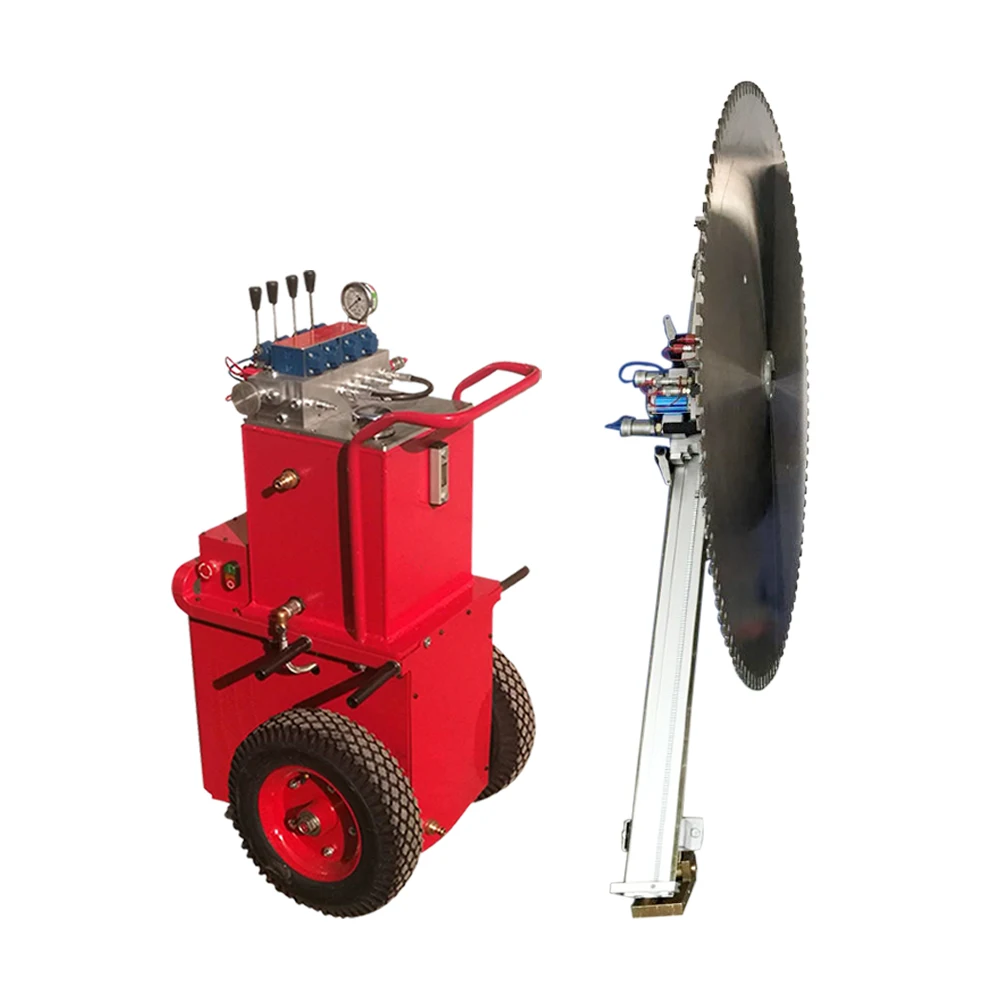

Hydraulic Wall Saw Machine
Name
Hydraulic power station
Max. power
25kw
Motor cooling method
Air cooling
Rated voltage
380v,50hz
Pressure stages
3
Max. operating pressure
200bar/20Mpa
Oil flow rate
30-80L/min
Dimensions
600*650*1050mm
Weight
220kg
Name
Wall saw head
Saw blade diameter
800-1400mm
Cutting depth
620mm
Max.working pressure
180bar/18Mpa
Max.oil flow rate
100L/min
Gearing
Grear
Rotation speed
450/950/1300rpm
Dimensions
400*420*400mm
Weight
38kg

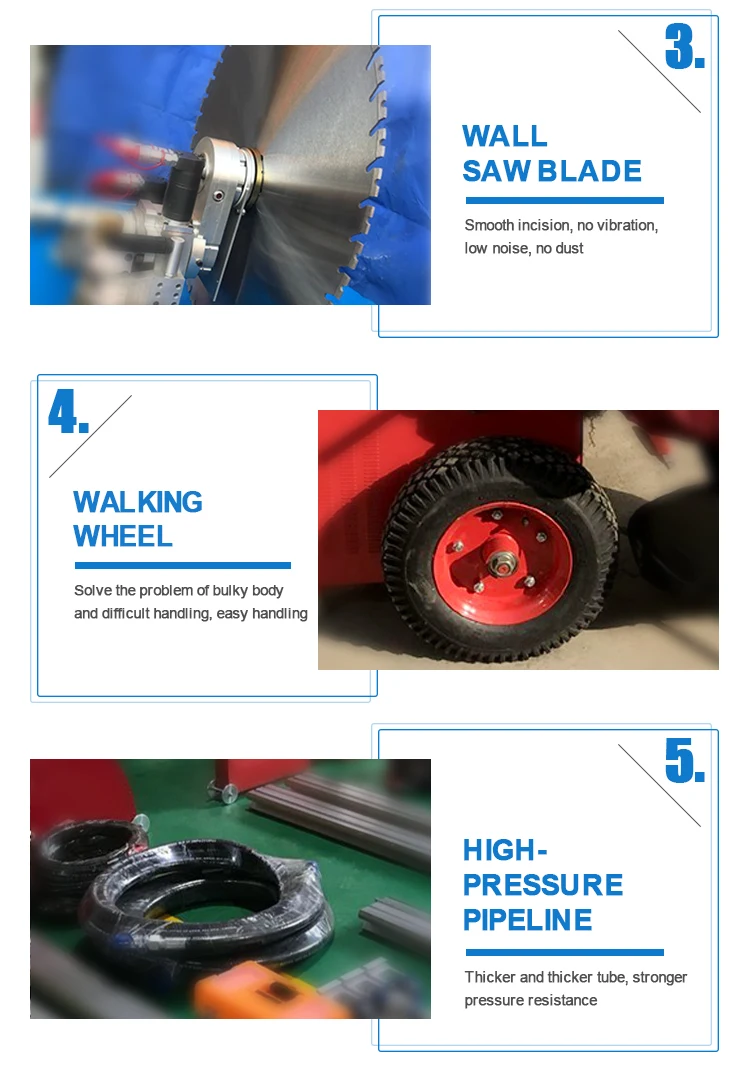

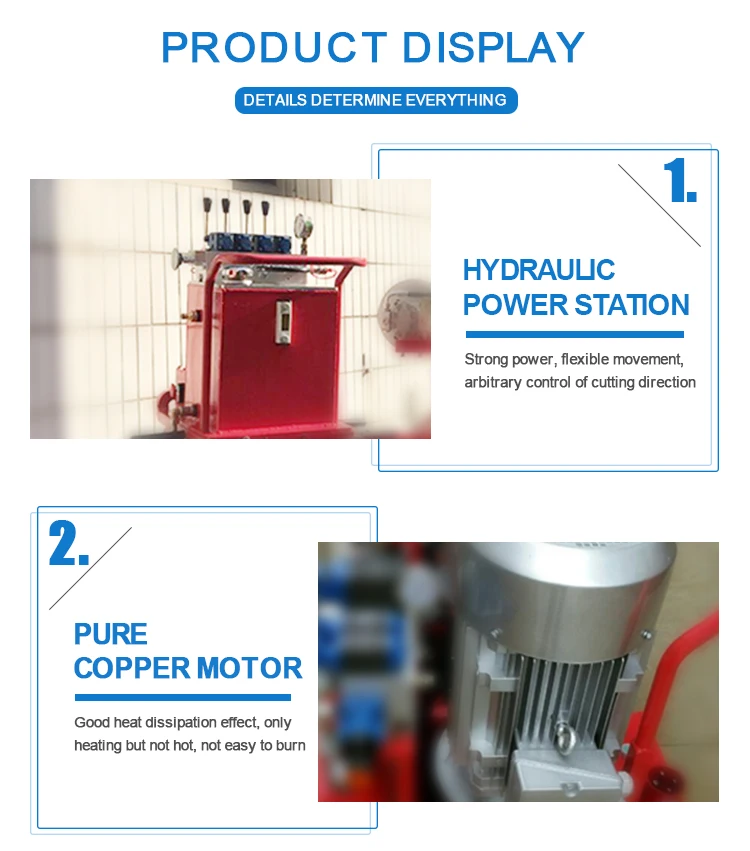

Products Display




* High power, stable output, export-grade gears, not easy to damage, fast cutting speed! New more convenient! The material strength is higher than that of the ordinary cutting machine.
* The lifting screw is made of bearing steel. The wire is widened by 2 times. It is more wear-resistant and easy to replace. The dust cover is fixed and the whole machine is integrated, which is more beautiful and practical! The middle main column is designed for professional bearing contact, making wear-resistant cutting more labor-saving.

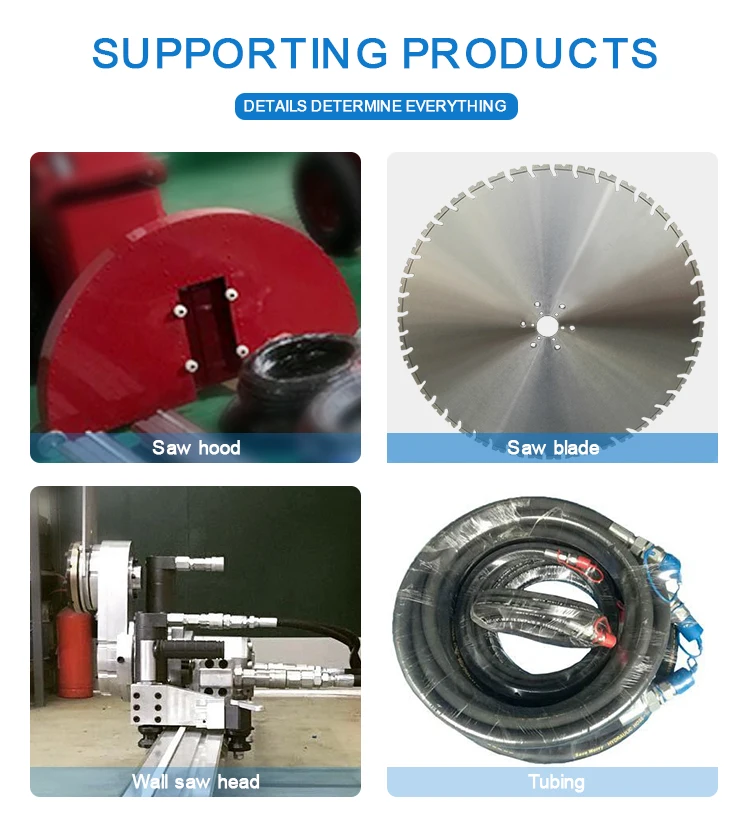

* One Manual Wall Cutter Package = 1 racket with motor + 2 pcs of 1.2 meter trail + 1 saw blade + 1 dust cover
* One semi-automatic Wall cutter Package =1 racket with motor + 2 pcs of 1.2 meter trail + 1 saw blade + 1 dust cover + 1 Remote control control box + 5 meter connecting cable






* The whole set of machine inculdes:
1. one frame with an electric motor, 220V, 50Hz, 6580w.
(We could customize the motor according to your requirement.)
2. one disk, 800-1000mm or customized.
3. one saw cover.
4. one set of rails, 1.2m*2 pcs.
5. one set of anchors

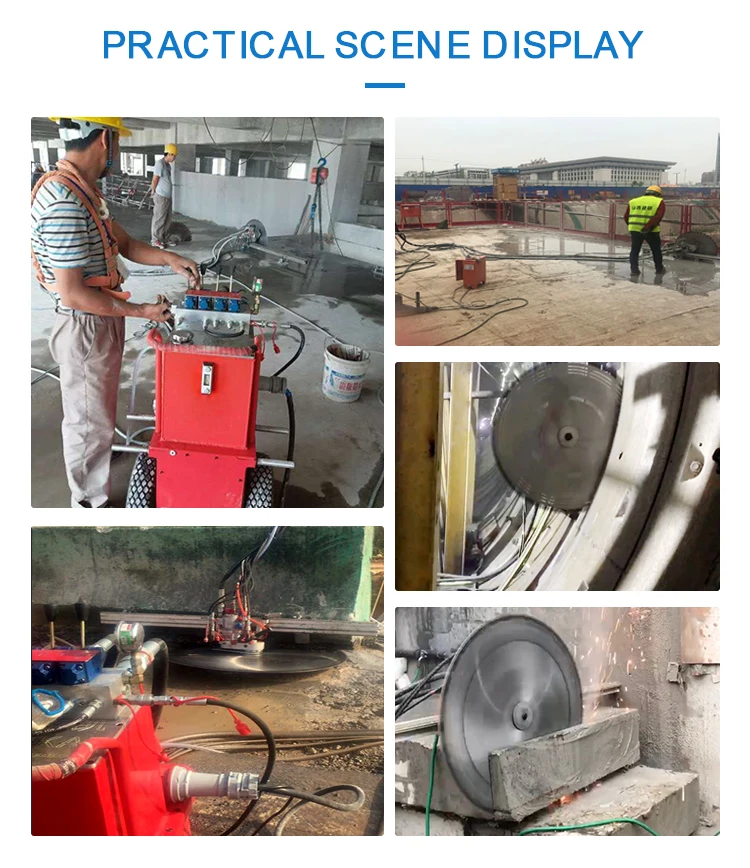

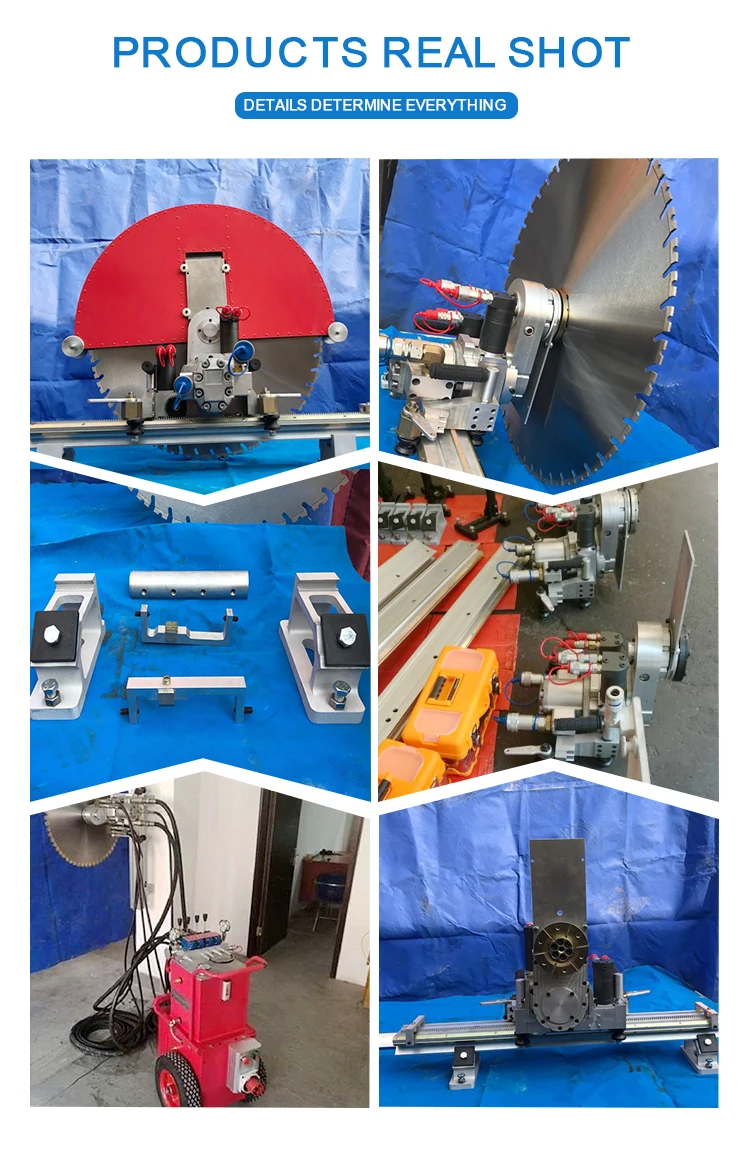

Products Real Shot

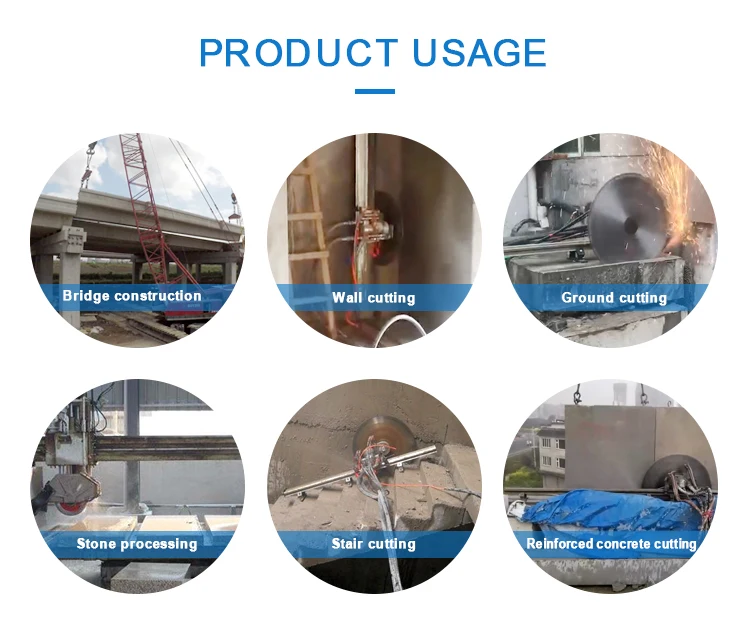

Applicable to concrete wall, brick wall or stone, highway, bridge, construction engineering cutting, can cut at any angle,occupying small space, cutting area is controlled at will.
