Factory price hot filling pet bottled juice 3 in 1 liquid filling machine

Share on (1600736675461):


Price:$20,000.00

Quantity:


Product Overview

Description



Products Description

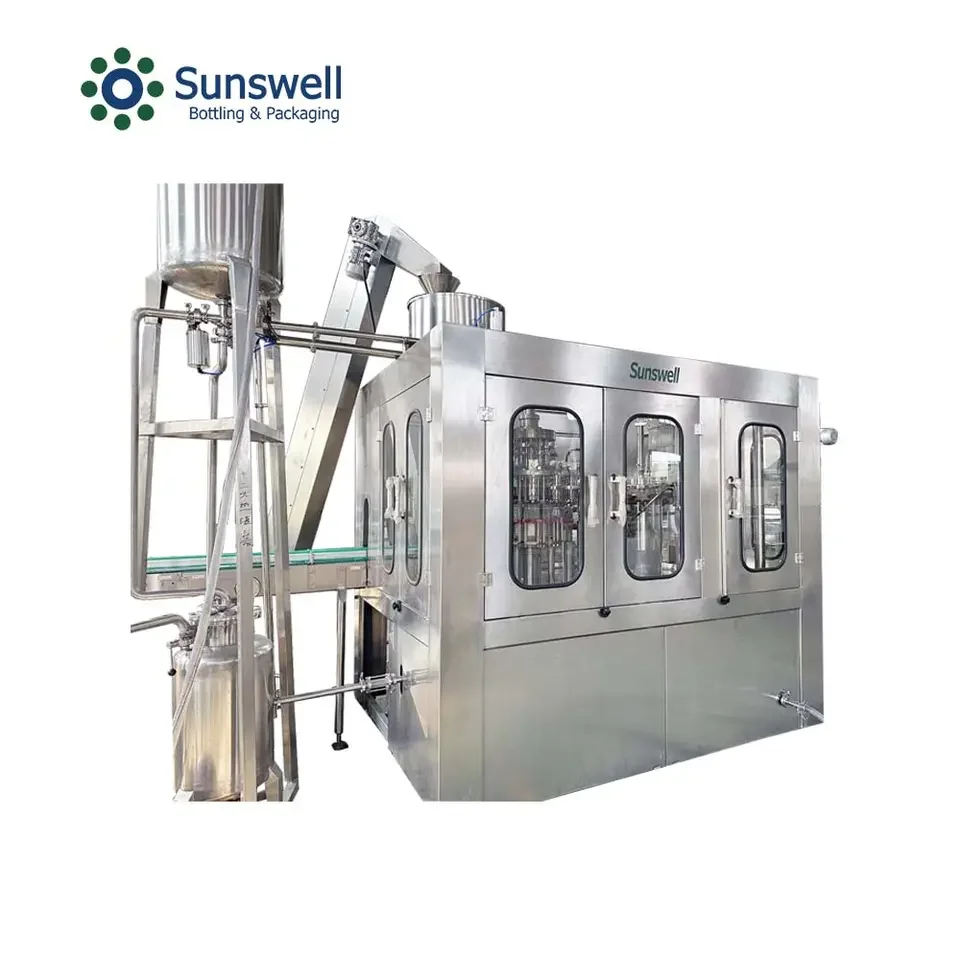

Juice 3-in-1 filling monoblock
RXGF series 3-in-1 hot filling monoblock is composed of rinser, filler and capper, which adopts and absorbs advanced technology and is manufactured according to juice/tea beverage production technical requirement.

It uses outer-circulation pressure filling method with sound CIP cleaning function.


Detailed Images

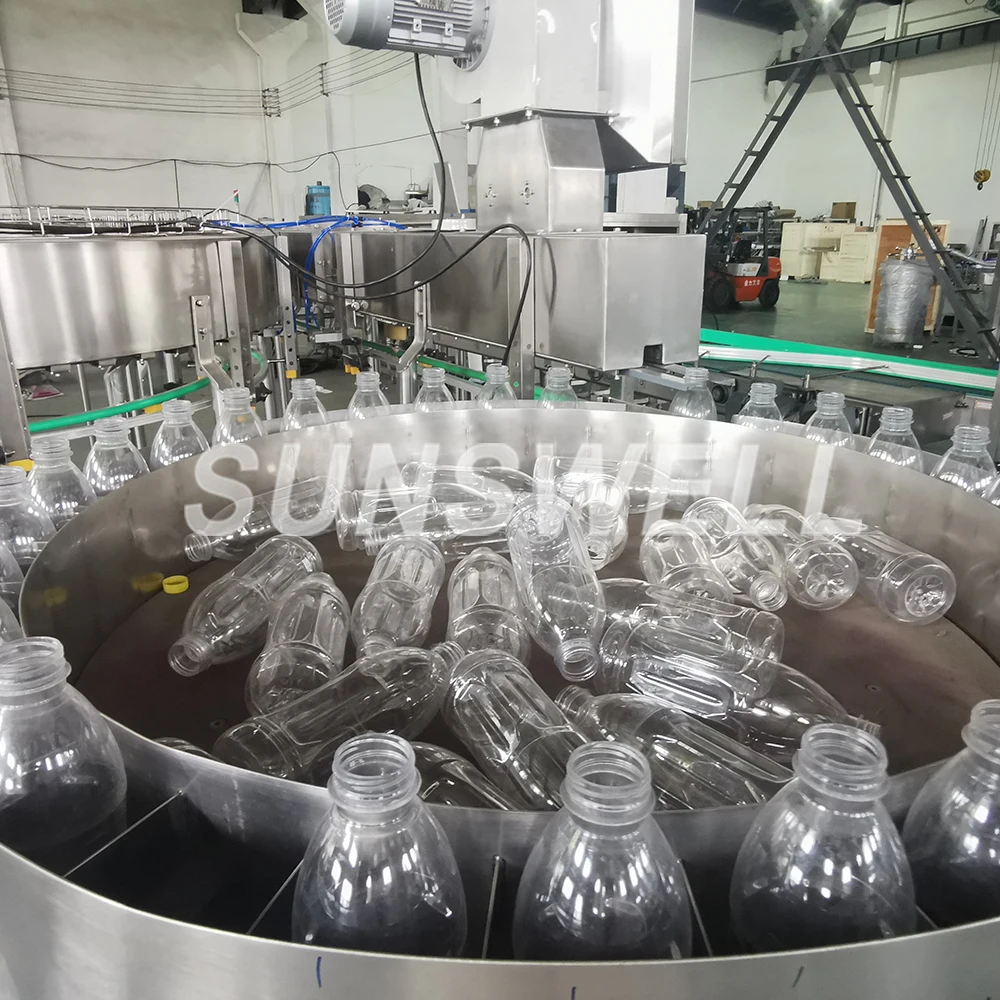

Semi-automatic Bottle Feeding
* This rotating bottle feeder machine is use eccentricity from disc rotation.
* It will send the bottles to the conveyor under the action of bottle guide board, then into the next process.

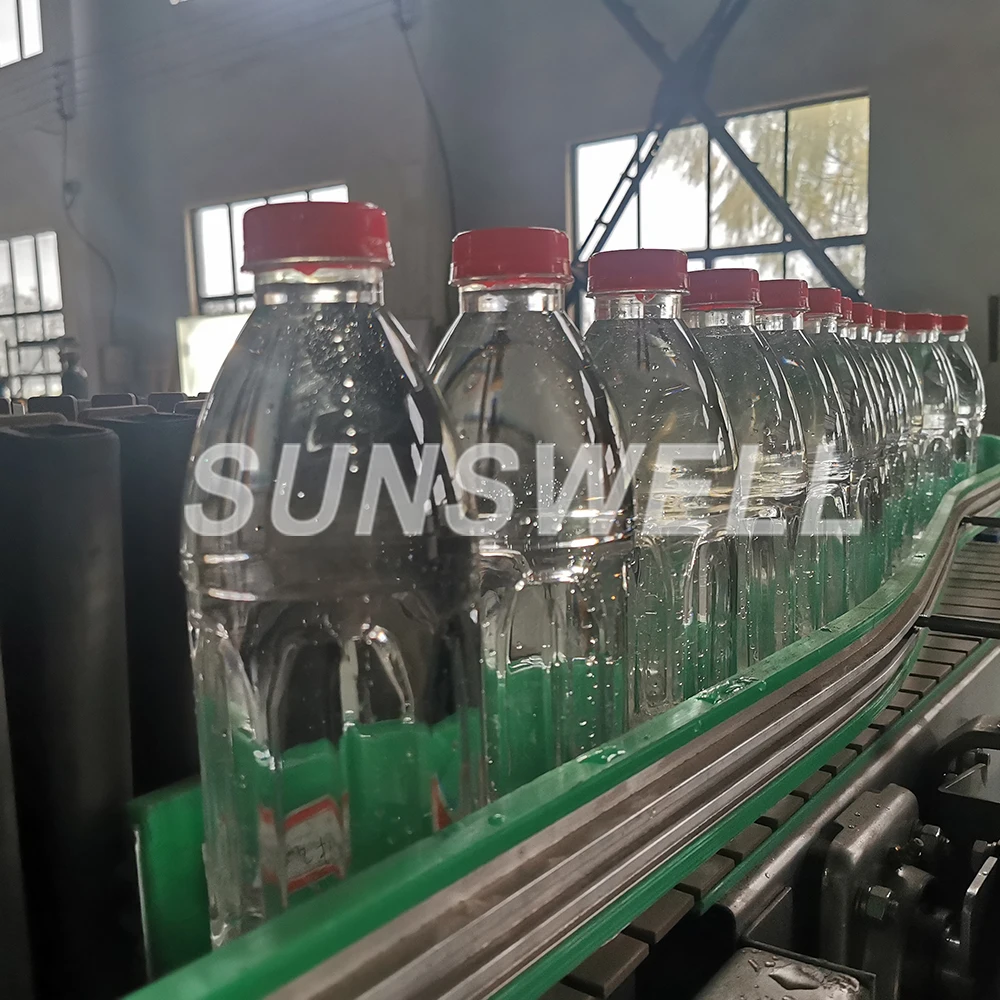

Air Conveyor
* Air conveyor is horsed on the floor, with fan installed on the top. Air filter is positioned at every entrance of air fan, to
prevent dust blown into bottles.
* Bottles are blocked on the neck in the conveyor and transported into filling machine by blowing power.

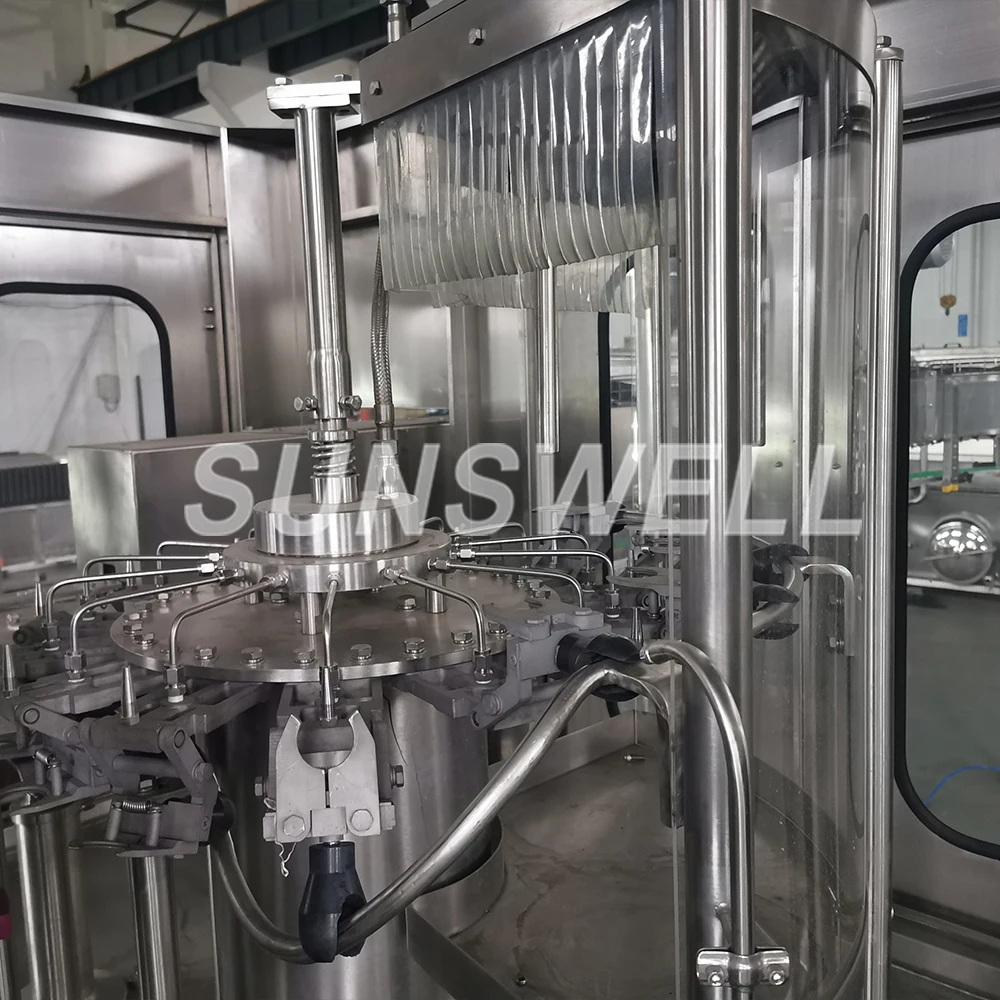

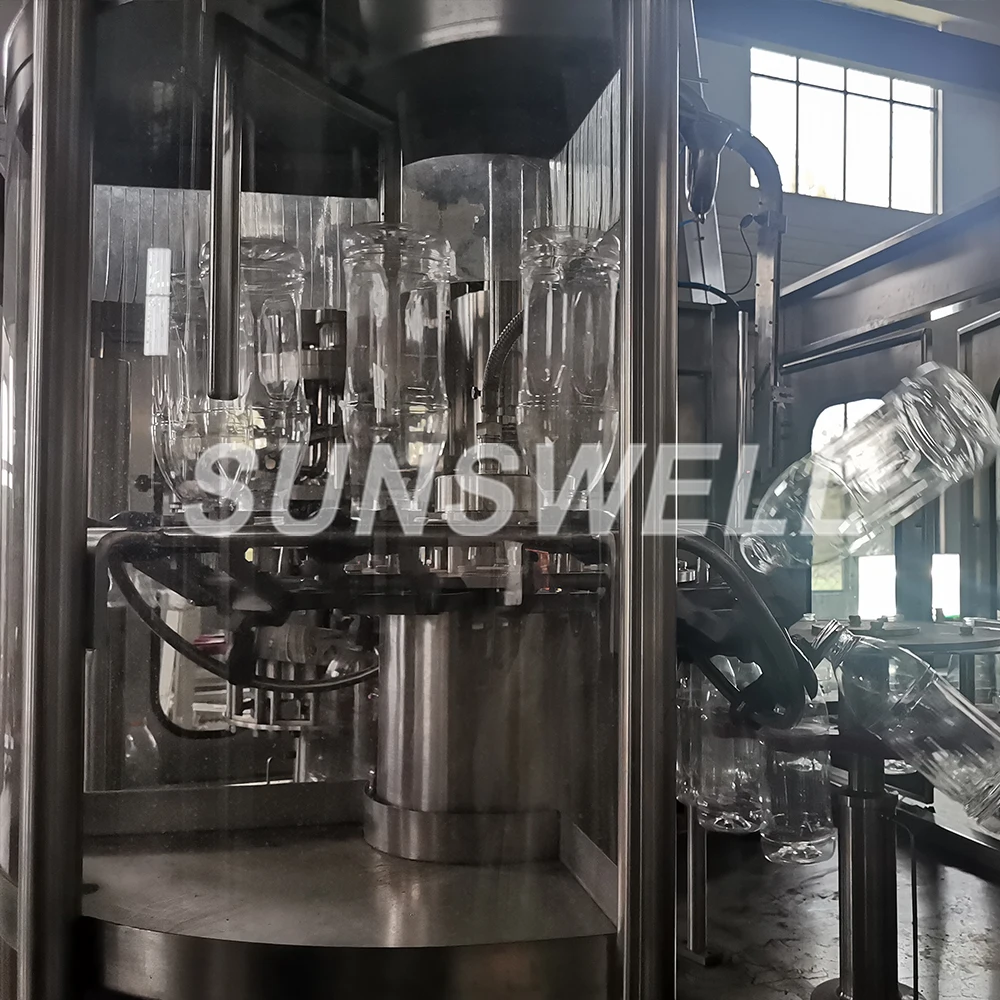

Rinser
* This bottle clamp grips bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle clamp. * Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
* The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, and also saves rinsing water.

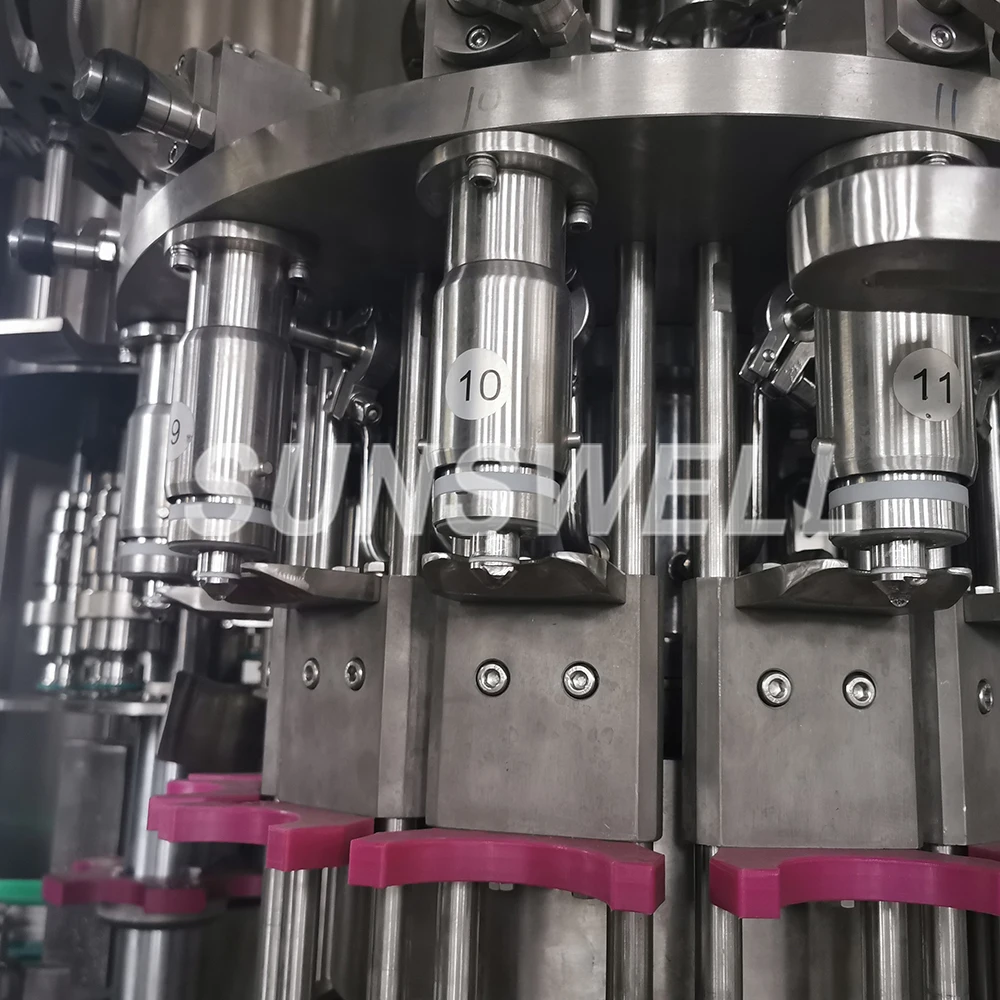

Filling
* Rotary wheel fully made of stainless steel SUS 304.
* Gravity filling method. * Filling valves are made of SUS304. * Filling valves are reasonably structured with accurate filling.
* Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.


Capper
*The capper is equipped with inlet bottle detection switch. *Centrifugal way of cap arranging is adopted to reduce damage of caps. A cap inspecting system is applied to control on-off of elevator.
*Cap distributing chute is equipped with a photocell switch to stop the capper when there is no cap inside the chute.
Bottle Tilter
* DP series bottle tilting chain is self-developed affiliated equipment based on technological features of high-temperature filling production line.
* The high temperature in the material of bottle after high-temperature filling will help the disinfection of caps and preheat caps, making caps and bottles heated evenly before spraying machine to improve cap sealing effect.


Cooling tunnel
* Cooling tunnel is newly designed by Sunswell with advanced ideas from domestic and overseas.
* It adopts 3 steps: hot-water circulation sterilization, warm water circulation cooling, and pure cooling water, cooling time is
adjustable by frequency converter.
Cooling tunnel
* First step, hot water cooling is 55℃, Step 2, warm water circulation 40℃cooling, Step 3, pure water cooling.
* It is equipped with automatic dosing pump, dosage is adjustable depends on process requirements.
* Hot water is produced by heat-exchanger pipe, it will be flown to water tank for recycling. Feed-in temperature is 85℃,feed-out temperature is 40℃.


Sleeve Shrink Labeling
* The machine is made of stainless steel and high quality Aluminum alloy, structure in reason, tighten, adjustment conveniently.
* Not need ground feet bolts, move conveniently, flexible assort production field.
* Shrink film volume label frame, according different volume label paper pipe adjusted range5″10″.
* Transmission machine can be adjusted conveniently without tools, which make it more suitable for bottle sizes.
Shrink Film Packing
* The heat shrink packaging machine is a high-efficiency, continuous operation packaging equipment designed and manufactured based on the thermal shrinkage characteristics of the packaging film.
* It can automatically arrange, assemble a single PET beverage bottle or other similar items into groups, and then wrap it with a heat shrink film.



Main Configuration


* Material of filling valve: Stainless steel 304
* Material of rotary tray and machine platform of rinser and filler: Stainless steel 304
* Main motor: ABB
* Sliding bearing: Igus
* Frequency inverter: Mitsubishi
* Touch screen: Pro-face
* PLC: Mitsubishi
* Pneumatic components: Airtac
* Photocell switch: Leuze
* Proximity switch: Leuze


Product list


Model
RXGF14-12-5
RXGF16-16-5
RXGF24-24-8
RXGF32-32-10
RXGF40-40-10
RXGF50-50-12
washing, filling and capping heads
14-12-5
16-16-5
24-24-8
32-32-10
40-40-10
50-50-12
Production capacity (B/H)
5000
7000
10000
14000
16000
20000
Motor power(kw)
2.2kw
2.2kw
3kw
5.5kw
7.5kw
11kw
Weight (kg)
2500
3500
4500
6500
8500
9800


About Sunswell


1.About us

Set up in 2008, Sunswell leads the market in the field of liquid bottling, blow molding, labeling, packaging machinery and process technology for water, tea, juice, carbonated drinks, energy drinks, liquid, beer, edible oil, dairy and daily care products, etc.

We can customize liquid food production lines according to customers' demand. Every customer is the result of our proven experience and innovation. We continually focus on providing customers with advanced technology, engineering and facility that are designed with one motto in mind: ensure you to reach business goals with most optimized planning.


Why choose us?

(1)A to Z turnkey plant provider
(2)Fully automatic or economic solution optional
(3)10+ years of global market experience
(4)Serve customers over 50 countries and regions worldwide


Office & Factory & Workshop









Any more questions, pls feel free to contact me !



2.Exhibitions

Sunswell,as an professional liquid filling and packing machine manufacturer,we often have chance to go out for exhibition to show our beverage filling machines and communicate processing technology with other industrial colleagues.





Any more questions, pls feel free to contact me !



3.Certifications





Any more questions, pls feel free to contact me !



4.Service





Spare Parts / Maintenance, Installation & Commissioning / Training

No matter whether you're a newcomer or a sectoral expert – we have the specialists who can provide the comprehensively can-do support you need for planning a new facility in terms of not only actual beverage production, but also filling, packaging, utilities and logistics. In closely responsive consultation with you, from a multiplicity of possible options, we select the technologically and commercially most effective variant, handle the design and planning work, and bring the project to a successful conclusion at your chosen location. Sunswell is not only the consultant here, but also takes responsibility for executing the entire project.



Any more questions, pls feel free to contact me !



FAQ


Q1: which city are you in? how can I get to your factory? Are you a trading company or factory?
A1: We are in Zhangjiagang city, two hours driving from Shanghai. We are factory. Manufacturing mainly beverage filling and packagingmachines. We offer turnkey solutions with more than 10 years experience.

Q2: Why is your prices higher than others?
A2: We offer high-end machines in our business. Welcome to our factory to have a visit. And you will see the difference.

Q3: What is your delivery time?
A3: Normally 30-60 working days depends one machines, water machines are faster, carbonated drink machines are slower.

Q4: How to install my machines when it arrives? How much the cost?
A4: We will send our engineers to your factory to install the machines and train your staff how to operate the machines If needed. Or you can arrange engineers to study in our factory.
You are responsible for air tickets, accommodation and our engineer wage USD100/day/person.

Q5: How long time for installation?
A5: Subject to machines and the situation in your factory. If everything is ready, it will take about 10 days to 25 days.

Q6: How about the spare parts?
A6: We will send one year enough easy broken spare parts together with the machines for free, we suggest you buy more units to save international courier such as DHL, it is really costly.

Q7: What is your guarantee?
A7: We have one year guarantee and life-long technical support. Our service also including machine maintence.

Q8: What is your payment term?
A8: 30%T/T in advance as down payment, rest should be paid before shipping. L/C is supported also.



Any more questions, pls feel free to contact me !
