SIGO SG-WW2500A 2:1 and 3:1double wire binding machine
US $260.00-$300.00
A3 H9 420mm Automatic Glue Binding Machine for Book Papers 10.1 Inch Touch Screen ElectricBinder
- Category: >>>
- Supplier: Hangzhou Gino Tech Co. Ltd.Hangzhou Ltd.
Share on (1600736705599):
Product Overview
Description
Product Description
Product name | Wireless glue binding machine |
Model | A3-H9 |
Maximum Size | 420×297mm |
Minimum Size | 80×70mm |
Thickness | Single page-70mm |
Speed | 350-400/hour |
Cover thickness | 70g-250g |
Cover adjustment | Yes |
How it works | Intelligent dual modes can be switched at will |
Warm-up time | ≦30min |
Milling cutter method | Small milling cutter + imported tungsten steel sun cutter |
Back function | Automatic thickness detection function |
Text thickness constant speed | The machine can automatically set the speed according to the thickness of the text |
Binding inner pages | 1-3 fold |
Note making function | Yes |
This clamping method | Electric eye detection |
This platform lifting method | Inclined rise and slant fall (optional flat rise and flat fall) |
Temperature display function | Yes |
Glue pot motor | Independent motor |
Confetti Blower | Silent high suction fan |
Glue pot unique lowering function | Yes |
Side glue function | Integrated side glue |
Transmission mode | Synchronous belt or chain drive |
Running rails | Front and rear 20# I-shaped rails |
Corner adjustment | Yes（With digital display） |
Smoke exhaust function | Yes |
Control Circuit | Relay+PLC+frequency conversion+10.1-inch touch screen |
Using Power | AC220V±10% /50Hz About 2KW |
Machine size | 1600mm×890mm×1250mm |
Machine weight | 250(KG) |
Dual-mode frequency conversion hot melt glue binding machine
1. It is one of the few gluebinders in China that uses Omron relays to control the machine. It is easy to operate, such as automatic and manual switching, dual counter function (one set cannot be reset), insurance function, preheating display,machine detection function, etc.
2. Clamps with hard chrome plating.
3. The aluminum alloy gravity cast rubber groove and high-density tungsten steel milling cutter are durable.
4. The milling cutter mode is a sun milling cutter + a small milling cutter or 14 small milling cutters. The number of sun milling cutters is 24 teeth, which has stronger processing capabilities for folding, coated paper and thicker books.
5. The machine runs at a speed of 400/hour.
6. The thickness of the cover used is between 70g-250g.
7. It has a head pasting function.
8. The machine has a heat preservation function.
9. The temperature control is electronic.
10. When the machine fails, the main power supply will be automatically cut off.
11. Maximum length of the printing plate: 420mm
12. Maximum thickness of the printing plate: 70mm.
13. The machine adopts Taiwan technology.
14. The relay and motor can be guaranteed for one year or 300,000 times.
15. The machine operation panel is a Taiwan switch, and the operation is very simple.
16. The small milling cutter is made of Swiss tungsten steel. (Swiss tungsten steel is currently the best in the world)
17. Relays have the advantages of low maintenance cost and good stability, but high production cost. (So no domestic manufacturer is willing to use relays)
18. Among all domestic glue binders, HP Le's machines are the only few that have passed the European
2. Clamps with hard chrome plating.
3. The aluminum alloy gravity cast rubber groove and high-density tungsten steel milling cutter are durable.
4. The milling cutter mode is a sun milling cutter + a small milling cutter or 14 small milling cutters. The number of sun milling cutters is 24 teeth, which has stronger processing capabilities for folding, coated paper and thicker books.
5. The machine runs at a speed of 400/hour.
6. The thickness of the cover used is between 70g-250g.
7. It has a head pasting function.
8. The machine has a heat preservation function.
9. The temperature control is electronic.
10. When the machine fails, the main power supply will be automatically cut off.
11. Maximum length of the printing plate: 420mm
12. Maximum thickness of the printing plate: 70mm.
13. The machine adopts Taiwan technology.
14. The relay and motor can be guaranteed for one year or 300,000 times.
15. The machine operation panel is a Taiwan switch, and the operation is very simple.
16. The small milling cutter is made of Swiss tungsten steel. (Swiss tungsten steel is currently the best in the world)
17. Relays have the advantages of low maintenance cost and good stability, but high production cost. (So no domestic manufacturer is willing to use relays)
18. Among all domestic glue binders, HP Le's machines are the only few that have passed the European
Product show

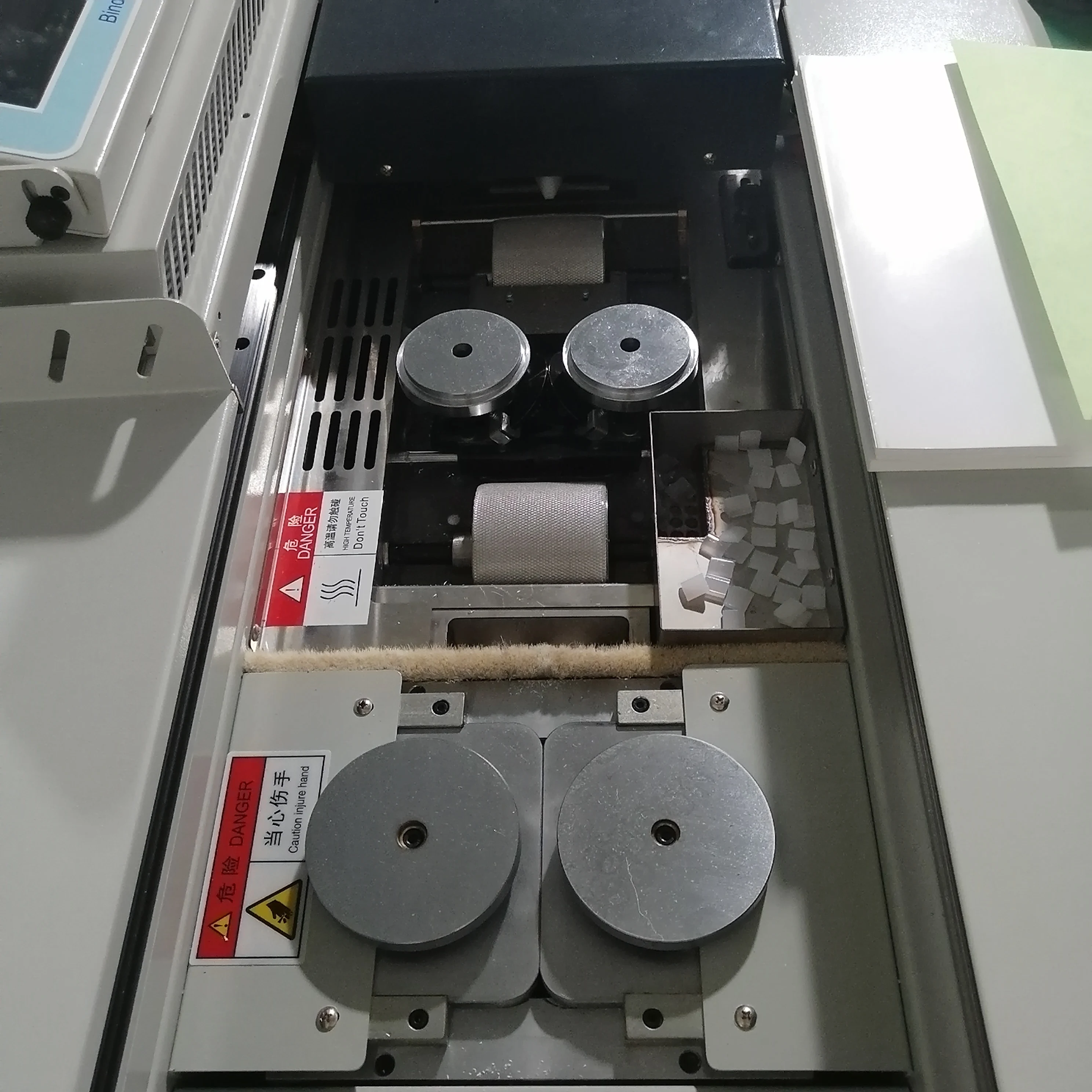

A3-H9 Double rubber wheels
A3-H9 Milling cutter
Automatic thickness detection function, It is very suitable for customers with multiple batches of different thicknesses

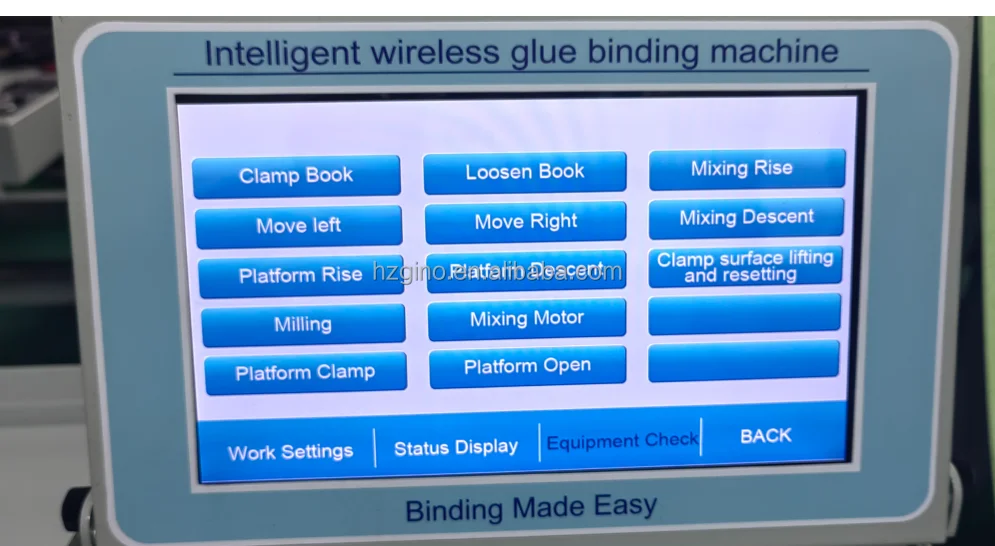

The self-check function is very convenient and intuitive compared to traditional machine maintenance.All problems of the machine
will be clearly displayed on the screen, making it truly convenient for every user.
will be clearly displayed on the screen, making it truly convenient for every user.
The equipment inspection function is more convenient and practical than the maintenance and inspection of traditional machines.The machine failure can be directly detected on the touch screen, and all the problems of the machine will be clearly visible on the screen, making it truly convenient and fast for every user.
Enlarged integrated glue tank
The enlarged integrated glue tank and glue adding box allow uninterrupted production and more consistent sol quality. The
dedicated motor ensures continuous and smooth bottom glue. The large rubber wheel glue-applying
structure makes the bottom glue fuller and the glue will not overflow during gluing.
dedicated motor ensures continuous and smooth bottom glue. The large rubber wheel glue-applying
structure makes the bottom glue fuller and the glue will not overflow during gluing.

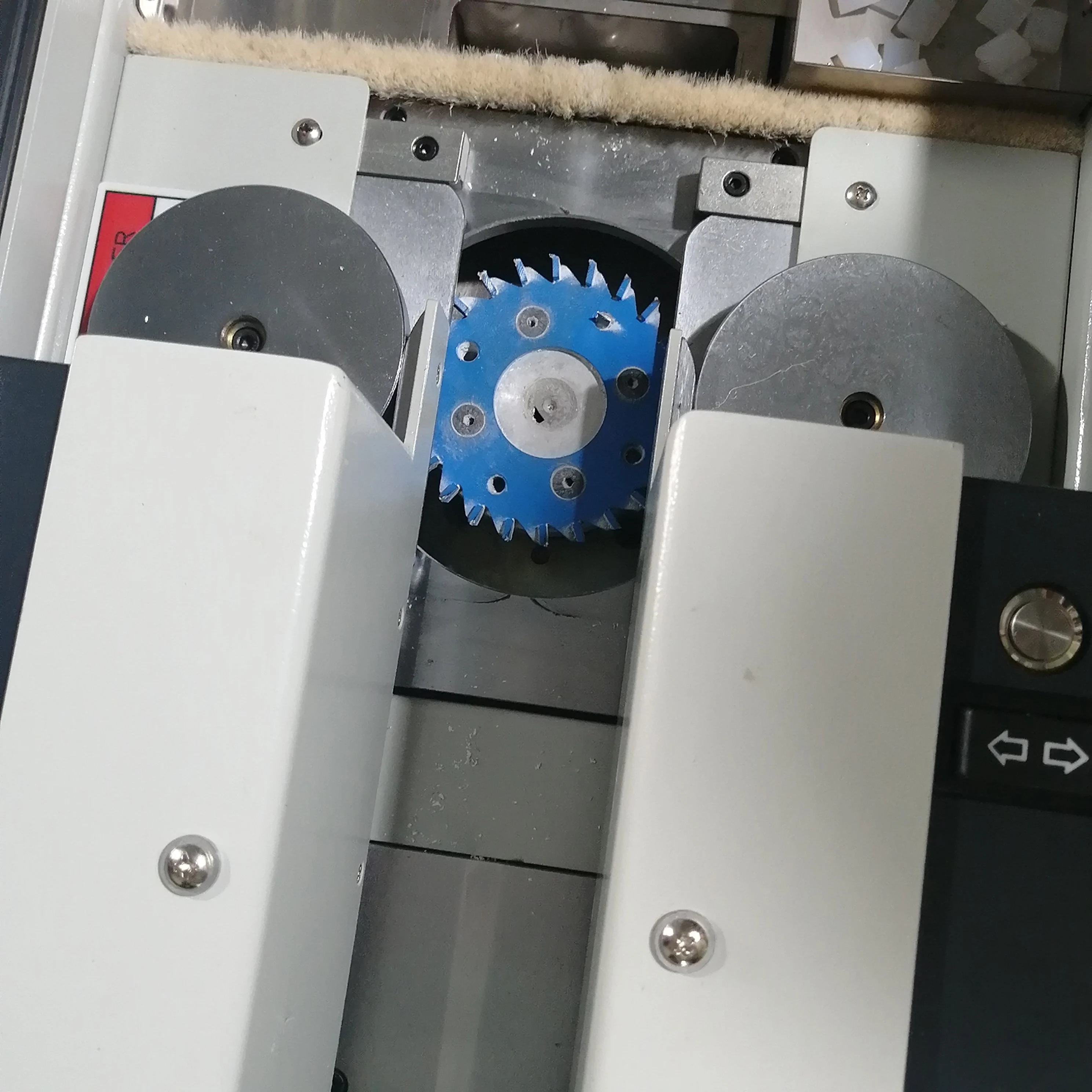

Using Swiss tungsten steel 24-tooth milling cutter, the spine cutting and milling effect remains unchanged for a long time, and it
can handle folding and coated paper documents with ease
can handle folding and coated paper documents with ease
The double motor clamping station design, two sets of motors working make the text spine binding more beautiful, and also extend
the service life of the motor. Most importantly, it is very convenient to repair the clamping station.The super large plus station is specially designed for short-run covers of different types. The cover extension tray size can be flexibly handled from A6 to A2.
the service life of the motor. Most importantly, it is very convenient to repair the clamping station.The super large plus station is specially designed for short-run covers of different types. The cover extension tray size can be flexibly handled from A6 to A2.

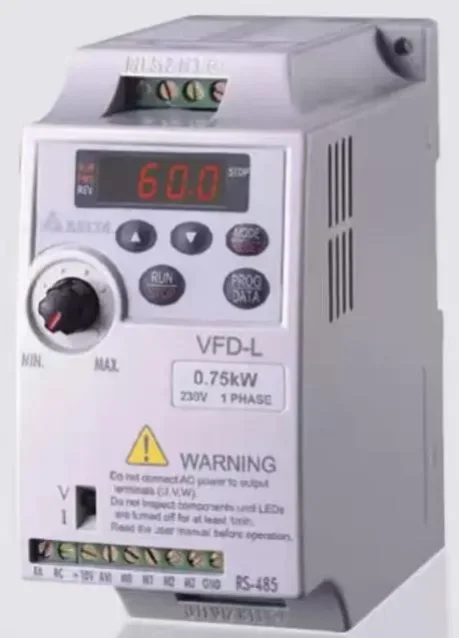

The glue binding machine uses a trolley running motor with a variable frequency controller. The trolley running speed is about 50% higher than the original, but the trolley stopping accuracy is between 0.3 and 0.5mm
