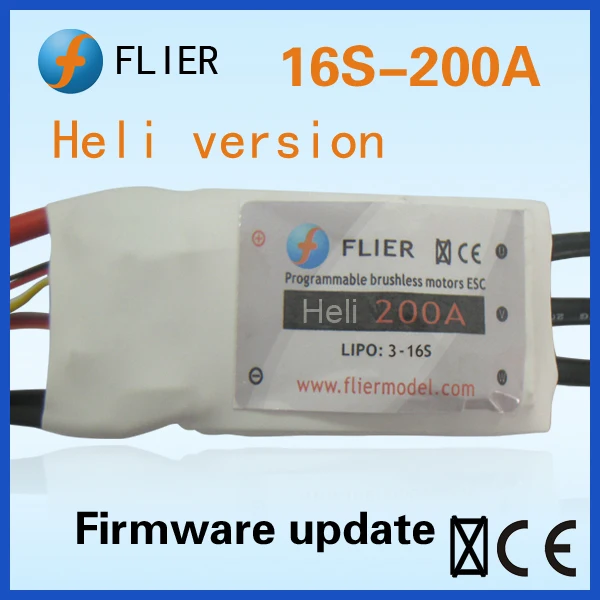

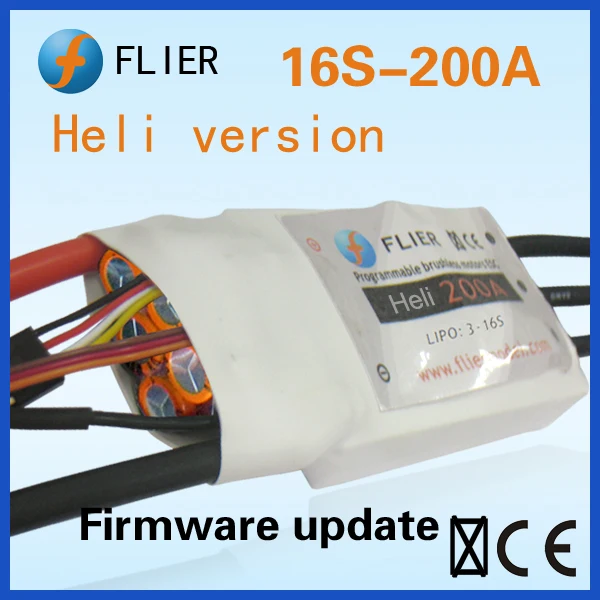

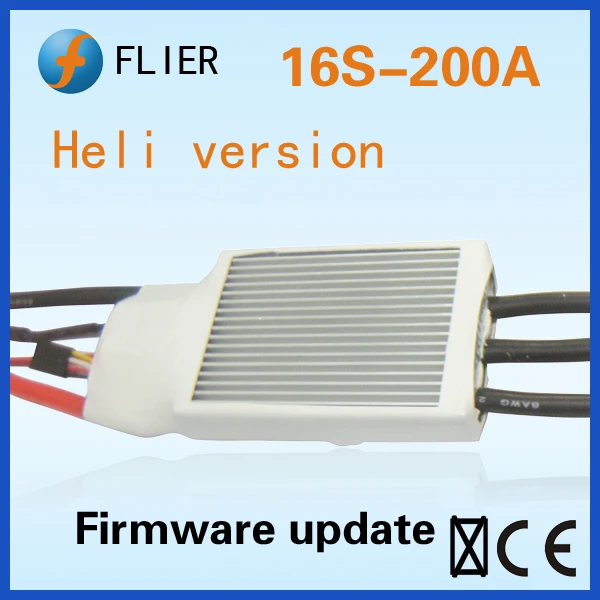

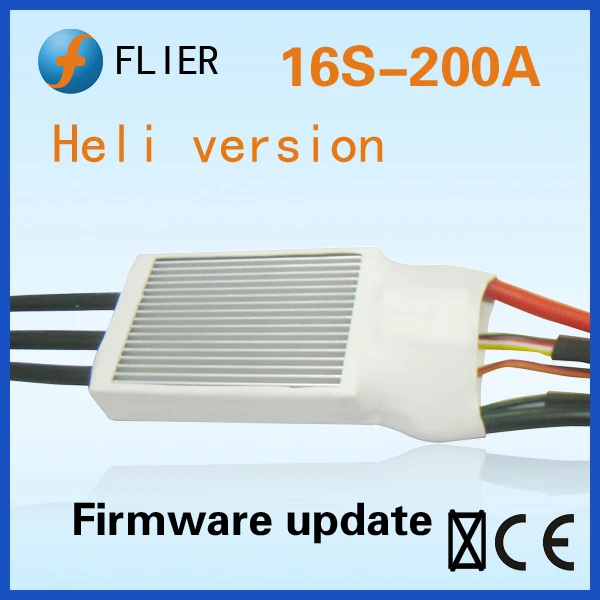

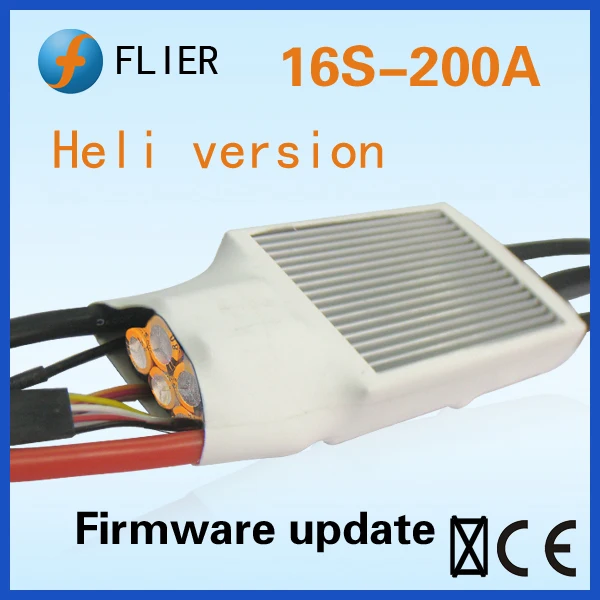

Flier RC 16S 200A opto ESC motor controller for helicopter airplane
- Category: >>>
- Supplier: Shenzhen Fulaiou Electronics Co. Ltd.
Share on (1600736715562):
Product Overview
Description
Discription
Discription
| MODEL | Description |
| F-16S-200A-H | Brushless ESC for Helicopter |
| Voltage:16S | |
| Peak Amps: 200A | |
| Box Programming Support:Yes | |
| Computer Programming Support:Yes | |
| Wires:6AWG | |
| BEC(Volts/Amps):NO BEC, OPTO | |

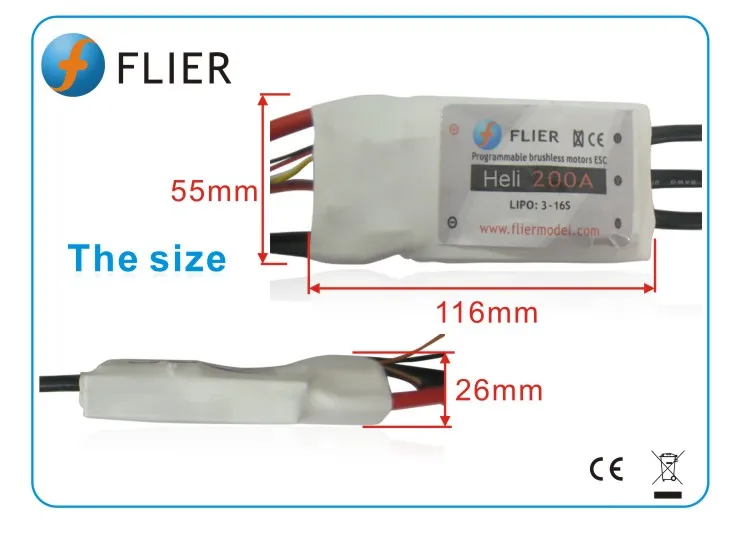

| Size:116*55*26mm |
Features
Features
- Design for airplane and more function.
- The firmware is upgraded recently .
- Two way communication while connecting it with computer.
- Firmware can be upgraded by user.
- Motor wire can be checked while Connecting the power battery.
- Simply set function value by Prog-Box or by PC via USB link wire.
- Li-MH/Li-Po,Ne-Cd/Ne-mH,LiFe battery can be use.
- Enables setting the voltage per cell for the point at which the controller’s cut off circuitry engages.Li-MH/Li-Po from 2.0-3.6V,Ne-Cd/Ne-.4-1.0V,LiFe from2.2-2.8V
- Reverse function. the delay time of reverse is adjustable.
- Automatically detection the throttle route or can be set a fixed number by manual operation.
- Auto cut off the power within 3 seconds if no radio signs.
- Timing setting may be adjusted (0°-30°) to suit the motor type.

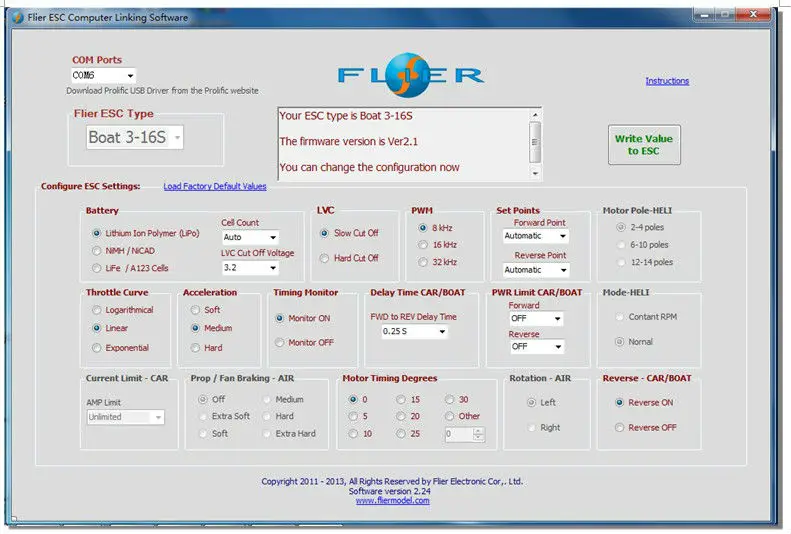

Programming ESC in Win7 or Win10 PC:

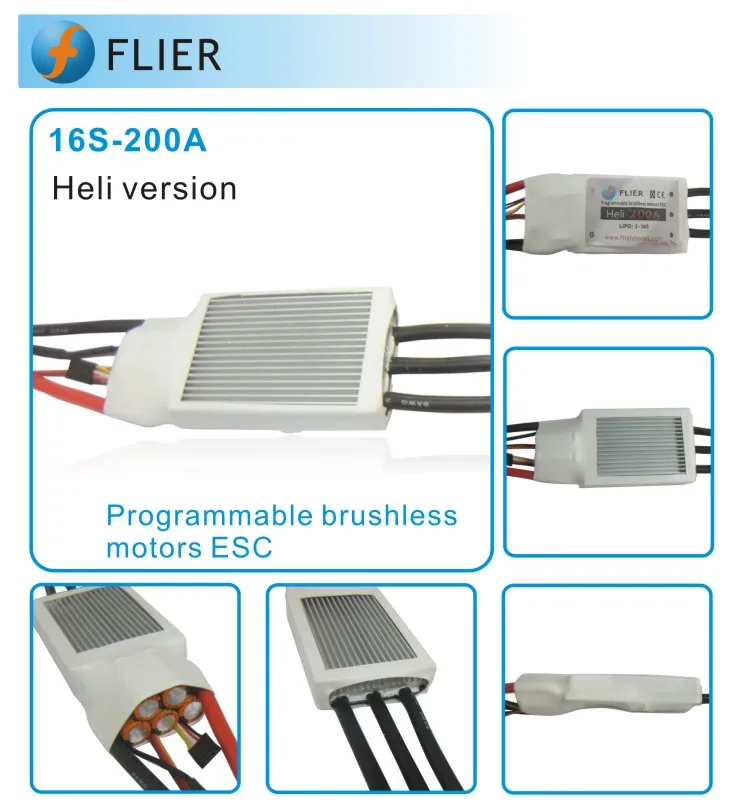

Detailed Pictures
Detailed Pictures
Instruction:

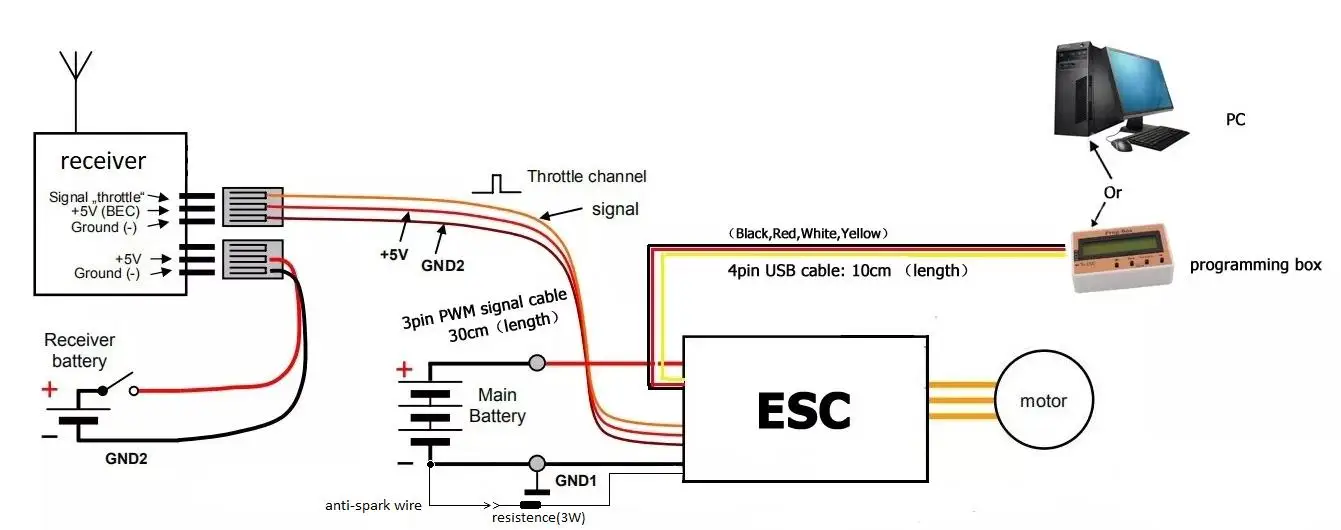

The anti-spark wire including a bullet connector and an anti-spark resistor. So you can separate it into two wires. You must solder another wire on the negative wire of the battery pack. If you want to connect the ESC to the battery pack, you can connect the red wire of ESC to the positive wire of the battery at first. Then connect the anti-spark wires well. The last step is to connect the black wire of ESC to the negative wires of the battery. If do like that, no spark will be generated, and it will protect the main bullets connector from damaged.
