New Design Hidden Vehicle GPS Locator ACC Detection Engin Shut Off Mini GPS Tracking Device Relay Car Tracker 4G
- Category: >>>
- Supplier: Shenzhen Carlsde Technology Co. Ltd.
Share on (1600736748295):
Product Overview
Description
Product Description

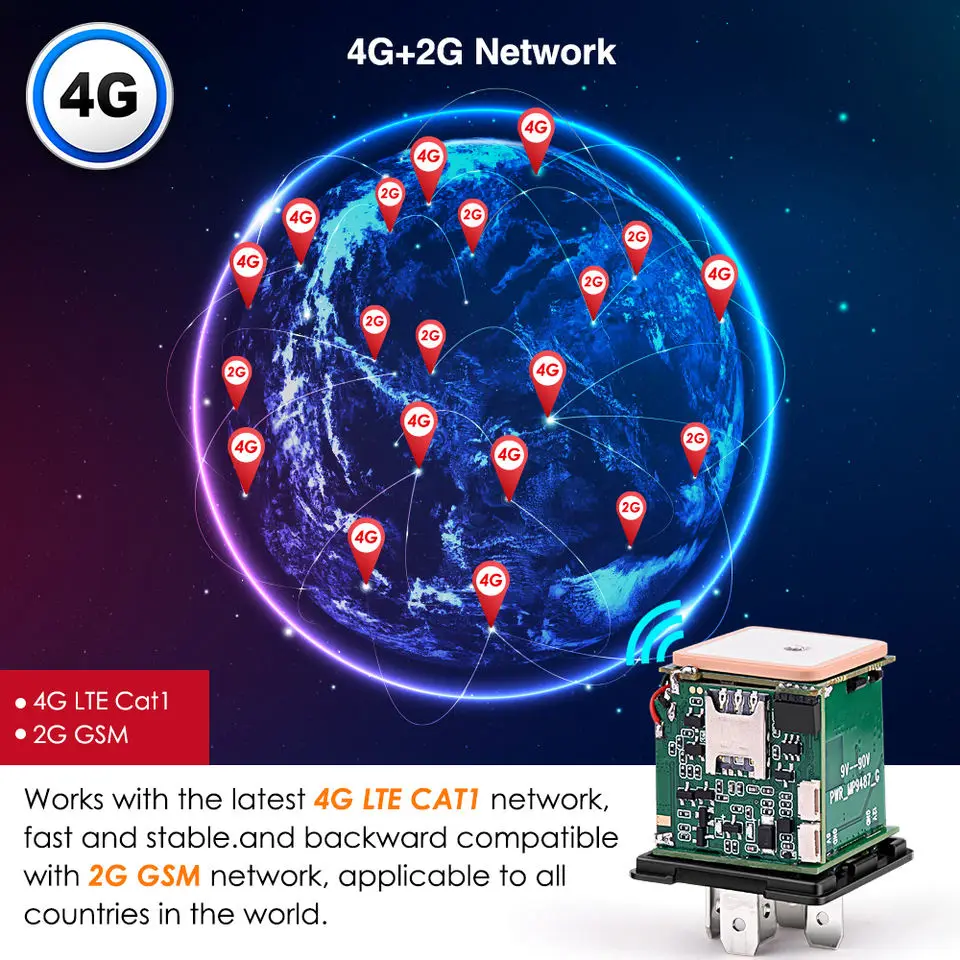

1. 4G LTE CAT1+2G GSM
2. ACC Detection
3.Tow alarm
4.Auto alarm
5. Wide Operating Voltage 9-90V DC, compatible with vehicles on the market!

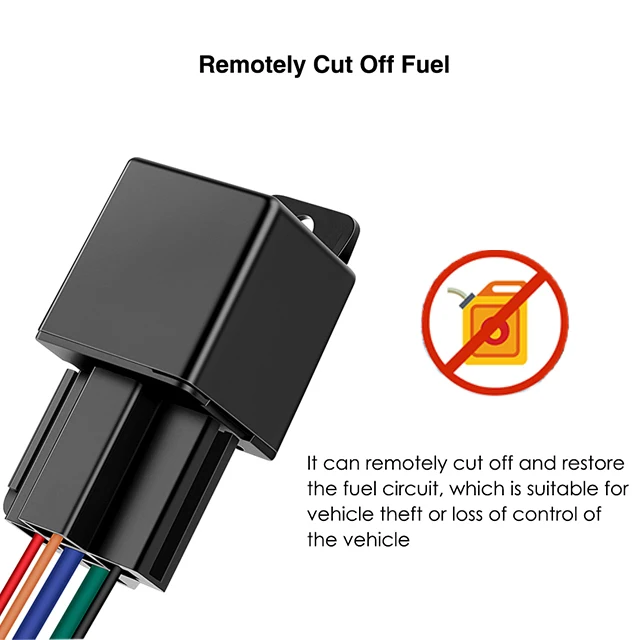

6. Remotely Cut Off & Resume Fuel.
7. GPS+LBS Double Positioning Ways.
8. Realtime Tracking.
9. History Route Playback.
10. Power Saving Mode,Sleep Mode

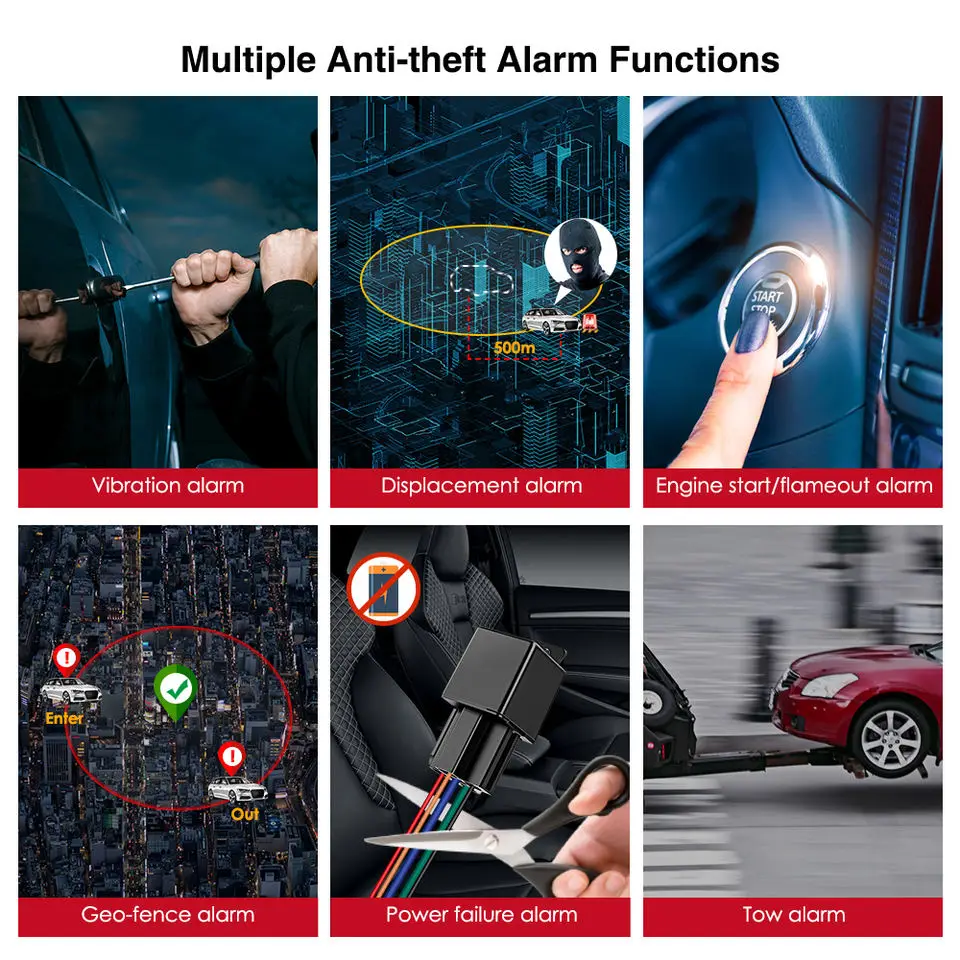

11. Overspeed Alarm,Shake Alarm, Movement Alarm,Geofence.
12.Illegal Cutting Line Alarm Under arm mode
13.LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP
14.The Tracking Platform Supports Multiple Languages.
2. ACC Detection
3.Tow alarm
4.Auto alarm
5. Wide Operating Voltage 9-90V DC, compatible with vehicles on the market!
6. Remotely Cut Off & Resume Fuel.
7. GPS+LBS Double Positioning Ways.
8. Realtime Tracking.
9. History Route Playback.
10. Power Saving Mode,Sleep Mode
11. Overspeed Alarm,Shake Alarm, Movement Alarm,Geofence.
12.Illegal Cutting Line Alarm Under arm mode
13.LIFETIME FREE WEB TRACKING SOFTWARE AND MOBILE APP
14.The Tracking Platform Supports Multiple Languages.
Multiple Design Highlights

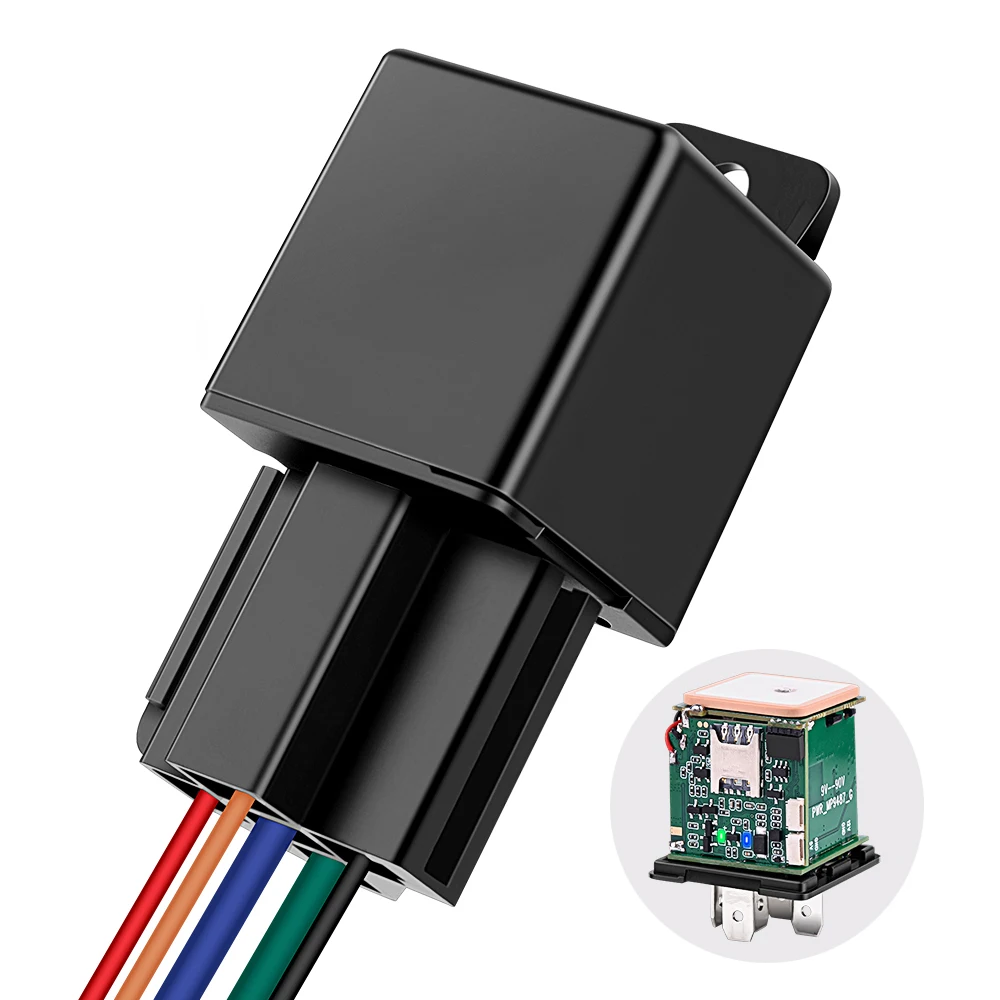

Relay appearance design small size, good camouflage, simple installation, and very easy to hide.
Relay appearance design small size, good camouflage, simple installation, and very easy to hide.
Specification
Device Information | Model | CJ720-4G |
Dimension | 57*31*31mm | |
Weight | 50g | |
Battery | Built-in 80mAh Lithium Battery | |
Working Parameters | Working Voltage | 9-95V DC |
Fuel Pump Power Line Current | Max 60 amps (Normally 20 amps) | |
Fuel Pump Power Line Voltage | 5-30V DC | |
Working Power | Working Power:1.2W; Sleep Power: 0.025W | |
Working Temperature | -20℃ to +60℃ | |
Working Humidity | 5%-95%RH | |
Cellura Specifications | SIM Card | Nano Size |
Cellura Antenna | Built-in | |
Working Frequency | 2G GSM/GPRS: 850/900-1800-1900MHZ | |
4G LTE CAT1: 1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66/34/38/39/40/41 | ||
GNSS Specifications | GNSS | GPS+GLONASS+BDS+GALILEO+QZSS+SBA(WAAS, EGNOS, GAGAN, MSAS) |
GNSS Antenna | Built-in Ceramics GNSS Antenna | |
Positioning Type | GNSS+LBS+AGPS | |
Accurancy | LBS Accuracy: 200-2000m(Depend on density of base stations) | |

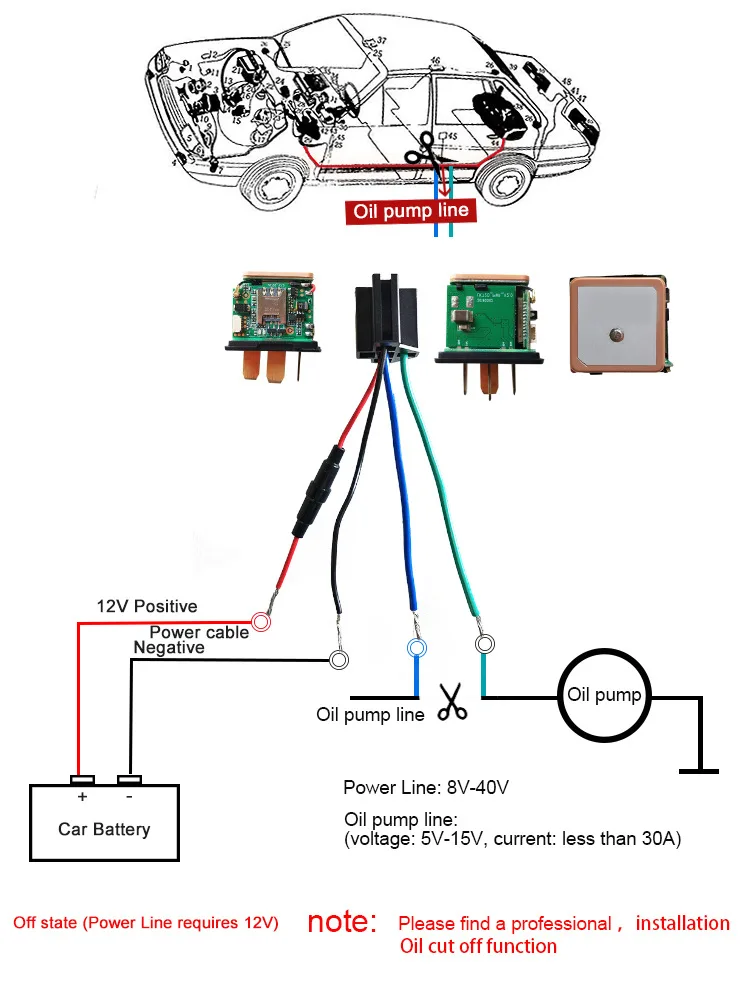

Installation Instructions
Company Profile

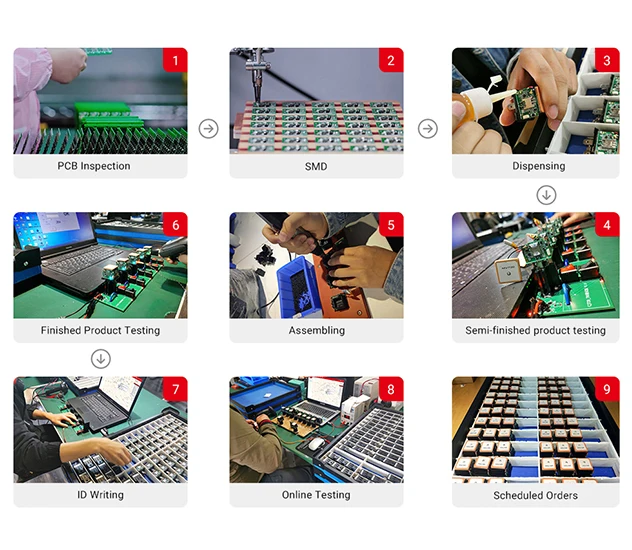

Production Process
Packaging&Shipping
FAQ
1.What is your minimum order quantity?
A: 1pc.
2. Why the GPS tracker device is off-line?
A: Maybe 3 reasons: device power off or outage; weak or none signal;SIM card debts or GPRS service overdue.
3. Why can not monitor?
A: Because you didn't set up the specific number and open the caller display of you SIM card. The latter will affect the former and lead to monitor failure.
4. What is the applicable range of this product?
A: We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycles, e-bikes, motorbikes, buses, etc.
5. Can you do hardware/firmware customization?
A: Yes, OEM/ODM is our specialty. Our R&D team has more than 10 years industry experience.
6. How is quality control and warranty?
A: 2 year warranty. All products have been 100% strictly Quality Checked before packing.
7.Why are your prices higher than other sellers?
A:We have strict quality requirements for our products and invest a lot of cost in production. We are committed to providing high-quality products for our customers .
2. Why the GPS tracker device is off-line?
A: Maybe 3 reasons: device power off or outage; weak or none signal;SIM card debts or GPRS service overdue.
3. Why can not monitor?
A: Because you didn't set up the specific number and open the caller display of you SIM card. The latter will affect the former and lead to monitor failure.
4. What is the applicable range of this product?
A: We on intelligent vehicle terminal for logistics vehicles, private cars, taxis, motorcycles, e-bikes, motorbikes, buses, etc.
5. Can you do hardware/firmware customization?
A: Yes, OEM/ODM is our specialty. Our R&D team has more than 10 years industry experience.
6. How is quality control and warranty?
A: 2 year warranty. All products have been 100% strictly Quality Checked before packing.
7.Why are your prices higher than other sellers?
A:We have strict quality requirements for our products and invest a lot of cost in production. We are committed to providing high-quality products for our customers .
