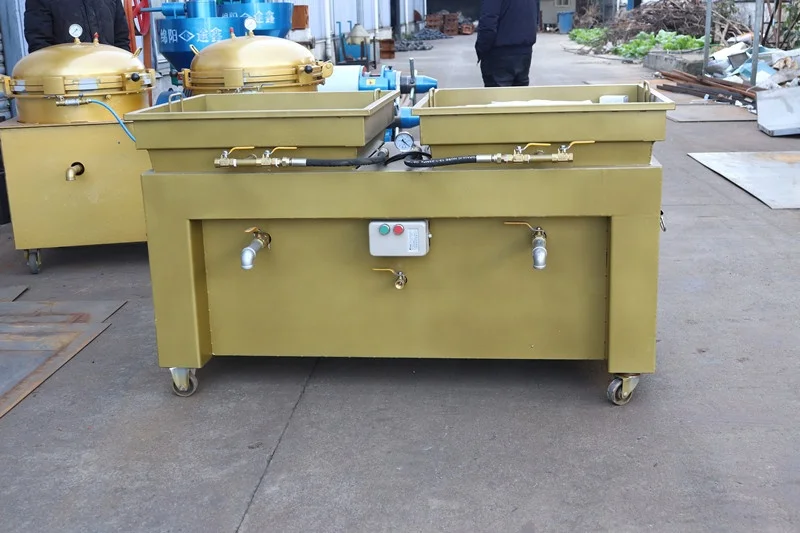

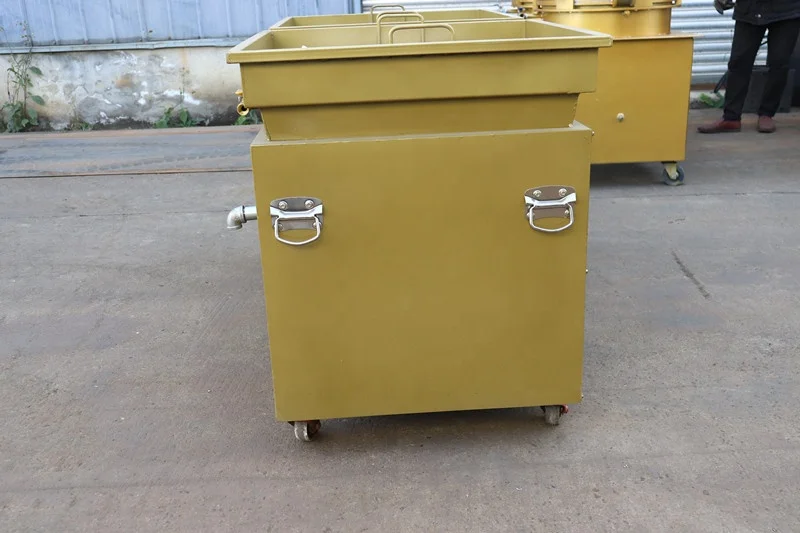

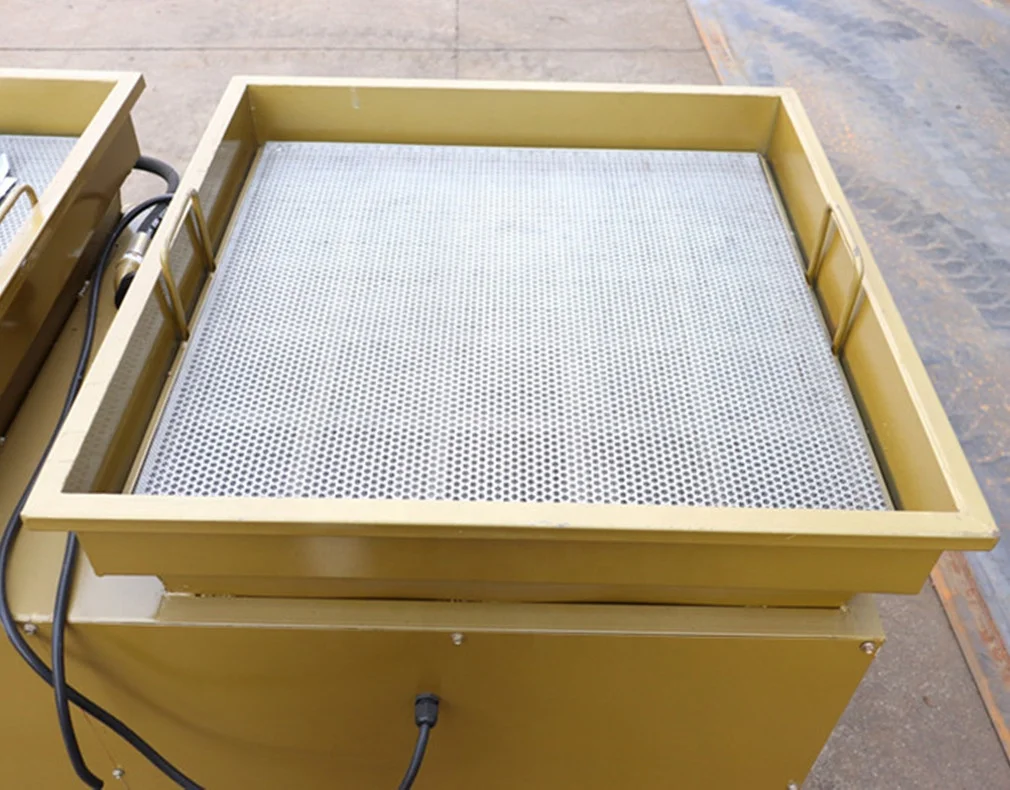

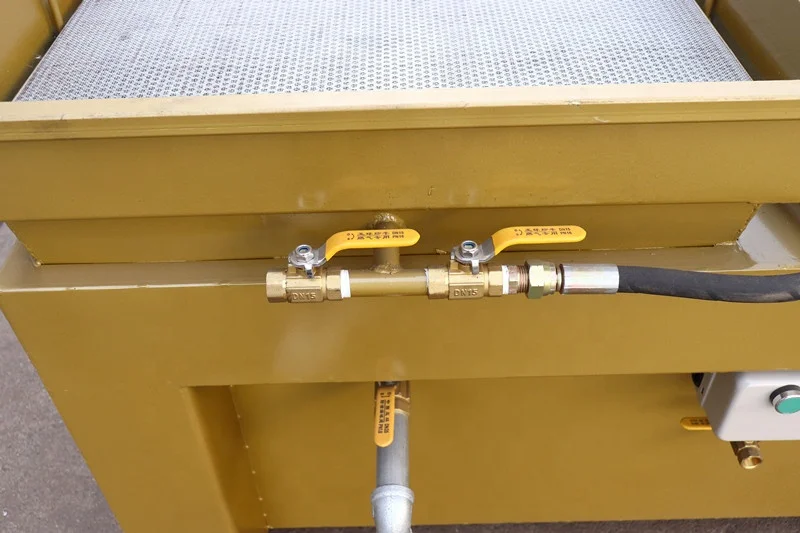

Top Quality Cold Press Soybean Oil Filtering Equipment Vacuum Oil Filter Machine
- Category: >>>
- Supplier: Mianyang City Tuxin Grain And Oil Machinery Manufacturing Co. Ltd.
Share on (1600736756264):
Product Overview
Description
Product Description
Specification
Title goes here.
YZYXY95 (10), 110, 120 series screw oil presses are the latest medium-sized screw oil presses independently developed by our company. They inherit the advantages of various types of screw oil presses. The transmission mechanism gears are made of high-quality alloy structural steel and forged. The tooth surface is quenched at high frequency, which significantly improves the bearing capacity and increases the service life of the gear pair. It is suitable for pressing rapeseed, cottonseed, soybean, peanut kernel, sesame seed, tung seed, sunflower seed, palm kernel and other vegetable oils. The product has the advantages of small investment, simple supporting, convenient operation and maintenance, strong adaptability, high oil output efficiency, and is the ideal equipment for medium and small oil processing enterprises
TERM PARAMETER MODEL | OIL PRESSING POWER | Daily processing capacity | PUSHING POWER | SPINDLE SPEED | EXECUTIVE STANDARD No |
YZYX176- | 30-37KW | ≥20-24t/24h | 0.75KW | 29-44r/min | JB/T973-2013 |
TERM PARAMETER MODEL | YZLXQ95(10) | YZLXQ110 | YZLXQ120 | YZLXQ130 | YZLXQ140 |
PROCESSING CAPACITY(t/24h) | ≥33.5 | ≥5.5 | ≥6.5 | ≥7-8 | ≥9-11 |
POWER REQUIRED(kw) | 11 | 11/15 | 11/15 | 18.5 | 22 |
TEMPERATURE CONTROL POWER(kw) | 2.65 | 2.65 | 3.6 | 3.6 | 3.6 |
WEIGHT(kg) | 800 | 900 | 1000 | 1100 | 1200 |
SIZE(mm) | 2186*1451*1810 | 2186*1451*1810 | 2186*1451*1810 | 2330*1555*1980 | 2330*1555*1980 |
OIL CONTENT OF DRY CAKES(%) | ≤7 | ≤7.5 | ≤7 | ≤8 | ≤8 |
SPIRAL AXES ROTATE SPEED（r/min） | 26-41 | 26-41 | 32-40 | 28-40 | 28-38 |
LIST NAME | PROCESSING VOLUME(t/24h) | DRY CAKE RESIDUAL OIL RATE(%) | ||
YZLXQ110 | YZLXQ120 | |||
RAPESEED | 5-6 | 6-7 | ≤8.0 | |
COTTONSEED | 5-6 | 6-7 | ≤7.5 | |
SOYBEAN | 5-6 | 6-7 | ≤7.0 | |
PEANUT | 5-6 | 6-7 | ≤8.0 | |
SUNFLOWER | 5-6 | 6-7 | ≤7.5 | |
More than 20 grains can be easily squeezed
Soybean
Olive
Walnut
Peanut
Sunflower seed
Semen sesami nigrum
OIL MAKING PROCESS

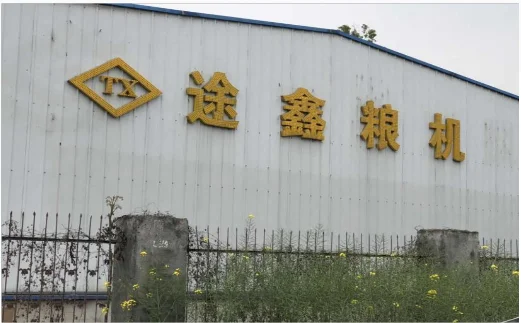

Company Profile
About us
The company is approved by the State Science and Technology Development Board,
Now has become China's small and medium-sized spiral oil press and screw pressbefore
and after the processing equipment set research and production as one of the key enterprises.
Strong technical force, science and technology staff account for more than 15% of the number of employees,
research institutes to establish a wide rangeof technical cooperation anddevelopment so that enterprises R & D
capabilities even more powerful.
The main production of a variety of spiral oil press, a variety of roller fried seed pot,
a variety of grease filtration equipment, a variety of screw conveyorequipment.
Quality of products access to international IS9001 quality management system certification.
Now has become China's small and medium-sized spiral oil press and screw pressbefore
and after the processing equipment set research and production as one of the key enterprises.
Strong technical force, science and technology staff account for more than 15% of the number of employees,
research institutes to establish a wide rangeof technical cooperation anddevelopment so that enterprises R & D
capabilities even more powerful.
The main production of a variety of spiral oil press, a variety of roller fried seed pot,
a variety of grease filtration equipment, a variety of screw conveyorequipment.
Quality of products access to international IS9001 quality management system certification.
Packing & Delivery
FAQ
Q: Are you a factory or trading company?
A: We are factory with 30year's manufacturing experiences, and we also have our own trading company. Our main products including:
screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
screw oil press, seeds roaster, oil filter, oil refinery machine and spare parts etc.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as 2mm.
1. 1st hour, adjust oil cake thickness as 3mm.
2. 2nd hour, adjust oil cake thickness as 2.5mm.
3. 3rd hour, adjust oil cake thickness as 2mm.
Q:What serivice do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. Usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. Usually only 1 time to get maximum oil. Peanuts need to be roasted to 125~130 degree with
1~2% moisture. (We produce seeds roaster heated by economical fuel.)
Hot press is pressing roasted seeds. Usually only 1 time to get maximum oil. Peanuts need to be roasted to 125~130 degree with
1~2% moisture. (We produce seeds roaster heated by economical fuel.)
