Product Overview
Description
PRODUCT DESCRIPTION
High Quality Brand New Asphalt Slurry Sealer Machine XZJ5312TFC With Competitive Price for Sale.
Main performance and characteristics:
* Equipped three kinds of working modes, intelligent control, one click material discharging.
* Large storage capacity, high construction efficiency.
* Environmental engineering plastic additives tank, accurate measurement, high precision.
* Chinese asphalt pump, smooth and stable transportation, prevent the asphalt solidification inside the pump.
* High slurry productivity, long service life.
PRODUCT PARAMETER
roduct model | Unit | XZJ5312TFC | ||
Working performance parameter | Silo volume | m3 | 10(max 12) | |
Asphalt tank capacity | L | 4000 | ||
Water tank capacity | L | 4000 | ||
Volume of the stuffing box | L | 2*400 | ||
Paving width | m | 2.4-4.2 | ||
Paving thickness | mm | 3-15 | ||
Work speed | km/h | 1.5-3 | ||
Chassis performance parameter | Type | - | HO-WO | |
Engine power | kW/(r/min) | 228/1900 | ||
Driving type | - | 8*4 | ||
Emission standard | - | China V | ||
Max.travelling speed | km/h | 102 | ||
Up-mounted engine parameter | Type | - | Cum-ins | |
Power | kW/(r/min) | 93/2200 | ||
Overall dimension parameter | Min.ground clearance | mm | 380 | |
Approach angle/ departure angle | . | 14/10 | ||
Overall dimension(L*W*H) | mm | 11850*2496*3490 | ||
Mass parameter of whole machine | Fuel tank | L | 400 | |
Curb weight | kg | 20500 | ||
Total mass | kg | 31000 | ||

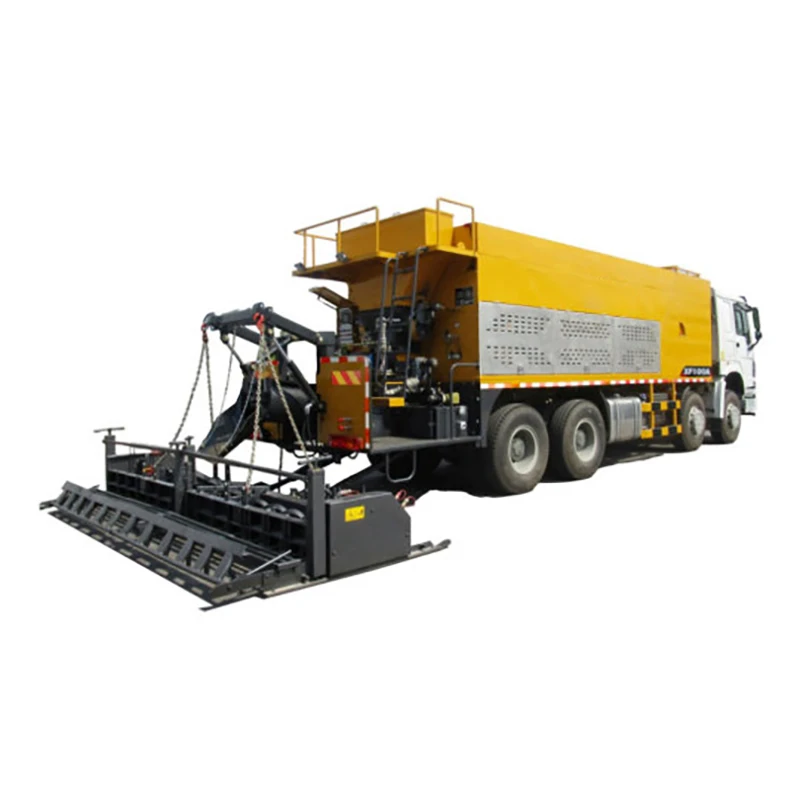

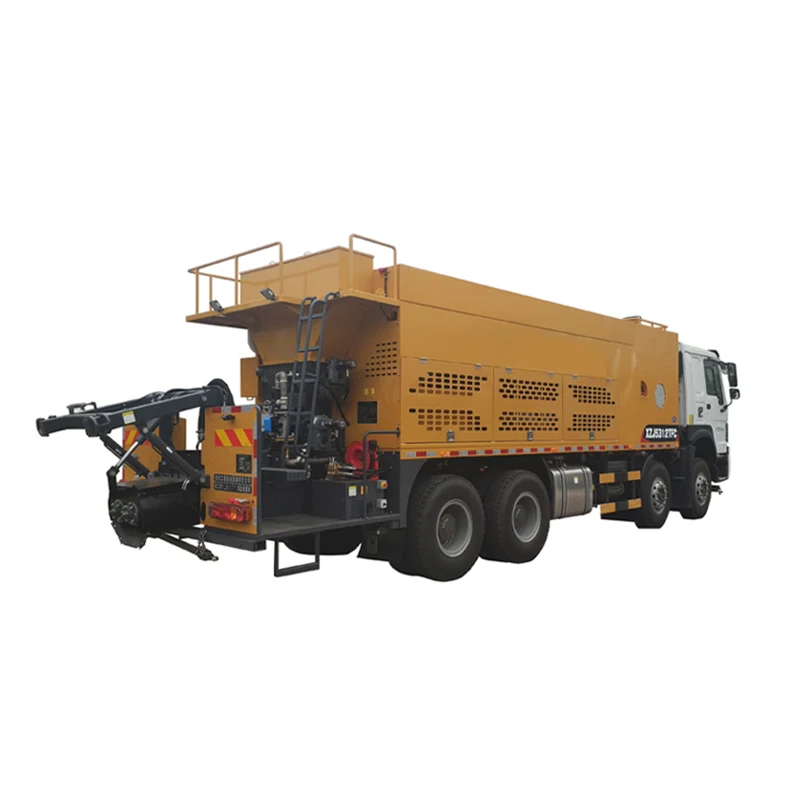

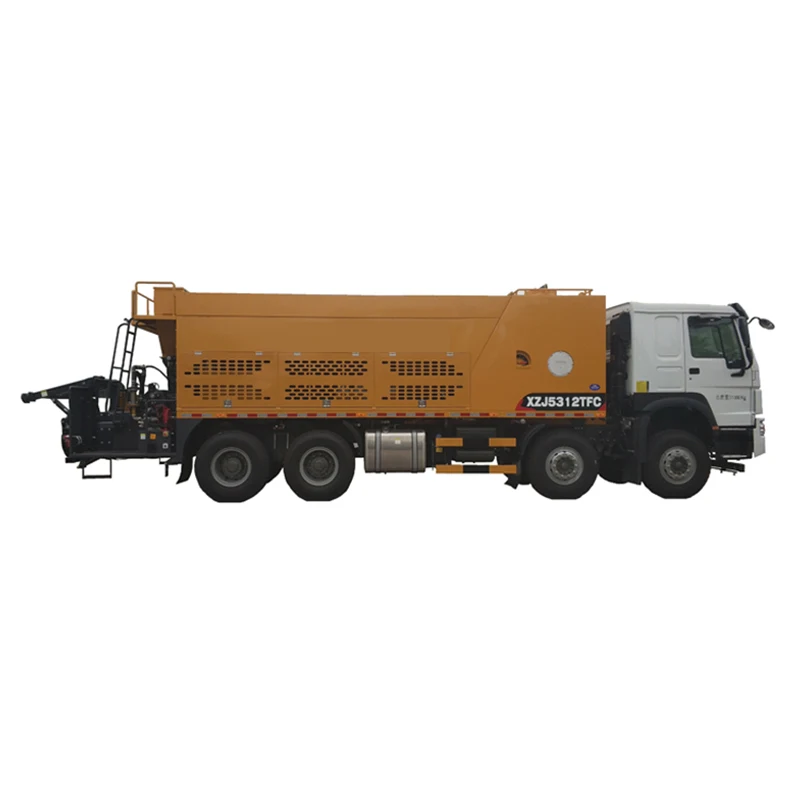

PRODUCT PICTURES
