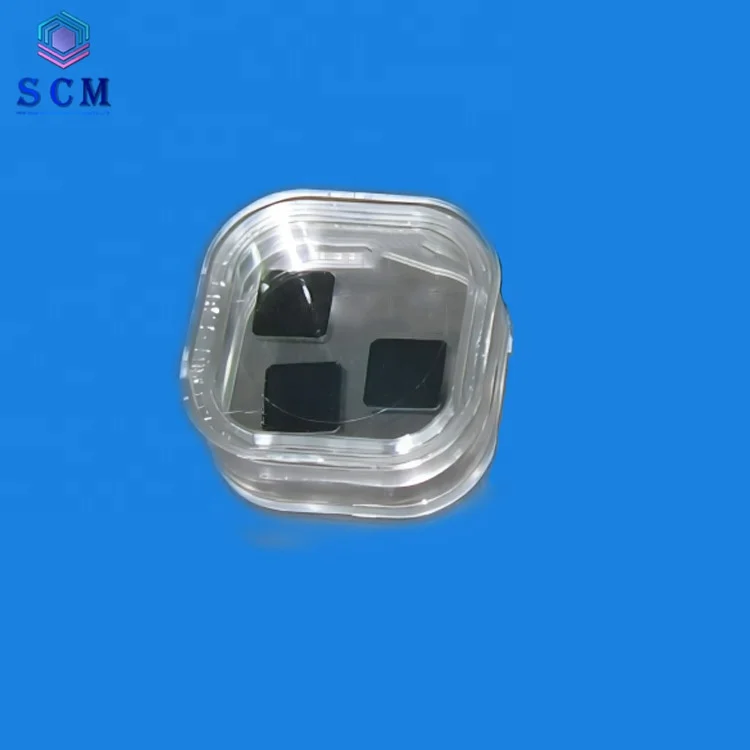

Very high quality Cadmium Telluride single crystal substrate (100) 5x5x1.0mm 1sp CdTe
- Category: >>>
- Supplier: Hefei Single Crystal Material Technology Co. Ltd.
Share on (1600736764463):
Product Overview
Description
Product Description
CdTe(Cadmium Telluride) product description
CdTe is used to make thin-film solar cells. They are among the lowest-cost types of the solar cell, although a comparison of the total installed cost depends on installation size and many other factors, and has changed rapidly from year to year. It is also used as an infrared optical material for optical windows and lenses and is proven to provide good performance across a wide range of temperatures. Besides, it is applied for electro-optic modulators. It has the greatest electro-optic coefficient of the linear electro-optic effect among II-VI compound crystals.
Product Paramenters
CdTe Single Crystal Substrate Specifications | ||
Growth method | PVT | |
Crystal structure | Cube (a=6.483A) | |
Density (g/cm3) | 5.851g/cm3 | |
Purity | 99.99% | |
Thermal expansion coefficient | 5.0×10-6/℃ | |
Optical transmittance | 0.85-29.9um | |
Size (mm) | 10x10x1.0mm, 5x5x1.0mm, 10x10x0.5mm, 5x5x0.5mm | |
Polishing | SSP or DSP | |
Ra: | ≤5Å | |
Ra: | ≤10Å（5µm×5µm） | |
Product Advantage
CdTe is used to make thin-film solar cells. They are among the lowest-cost types of the solar cell, although a comparison of the total installed cost depends on installation size and many other factors, and has changed rapidly from year to year. It is also used as an infrared optical material for optical windows and lenses and is proven to provide good performance across a wide range of temperatures. Besides, it is applied for electro-optic modulators. It has the greatest electro-optic coefficient of the linear electro-optic effect among II-VI compound crystals.
Product application
CdTe is used to make thin-film solar cells. They are among the lowest-cost types of the solar cell, although a comparison of the total installed cost depends on installation size and many other factors, and has changed rapidly from year to year. It is also used as an infrared optical material for optical windows and lenses and is proven to provide good performance across a wide range of temperatures. Besides, it is applied for electro-optic modulators. It has the greatest electro-optic coefficient of the linear electro-optic effect among II-VI compound crystals.
Why Choose Us
Company Profile
Hefei Single Crystal Material Technology is a technology and market oriented, the main advanced materials company.
Hefei Single Crystal Materials Technology provides material products for extremely broad markets, including
semiconductor,infrared, laser, consumer electronics, aerospace, construction, automotive manufacturing, coating, metallurgy,agriculture and others.
Hefei Single Crystal Materials Technology provides material products for extremely broad markets, including
semiconductor,infrared, laser, consumer electronics, aerospace, construction, automotive manufacturing, coating, metallurgy,agriculture and others.
Packing & Delivery
