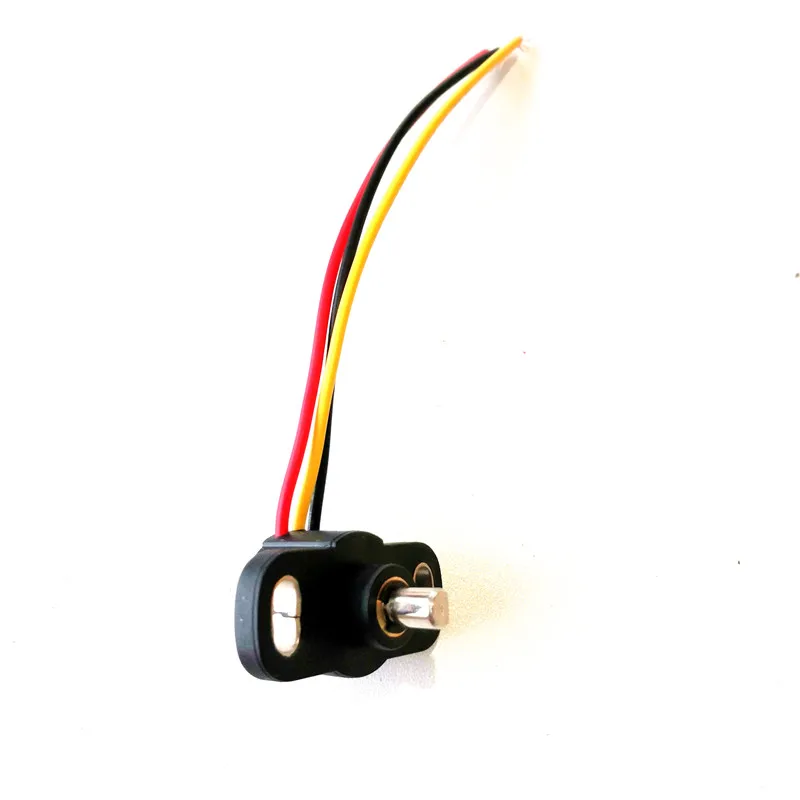

OFF22 2k 2.2k 5k 10k with washer nuts conductive waterproof potentiometer
- Category: >>>
- Supplier: Tong Yue Xin Commercial And Trading Co. Ltd. (Chengdu)
Share on (1600736774231):
Product Overview
Description
OFF22 2k 2.2k 5k 10k with washer nuts conductive waterproof potentiometer
Product Description

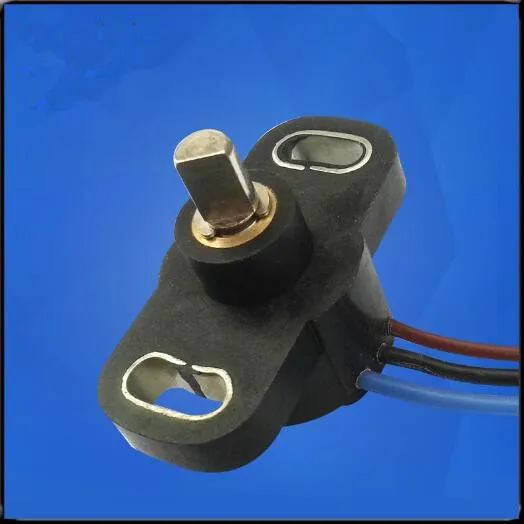

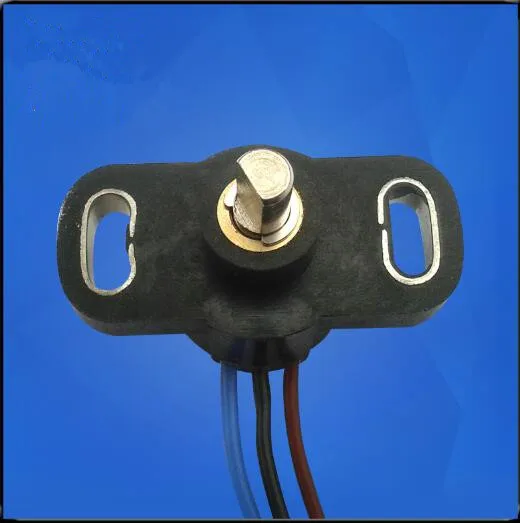

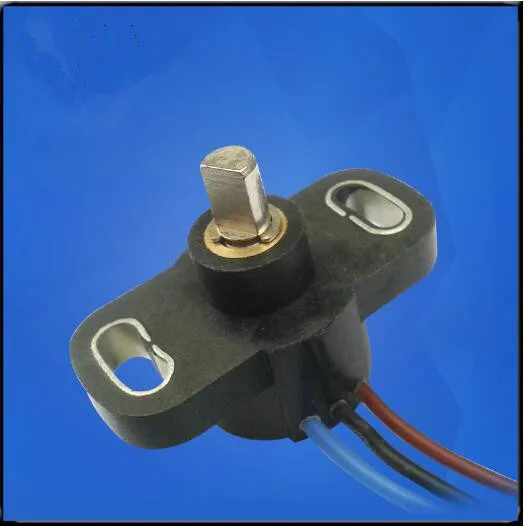

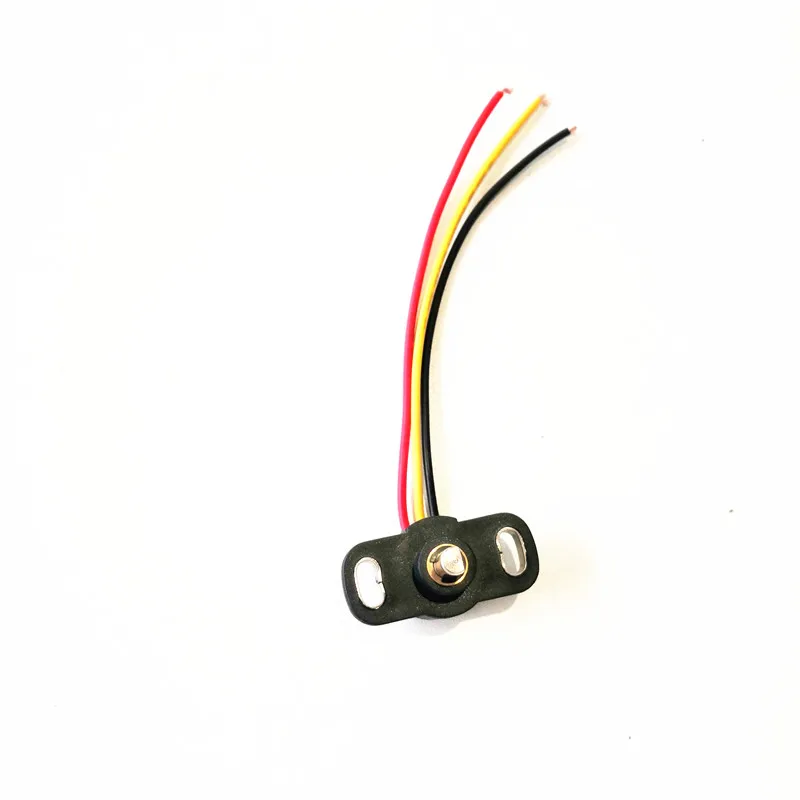

Products pictures:

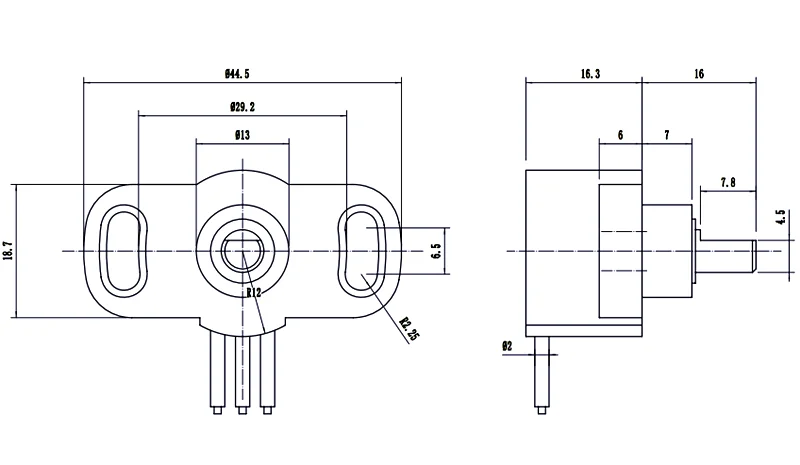

Products Demession:
Products Specifications:
| Electrical: | |||
| Resistance Range | 1K-10K | ||
| Resistance Tolerance | ±10% Standard | ||
| End Resistance | <3Ω | ||
| Resistance Taper | B | ||
| Independent Linearity | ±0.5% | ||
| Power Rating | 0.5W(70°C)0W(120°C) | ||
| Peak Noise (C.R.V.) | <2%Rn | ||
| Dielectric Strength | 1000V 1minute | ||
| Adjustment Travel | 90°120°200° 240° 300° 340° | ||
| Insulation Resistance | 10M | ||
| Resolution | Essentially infinite | ||
| Maximum Input Voltage | 200VDC | ||
| Environmental: | |||
| Storage Temperature Range | -60°C~ 125°C | ||
| Operating Temperature Range | -60°C~ 125°C | ||
| Temperature coefficient | 500ppm/°C | ||
| Load Life | 70°C 1,000h R/R≤±10% | ||
| Rotational Life | 1,000,000 times, R/R≤±7% | ||
| IP Range | IP25 | ||
| Soldering Heat Resistance | (350°C 3S)R/R≤±2% | ||
| Temperature Cycle | (-25°C, 85°C 30min/each,5 cycles) R/R≤±10% | ||
| Vibration | 10-55Hz, 1.5mm amplitude, 3.directions R/R≤±5% | ||
| Mechanical: | |||
| SIZE | SEE DRAWING | ||
| Mechanical Travel | 220° 320° 360° | ||
| ShaftTorque | 25~35gf.cm | ||
| Stop Strength | ...... | ||
| Mounting Nut Torque | 15Kgf.cm | ||
| Shaft Runout | 0.15mm | ||
| Shaft End Play | (shaft length 30 mm)0.15mm | ||
| Shaft Radial Play | 0.15mm | ||
| Shaft Strength (push) | 125 N (12.75 kgf ) min. | ||
| Shaft Strength (tensile) | 125 N (12.75 kgf ) min. | ||
| Marking | ...... | ||
| Hardware. | Washer,Lockwasher, Nut | ||

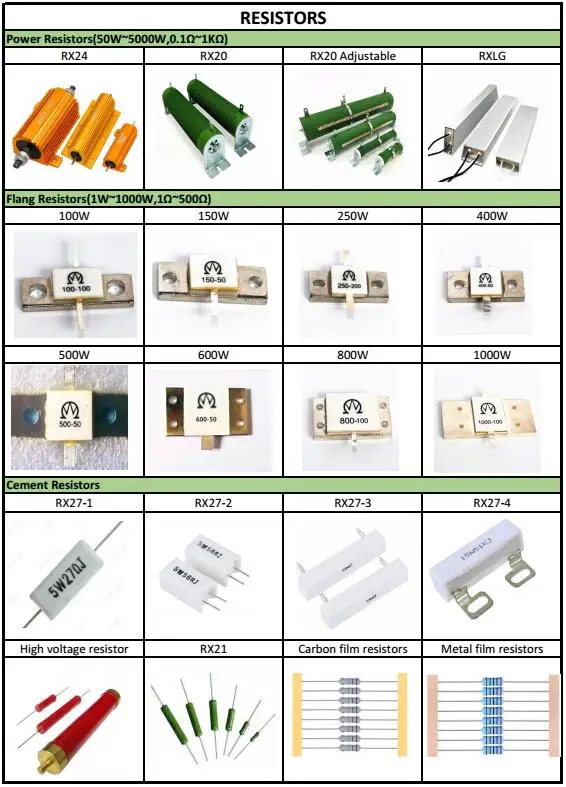

Our other products for your reference:

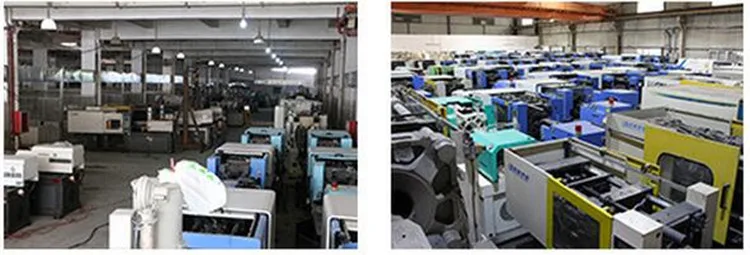

Company Information
