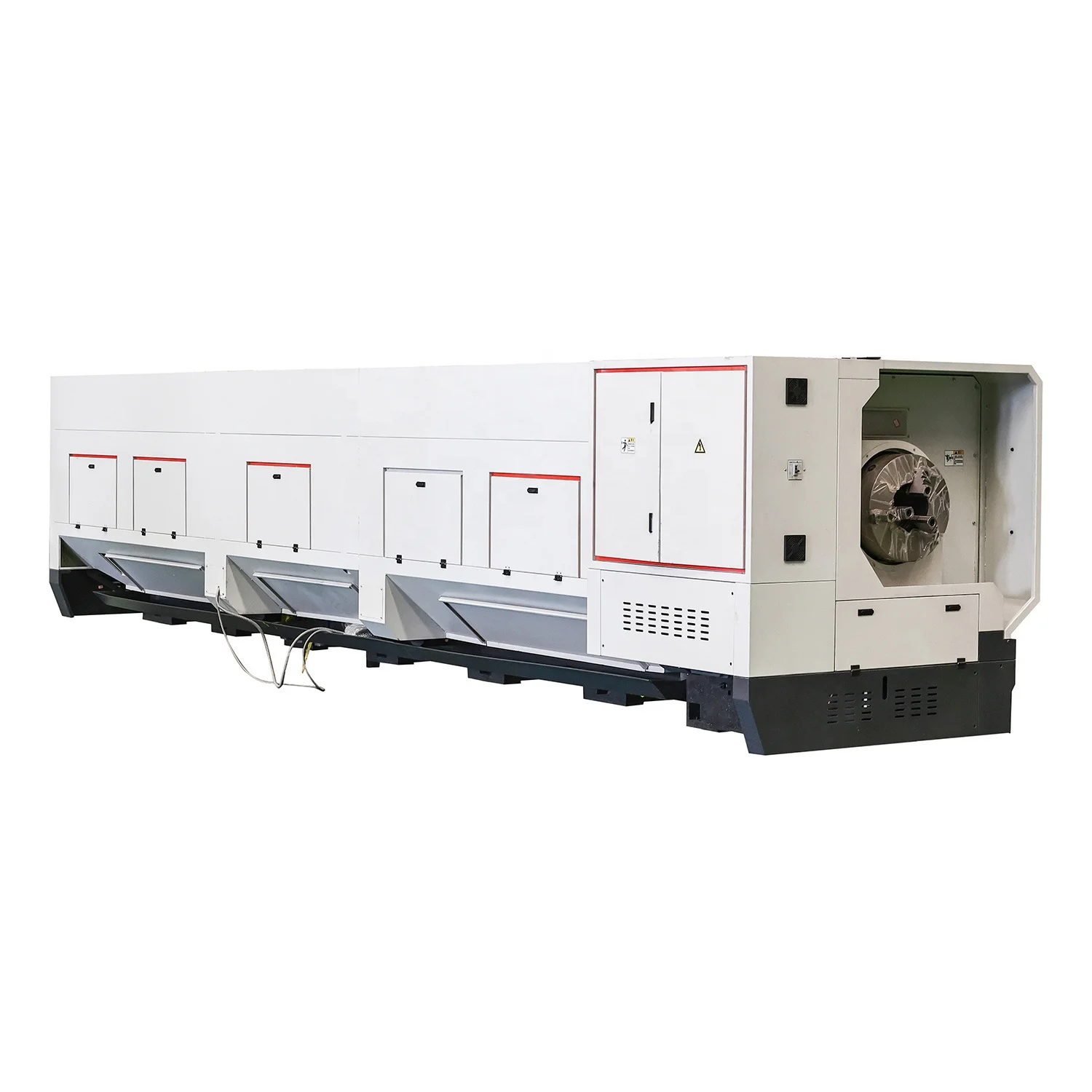

Heavy duty machine processing large metal gap bed lathe torno industria pipe treading lathe
Machine Introduction:
CK series CNC lathe is universal standard automatic machining equipment for metal processing, with the main characters such as reliable structure and easy operating. This series lathe machine is mainly used for turning the internal and external pipe threads including metric, inch, module, DP threads etc.
Main Facilities:
One-piece bed adopts high strength iron to ensure rigidity and precision.
Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
Carriage and guide way contact surface use turcite B to maintain accuracy.
CK series CNC lathe is universal standard automatic machining equipment for metal processing, with the main characters such as reliable structure and easy operating. This series lathe machine is mainly used for turning the internal and external pipe threads including metric, inch, module, DP threads etc.
Main Facilities:
One-piece bed adopts high strength iron to ensure rigidity and precision.
Ultrasonic frequency quenched guide-ways ensure good wear-resistance.
Carriage and guide way contact surface use turcite B to maintain accuracy.

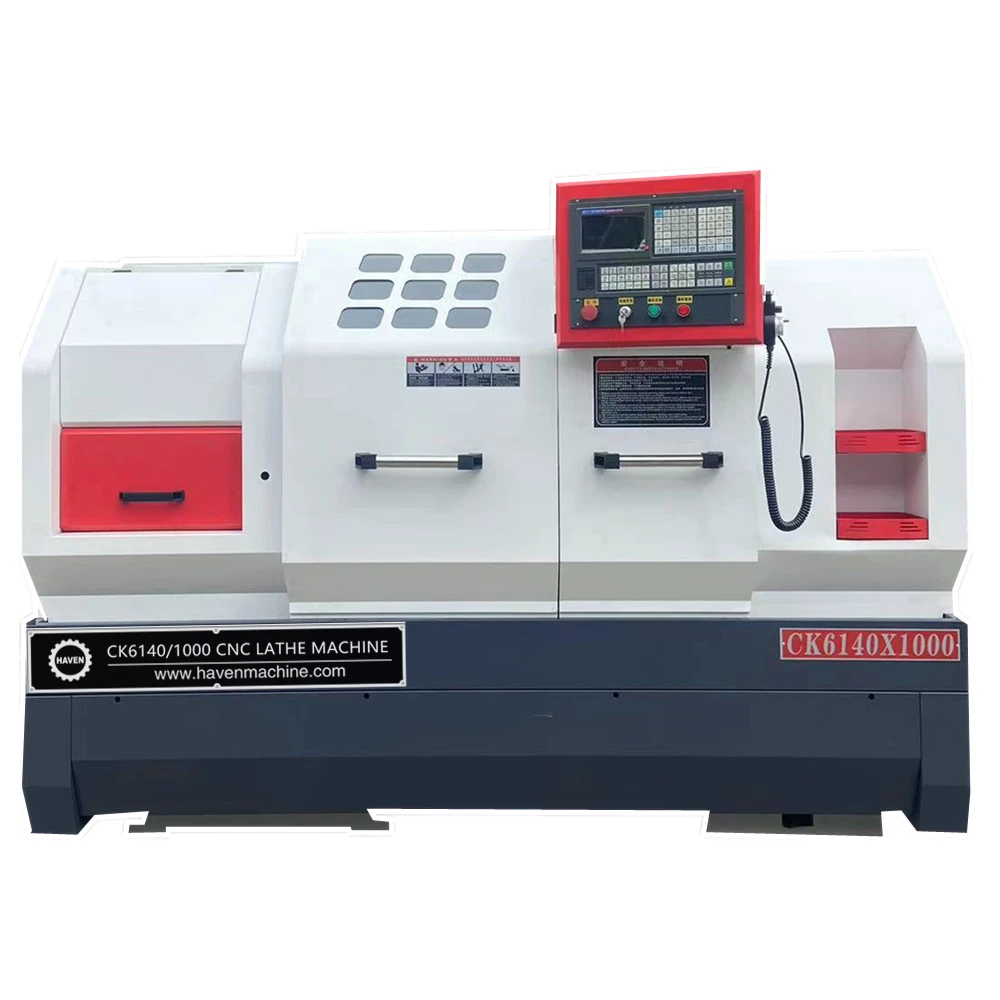

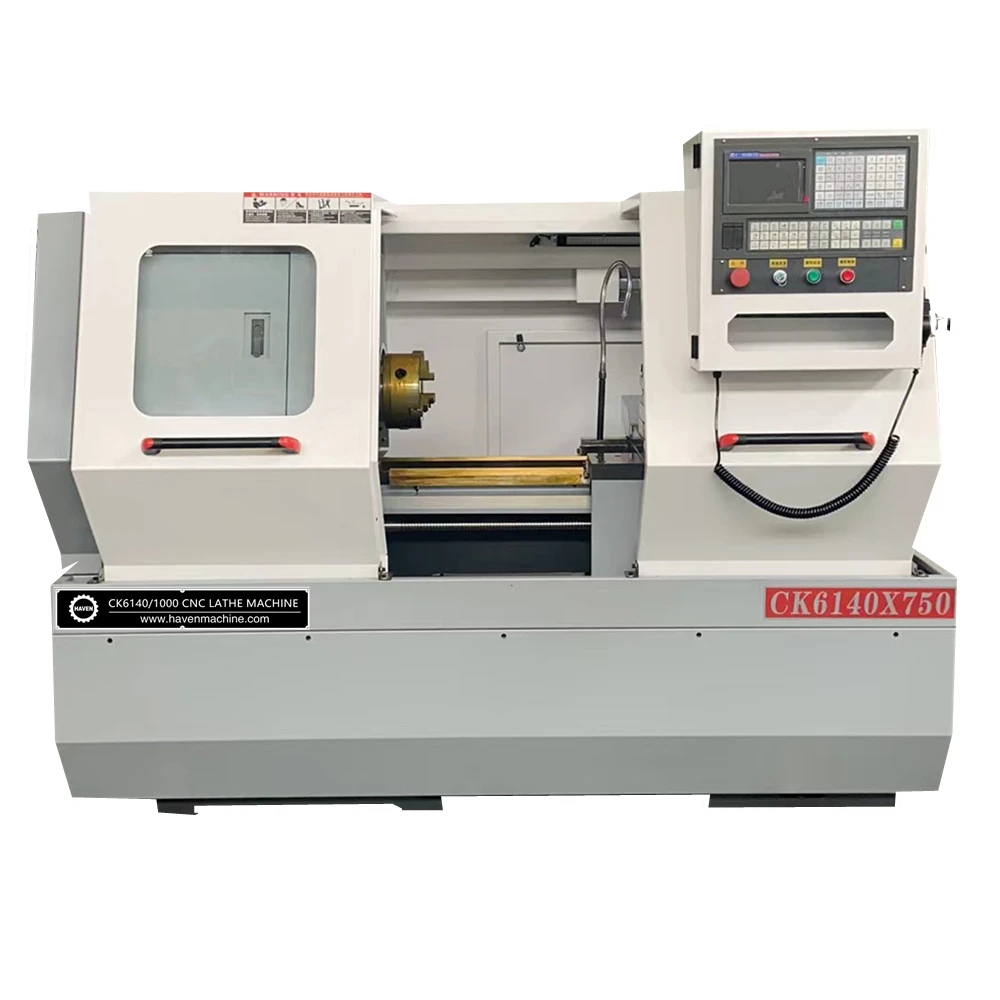

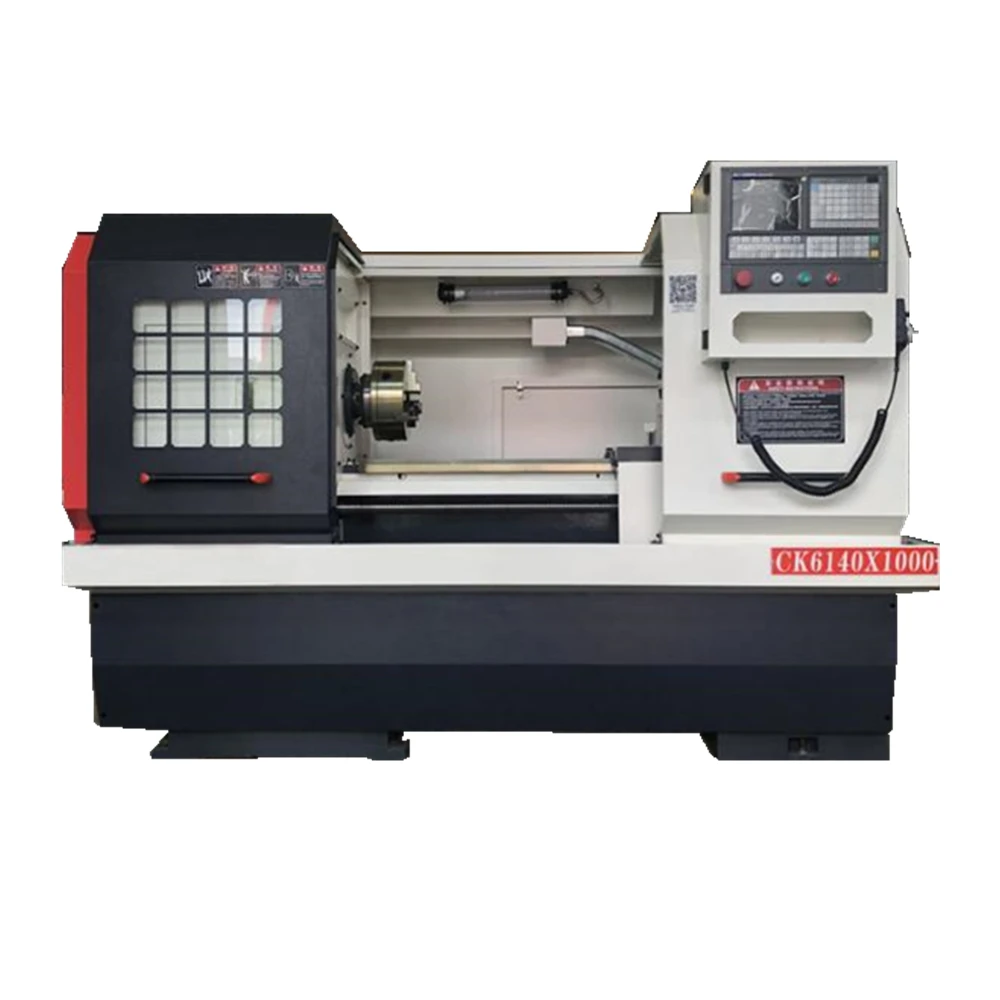

Specification | CK6140 | |||
Manual | HYD. | |||
Capacity | Swing over bed | 630mm | ||
Swing over cross slide | 350mm | |||
Distance between centers | 1500/2000/3000/4000/5000/6000mm | |||
Guideway width | 550mm | |||
Max. load capacity | 3T | |||
Spindle | Spindle bore | 104mm | ||
Spindle bore taper | Metric φ120/MT5 | |||
Spindle nose type | C11 | |||
Spindle speed steps | VF. 3 steps | HYD. 4 steps | ||
Spindle speed range | 20-1000rpm | 17-1000rpm | ||

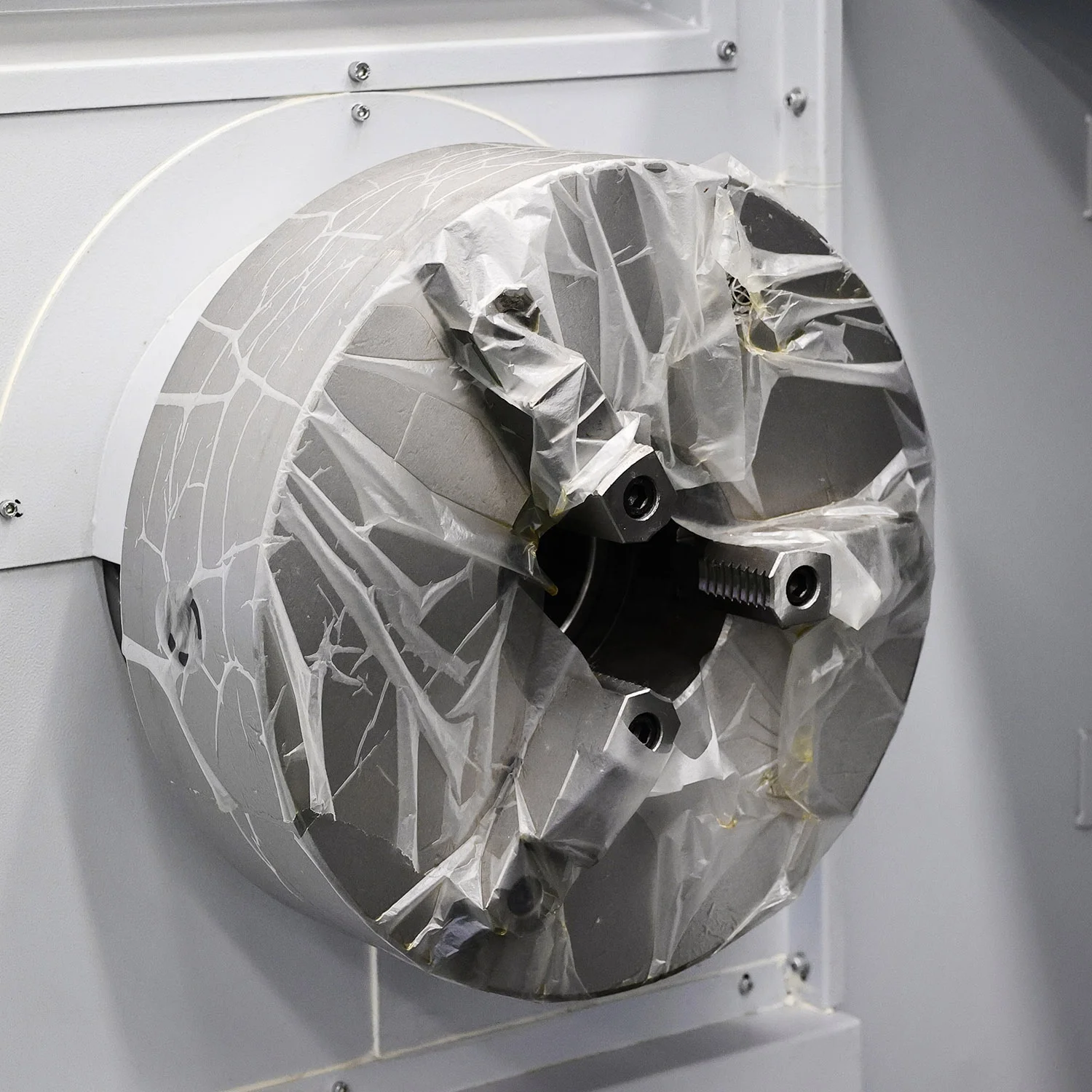

Chuck | Φ315mm 3-jaw manual | |||
Turret | Turret/tool post | NC turret 4 position | ||
Tool shank size | 32 x 32mm | |||
Feed
| X axis travel | 320mm | ||
Z axis travel | 1350/1850/2850/3850/4850/5850mm | |||
X axis rapid traverse | 4000mm/min | |||
Z axis rapid traverse | 6000mm/min | |||

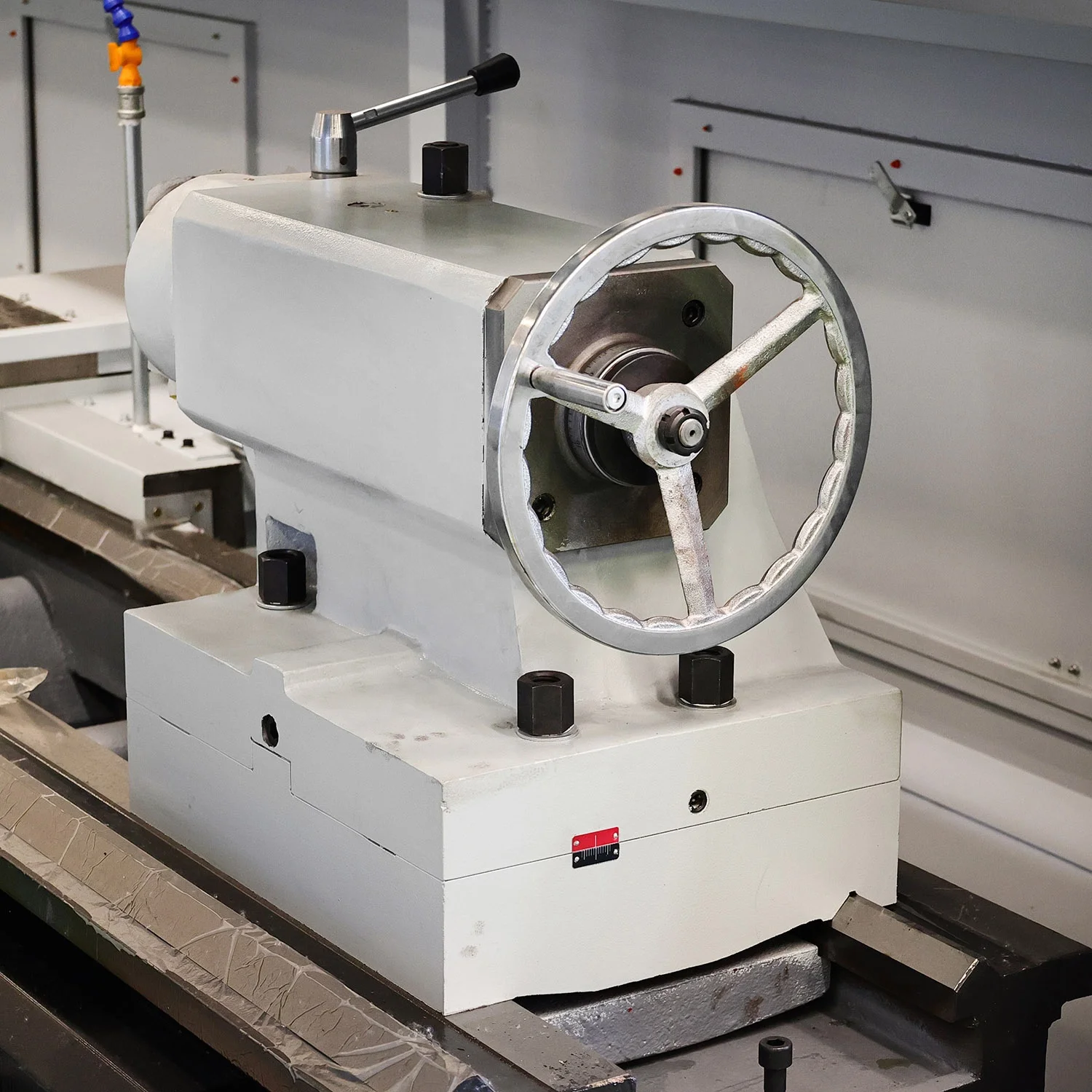

Tailstock | Tailstock quill diameter | Φ100mm | ||
Tailstock quill taper | MT5 | |||
Tailstock quill travel | 250mm | |||
Motor | Main spindle motor | 11kw | ||
Coolant pump motor | 0.125kw | |||
Dimension | Width x Height | 1750x 1850mm | ||
Length | 3800/4300/5300/6300/7300/8300mm | |||
Weight | Net weight | 3.8/4.2/4.9/5.6T/6.3/7.0 | ||
Please Note: Machine bed length can customize according to real work demand, CNC machine can choose servo motor direct driving structure turning center with C axis. | ||||
