Optical Power Meter VFL ,RJ11 RJ45 Wire Cable Tracer PoE Network Cable Tester for CAT5 CAT6 Toner Ethernet Cable
- Category: >>>
- Supplier: Shenzhen Chenzhoudao Intelligent Co. Ltd.
Share on (1600736823504):
Product Overview
Description
Network Cable Tester with 7 Wavelengths Optical Power Meter, PoE Tester with 10mw Visual Fault Locator, Lithium Battery Ethernet Wire Tracer with NCV & LED Light for CAT5 CAT6 RJ45
·Anti-interference Network Cable Tester: Adopt advanced digital/analog/POE mode, high sensitivity, less noise interference, easy to accurately locate the target cable, widely used in engineering wiring, network and equipment maintenance.
·Optical power Meter Test & Port Flashing: Connect the network cable to be tested to the transmitter, the wire tracker will automatically detect the optical fiber frequency and the port indicator will flash on the same screen, which can display the working speed of the port,
which is convenient for accurately locating the line and port.
which is convenient for accurately locating the line and port.

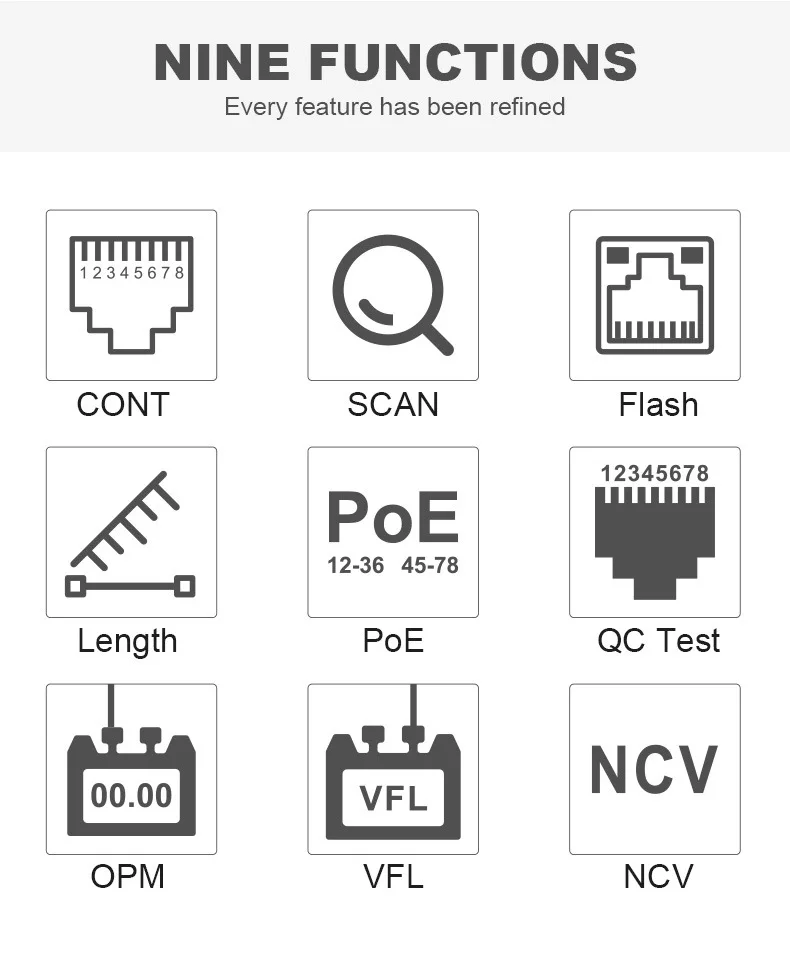

·Multifunctional Network Cable Tester: There are nine features to meet your needs. Continuity testing, cable scan, port flash, length measurement, POE Power Supply Test, QC testing, optical power meter, VFL function, and NVC function.
·PoE Testing: PoE testing can check cable mapping polarity and voltage of PoE network switches, withstand 60VDC. Automatically detects and switches between 10M/100M/1000M modes. Includes cable tracking, short circuit test, interruption of circuit test and etc.
·Cable Length Test: The RJ45 RJ11 cable tester can quickly measure the length of the cable with a range of 200m. Not only network cables, but also phone lines and BNC cables.

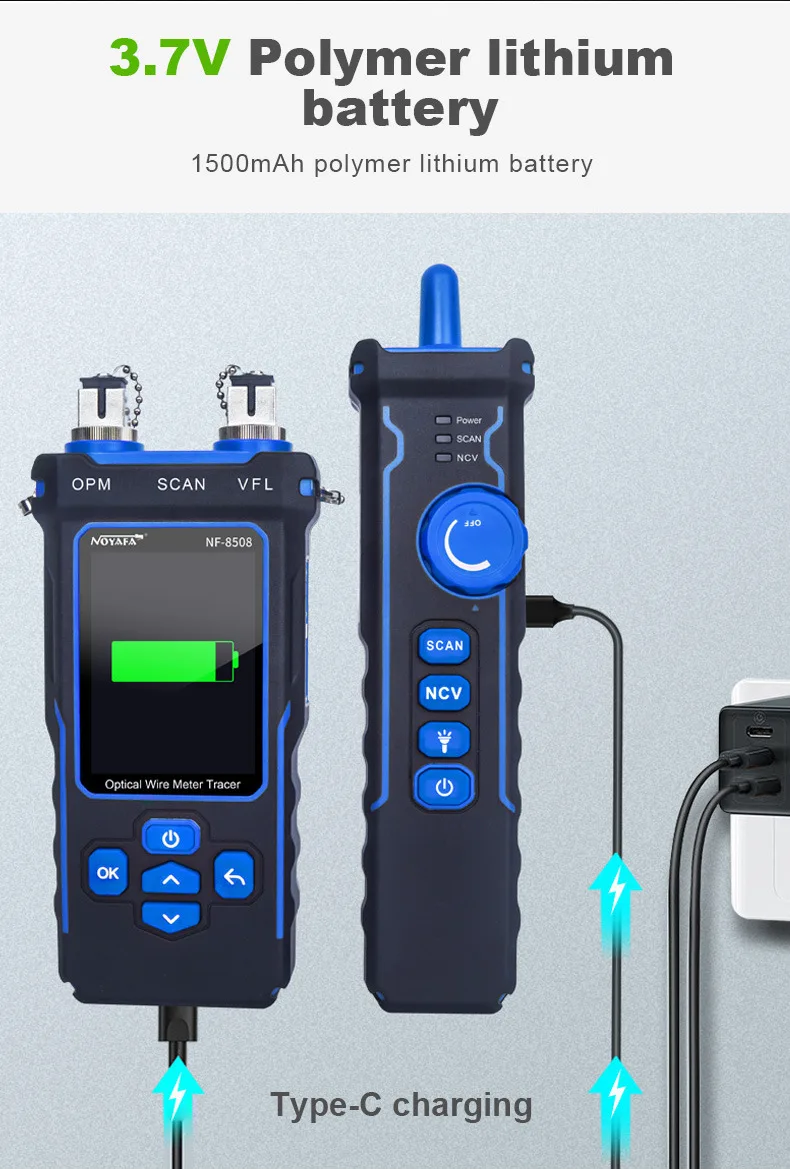

·Long Battery Life + Type-C Charging:Built-in 1500mah 3.7V lithium battery, running time of 10 hours, Type-C charging is more convenient. The flashlight solves the
trouble of working in the dark.
trouble of working in the dark.

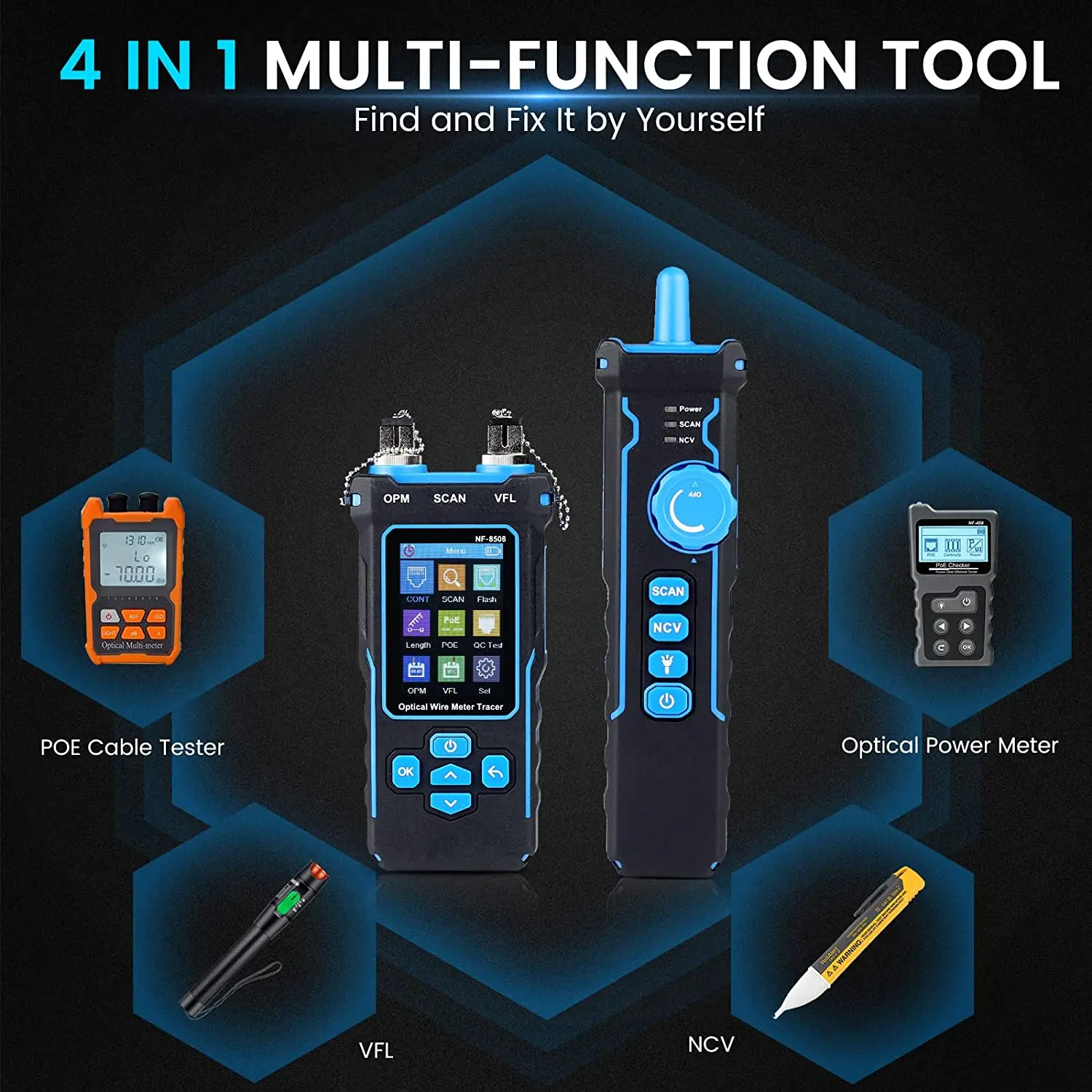

【4 in 1 Multi-function Tool 】
LAN cable tester, OPM, VFL and NCV combined on ONE tool. No more calls,no more costs, find and fix it by yourself.

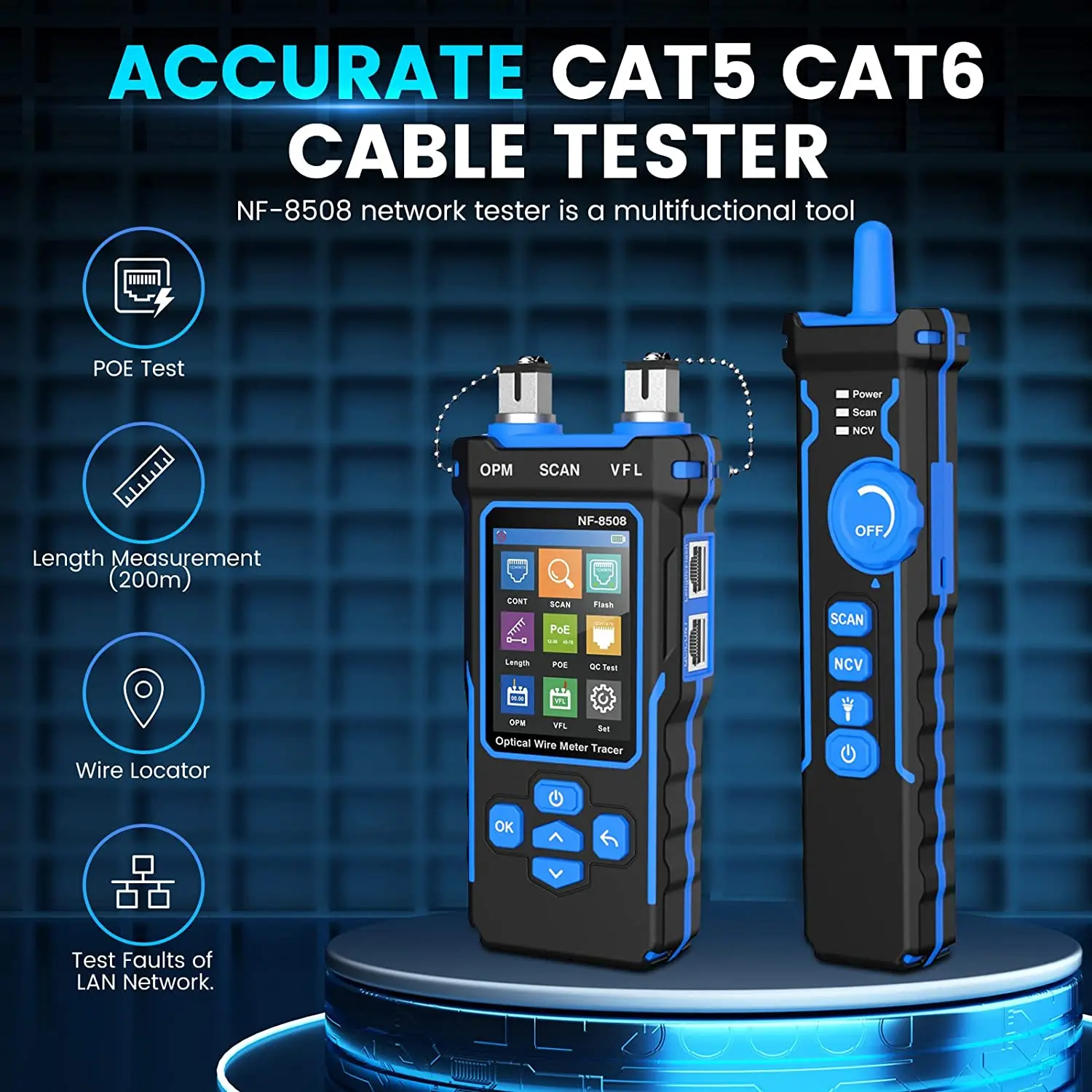

【Accurate CAT5 CAT6 Cable Tester】

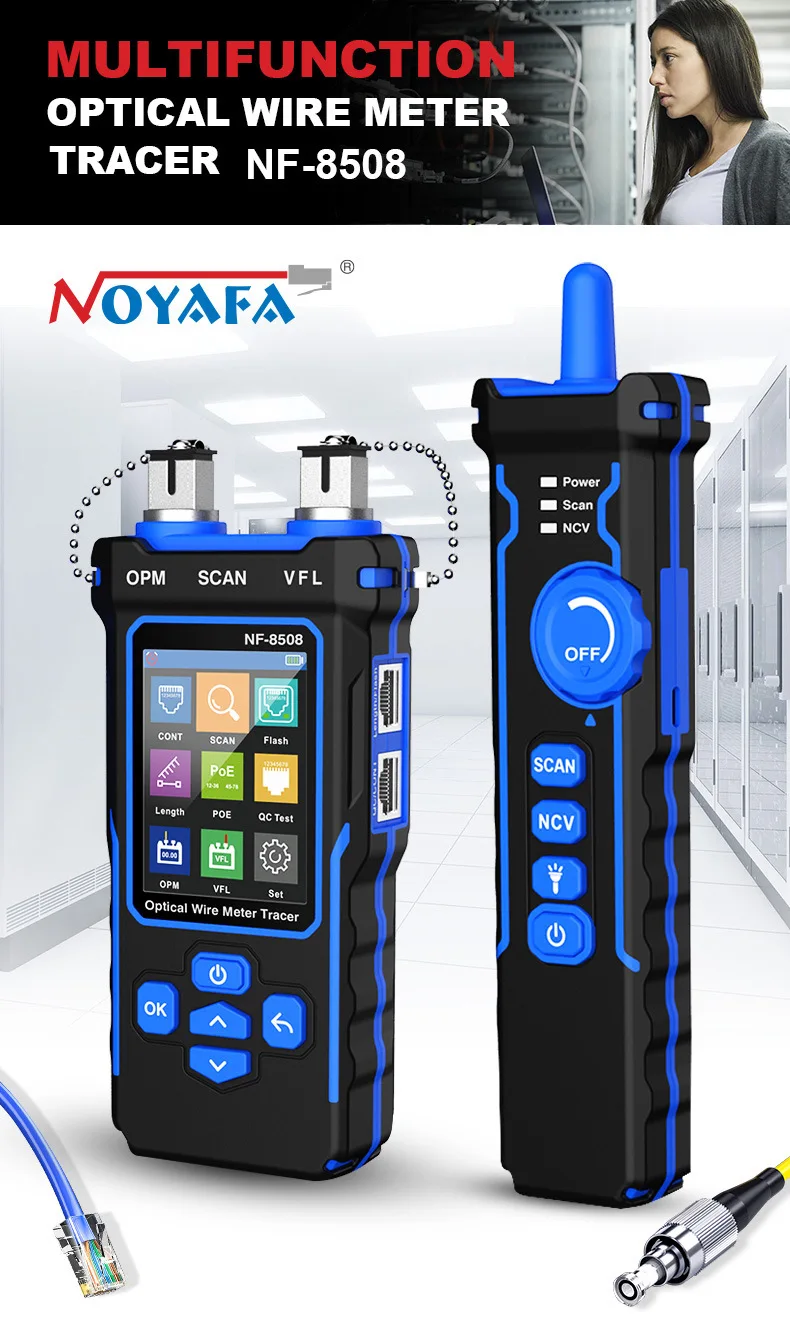

NF-8508 network tester is a multifuctional tool which can do POE test, length measurement, wire locator and tests the faults of LAN network.

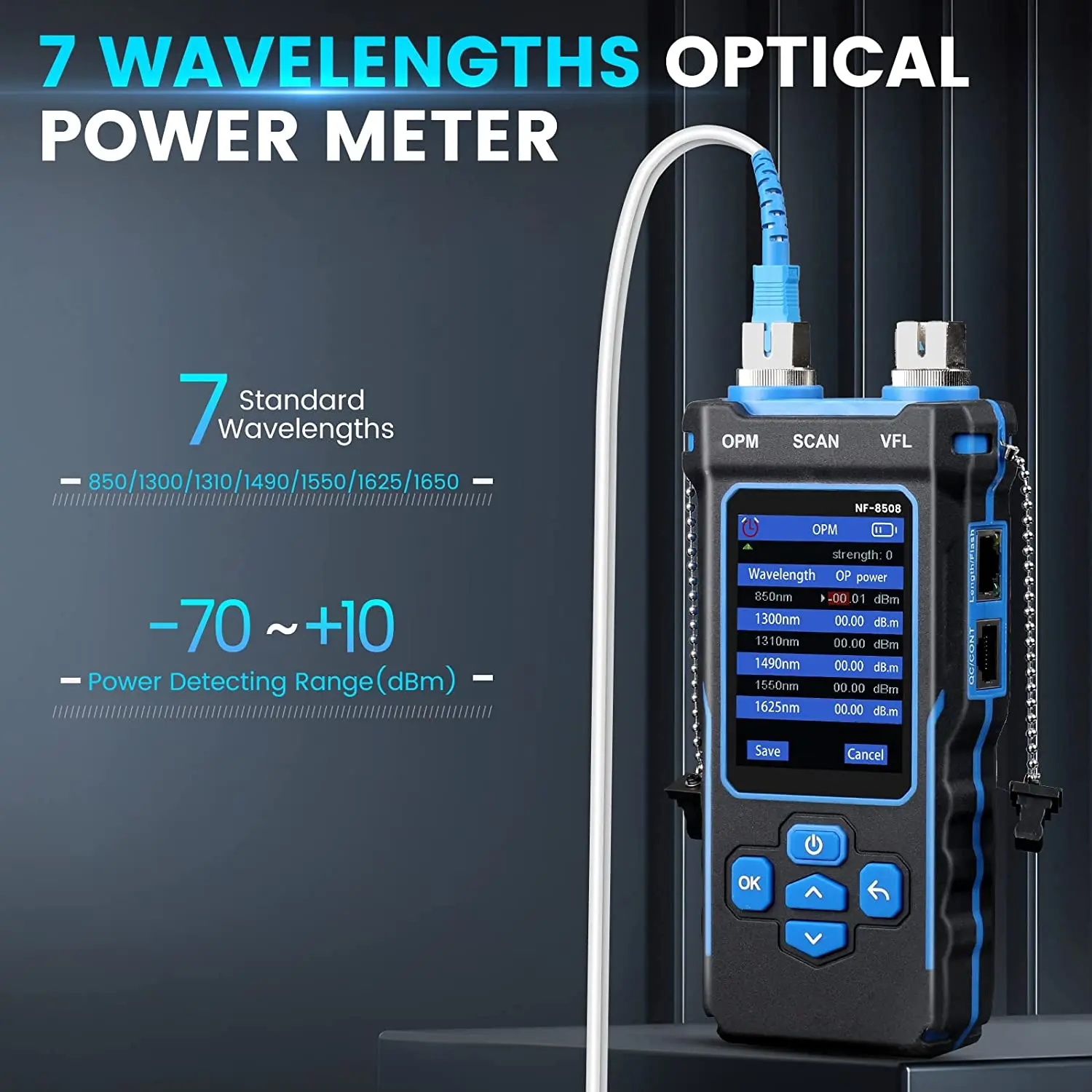

【7 Wavelengths Optical Power Meter】
Can measure 7 standard wavelengths,850/1300/1310/1490/1550/1625/1650, power detecting range(dBm): -70 ~ +10.

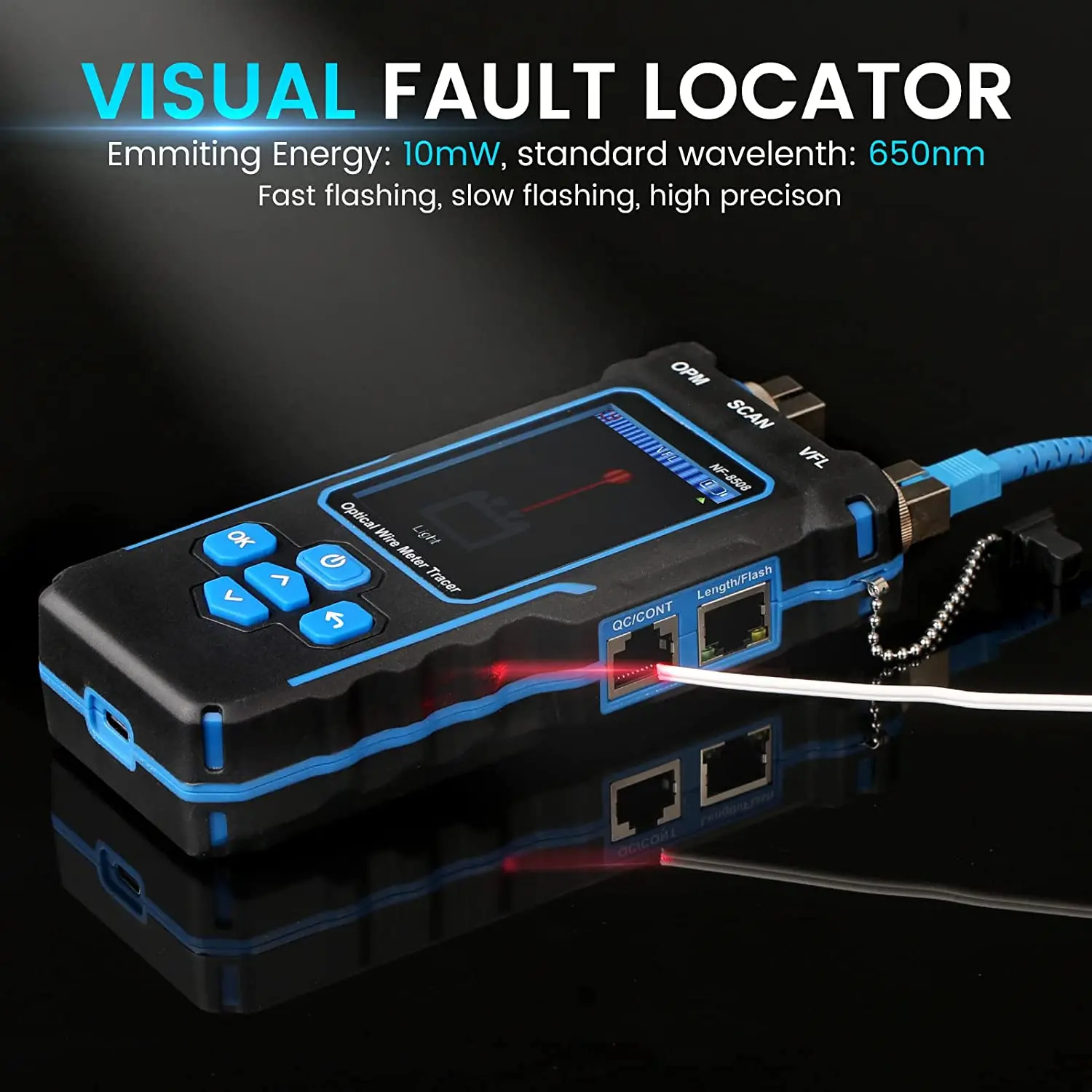

【Visual Fault Locator 】
Emmiting Energy:10mW, standard wavelenth: 650nm. Fast flashing, slow flashing, high precison.

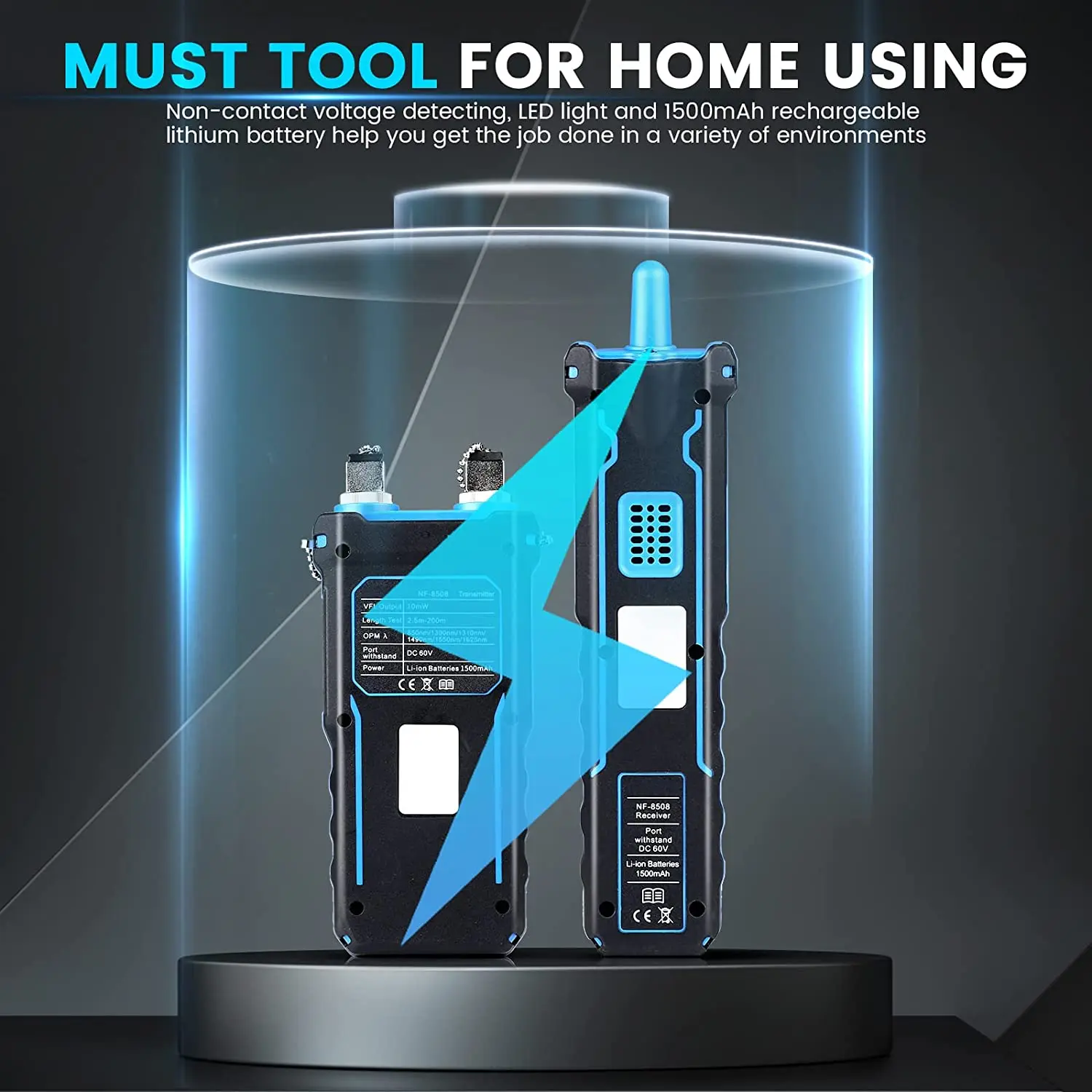

【Must Tool for Home Using】
Non-contact voltage detecting, LED light and 1500mAh rechargeable lithium battery help you get the job done in a variety of environments.

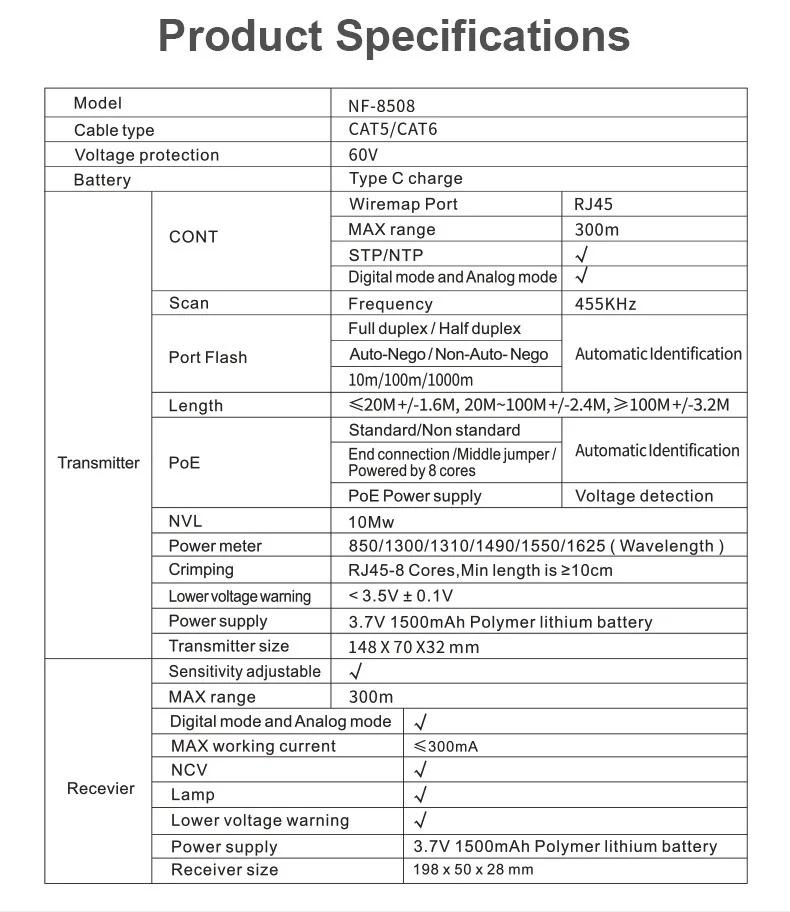

Wiremap-Cable Type | CAT5、CAT6 (STP & UTP) |
Wiremap-Test Switch Directly | Yes |
Wiremap-Max Range | 600m |
Scan-AC Filter | Yes |
Scan-Max Range | 600m |
Length-Test Range | 2-200m |
Length-Breakage Location | Yes |
PoE-Test Range | DC 5~60V standard / non-standard PoE switch |
PoE-Voltage Display | Yes |
PoE-PSE Type | IEEE 802.3af/at |
Voltage Protection | DC 48V 5mA |
Power Meter-Detecting Range | -70 ~ +10 (dBm) |
Power-Meter-Wavelenth | 800-1700 (nm) |
Power Meter-Probe | InGaAs |
Power Meter-Detection Limit | ∮1.0mm |
Power meter-Standard Wavelenth | 850, 1300, 1310, 1490, 1550, 1625, 1650nm |
Power meter-Display Resolution | 0.01dBm |
VFL-Emmiting Energy | 10mw |
VFL-Standard Wavelenth | 650nm |
