FCom HC 49USX 4 MHz 20ppm 9pF CSM 7X SMD Crystals Oscillators ABLS LR Resonators Crystals 49us HC49/4H
- Category: >>>
- Supplier: Shenzhen,Huihao,Electronic,Technology,Development,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

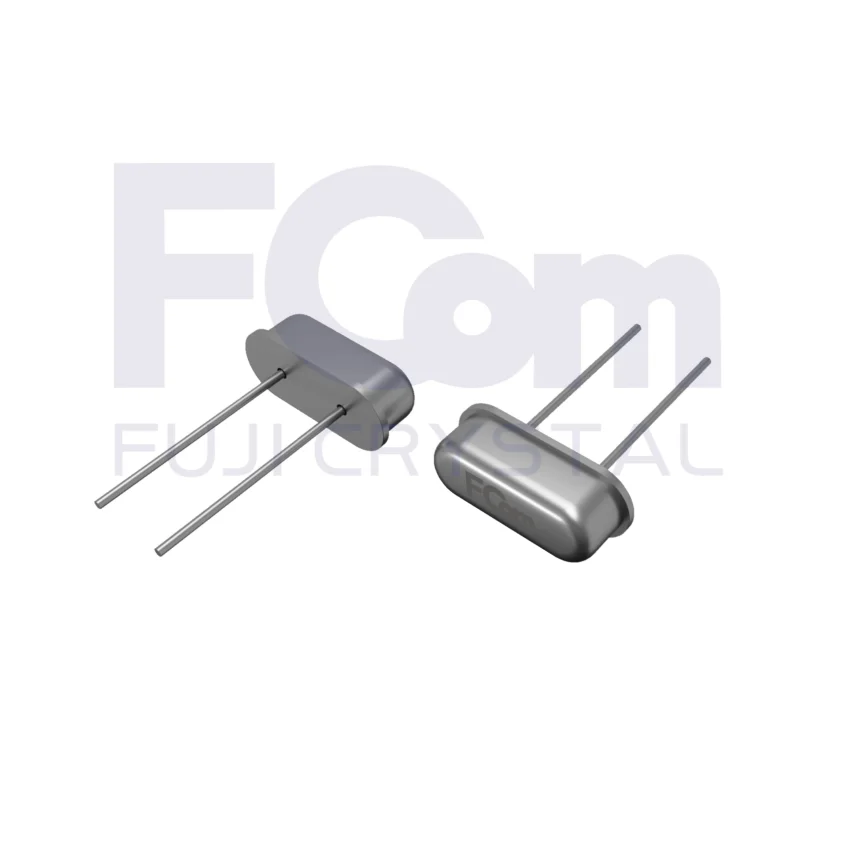

FCX-9S HC-49/US
Quartz Crystal Resonators
Model : HC-49/US Brand : FComType : Quartz Crystal Resonators
Nominal frequency : 4.000000MHz
Adjust frequency difference : ±20ppm
Temperature frequency difference : ±30ppm
Load capacitance : 9pF
Operating Temp. Range : -40~+85℃
HC-49U DIP PIN2P | ||||
Standard frequency | load capacitance | frequency deviation | ||
3.6864MHZ | 20PF | 20PPM | ||
3.579545MHZ | 20PF | 20PPM | ||
4MHZ | 20PF | 10PPM | ||
5.5296MHZ | 20PF | 20PPM | ||
8MHZ | 20PF | 20PPM | ||
10MHZ | 20PF | 20PPM | ||
11.0592MHZ | 20PF | 10PPM | ||
12MHZ | 20PF | 10PPM | ||
13.560MHZ | 20PF | 20PPM | ||
16.000MHZ | 12PF | 20PPM | ||
20MHZ | 20PF | 20PPM | ||
24MHZ | 20PF | 20PPM | ||
24.576MHZ | 20PF | 20PPM | ||
25MHZ | 20PF | 20PPM | ||
26MHZ | 20PF | 20PPM | ||
27.120MHZ | 20PF | 20PPM | ||
27MHZ | 20PF | 20PPM | ||
28.6363MHZ | 20PF | 20PPM | ||
30MHZ | 20PF | 20PPM | ||
36MHZ | 20PF | 20PPM | ||
Excitation Level | Quartz Crystal (mW) |
Reference temperature | -20~+70 (℃) |
Insertion loss | 49S 8M in-line (dB) |
Stop Band Attenuation | 8M DIP (dB) |
