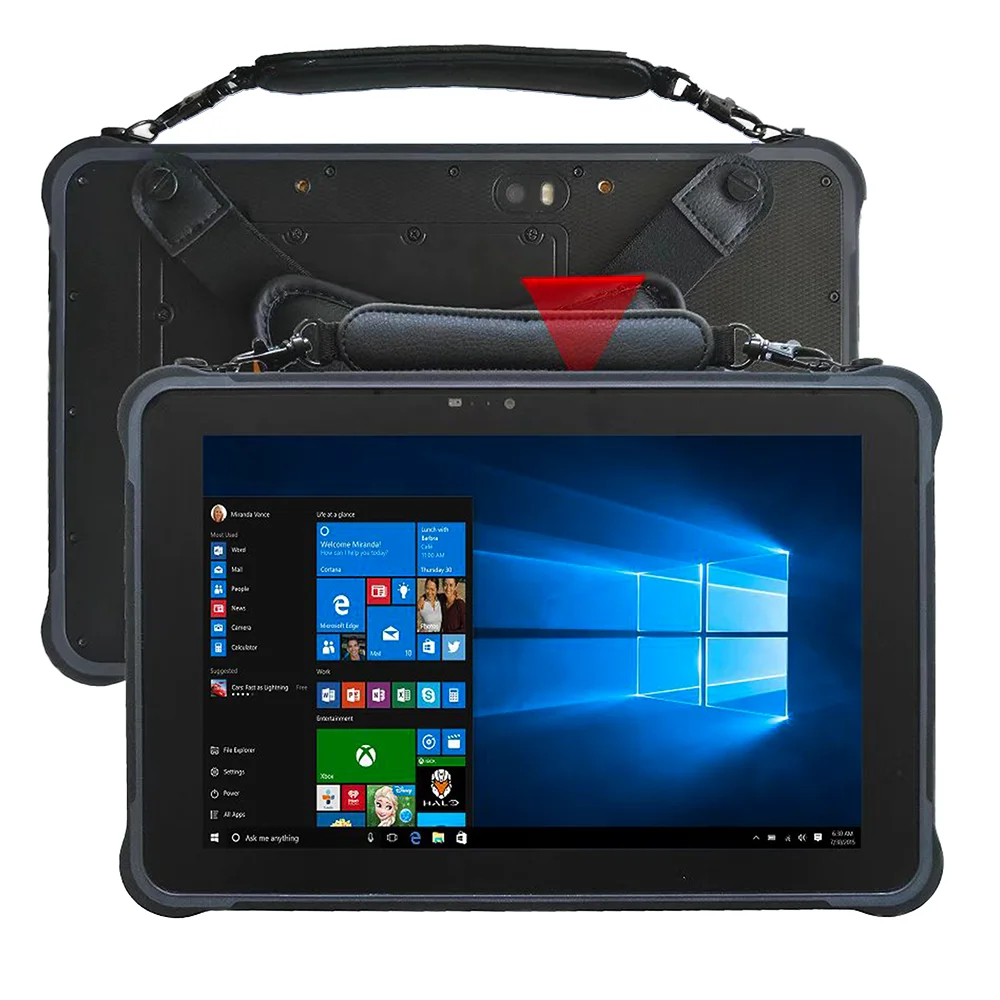

Intel S16 Wholesale Cheap Rugged Tablet Pc Windows11 Waterproof Tablet Pc Business OEM Windows 10 USB Type C 64GB Quad Core
- Category: >>>
- Supplier: Shenzhen United Touch Technology Co. Ltd.
Share on (1600736835293):
Product Overview
Description
Specification
Performance parameter | CPU | Intel cherry trail Z8350，1.44Ghz-1.92GHz | |
OS | windows 10 pro | ||
RAM/ROM | 4GB+64GB | ||
language | multi language | ||
Display parameters | Size | 10.1 inch | |
Resolution | 1920*1200 | ||
Touch parameters | Touch type | Capacitive touch pane | |
Touch mode | Support 10 points touch G+G | ||
Basic parameters | Camera | Front Camera 2.0M+Rear Camera 5M.0M | |
GPS | Support Beidou+GPS+glonass；Capture sensitivity:-163 dBm；Cold start：35seconds， Hot start：1seconds | ||
NFC | ISO/IEC14443，ISO/IEC15693，MIFARE，Felica，Read distance：3-5cm，Front | ||
TF card | Extended external storage x1 | ||
Key | Power, V+，V-，P, F, H | ||
Product weight | 1040g | ||
Product size | 275*178*18mm | ||
Data communication | WIFI | 802.11a/b/g/n/ac, Wireless AP ( Mobile AP )2.4G, 5G | |
Bluetooth | BT4.0,Transmission distance:8 meter | ||
Frequency bands | TDD-LTE：B40 | ||
FDD-LTE：B1/B2/B3/B4/B5/B7/B8/B28 | |||
WCDMA：B1/B2/B4/B5/B8 | |||
GSM：B2/B3/B5/B8 | |||

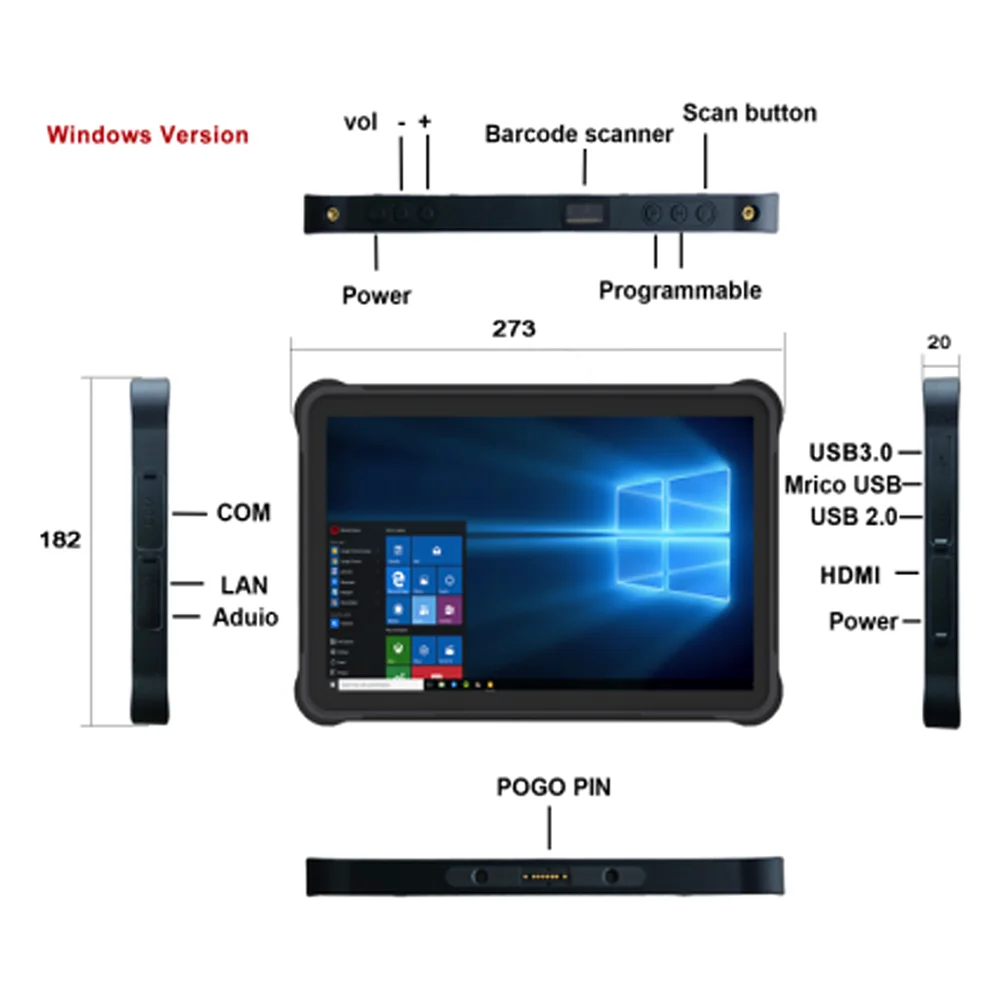

Interface | Type-A | USB2.0 x1 | |
Type-A | USB3.0 x1 | ||
Microusb | x1 | ||
HDMI | HDMI Type A x1,Audio and video output | ||
RJ45 Ethernet | 10/100/1000M x1 | ||
3.5mm Headphone interface | ∮3.5mm Standard headphone interface x1 | ||
DB9 RS232 | 9-pin serial port x1 | ||
DC power interface | DC 5V 3A ∮3.5mm power interface x1 | ||
Sensor | Light sensor | Support | |
Gravity senson | Support | ||

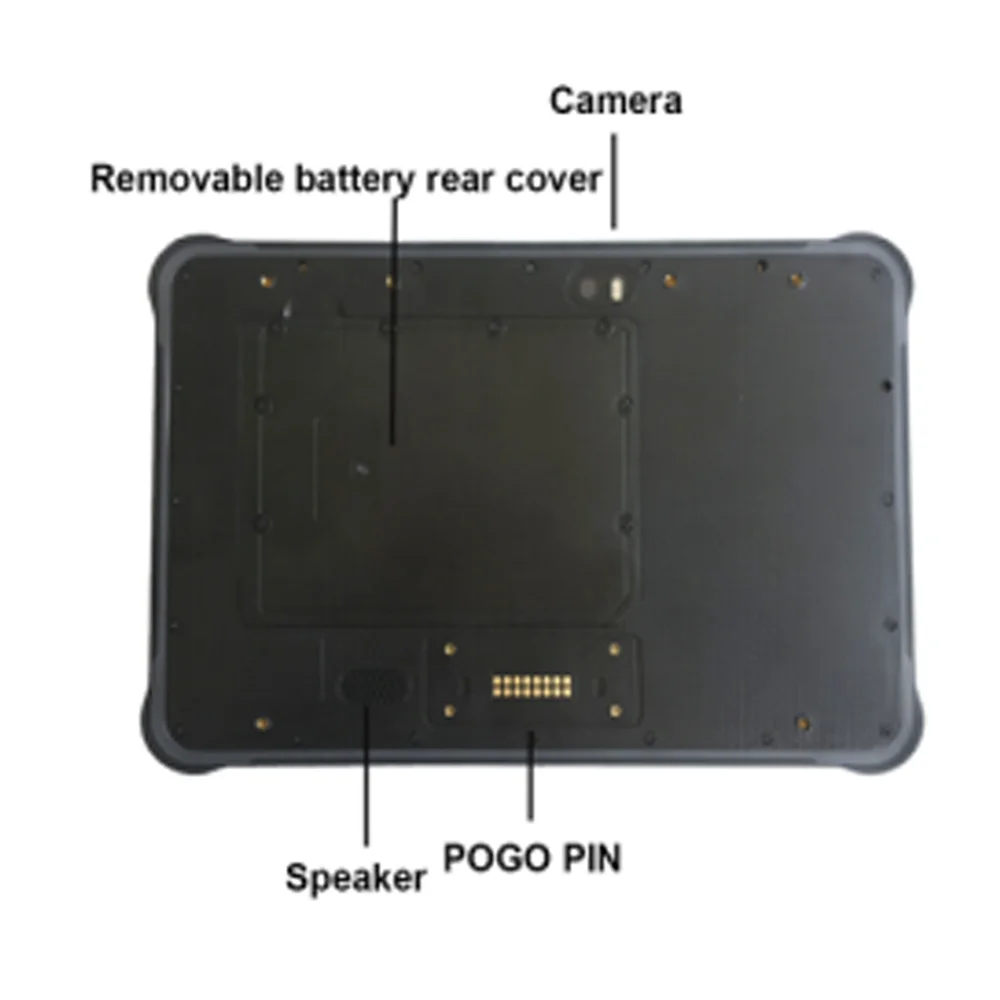

Pogopin | Back 16PIN | USB2.0x1+UART TTLx1 | |
Bottom 8PIN | USB2.0x1+UART TTLx1x1+Charge | ||
Multi-media | Photo viewer | BMP, JPG, GIF, PNG | |
Video format | MEPG 1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG. (UP TO 1080P) | ||
Audio format | MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AAC,AC-3,DTS (need license) | ||
Product reliability | Degree of protection | 1. Waterproof IP65，but in fact is IP67 design | |
2. Drop 1.2m, 6 sides | |||
Certification standards | 1. Military 810G EU CE, US FCC | ||
Operating Temperature | －20℃～60℃ | ||
Battery performance | Battery type | Built in removable Li-ion Polymer Battery | |
Battery Rated capaacity | 10500mAh | ||
Endurance time | Play video duration About 7 Hous | ||
Screen standby durationAbout 12 Hous | |||
Optional | Fingerprint module AFM60、N3680 Series 2D Scan Engines、High precision GNSS module TAU1201、UHF RFID | ||
Product Description
Company Profile
Established in 2005, United Touch is an rugged tablet pc R&D manufacturer with 18 years of demonstrated experience in rugged tablet pc, digital frame, touch display OEM & ODM services field.
United Touch has invested one million dollars in rugged tablet pc development.
FAQ
1. Are you manufacturer?
Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and
demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
3.What is the minimum order(MOQ)?
We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed
requirements and confirm MOQ to you from our sales department.
4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the
sample firstly for the testing and evaluation.
5. Can i choose multiple function into 1 device?
Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID
(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
6.How to order and pay?
We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
7.What's Your Products Warranty?
We Offer 24 Months Warranty after shipment sent.
8.Can I extend the warranty?
We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
9.How long it will take for delivery?
For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around
3-5 working days. For some remote place, delivery time maybe a little bit longer.
10.How to repair the device if any problem ?
We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and
teach customer to fit if they have technician or can also send backto us to fix it.
11.Can you do customized and preload our software?
We are professional rugged device manufacture with 11 years experiences
Yes, we are manufacturers.We can provide OEM / ODM customized service according to our customers’ various application and
demands.All of our products are fully patented, ID/MD design, hardware and software,mold,assembly are done by our own team.
2. Would you provide SDK for me?
Yes, we offer free SDK if you order sample.In addition, we also have support engineers to assist you with software development.
3.What is the minimum order(MOQ)?
We accept one unit for standard products.we can even customized with your logo if needed. If require OEM, will see detailed
requirements and confirm MOQ to you from our sales department.
4. Can we get the free sample?
Sorry, generally we would not provide the free sample. If the customer confirm the specification and price, they can order the
sample firstly for the testing and evaluation.
5. Can i choose multiple function into 1 device?
Yes, you can choose multiple fuction into onedevice, Different functions depending on the product model,optional functions:RFID
(LF/HF/UHF)1 Fingerprint/ Bar code scanner.
6.How to order and pay?
We accept T/T (bank transfer), Alibaba online,Western Union 1 Trade Assurance
7.What's Your Products Warranty?
We Offer 24 Months Warranty after shipment sent.
8.Can I extend the warranty?
We offer a deferred warranty for up to 36 Months, and the price for the warranty extension is 10% up.
9.How long it will take for delivery?
For production lead time around 3-10days depend on requirement, and shipping time by DHL/UPS/FEDEX/TNT, delivery time would around
3-5 working days. For some remote place, delivery time maybe a little bit longer.
10.How to repair the device if any problem ?
We will provide technical support online to solve problem; If for the hardware problem , we couldsend the parts or components and
teach customer to fit if they have technician or can also send backto us to fix it.
11.Can you do customized and preload our software?
We are professional rugged device manufacture with 11 years experiences
