Product Overview
Description
Product Description
Model | CHCI-3.6K-5.12kWh | CHCI-3.6K-10.24kWh | CHCI-5.0K-5.12kWh | CHCI-5.0K-10.24kWh | CHCI-6.0K-5.12kWh | CHCI-6.0K-10.24kWh | ||||||
PV Input | ||||||||||||
Absolute max Voltage (V) | 600 | |||||||||||
MPPT Voltage Range (V) | 100...550 | |||||||||||
Max. DC Input Power (W) | 4800 | 6650 | 8000 | |||||||||
Start-up Voltage (V) | 90 | |||||||||||
Rated Operating Voltage (V | 360 | |||||||||||
Max. Input Current (A) | 12.5/12.5 | |||||||||||
Isc PV (A) | 18/18 | |||||||||||
NO. of MPP Trackers | 2 | |||||||||||
NO. of Strings per MPP Tracker | ||||||||||||
Battery | ||||||||||||
Battery Capacity | LiFeP04 5.12kWh/10.24kWh | |||||||||||
Nominal Battery Voltage (V) | 204.8/409.6 | |||||||||||
Battery Voltage Range (V) | 160...227.2/320...454.4 | |||||||||||
Max. Charge/Discharge Current (A) | 25/25 | |||||||||||
AC Input/Output | ||||||||||||
Max. Apparent Power to Grid (VA) | 3600 | 5000 | 6000 | |||||||||
Rated Power (W) | 3600 | 5000 | 6000 | |||||||||
Max. Apparent Power from Grid (VA) | 7200 | 10000 | 12000 | |||||||||
Rated Voltage (V) | 220/230/240 | |||||||||||
Rated Frequency (Hz) | 50/60 | |||||||||||
Rated AC Current to Grid (A) | 15.6 | 21.7 | 26.1 | |||||||||
Rated AC Current from Grid (A) | 31.2 | 43.4 | 52.2 | |||||||||
Rated AC Current from Grid (A) | 31.2 | 43.4 | 52.2 | |||||||||
Displacement Power Factor | 1（-0.8…+0.8 adjustable) | |||||||||||
THDi | ＜3% | |||||||||||
Max. Output Power (W) | 3600 | 5000 | 6000 | |||||||||
Rated Apparent Power (VA) | 4320 | 6000 | 7200 | |||||||||
Rated Voltage (V) | 230(±2%） | |||||||||||
Norminal Frequency (Hz) | 50/60(±0.2%） | |||||||||||
Rated Output Current (a.c.A) | 18.8 | 26.1 | 31.3 | |||||||||
Switch time (ms) | ＜10 | |||||||||||
THDv @Linear Load (%) | ＜2 | |||||||||||

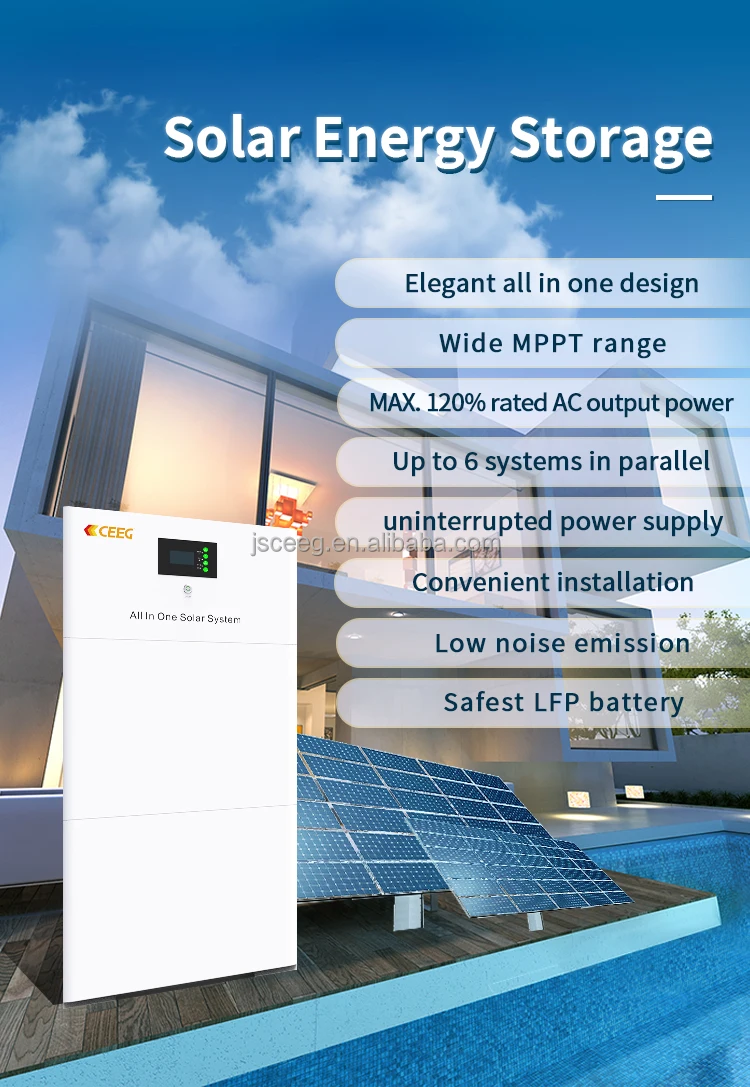

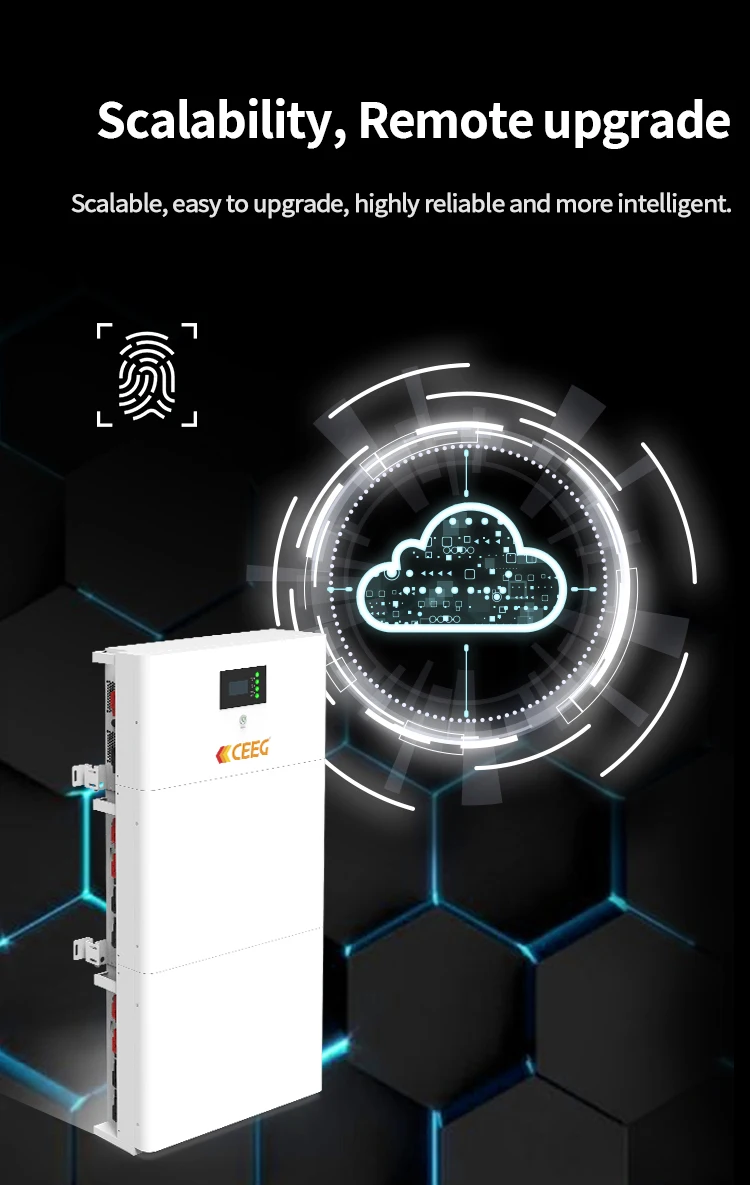

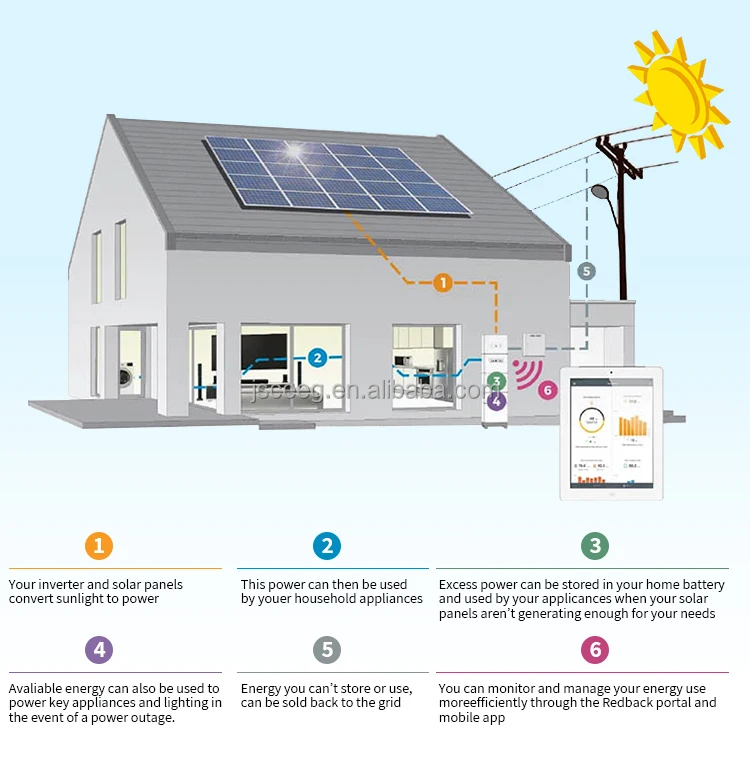

Detailed Images
Related Products
Packing&Delivery
Company Introduction
Headquartered in Nanjing, CEEG Electric Group Co., Ltd. was formerly an enterprise supported by the Ministry of energy. Since its establishment in 1990, the company adheres to the core value concept of "vision, innovation and responsibility" takes "outputting high quality power for the world" as its own responsibility, focuses on production and manufacturing for more than 30 Years, and forms three module: transmission and distribution transformer photovoltaic energy storage and intelligent distribution system
solutions. in 2011, CEEG electric ranked 43 among the top 100 private enterprises in Jiangsu Province with sales of 10.9 billion yuan in 2010, and was awarded the "10 billion scale enterprise" by the provincial Commission of economy and information technology, in August 2011. CEEG ranked 183 among China's top 500 private enterprises. ranking ninth in Nanjing and first in ZhengJiang
CEEG electric adheres to the development strategy of "walking with giants and keeping pace with the world", and built in long-term strategic cooperative relations with excellent enterprises at home and abroad, such as DuPont, Schneider Electric, Siemens, Hitachi Metals and WISCO. The company has been rated as an innovative enterprise. 4A level standardized good behavior enterprise. national environment-friendly enterprise. National AAA level light integrated enterprise.etc
