Crawler Solar Pile Driver Attachment Deep Hole Hammer Pile Driver Machine for Sale
$15,999.00-18,999.00

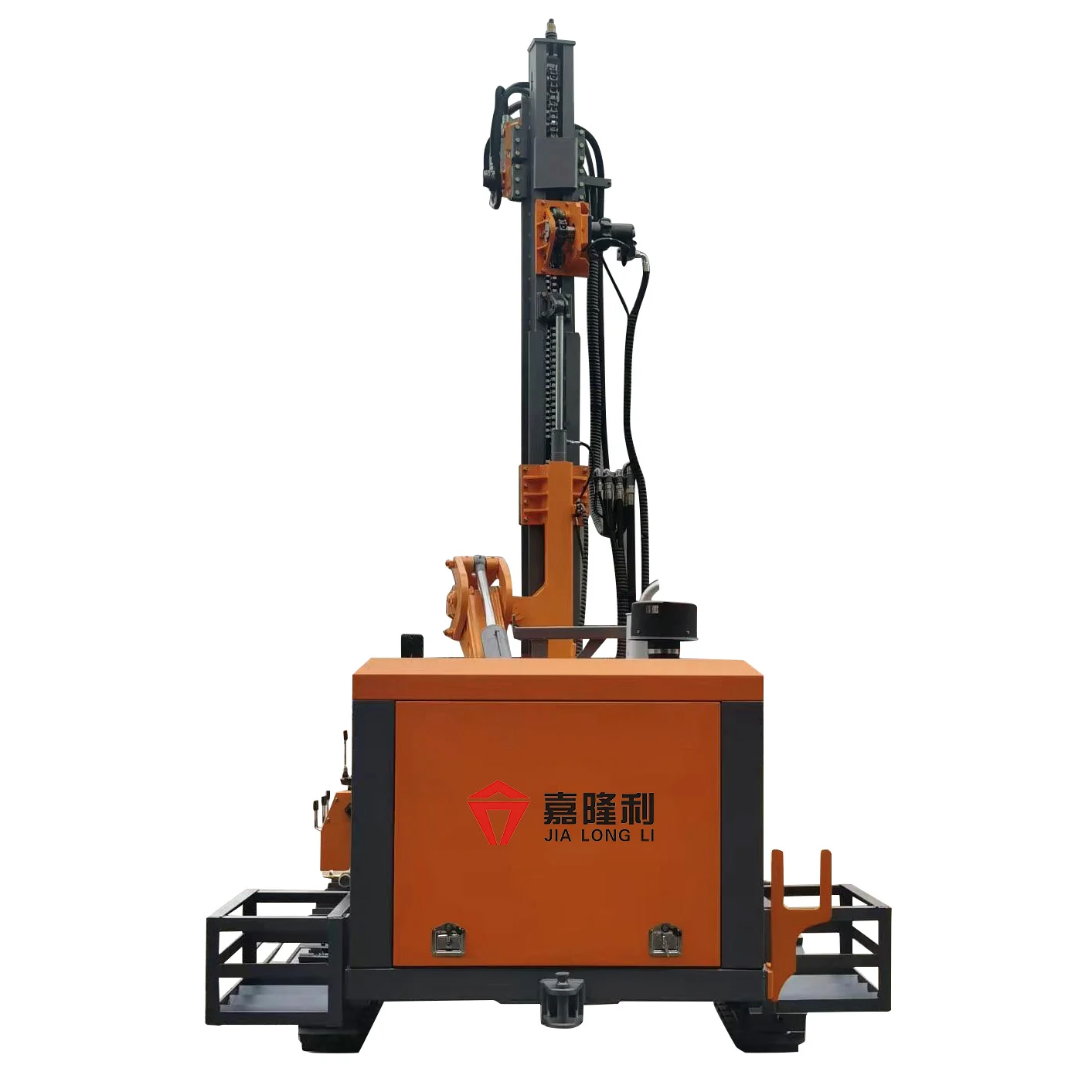

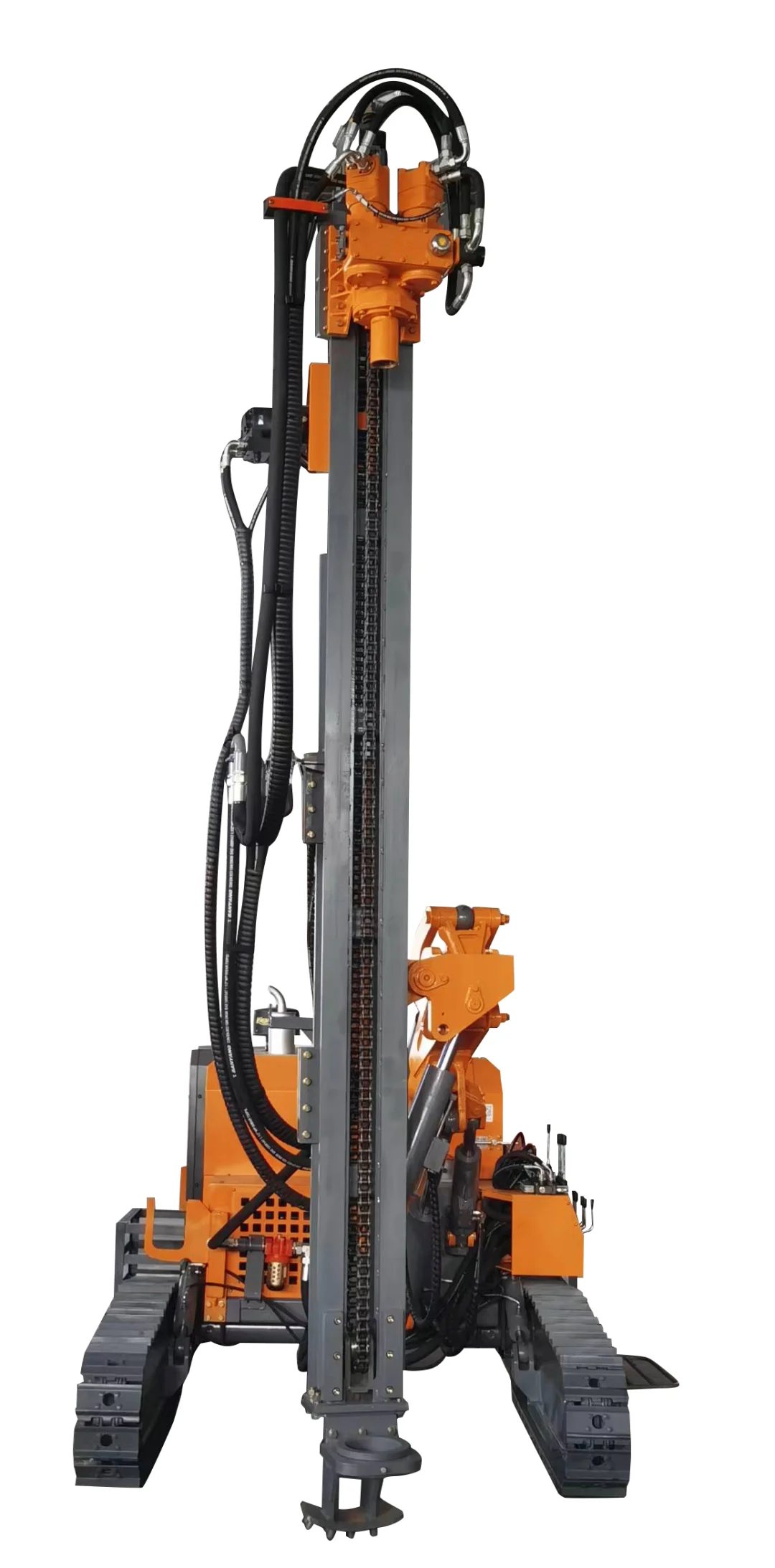

ZGYX 420GF Functional Full Hydraulic Impact Hammer Pile Driver For Foundation Construction
- Category: >>>
- Supplier: Henan Jialongli Imp&Exp Trading Co. Ltd.
Share on (1600737144286):
Product Overview
Description
Products Description
High Quality Solar Pile Driver
In recent years, the photovoltaic market has developed strongly. We have a variety of split drilling rigs suitable for photovoltaic projects, such as anchor drilling rig ZGYX-430S/435S, with large aperture and high torque to meet the market demand of the photovoltaic industry. The two new models developed this time are safe and efficient, and are also suitable for the construction of large-aperture and ultra-large-aperture photovoltaic pile projects. According to market demand, Jialongli Machinery has enriched product functions and brought more choices to customers.
Product Paramenters
Model of Drill Rig | 420GF | 430GF |
Weight of Machine | 6100KG | 7000KG |
Outer Dimensions | 7000x2280x2700 mm | 7200x2230x2700 mm |
Supporting Power | YCF36-100 74kw | YC4DK-100 73.5KW |
Drilling Hardness | F=6~20 | F=6~20 |
Drilling Diameter | 200-350mm | 200-350mm |
Rotation Speed | 55-110 r/min | 36-105 r/min |
Rotation Torque (MAX) | 8000N.m | 8000N.m |
Pull up Force (MAX) | 25KN | 25KN |
Method of Feed | Motor Chain | Motor Chain |
Feed Stroke | 3875mm | 3875mm |
Feed Force(MAX) | 25KN | 25KN |
Working Air Pressure | 0.7~2.5Mpa | 0.7~2.5Mpa |
Climbing Capacity | 35° | 35° |
Ground Clearance | 310mm | 310mm |
Tilt Angle of Beam | Over180° | Over180° |
Swing Angle of Boom | left50°right50°/left15°right95° | left50°right50°/left15°right95° |
Swing Angle of Drill Boom | Up41° Down31° | Up 48° Down37° |
Leveling Angle of Track | ±10° | ±10° |
Details
High Torque Large Bore

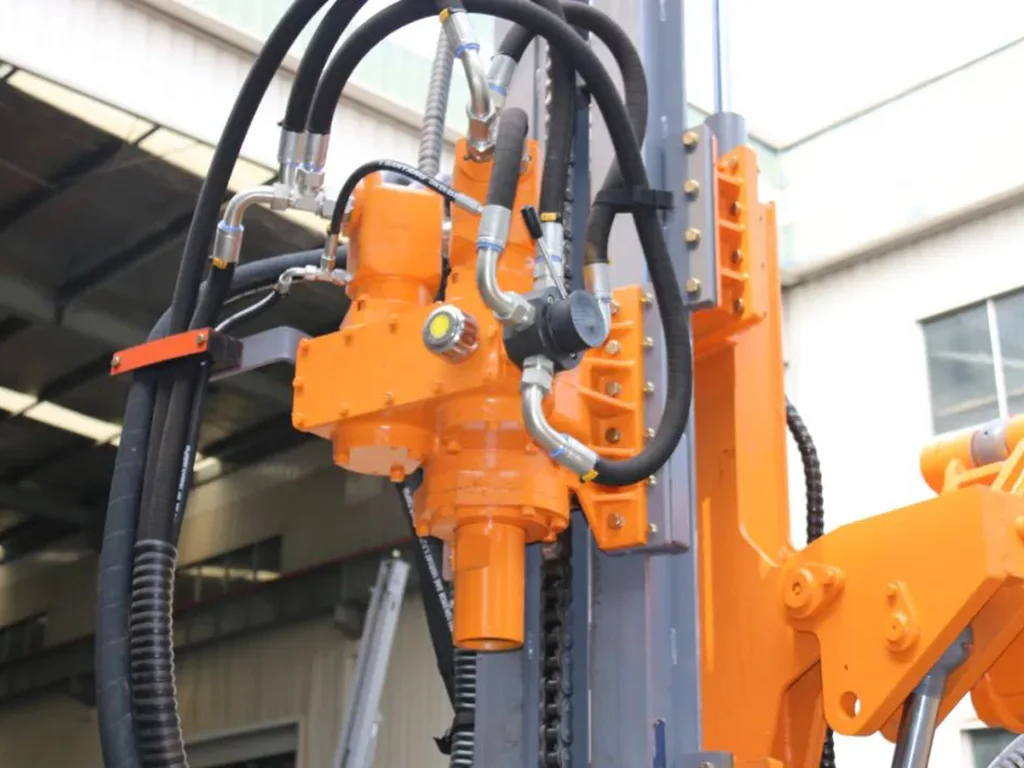

The 420GF and 430GF photovoltaic drilling rigs are designed with high-torque rotary heads, with a torque of up to 8000N/M, to meet the needs of Φ176-300-400mm large-aperture and ultra-large-aperture photovoltaic piles;
Both structure and quality are reliable

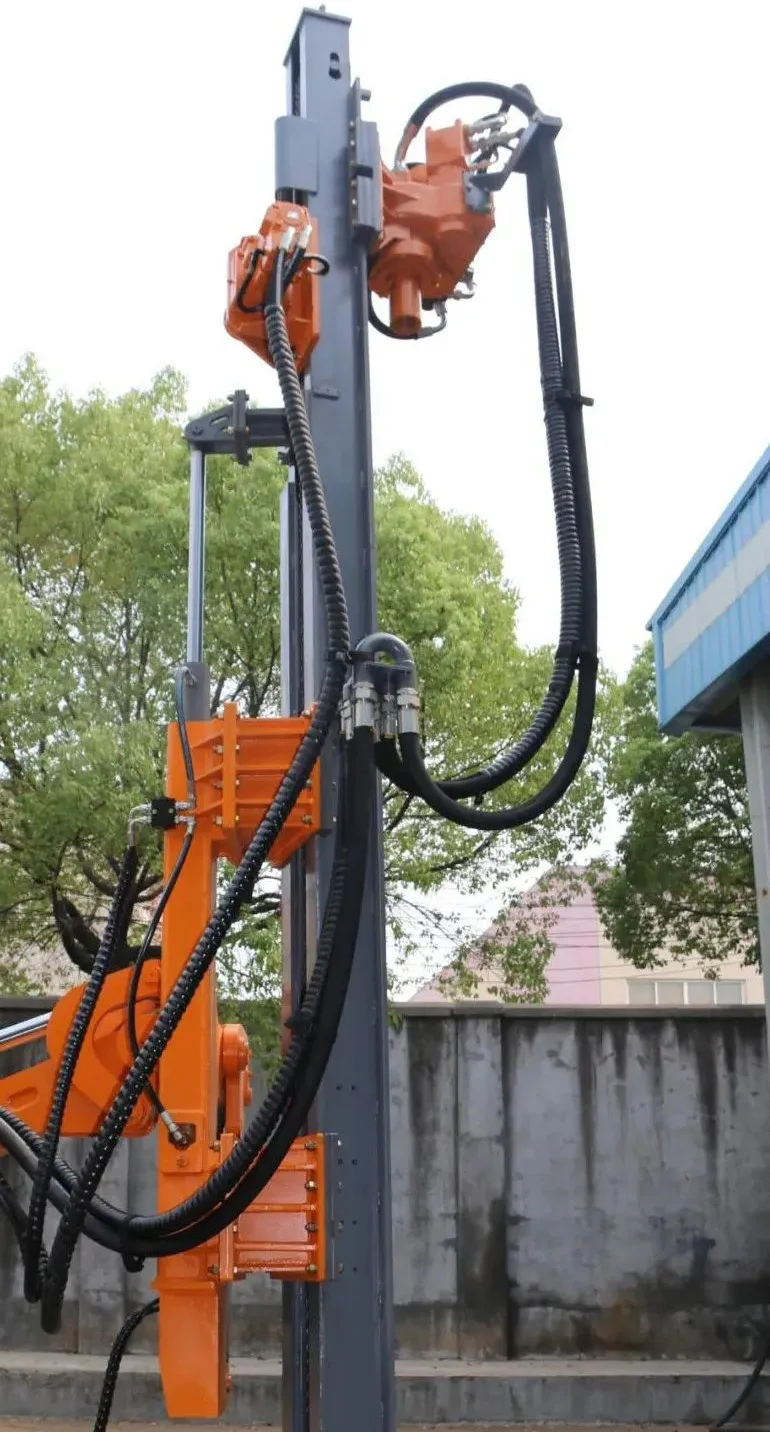

The propulsion beam adopts a 3-meter opening design, which has sufficient space for rod replacement. At the same time, the propulsion system uses a 24A roller motor to propel, with reliable structure and increased propulsion lifting force. The two products are equipped with standard box-type walking beams, national standard engineering single-rib crawlers, additional leveling function, plunger travel motor, powerful climbing, and reliable quality.
Safe and Efficient

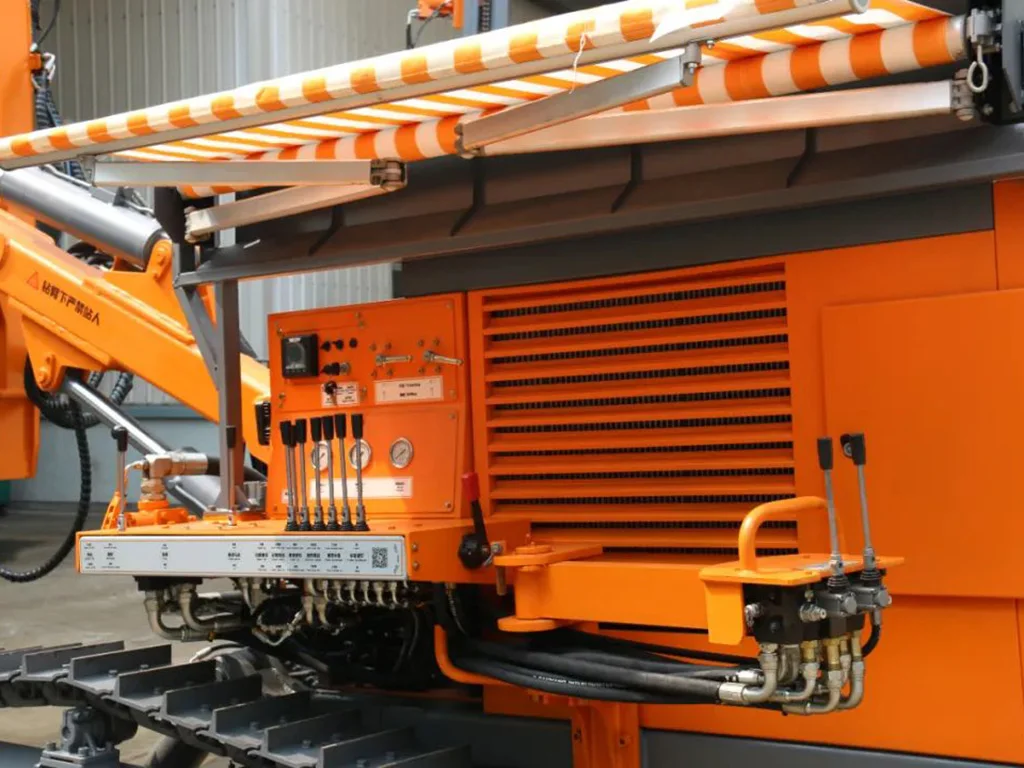

The sunshade is equipped as standard, which is suitable for all kinds of weather, improves the comfort of the operator, and is beautiful and practical.
Strong climbing ability

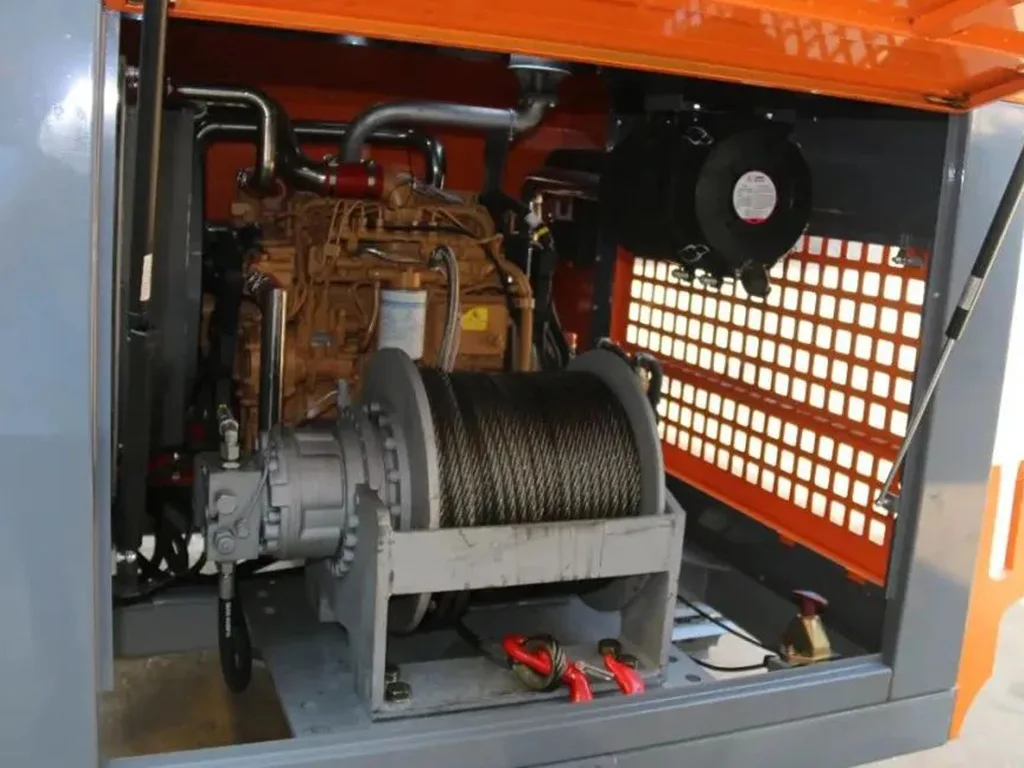

The drilling rig is equipped with a hoist as standard, which has a strong climbing ability and can meet the original steep slope working environment with the cooperation of the hydraulic winch.
Recommend Products
Exhibition & Customer Visiting
Company Profile
Zhengzhou Jialongli Co., Ltd. is a professional company engaged in the development and sales of air compressor production and application equipment. The products are widely used in industrial gas sources, various mining and engineering project construction. The enterprise takes technology development as the core, adheres to the action program of "emphasizing details, seeking efficiency, casting quality and creating the future", and takes "unlimited scientific and technological innovation, high ambition and pioneering" as the business philosophy. Looking around the world, with the confidence of striving for world-class, we will provide customers with products and services, and strive to move forward for the rise of China's national equipment manufacturing industry and the construction of green mine engineering.
Spare Parts Area
Parts Production Area
Parts Production Line
Parts Production Line
Machine Production Workshop
Production Line Equipment
Drilling Rig Production Area 1
Drilling Rig Production Area 2
Production Line Equipment
Why Choose Us
FAQ
Q1: Why customer choose us?
A: JiaLongLi are specialized in DTH Drilling Rig, Underground Loader, Water Well Drilling Rig. Germany Standard and 10 years exporting experience help us won more than 50 loyal foreign agents. We warmly welcome your small trial order for quality or market test.
Q2: Are you a manufacturer or trading company?
A: We are professional manufacturer with big modern factory in Zhejiang,China. Both OEM & ODM service can be accepted.
Q3: What's your delivery time?
A: Generally 3 to 7 days, if urgently order, pls contact our sales in advance.
Q4: How long is your water well drilling rig warranty?
A: One year for the whole machine, except consumble spare parts.
Q5: How long could your air compressor be used?
A: Generally, more than 10 years.
Q6:What's payment term?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other
currency.
currency.
Q7: How about your customer service?
A: 24 hours on-line service available. 48hours problem sovled promise.
Q8: How about your after-sales service?
A: 1. Provide customers with intallation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3. Worldwide agents and after service avaiable.
