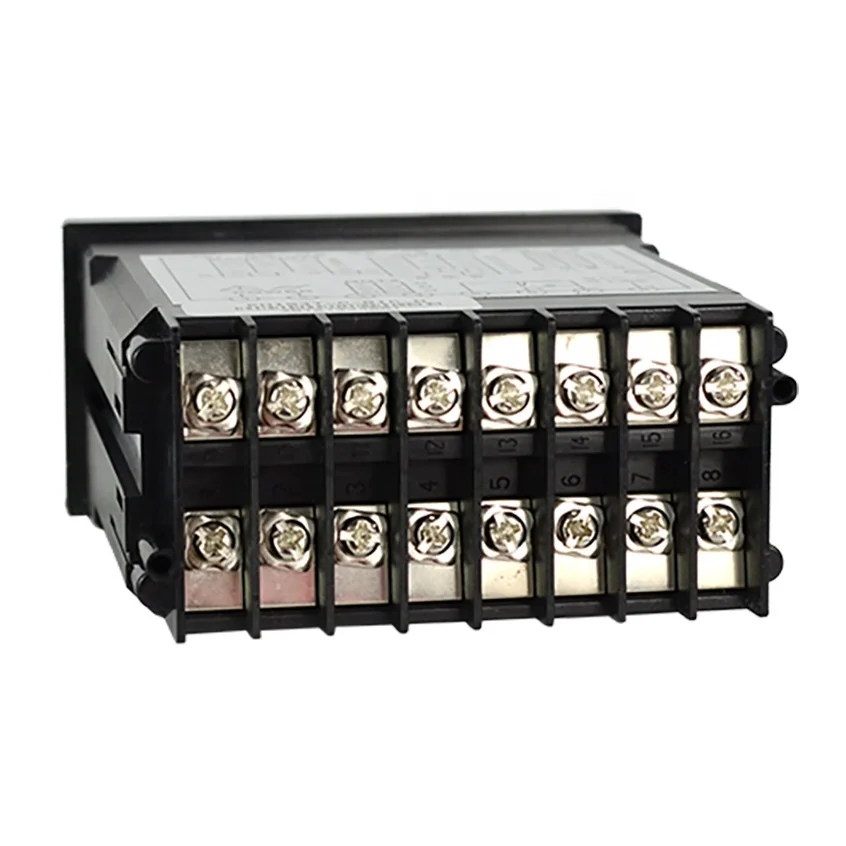

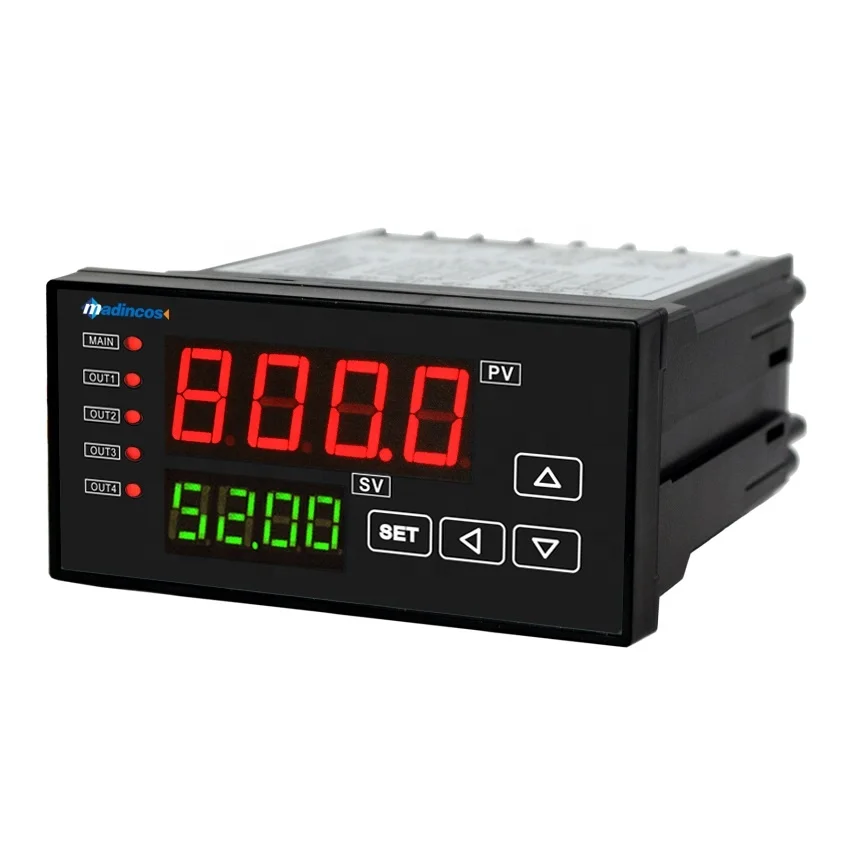

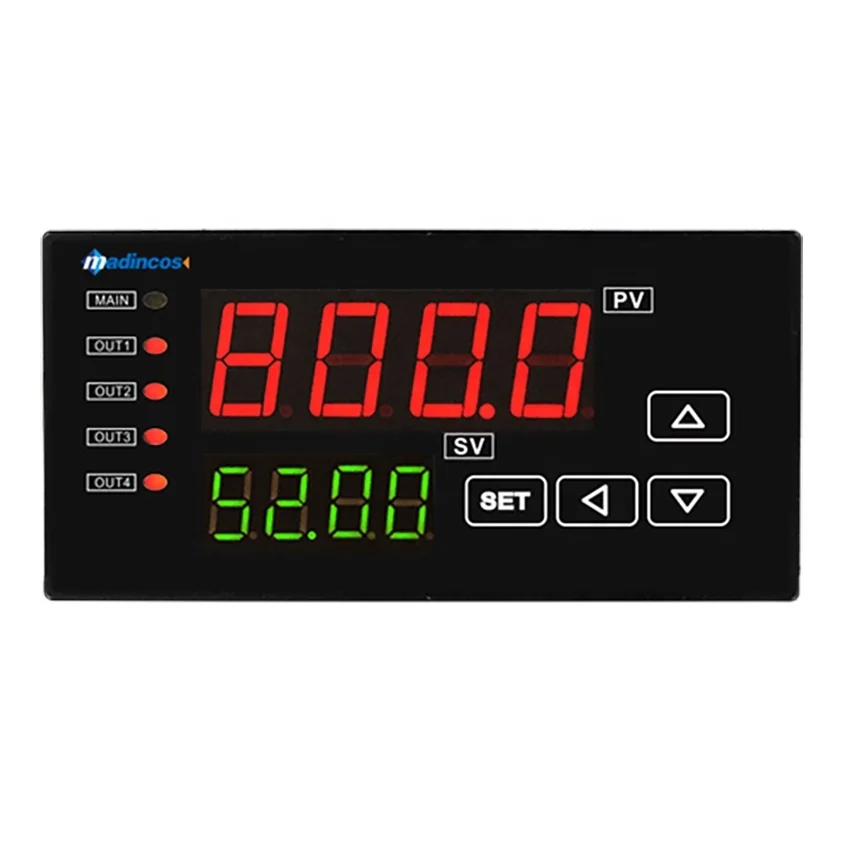

MPD510W:0.2% 7 Segment 4 LED mv/v Load Cell Digital Weight Indicator Controller with optional relay, rs485,4 20ma, 0 10VDC
- Category: >>>
- Supplier: Xiamen Madincos Automation Co. Ltd.
Share on (1600737144672):
Product Overview
Description

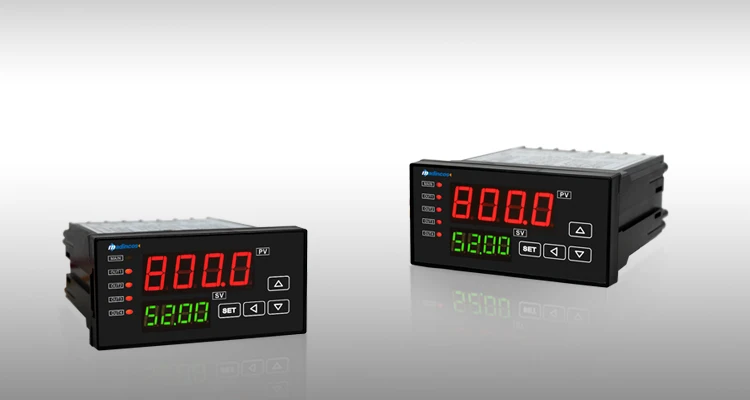

Product Show
0.2% 7 Segment 4 LED mv/v Load Cell Digital Weight Indicator Controller with optional relay, rs485,4-20ma, 0-10VDC MPD510Q
Specificaiton Model No.: MPD510W | ||||||
Accuaracy | Accuracy | ±(0.2%FS +1) digital | ||||
Power Supply | 100-240VAC;24VDC | |||||
Size/Installation Size | 96x48x100mm | |||||
Display | 4 digit, 7 segement LED display | |||||
Range | -999 to 9999 | |||||
Response time | ＜1second when fliter=0 | |||||
Input Specification | ||||||
Input Type | mv/v form load cell, please kindly advise the input range when order | |||||
Decimal | 0-4 , programmable | |||||
Filter | 0-99, programmable | |||||
Offset | 0-2000, programmable | |||||
Hysteresis | 0-2000, programmable | |||||
Modular Output Specification: OUT1:OUT2,OUT3 optional | ||||||||
Relay (optional) | NO, NC, NO+NC, 0.8A | |||||||
Communication (Optional) | isolated RS485 ,RS232 standard Modbus-rtu protocol, | |||||||
Retransmission (optional) | isolated 4-20ma 2 wire retranmission output | |||||||
Feed (optional) | isolated 10VDC built in as excitating power supply for load cell | |||||||
PC software (Communication), optional | Powerful software function: to display and real time minitor in PC for data in digital curve, Print Data and export the data to excel for further analysi; while memory the data automatically in PC | |||||||
Detailed Images

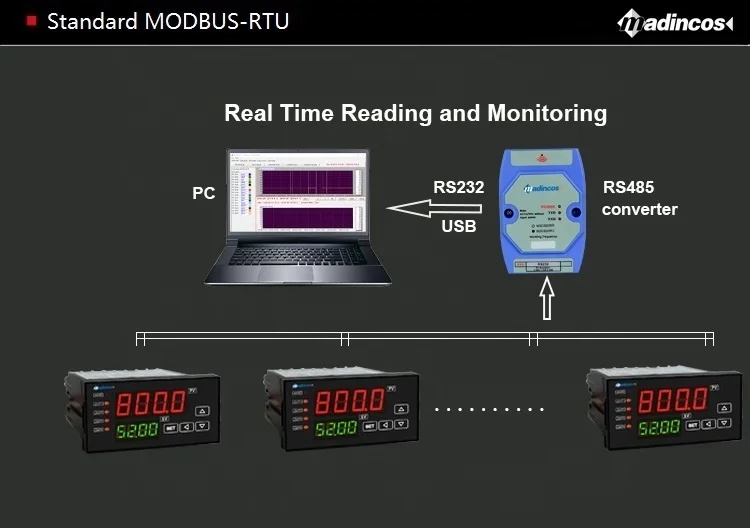

*RS485,RS232 Serial Communication for Real Time Reading and Monitoring in PC remotely(Optional）
*Photoeltrical Isoalted RS485,RS232 MODBUS- RTU Comm.
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server for real time reading and monitoring in control room remotely
*Standard MODBUS-RTU protocol, can be configurable flexibly with SCADA, DCS, PLC, HMI, OPC server for real time reading and monitoring in control room remotely
*Baudrate: 9600 default, 4800,19200.
*Address: 1 to 254
*Address: 1 to 254
*Powerful PC software (Optional)
Our DCS software can achieve real time monitoring and reading while memory data in PC automatically, user-friendly
* Display the real time data in digital and curve type in PC softwae to read and monitoring in PC remotely.
* Memoried data can be displayed in digital and curve type too, also can print the curve data by printer, also can export the data as excell for further analysis.
* Memoried data can be displayed in digital and curve type too, also can print the curve data by printer, also can export the data as excell for further analysis.
Packing & Delivery
Packaging | ||
Size | 96(L) * 48 (W) * 100(D)mm | |
Weight | 0.3kg per pc | |
Packaging &Delivery | Package: The normal package is paper box. PC+Bubble box +paper box with prection further to garantee the delivery the goods to you great. Delivery: by DHL, TNT, UPS, FEDEX; by air, by sea | |
