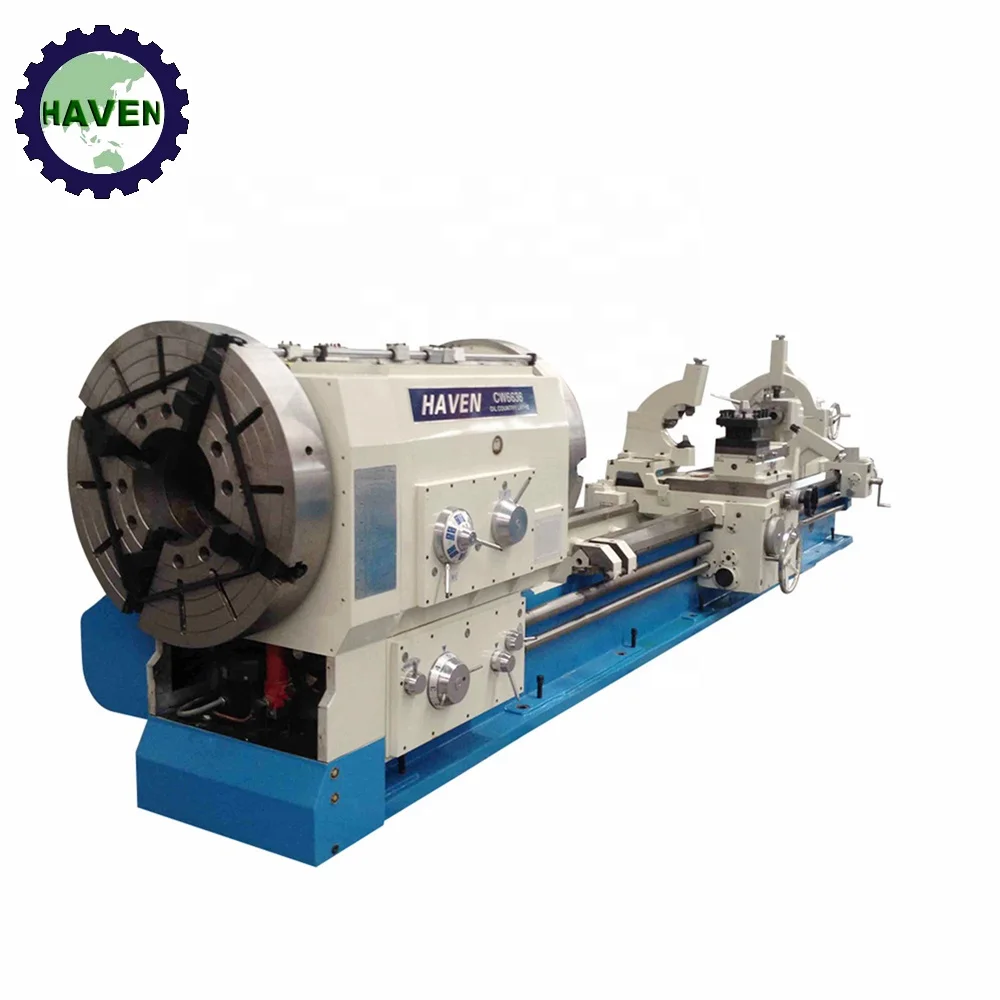

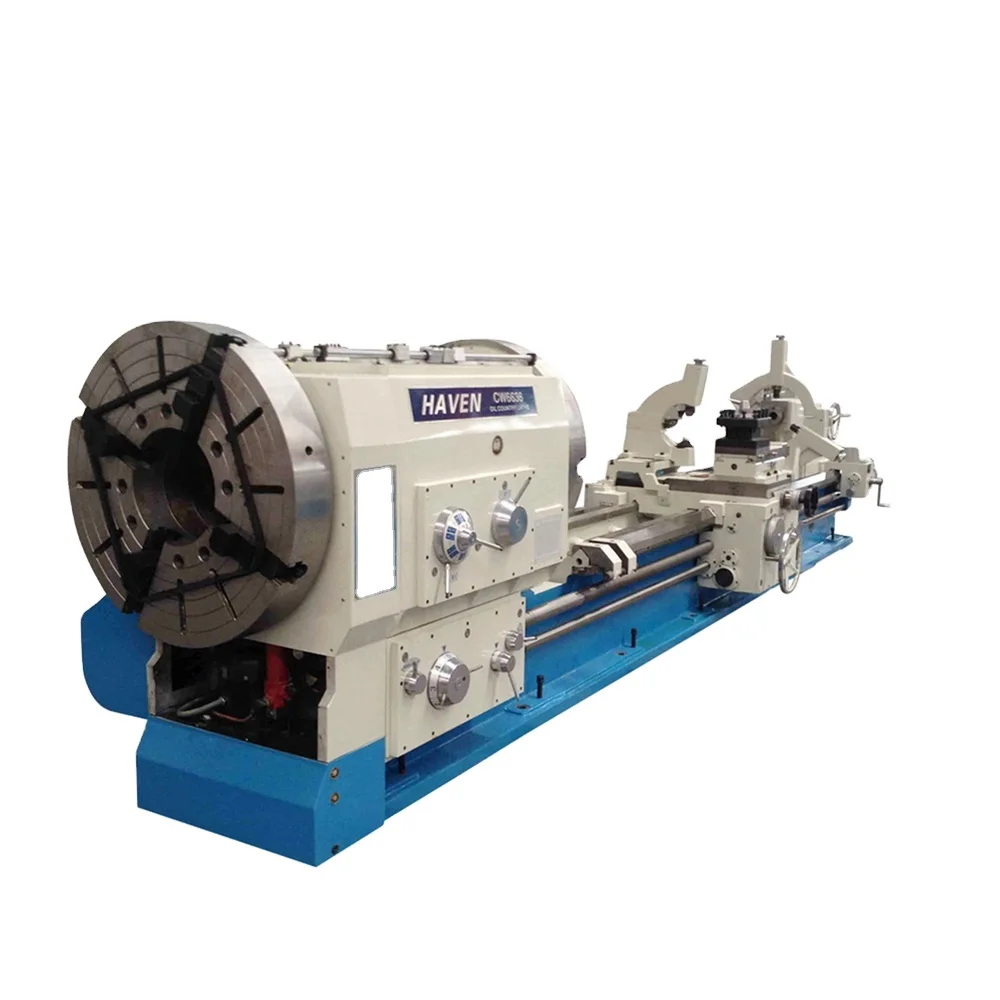

Factory Direct cnc lathe machine vertical lathe cnc machine mini cnc lathe machine automatic
- Category: >>>
- Supplier: Shaanxi Haven Equipment Co. Ltd.
Share on (1600737225536):
Product Overview
Description
Company Information
Main Specification
Max. swing over bed 1000 mm
Max. swing over carriage 640 mm
Distance between two centers 2000mm
Width of bed 755 mm
Diameter of spindle inner hole 360 mm
Min. clamped diameter of chuck 240 mm
Range of spindle speed 6.3 to 315 r.p.m. with 18 steps
Main motor power 22 kW
Kind of metric thread and pitch range 56 kinds 1 to 120 mm
Kind of Whitworth thread and range 37 kinds 30 to 1.125 teeth/in.
Kind of modular thread and range 46 kinds 0.5 to 60 mm
Kind of radial thread and range 46 kinds 0.5 to 60 D.P.
With 4 way toolpost
Tool section ( H×W ) 45×45 mm
Max. travel of tool post 300 mm
Max. travel of cross slide 695 mm
Rapid traverse of tool post longitudinal 3740 mm/min
cross 1870 mm/min
up tool post 935 mm/min
Diameter of tailstock sleeve 160 mm
Travel of tailstock sleeve 300 mm
Taper for taper hole of tailstock sleeve Metric No. 80
Machining length of taper scale 300 mm Taper turning, ±1:4
Net dimension of machine about 4860x2120x2280mm
Gross weight of machine about 10000 kgs
Automatic lubrication for gearbox, but surface of guide ways manully
Overload safety device
Accessories supplied with machine:
4-jaw manual chuck with steel body, dia. of 800 mm, 2 sets
Steady rest (fixed steady), range 50 to 590 mm with bearing type, 1 set
Follow rest (traveling steady with tips), Range 50 to 220 mm 1 set
Cooling system, 1 set
Lighting device, 1 set
Taper turning device, length 300 mm, 1 set
Dead center, 1 piece
Center sleeve, 1piece
Set of machine operating tools
