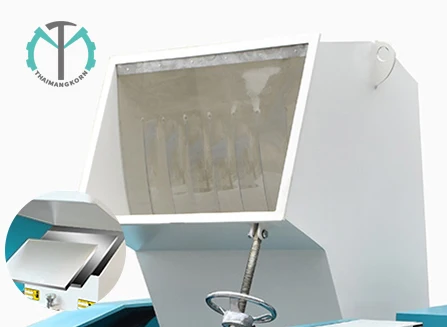

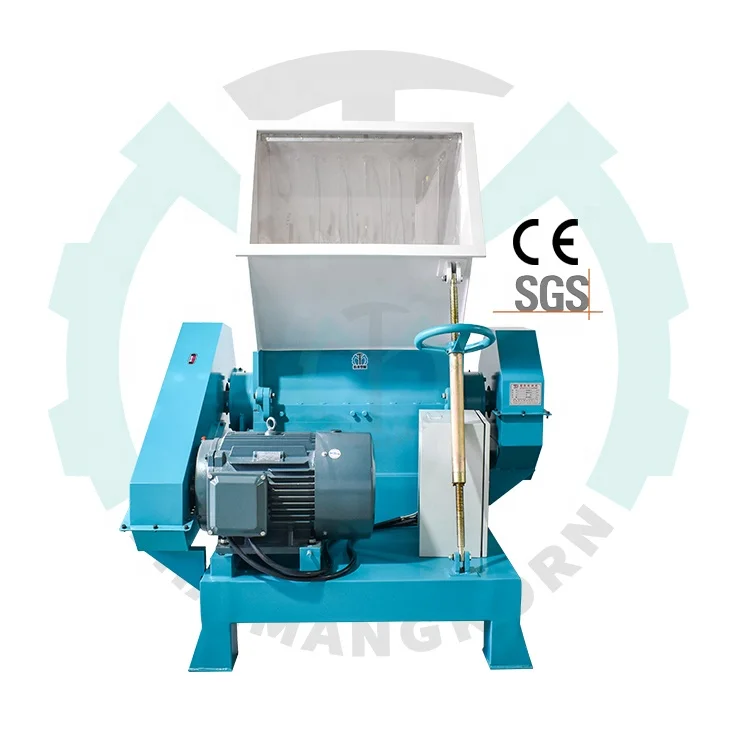

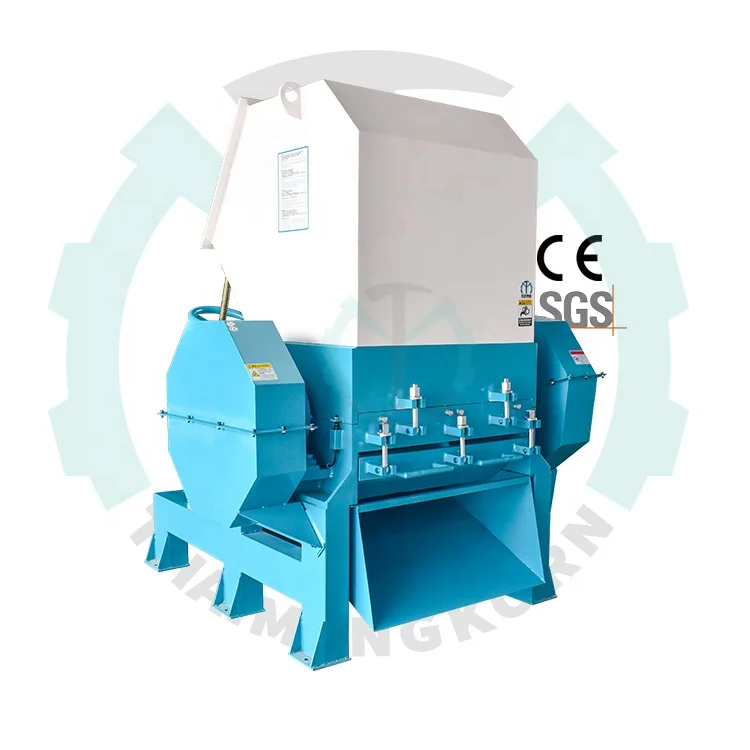

22KW Plastic Bottle Crushing Making Machine Plastic Crusher for Plastic Blowing Machine
- Category: >>>
- Supplier: Guangzhou Tyrone Environmental Technology Co. Ltd.
Share on (1600737258258):
Product Overview
Description

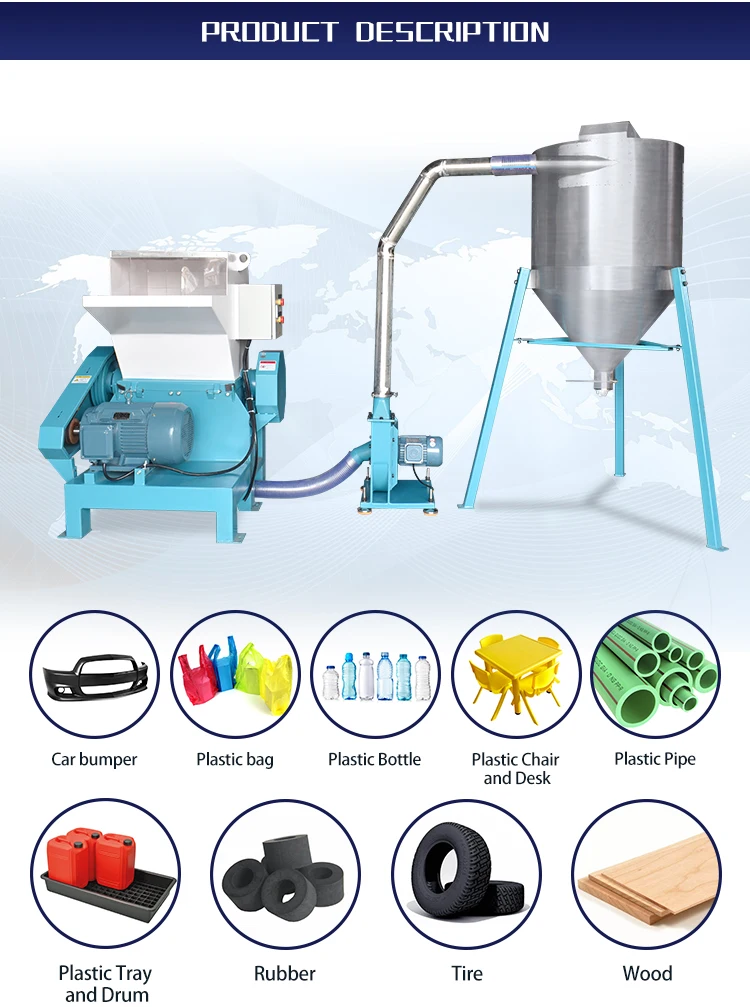

Product Description
Item | TLG6246 | TLG8146 | TLG1265 | TLG1660 | ||||
Crushing chamber | 635*360 | 810*460 | 1230*650 | 1600*650 | ||||
Crushing Capacity (kg/h) | 400-600 | 550-800 | 800-1500 | 800-2000 | ||||
Power | 30hp/22kw | 40hp/30kw | 75hp/55kw | 75hp/55kw | ||||
Volt | 380v/50hz/3phase | 380v/50hz/3phase | 380v/50hz/3phase | 380v/50hz/3phase | ||||

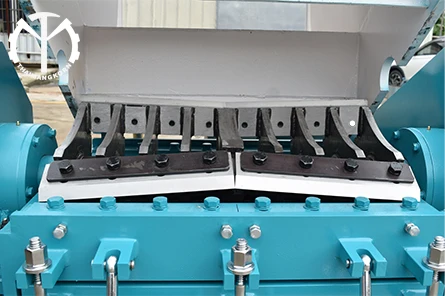

Fixed/ Spinning blade (pcs) | 2/6 | 4/6 | 12/18 | 8/12 | ||||
Speed (r/min) | 480 | 480 | 480 | 480 | ||||
Sieve dia(mm) | 14 or customized | 14 or customized | 20 or customized | 20 or customized | ||||
Form Size(mm) | 1880*1250*1600 | 2100*1485*1700 | 2500*2100*1900 | 2900*2500*2500 | ||||
Net Weight (kg) | 1800 | 2600 | 4500 | 5000 | ||||
Remark: There are other models of the machine, if necessary, please contact the salesman | ||||||||

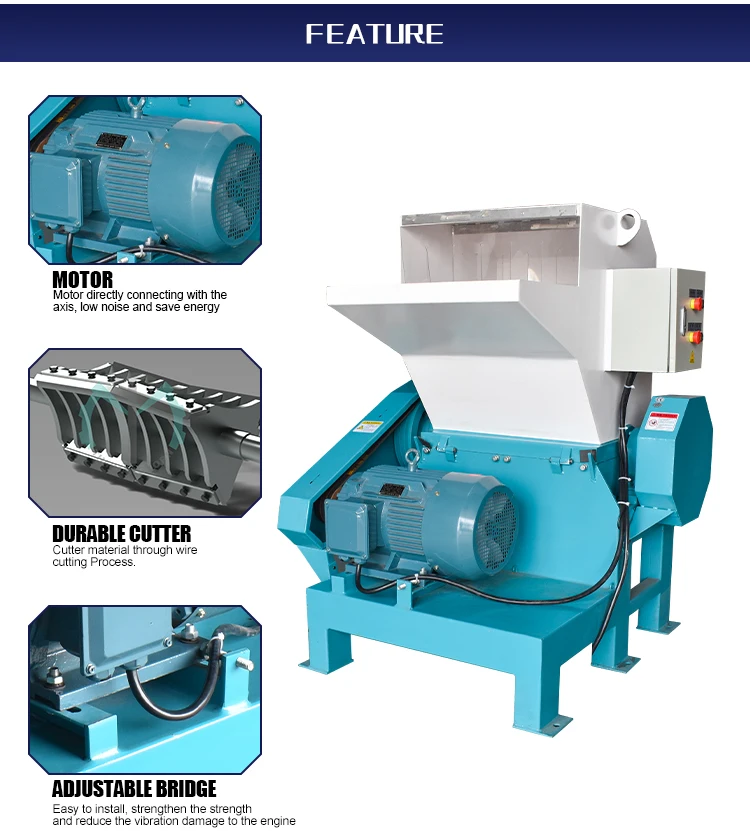

Product details
Customer Use Cases

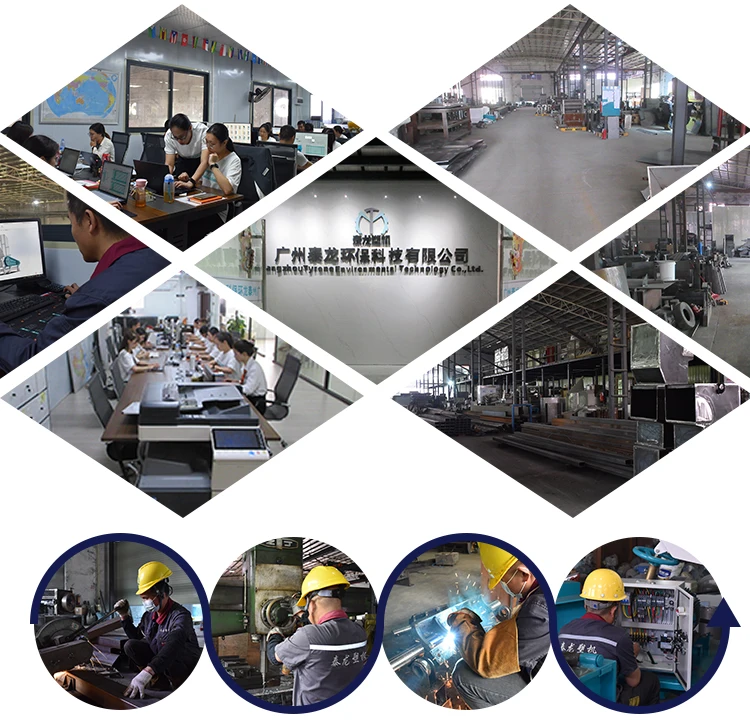

Company Profile

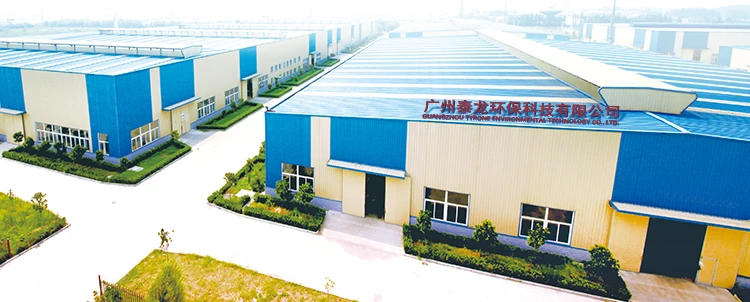

Company Profile
Guangzhou Tyrone was established own company and factory in 2013,The factory covers is over 1000 m²,the annual output can reach 10000 sets. Tyrone is specialized in designing and manufacturing: crushing series, mixing and sieving series, module temperature controlling series, conveying and central feeding system and waste plastic recycling and pelleting machinery equipment etc.
Tyrone’s machine are all with EU standard CE certificate and meeting export criterion.Insists on our business philosophy quality comes first, honesty as the credit, market is the base and reputation creates brand.
Keeps foot in China and towards the world.Raising a never fall sail, sailing in the world.
Tyrone’s machine are all with EU standard CE certificate and meeting export criterion.Insists on our business philosophy quality comes first, honesty as the credit, market is the base and reputation creates brand.
Keeps foot in China and towards the world.Raising a never fall sail, sailing in the world.
